CN213103593U

CN213103593U - Dust removing device

Info

Publication number: CN213103593U
Application number: CN202021035472.8U
Authority: CN
Inventors: 夏定胜
Original assignee: Anhui Shengnong Agricultural Group Co ltd
Current assignee: Anhui Shengnong Agricultural Group Co ltd
Priority date: 2020-06-08
Filing date: 2020-06-08
Publication date: 2021-05-04
Anticipated expiration: 2030-06-08

Abstract

The utility model relates to a rice dust removal technical field, and a dust collector is disclosed, including the dust removal case, the fixed intercommunication of dust removal roof portion center department has rice hopper that falls, the last fixed surface of dust removal incasement portion is connected with a dust removal section of thick bamboo, and seted up the annular chamber on the dust removal section of thick bamboo lateral wall, set up a plurality of evenly distributed's dust absorption mouth on the inner circle lateral wall of annular chamber, the inner wall of a dust removal section of thick bamboo is from last to the fretwork board of the crisscross distribution of a plurality of slopes of fixed connection down in proper order, the fixed intercommunication in bottom of annular chamber has U type pipe, the dust removal case is close to the fixedly connected with water tank on the lateral wall of bottom, the top fixed mounting of water tank has the dust absorption pump, the fixed intercommunication of input of dust absorption pump has the dust absorption pipe. The utility model discloses the convenience carries out abundant thorough dust removal to the rice, and the convenience carries out centralized processing to the dust of getting rid of moreover, avoids the dust to scatter to polluted environment in the air.

Description

Dust removing device

Technical Field

The utility model relates to a rice dust removal technical field especially relates to a dust collector.

Background

The rice is one of the common staple foods in eating, and a large amount of dust is mixed in the rice in the processing process, especially the mixed dust cannot be thoroughly cleaned, so that the dust in the rice needs to be removed, the cleanness of the rice is ensured, and the edible mouthfeel of the rice is improved.

But current rice dust collector is when using, and not only inconvenient fully thoroughly removes dust to the rice, owing to do not set up dust collection device moreover, the dust is in the air of mostly direct discharge, easily causes the pollution to the air.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problems that the dust removal of the rice dust removal device in the prior art is insufficient and the removed dust cannot be centralized.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a dust removal device comprises a dust removal box, wherein a rice dropping hopper is fixedly communicated with the center of the top of the dust removal box, a dust removal barrel is fixedly connected to the upper surface of the inner part of the dust removal box, a ring cavity is formed in the side wall of the dust removal barrel, a plurality of dust suction ports which are uniformly distributed are formed in the side wall of the inner ring of the ring cavity, a plurality of obliquely and alternately distributed hollowed-out plates are sequentially and fixedly connected with the inner wall of the dust removal barrel from top to bottom, a U-shaped pipe is fixedly communicated with the bottom of the ring cavity, a water tank is fixedly connected to the outer side wall, close to the bottom, of the dust removal box, a dust suction pump is fixedly installed at the top of the water tank, a dust suction pipe is fixedly communicated with the input end of the dust suction pump, the other end of the dust suction pipe is fixedly communicated with the U-shaped pipe, a dust discharge pipe is fixedly communicated, the other end of the L-shaped pipe is connected with a dust filtering bag through a sealing butt joint mechanism, and a discharging pipe is fixedly communicated with the side wall of the dust removing box close to the bottom;

the sealing butt joint mechanism comprises an insertion pipe inserted in the L-shaped pipe, a sealing ring is fixedly sleeved on the outer pipe wall of the insertion pipe, one end, far away from the sealing ring, of the insertion pipe is fixedly communicated with the dust filter bag, external threads are arranged on the outer pipe wall of the end portion of the L-shaped pipe, the end portion of the L-shaped pipe is in threaded connection with a matched threaded cylinder, a bearing is fixedly connected in the threaded cylinder, and the inner ring of the bearing is fixedly sleeved with the outer pipe wall of the insertion pipe.

Preferably, a filter screen which is obliquely arranged is fixedly arranged in the water tank, a drain pipe is fixedly communicated with the position of the side wall of the water tank, which corresponds to the lower end of the filter screen, and a valve is arranged on the drain pipe.

Preferably, a matched rice blocking net is fixedly installed in a dust suction port of the annular cavity.

Preferably, a material guide plate is fixedly mounted on the lower surface inside the dust removing box, and the lower end of the material guide plate corresponds to the pipe opening of the discharge pipe.

Preferably, a water inlet pipe is fixedly communicated with the side wall of the water tank close to the top.

Compared with the prior art, the utility model provides a dust collector possesses following beneficial effect:

the dust removal device comprises a dust removal box, a rice falling bucket, a dust removal barrel, an annular cavity, hollowed-out plates, a U-shaped pipe, a water tank, a dust suction pump, a dust suction pipe, a dust discharge pipe, an L-shaped pipe, a sealing butt joint mechanism and a dust filter bag, wherein rice flows into the dust removal box through the rice falling bucket and flows down along a plurality of hollowed-out plates on the inner wall of the dust removal barrel, the dust suction pump is started, dust in the rice is conveniently adsorbed through a plurality of dust suction ports on the annular cavity, the falling time of the rice is delayed by the hollowed-out plates, so that the rice is conveniently and completely dedusted, the dust is introduced into the water tank through the U-shaped pipe, the dust suction pipe and the dust discharge pipe, the dust is conveniently absorbed through water in the water tank, gas after washing is finally discharged through the L-shaped pipe, the dust filter bag is convenient for further filtering the gas, the dust is prevented from being scattered into the air, and the sealing butt, thereby conveniently handle the dust that collects in the dirt filter bag as required.

The part that does not relate to among the device all is the same with prior art or can adopt prior art to realize, the utility model discloses the convenience carries out abundant thorough dust removal to the rice, and the convenience carries out centralized processing to the dust of getting rid of moreover, avoids the dust to scatter to polluted environment in the air.

Drawings

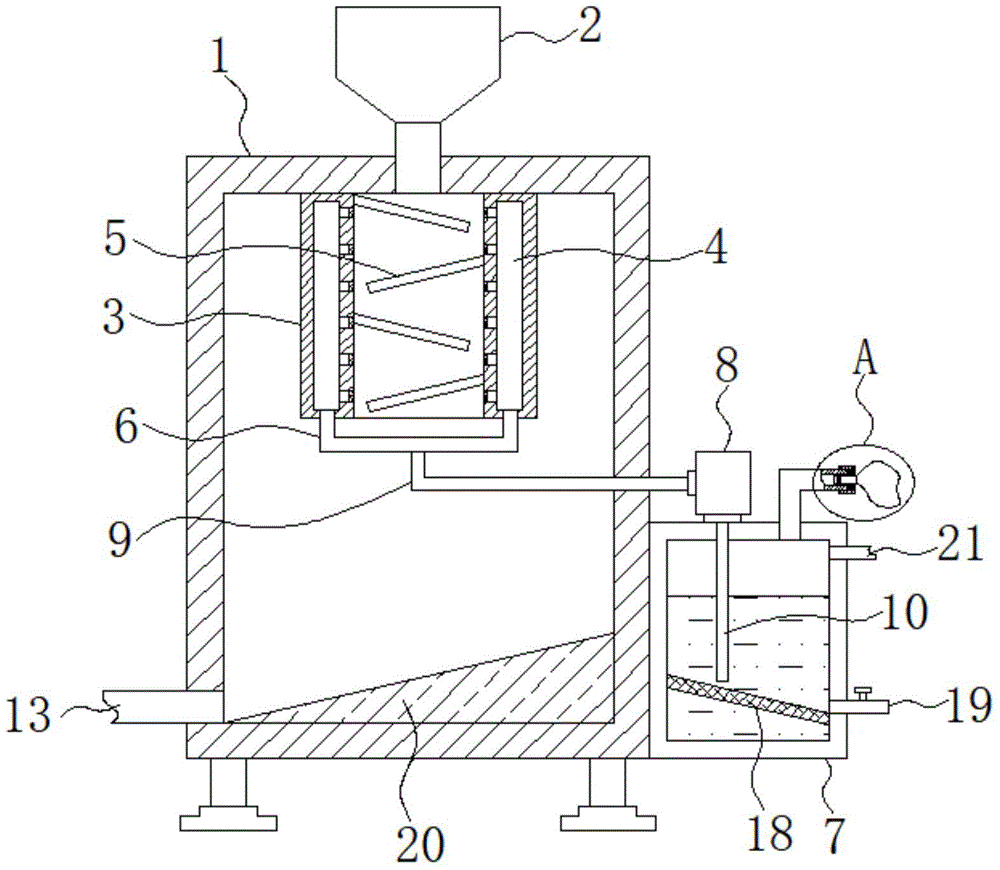

Fig. 1 is a schematic structural view of a dust removing device provided by the present invention;

FIG. 2 is an enlarged view of portion A of FIG. 1;

fig. 3 is a schematic structural view of the hollow-out plate of the dust removing device provided by the utility model.

In the figure: the device comprises a dust removal box 1, a rice dropping bucket 2, a dust removal barrel 3, an annular cavity 4, a hollow-out plate 5, a U-shaped pipe 6, a water tank 7, a dust suction pump 8, a dust suction pipe 9, a dust exhaust pipe 10, an L-shaped pipe 11, a dust filter bag 12, a discharge pipe 13, an insertion pipe 14, a sealing ring 15, a threaded barrel 16, a bearing 17, a filter screen 18, a blow-off pipe 19, a guide plate 20 and a water inlet pipe 21.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-3, a dust removing device comprises a dust removing box 1, a rice dropping bucket 2 is fixedly communicated at the center of the top of the dust removing box 1, a dust removing cylinder 3 is fixedly connected to the upper surface of the inner part of the dust removing box 1, a ring cavity 4 is arranged on the side wall of the dust removing cylinder 3, a plurality of dust collecting ports which are uniformly distributed are arranged on the side wall of the inner ring of the ring cavity 4, a plurality of obliquely and alternately distributed hollow plates 5 are sequentially and fixedly connected to the inner wall of the dust removing cylinder 3 from top to bottom, a U-shaped pipe 6 is fixedly communicated with the bottom of the ring cavity 4, a water tank 7 is fixedly connected to the outer side wall of the dust removing box 1 close to the bottom, a dust collecting pump 8 is fixedly arranged at the top of the water tank 7, a dust collecting pipe 9 is fixedly communicated with the input end of the dust collecting pump 8, the other end of the dust collecting pipe 9 is fixedly communicated, the top of the water tank 7 is fixedly communicated with an L-shaped pipe 11, the other end of the L-shaped pipe 11 is connected with a dust filtering bag 12 through a sealing butt joint mechanism, and the side wall of the dust removing box 1 close to the bottom is fixedly communicated with a discharge pipe 13;

the sealed butt-joint mechanism comprises an insertion pipe 14 inserted in an L-shaped pipe 11, a sealing ring 15 is fixedly sleeved on the outer pipe wall of the insertion pipe 14, one end, far away from the sealing ring 15, of the insertion pipe 14 is fixedly communicated with a dust filtering bag 12, external threads are arranged on the outer pipe wall of the end part of the L-shaped pipe 11, a matched threaded barrel 16 is connected with the end part of the L-shaped pipe 11 in a threaded manner, a bearing 17 is fixedly connected in the threaded barrel 16, an inner ring of the bearing 17 is fixedly sleeved with the outer pipe wall of the insertion pipe 14, rice flows into the dust removing box 1 through the rice falling hopper 2 and falls along the plurality of hollow plates 5 on the inner wall of the dust removing barrel 3, a dust collecting pump 8 is started, dust in the rice is conveniently adsorbed through a plurality of dust collecting ports on the annular cavity 4, the plurality of hollow plates 5 delay the falling time of the rice, so that the rice is conveniently and thoroughly and fully removed, absorb the dust through the water convenience in the water tank 7, gas after the washing is discharged via L type pipe 11 at last, dust filter bag 12 conveniently does further filtration processing to gas, avoid the dust to scatter to the air in, rotate threaded cylinder 16, conveniently drive intubate 14 through bearing 17 and slide along L type pipe 11, thereby conveniently dismantle dust filter bag 12, conveniently handle the dust of collecting in dust filter bag 12, insert intubate 14 in L type pipe 11, the leakproofness of grafting department can be guaranteed to sealing ring 15, it makes it and L type pipe 11 threaded connection to rotate threaded cylinder 16, can accomplish dust filter bag 12's installation.

The filter screen 18 that the slope set up is installed to fixed mounting in the water tank 7, and the fixed intercommunication in position department that the lateral wall of water tank 7 corresponds the filter screen 18 low side has blow off pipe 19, and installs the valve on the blow off pipe 19, opens the valve, through blow off pipe 19 conveniently with the impurity discharge on the filter screen 18.

A matched rice blocking net is fixedly arranged in the dust absorption port of the annular cavity 4, so that rice is prevented from entering the annular cavity 4.

The lower surface fixed mounting of dust removal case 1 inside has stock guide 20, and the low end of stock guide 20 is corresponding with the mouth of pipe of discharging pipe 13, and the rice after the convenient dust removal can thoroughly flow out.

A water inlet pipe 21 is fixedly communicated with the side wall of the water tank 7 close to the top, so that water can be supplemented into the water tank 7 conveniently.

In the utility model, rice flows into the dust removing box 1 through the rice dropping bucket 2, falls along the hollow plates 5 on the inner wall of the dust removing barrel 3, the dust suction pump 8 is started, dust in the rice is conveniently adsorbed through the dust suction ports on the annular cavity 4, the falling time of the rice is delayed by the hollow plates 5, thereby the rice is conveniently and thoroughly dedusted, the dust is introduced into the water tank 7 through the U-shaped pipe 6, the dust suction pipe 9 and the dust exhaust pipe 10, the dust is conveniently absorbed through water in the water tank 7, gas after washing is finally exhausted through the L-shaped pipe 11, the gas is conveniently filtered by the dust filtering bag 12, the dust is prevented from being dispersed into the air, the threaded barrel 16 is rotated, the inserting pipe 14 is conveniently driven to slide along the L-shaped pipe 11 through the bearing 17, thereby the dust filtering bag 12 is conveniently disassembled, the dust collected in the dust filtering bag 12 is conveniently treated, the insertion pipe 14 is inserted into the L-shaped pipe 11, the sealing ring 15 can ensure the sealing performance of the insertion position, and the threaded cylinder 16 is rotated to be in threaded connection with the L-shaped pipe 11, so that the dust filter bag 12 can be installed.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A dust removing device comprises a dust removing box (1) and is characterized in that a rice dropping bucket (2) is fixedly communicated with the center of the top of the dust removing box (1), a dust removing cylinder (3) is fixedly connected to the upper surface of the inner part of the dust removing box (1), a ring cavity (4) is formed in the side wall of the dust removing cylinder (3), a plurality of uniformly distributed dust suction ports are formed in the side wall of an inner ring of the ring cavity (4), a plurality of obliquely and alternately distributed hollowed-out plates (5) are fixedly connected to the inner wall of the dust removing cylinder (3) from top to bottom in sequence, a U-shaped pipe (6) is fixedly communicated with the bottom of the ring cavity (4), a water tank (7) is fixedly connected to the outer side wall of the dust removing box (1) close to the bottom, a dust suction pump (8) is fixedly installed at the top of the water tank (7), and a dust suction pipe (, the other end of the dust collection pipe (9) is fixedly communicated with the U-shaped pipe (6), the output end of the dust collection pump (8) is fixedly communicated with a dust exhaust pipe (10), the other end of the dust exhaust pipe (10) extends to the inner cavity of the water tank (7) to be arranged, the top of the water tank (7) is fixedly communicated with an L-shaped pipe (11), the other end of the L-shaped pipe (11) is connected with a dust filter bag (12) through a sealing butt joint mechanism, and the side wall, close to the bottom, of the dust removal box (1) is fixedly communicated with a discharge pipe (13);

the sealing butt joint mechanism comprises an insertion pipe (14) inserted in an L-shaped pipe (11), a sealing ring (15) is fixedly sleeved on the outer pipe wall of the insertion pipe (14), one end, far away from the sealing ring (15), of the insertion pipe (14) is fixedly communicated with a dust filtering bag (12), external threads are arranged on the outer pipe wall of the end portion of the L-shaped pipe (11), the end portion of the L-shaped pipe (11) is in threaded connection with a matched threaded barrel (16), a bearing (17) is fixedly connected in the threaded barrel (16), and the inner ring of the bearing (17) is fixedly sleeved with the outer pipe wall of the insertion pipe (14).

2. The dust removal device according to claim 1, wherein a filter screen (18) is fixedly arranged in the water tank (7) in an inclined manner, a drain pipe (19) is fixedly communicated with the side wall of the water tank (7) at a position corresponding to the lower end of the filter screen (18), and a valve is arranged on the drain pipe (19).

3. A dust extraction apparatus as claimed in claim 1, wherein a matching rice retaining mesh is fixedly mounted in the dust extraction opening of the annular chamber (4).

4. A dust removing device according to claim 1, wherein a material guiding plate (20) is fixedly arranged on the lower surface of the interior of the dust removing box (1), and the lower end of the material guiding plate (20) corresponds to the pipe opening of the material discharging pipe (13).

5. A dusting device according to claim 1, characterized in that the side wall of the water tank (7) near the top is fixedly connected with a water inlet pipe (21).
