The utility model discloses a vomit receiving device for nursing patients in gastroenterology department, which comprises a base plate and a universal wheel, the lower surface of the base plate is provided with a universal wheel, the upper surface of the base plate is fixedly connected with a sleeve column, the The inner wall of the sleeve column is movably connected with a column, the top of the column is fixedly connected with a bearing plate, the inner wall of the bearing plate is movably connected with a collection box, and a placing box is fixedly connected to the center of the upper surface of the bottom plate, and the placing box is The inner wall of the collecting box is fixedly connected with a partition plate, and one side of the surface of the collecting box is movably connected with a rotatable box cover through a hinge. The vomit receiving device for patient care in the gastroenterology department can conveniently place the collecting box inside the bearing plate through the cooperation between the bottom plate, the universal wheel, the sleeve column, the pillar, the bearing plate and the collection box, and the universal wheel The arrangement makes the device easy to move, which is more superior than the fixed vomit receiving device.

Description

Vomitus supporting device for digestive system department patient nursing

Technical Field

The utility model relates to a gastroenterology is with nursing apparatus technical field, specifically is a gastroenterology patient nurses and uses vomitus supporting device.

Background

The gastroenterology is a clinical third-level subject which mainly studies diseases such as esophagus, stomach, small intestine, large intestine, liver, gallbladder and pancreas, and many patients in the gastroenterology have vomiting phenomena, so in order to maintain the environment of a ward, vomit of the patients needs to be received and disinfected.

When using disposable collection bag to collect at present, need take and strut the collection bag, and spill easily when vomiting, it is comparatively inconvenient to use, and the delay time of taking, some devices that accept the vomitus are placed in certain position mostly for the current, be not convenient for remove, and it is inconvenient to accept the back disinfection to the vomitus, there is certain limitation in the use, consequently, need one kind can be convenient for remove, be convenient for deposit article and carry out sterile device to the vomitus and satisfy current demand.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

To the not enough of prior art, the utility model provides a gastroenterology patient nurses and uses vomitus supporting device has solved the problem of proposing in the above-mentioned background art.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a vomitus supporting device for nursing patients in the department of gastroenterology comprises a bottom plate and universal wheels, wherein the universal wheels are arranged on the lower surface of the bottom plate, sleeve columns are fixedly connected to the upper surface of the bottom plate, supporting columns are movably connected to the inner walls of the sleeve columns, a bearing plate is fixedly connected to the tops of the supporting columns, a collecting box is movably connected to the inner walls of the bearing plate, a placing box is fixedly connected to the center of the upper surface of the bottom plate, a partition plate is fixedly connected to the inner walls of the placing box, a rotatable box cover is movably connected to one side of the surface of the collecting box through hinges, a disinfection barrel is fixedly connected to the inner walls of the box cover, a baffle plate and a limiting frame are fixedly connected to the inner walls of the disinfection barrel, a connecting rod is movably connected to the inner walls of the limiting frame, a blocking block, the surface of the connecting rod is sleeved with a return spring, and the upper surface of the baffle is fixedly bonded with a sealing gasket.

Optionally, one end of the return spring is fixedly connected with the lower surface of the pulling handle, and the other end of the return spring is fixedly connected with the upper surface of the disinfecting cylinder.

Optionally, the upper surface of the sealing gasket is movably connected with the lower surface of the blocking block.

Optionally, one side of the surface of the disinfection cylinder is in threaded connection with a water inlet plug.

Optionally, the surface of the sleeve column is in threaded connection with a clamping bolt, the surface of the support column is fixedly connected with a fixing rod, and the surface of the fixing rod is fixedly connected with a pushing handle.

Optionally, the number of the universal wheels is four, and the four universal wheels are arranged on the lower surface of the bottom plate in a rectangular array.

(III) advantageous effects

The utility model provides a gastroenterology patient nurses and uses vomitus supporting device possesses following beneficial effect:

1. this vomitus supporting device is used in gastroenterology patient's nursing, through the bottom plate, the universal wheel, the cover post, the pillar, cooperation setting between loading board and the collecting box, can be convenient for place the collecting box in the inside of loading board, setting through the universal wheel for the device can be convenient for remove, compare in the fixed vomitus supporting device of placing more possess the superiority, and set up through placing the cooperation between box and the baffle, can place the nursing materials that gastroenterology used in the inside of placing the box.

2. This vomitus supporting device is used in gastroenterology patient's nursing, cooperation setting between through collecting box and the case lid, can make the patient vomit to the inside of collecting box through opening the case lid, cooperation setting between through a disinfection section of thick bamboo and the water inlet plug, can be through opening the water inlet plug to the inside injection disinfectant of the device, through the baffle, the connecting rod, the shutoff piece, the pulling handle, reset spring and the sealed cooperation setting between the pad, can make the shutoff piece carry out the shutoff to the baffle under reset spring's effect, make the disinfectant be located the higher authority of baffle, after vomiting completion closes the case lid, the pulling is the hole that makes the disinfectant pass through the baffle surface, flow to the bottom of a disinfection section of thick bamboo, pass the hole of disinfectant bottom, disinfect the inside of collecting box, and convenient for use.

Drawings

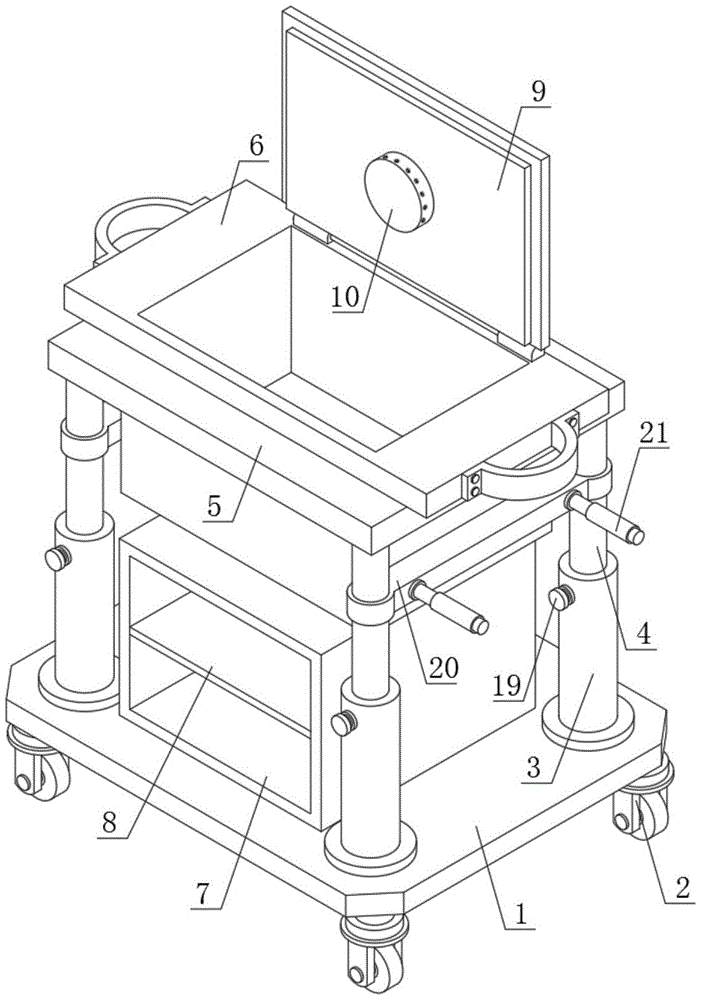

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the structure of the disinfection cylinder of the present invention;

FIG. 3 is a schematic diagram of the structure of the bearing plate of the present invention;

fig. 4 is an enlarged schematic view of a portion a in fig. 2 according to the present invention.

In the figure: 1. a base plate; 2. a universal wheel; 3. sleeving a column; 4. a pillar; 5. a carrier plate; 6. a collection box; 7. placing the box; 8. a partition plate; 9. a box cover; 10. a sterilizing cylinder; 11. a baffle plate; 12. a limiting frame; 13. a connecting rod; 14. a plugging block; 15. pulling the handle; 16. a return spring; 17. a gasket; 18. a water inlet plug; 19. clamping the bolt; 20. fixing the rod; 21. a pushing handle.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1 to 4, the present invention provides a technical solution: a vomitus supporting device for nursing patients in the department of gastroenterology comprises a bottom plate 1 and universal wheels 2, wherein the universal wheels 2 are arranged on the lower surface of the bottom plate 1, and sleeve columns 3 are fixedly connected to the upper surface of the bottom plate 1;

in order to facilitate the movement of the utility model, a pillar 4 is movably connected to the inner wall of the sleeve column 3, a bearing plate 5 is fixedly connected to the top of the pillar 4, a collecting box 6 is movably connected to the inner wall of the bearing plate 5, the collecting box 6 can be conveniently placed inside the bearing plate 5 through the matching arrangement among the bottom plate 1, the universal wheels 2, the sleeve column 3, the pillar 4, the bearing plate 5 and the collecting box 6, the device can be conveniently moved through the arrangement of the universal wheels 2, and the device is superior to a fixedly placed vomitus receiving device;

in order to enable the utility model discloses can be convenient for place nursing materials, and can accept the collection to the vomitus, consequently the center department fixedly connected with of bottom plate 1 upper surface places box 7, the inner wall fixedly connected with baffle 8 of placing box 7, through placing the cooperation setting between box 7 and the baffle 8, can place the nursing materials that gastroenterology used in the inside of placing box 7, one side on collecting box 6 surface is connected with rotatable case lid 9 through hinge activity, through the cooperation setting between collecting box 6 and case lid 9, can make the patient vomit to the inside of collecting box 6 through opening case lid 9, the inner wall fixedly connected with disinfection section of thick bamboo 10 of case lid 9, through the cooperation setting between disinfection section of thick bamboo 10 and water inlet plug 18, can inject disinfectant into the device inside through opening water inlet plug 18;

in order to sterilize the inside of the collecting box 6 after vomit, the inner wall of the sterilizing cylinder 10 is fixedly connected with a baffle 11 and a limiting frame 12, the inner wall of the limiting frame 12 is movably connected with a connecting rod 13, one end of the connecting rod 13 is fixedly connected with a plugging block 14, one end of the connecting rod 13, which is far away from the plugging block 14, is fixedly connected with a pulling handle 15, the surface of the connecting rod 13 is sleeved with a reset spring 16, the upper surface of the baffle 11 is fixedly bonded with a sealing gasket 17, the baffle 11, the connecting rod 13, the plugging block 14, the pulling handle 15, the reset spring 16 and the sealing gasket 17 are arranged in a matching way, so that the plugging block 14 can plug the baffle 11 under the action of the reset spring 16, the sterilized water is positioned above the baffle 11, after the box cover 9 is closed after vomit, the pulling handle 15 leads the sterilized water to pass through holes on the surface of the baffle 11 and flow to the bottom of the, pass the hole of sterilized water bottom, disinfect the inside of collecting box 6, high durability and convenient operation, convenient to use, reset spring 16's one end and the lower fixed surface of pulling 15 are connected, reset spring 16's the other end and the last fixed surface of a disinfection section of thick bamboo 10 are connected, the upper surface of sealed pad 17 and the lower surface swing joint of shutoff piece 14, one side threaded connection on a disinfection section of thick bamboo 10 surface has water inlet plug 18, the surperficial threaded connection of cover post 3 has chucking bolt 19, the fixed surface of pillar 4 is connected with dead lever 20, the fixed surface of dead lever 20 is connected with and pushes away 21, the quantity of universal wheel 2 is four, and four universal wheels 2 set up the lower surface at bottom plate 1 with rectangular array's form.

In summary, the vomit receiving device for nursing the patient in the department of gastroenterology comprises the following use steps:

1. the collecting box 6 is placed in the bearing plate 5, and the universal wheels 2 are arranged, so that the device can be moved conveniently, and the device has better superiority compared with a fixedly placed vomitus receiving device;

2. the device can place nursing articles for the department of gastroenterology in the placing box 7, and can achieve the function of storing articles;

3. through the cooperation setting between collecting box 6 and the case lid 9, can make the patient vomit to the inside of collecting box 6 through opening case lid 9, through opening into water stopper 18 and to the inside injection sterile water of the device, through baffle 11, connecting rod 13, blocking piece 14, the pulling is 15, cooperation setting between reset spring 16 and the sealed pad 17, can make blocking piece 14 carry out the shutoff to baffle 11 under reset spring 16's effect, make sterile water be located the higher authority of baffle 11, after vomiting completion closes case lid 9, the pulling makes sterile water pass through the hole on baffle 11 surface 15, flow to the bottom of a disinfection section of thick bamboo 10, pass the hole of sterile water bottom, disinfect the inside of collecting box 6, and convenient for use.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A gastroenterology patient nursing vomit receiving device, comprising a bottom plate (1) and a universal wheel (2), characterized in that: the lower surface of the bottom plate (1) is provided with a universal wheel (2), so The upper surface of the bottom plate (1) is fixedly connected with a sleeve column (3), the inner wall of the sleeve column (3) is movably connected with a support column (4), and the top of the support column (4) is fixedly connected with a bearing plate (5) , a collection box (6) is movably connected to the inner wall of the carrying plate (5), a placing box (7) is fixedly connected at the center of the upper surface of the bottom plate (1), and the inner wall of the placing box (7) is fixedly connected There is a partition (8), one side of the surface of the collecting box (6) is movably connected with a rotatable box cover (9) through a hinge, and the inner wall of the box cover (9) is fixedly connected with a sterilizing cylinder (10), A baffle plate (11) and a limit frame (12) are fixedly connected to the inner wall of the disinfection cylinder (10), and a connecting rod (13) is movably connected to the inner wall of the limit frame (12), and the connecting rod (13) ) is fixedly connected with a blocking block (14), one end of the connecting rod (13) away from the blocking block (14) is fixedly connected with a pulling handle (15), and the surface of the connecting rod (13) is sleeved A return spring (16) is connected, and a sealing gasket (17) is fixedly adhered to the upper surface of the baffle plate (11).

2. A gastroenterology patient nursing vomit receiving device according to claim 1, characterized in that: one end of the return spring (16) is fixedly connected to the lower surface of the pulling handle (15), and the The other end of the return spring (16) is fixedly connected with the upper surface of the sterilizing cartridge (10).

3 . The vomit receiving device for patient care in gastroenterology according to claim 1 , wherein the upper surface of the sealing gasket ( 17 ) is movably connected with the lower surface of the blocking block ( 14 ). 4 .

4 . The vomit receiving device for nursing patients in gastroenterology according to claim 1 , wherein a water inlet plug ( 18 ) is threadedly connected to one side of the surface of the disinfection cylinder ( 10 ). 5 .

5. A gastroenterology patient nursing vomit receiving device according to claim 1, characterized in that: the surface of the sleeve column (3) is threadedly connected with a clamping bolt (19), and the column (4) A fixed rod (20) is fixedly connected to the surface of the fixed rod (20), and a push handle (21) is fixedly connected to the surface of the fixed rod (20).

6. A gastroenterology patient nursing vomit receiving device according to claim 1, characterized in that: the number of the universal wheels (2) is four, and the four universal wheels (2) It is arranged on the lower surface of the base plate (1) in the form of a rectangular array.
