The utility model relates to a portable large capacity rubbish linkage that can disinfect, including hanging the support body, hang the support body including preceding baffle, the backplate, the bottom keeps off the piece, insert the lid and lie in before baffle and the backplate between foldable side keep off the piece, preceding baffle, backplate and foldable side keep off the piece and enclose the synthesis chamber that holds in the bottom fender top, the detachable interpolation of interpolation lid is in the top of preceding baffle and backplate, foldable side keeps off the top one end of piece and is equipped with the metal hook, the top of one of them of two interpolation lids is equipped with antiseptic solution sprinkling mechanism, antiseptic solution sprinkling mechanism's spout is aimed at and is held the intracavity, the medial surface of two interpolation lids all is equipped with first adsorption apparatus, two interpolation lids closely laminate through first adsorption apparatus. The utility model discloses a formula is closed to magnetism, and convenient to use from taking the disinfection function, safety and sanitation can realize that the large capacity is deposited, are fit for hanging in the treatment car side, and the closely disposed rubbish of being convenient for can realize portablely, satisfies the needs of usual treatment, has the practicality.
Description
Technical Field
The utility model belongs to the technical field of clinical care apparatus, concretely relates to portable large capacity rubbish linkage that can disinfect.
Background
Every treatment car generally can be equipped with various different garbage bins clinically, but the capacity is all very little, and ordinary fluid infusion volume is many or when treatment is many, and every hour cleaner all need go to empty once, not only extravagant manpower and materials, and the waste classification who empties can not handle immediately after placing and transport moreover, can pile up in the processing room usually. Except placing garbage, the disposal room can also be used for allowing a patient to frequently go in and out to discard medical waste such as urine pads and the like and polluted clothes, the patient can easily collide with the garbage pile carelessly, the falling risk of the patient is increased, and some families can even take away used infusion leather strips and bottles privately, so that the infection risk is increased. Existing waste containment devices do not meet the needs of ordinary therapy.
SUMMERY OF THE UTILITY MODEL
In view of this, the present invention provides a portable large-capacity garbage hanging device capable of being sterilized, so as to solve the problems of the garbage can being too small and needing to go and back and dump repeatedly, etc. clinically, and to solve the deficiencies in the prior art.
In order to achieve the above purpose, the purpose of the present invention is achieved by the following technical solutions:
the portable high-capacity garbage hanging device capable of being disinfected comprises a hanging frame body, wherein the hanging frame body comprises a front baffle, a rear baffle, a bottom blocking piece, an inserting cover and a folding type side blocking piece located between the front baffle and the rear baffle, the front baffle, the rear baffle and the folding type side blocking piece are arranged above the bottom blocking piece in a surrounding mode to form an accommodating cavity, the inserting cover is detachably inserted and covered on the tops of the front baffle and the rear baffle, one end of the top of the folding type side blocking piece is provided with a metal hook, the top of one of the two cover plates is provided with a disinfectant spraying mechanism, a nozzle of the disinfectant spraying mechanism is aligned to the accommodating cavity, the inner side faces of the two inserting covers are respectively provided with a first adsorption mechanism, and the two inserting covers are tightly attached through the first adsorption mechanisms.
As aforementioned can sterile portable large capacity rubbish linkage, the metal couple has two, antiseptic solution sprinkling mechanism includes inside cavity and locates two metal pole between the metal couple and locate shower nozzle pole on the metal pole, be equipped with antiseptic solution storage chamber in the metal pole, the top of metal pole is equipped with antiseptic solution and adds the mouth, the shower nozzle pole metal pole with antiseptic solution storage chamber intercommunication, on the shower nozzle pole with the junction of metal pole is equipped with the pressure pump.
According to the portable high-capacity garbage hanging device capable of being disinfected, the spray head rod is of a telescopic structure, and the spray head rod is rotatably connected with the metal rod.
According to the portable high-capacity garbage hanging device capable of being sterilized, the inserting cover comprises a front side plate, a rear side plate and a top plate arranged between the front side plate and the rear side plate, second adsorption mechanisms are arranged on the inner side surface of the top plate, the top of the front baffle plate and the top of the rear baffle plate, and the inserting cover is tightly attached to the top of the front baffle plate and the top of the rear baffle plate through the second adsorption mechanisms.
Like aforementioned portable large capacity rubbish linkage that can disinfect, first adsorption device is neodymium iron boron magnetism stone strip, second adsorption device is neodymium iron boron magnetism stone.
The foldable side baffle is completely unfolded to form an isosceles trapezoid structure or a square structure with a wide upper part and a narrow lower part.
According to the portable high-capacity garbage hanging device capable of being sterilized, the outer side face of the inserting cover is provided with the classification label.
According to the portable high-capacity garbage hanging device capable of being sterilized, the lower side of the bottom stopper is provided with the bottom baffle, the bottom of the front baffle and the bottom of the rear baffle respectively extend downwards to form supporting legs connected with the bottom baffle, and the area of the bottom baffle is smaller than that of the bottom stopper.
The utility model discloses technical scheme's beneficial effect is:
adopt magnetism to inhale the formula closed, convenient to use from taking the disinfection function, safety and sanitation can realize that the large capacity is deposited, is fit for hanging in the treatment car side, and the closely refuse disposal of being convenient for also can realize portablely, satisfies the needs of usual treatment, has the practicality.
Drawings
To further illustrate the above objects, structural features and effects of the present invention, the present invention will be described in detail with reference to the accompanying drawings.

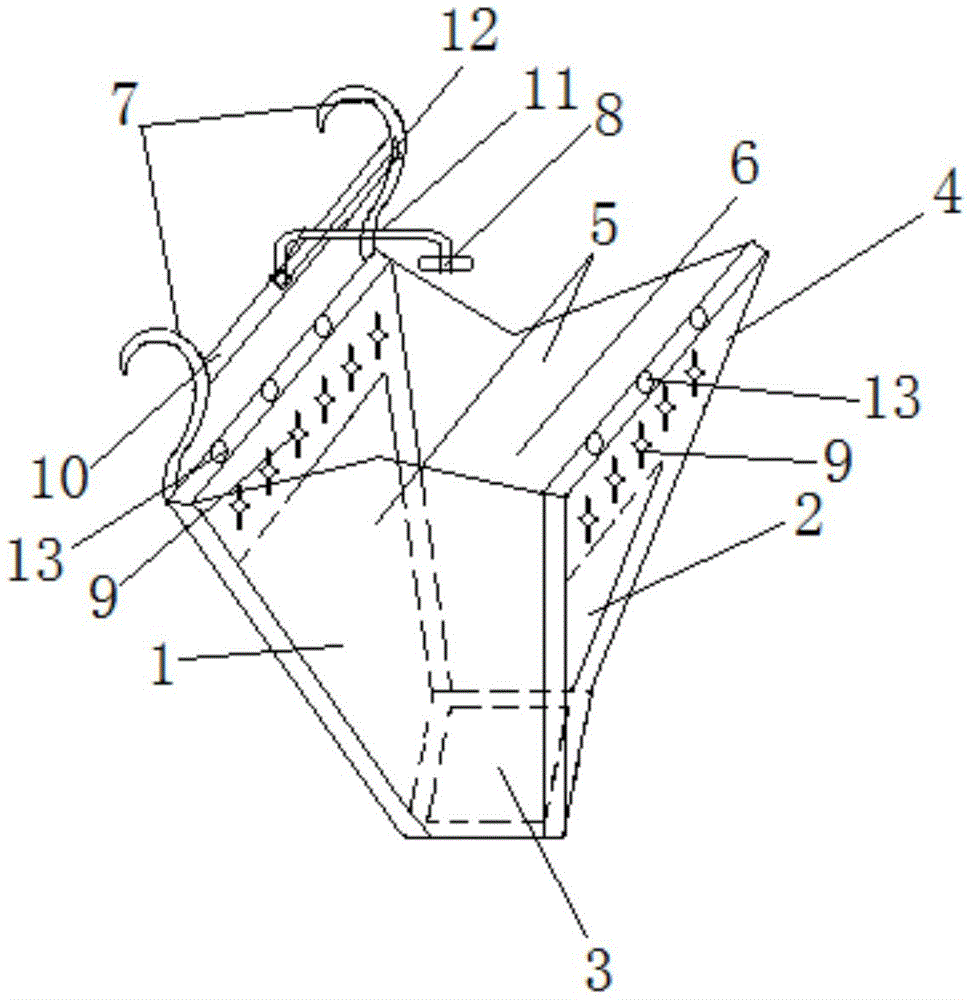

FIG. 1 is a schematic view of the overall structure of a preferred embodiment of the present invention;
fig. 2 is a schematic view of the mutual positions of the plug cover and the front baffle according to a preferred embodiment of the present invention.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and specific embodiments, but the present invention is not limited thereto.
Please refer to fig. 1, the portable high-capacity garbage hanging device capable of being sterilized of the present invention includes a hanging frame body, the hanging frame body includes a front baffle 1, a rear baffle 2, a bottom blocking member 3, a plug cover 4 and a folding side blocking member 5 between the front baffle 1 and the rear baffle 2, the front baffle 1, the rear baffle 2 and the folding side blocking member 5 surround and form a containing cavity 6 above the bottom blocking member 3, the plug cover 4 is detachable and covers the top of the front baffle 1 and the rear baffle 2, and the top end of the folding side blocking member 5 is provided with a metal hook 7. The top of one of them of two apron 4 is equipped with antiseptic solution spraying mechanism, and in the spout 8 alignment of antiseptic solution spraying mechanism held chamber 6, two medial surfaces of inserting lid 4 all were equipped with first adsorption device 9, and two are inserted lid 4 and are closely laminated through first adsorption device 9.
In the preferred embodiment, there are two metal hooks 7, and the garbage hanging device can be hung on any device with a railing outside through the two metal hooks 7. Antiseptic solution sprinkling mechanism includes inside cavity and locates metal pole 10 between two metal hook 7 and locates nozzle rod 11 on the metal pole 10, is equipped with antiseptic solution storage chamber in the metal pole 10, and the top of metal pole 10 is equipped with antiseptic solution and adds the mouth, and nozzle rod 11, metal pole 10 and antiseptic solution storage chamber intercommunication are equipped with the pressure pump 12 with the junction of metal pole 10 on the nozzle rod 11, and preferably, nozzle rod 11 is swivelling joint with metal pole 10. The metal rod 10 is a hollow rod, disinfectant can be added in the metal rod, and a rotatable spray head rod 11 is arranged on the metal rod to facilitate direct disinfection of garbage after treatment. The skilled artisan will appreciate that the hollow rod structure may be formed by any suitable process, such as drilling, in-situ casting, or additive manufacturing (e.g., 3D printing). It will be appreciated that the position of the spray head stem 11 should be well above the top surface of the folding side barrier 5 to provide a sufficient disinfectant depression stroke range.
In order to control the spraying range of the disinfectant, the nozzle rod 11 may be designed to be telescopic.
Referring to fig. 2, the plug cover 4 includes a front side plate 41, a rear side plate 42, and a top plate 43 disposed between the front side plate 41 and the rear side plate 42, the inner side surface of the top plate 43, the top of the front baffle 1, and the top of the rear baffle 2 are all provided with a second adsorption mechanism 13, and the plug cover 4 is tightly attached to the tops of the front baffle 1 and the rear baffle 2 through the second adsorption mechanism 13. The arrows in the figure indicate the insertion direction of the insertion cover 4.
Generally, neodymium iron boron magnetism stone strip is chooseed for use to first adsorption mechanism 9, and the less neodymium iron boron magnetism stone of volume is then chooseed for use to second adsorption mechanism 13, and neodymium iron boron magnetism stone is regarded as a tombarthite permanent magnet material, has very high magnetic properties, can understand about can providing magnetic material the utility model discloses be not limited to this.
With continued reference to the drawings, the folding side stoppers 5 are fully unfolded and then have an isosceles trapezoid structure or a square structure with a wide top and a narrow bottom.
The outer side of the inserting cover 4 is provided with a classification label which can mark garbage classification names.
The lower side of the bottom stopper 3 is provided with a bottom baffle, the bottom of the front baffle 1 and the bottom of the rear baffle 2 are respectively extended downwards to form supporting legs connected with the bottom baffle, and the area of the bottom baffle is smaller than that of the bottom stopper 3. The design can avoid the situation that the garbage bag is damaged when the weight of the garbage is too heavy, and a better supporting effect is achieved.
During the specific processing, the front baffle 1 and the rear baffle 2 can be made of 10cm × 30cm × 1cm stainless steel plates, the insertion cover 4 is made of acrylic plates, the foldable side baffle 5 can be made of a washable sailcloth bag, and the top end of the stainless steel plate is provided with a plurality of magnetic absorption stones, namely the second absorption mechanism 13, in the preferred embodiment, 3-4 magnetic absorption stones. The inner side surface of the top plate 43 of the external inserting cover 4 is also provided with 3-4 magnets corresponding to the positions of the magnetic stones on the stainless steel plate. After the garbage bag is sleeved on the stainless steel plate, the insertion cover 4 is inserted into the insertion cover, the upper magnet and the lower magnet can suck the garbage bag, and the garbage bag can be prevented from falling. The top of the inner side surfaces of the front baffle plate 1 and the rear baffle plate 2 is provided with a first adsorption mechanism 9, and the first adsorption mechanism 9 can also be two magnetic suction strips which are distributed up and down. After the garbage is treated by the cleaner, the suspension frame body can be closed by slightly pushing the front baffle 1 or the rear baffle 2. Two supporting legs are arranged below the two stainless steel plates respectively, the bottom baffle on the lower side is preferably made of stainless steel plates with the thickness of 15cm multiplied by 15cm, and when the weight of garbage is too heavy, a certain supporting effect can be achieved, and the garbage bag cannot be damaged.
The utility model discloses a formula is closed to magnetism, and convenient to use from taking the disinfection function, safety and sanitation can realize that the large capacity is deposited, are fit for hanging in the treatment car side, and the closely disposed rubbish of being convenient for also can realize portablely, satisfies the needs of usual treatment, has the practicality.
The above is only a preferred embodiment of the present invention, and not intended to limit the scope of the invention, and it should be appreciated by those skilled in the art that various equivalent substitutions and obvious changes made in the specification and drawings should be included within the scope of the present invention.
Claims (8)
1. A portable high-capacity garbage hanging device capable of being disinfected is characterized by comprising a hanging frame body, wherein the hanging frame body comprises a front baffle plate (1), a rear baffle plate (2), a bottom baffle plate (3), an inserting cover (4) and a folding type side baffle plate (5) positioned between the front baffle plate (1) and the rear baffle plate (2), the front baffle plate (1), the rear baffle plate (2) and the folding type side baffle plate (5) are arranged above the bottom baffle plate (3) in a surrounding mode to form a containing cavity (6), the inserting cover (4) is detachably inserted and covered on the tops of the front baffle plate (1) and the rear baffle plate (2), one end of the top of the folding type side baffle plate (5) is provided with a metal hook (7), the top of one of the two inserting covers (4) is provided with a disinfectant spraying mechanism, and a nozzle (8) of the disinfectant spraying mechanism is aligned to the containing cavity (6), the inner side surfaces of the two insertion covers (4) are provided with first adsorption mechanisms (9), and the two insertion covers (4) are tightly attached through the first adsorption mechanisms (9).
2. The portable large-capacity garbage hanging device capable of being disinfected according to claim 1, wherein there are two metal hooks (7), the disinfecting solution spraying mechanism comprises a metal rod (10) which is hollow inside and is arranged between the two metal hooks (7) and a spray head rod (11) which is arranged on the metal rod (10), a disinfecting solution storage cavity is arranged in the metal rod (10), a disinfecting solution adding opening is arranged at the top of the metal rod (10), the spray head rod (11), the metal rod (10) and the disinfecting solution storage cavity are communicated, and a pressing pump (12) is arranged at the joint of the spray head rod (11) and the metal rod (10).
3. A portable high capacity waste hanging device capable of being sterilized according to claim 2, wherein said nozzle bar (11) is of a telescopic structure, and said nozzle bar (11) is rotatably connected to said metal bar (10).
4. The portable large-capacity garbage hanging device capable of being sterilized according to claim 1, wherein the plug cover (4) comprises a front side plate (41), a rear side plate (42) and a top plate (43) arranged between the front side plate (41) and the rear side plate (42), the inner side surface of the top plate (43), the top of the front baffle (1) and the top of the rear baffle (2) are all provided with a second adsorption mechanism (13), and the plug cover (4) is tightly attached to the tops of the front baffle (1) and the rear baffle (2) through the second adsorption mechanism (13).
5. A portable high capacity waste hanging device capable of being sterilized according to claim 4, wherein said first adsorption means (9) is a NdFeB magnet strip and said second adsorption means (13) is a NdFeB magnet block.
6. A sterilizable portable large-capacity trash hanging device according to claim 1, wherein the folding side stoppers (5) are completely unfolded to assume an isosceles trapezoid configuration or a square configuration with a wide top and a narrow bottom.
7. A portable high capacity waste hanging device which can be sterilised as claimed in claim 1, wherein the outer side of the insertion cover (4) is provided with a sorting label.
8. A sterilizable portable large-capacity trash hanging device according to claim 1, wherein the underside of the bottom stopper (3) is provided with a bottom baffle, the bottom of the front baffle (1) and the bottom of the rear baffle (2) are respectively extended downward with support legs connected to the bottom baffle, and the area of the bottom baffle is smaller than that of the bottom stopper (3).
