CN213046399U - Water cup structure with interlayer - Google Patents

Water cup structure with interlayer Download PDF

Info

Publication number
CN213046399U
CN213046399U CN202021177906.8U CN202021177906U CN213046399U CN 213046399 U CN213046399 U CN 213046399U CN 202021177906 U CN202021177906 U CN 202021177906U CN 213046399 U CN213046399 U CN 213046399U
Authority
CN
China
Prior art keywords
cup
interlayer
cup body
drinking water
annular groove
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
CN202021177906.8U
Other languages
Chinese (zh)
Inventor
孙成
梁昕
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Nanjing Institute of Mechatronic Technology
Original Assignee
Nanjing Institute of Mechatronic Technology
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Nanjing Institute of Mechatronic Technology filed Critical Nanjing Institute of Mechatronic Technology
Priority to CN202021177906.8U priority Critical patent/CN213046399U/en
Application granted granted Critical
Publication of CN213046399U publication Critical patent/CN213046399U/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Landscapes

  • Details Of Rigid Or Semi-Rigid Containers (AREA)
  • Table Devices Or Equipment (AREA)

Abstract

The utility model relates to a water cup structure with interlayer, which comprises a cup body structure, wherein the inner side of the cup body structure is provided with an interlayer structure which is integrally formed with the cup body structure, the upper end of the cup body structure is provided with a cup cover structure, the inner side of the cup cover structure is provided with a plurality of annular groove structures, the outer side of the upper end of the cup body structure is provided with a convex annular structure, the annular groove structures are connected with the convex annular structures in a clamping way in a matching way, the left side and the right side of the cup cover structure are respectively provided with a drinking water mouth structure, the central position of the cup cover structure is provided with a crease structure, the lower end of the crease structure is provided with a convex structure close to the upper end of the interlayer structure, the central position of the inner side of the convex structure is provided with a concave structure, the concave structure, the utility model has the characteristics of the practicality is strong and maneuverability is strong, has wide market application prospect.

Description

Water cup structure with interlayer
Technical Field
The utility model relates to a machining's technical field, especially a take drinking cup structure of interlayer.
Background
The cup is a container for containing drinking liquid, people can often use different cups to contain different types of beverages or tea water and the like and distinguish the beverages or the tea water and the like in daily life so as to ensure that various beverages and wine can keep original taste, the mode can achieve better effect, but a plurality of cups are more troublesome to use alternately and occupy larger space, and inconvenience is brought to carry, and therefore the cup structure with the interlayer needs to be designed to solve the problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a take interlayer's drinking cup structure to the technical problem who exists among the prior art, concrete technical scheme is as follows:
the utility model provides a water cup structure with an interlayer, which comprises a cup body structure, wherein the interlayer structure which is integrated with the cup body structure is arranged at the inner side of the cup body structure, the upper end of the cup body structure is provided with a cup cover structure, the inner side of the cup cover structure is provided with a plurality of annular groove structures, a raised annular structure is arranged on the outer side of the upper end of the cup body structure, the annular groove structure is connected with the raised annular structure in a matched clamping manner, the left side and the right side of the upper end of the cup cover structure are respectively provided with a drinking water port structure, the center of the cup cover structure is provided with a crease structure, the lower end of the crease structure is provided with a convex structure at the position close to the upper end of the interlayer structure, the central part of the inner side of the convex structure is provided with a concave structure, and the concave structure is connected with the upper end of the interlayer structure in a matched clamping manner.
The utility model discloses a further improvement lies in: the drinking water port structure is sleeved with a drinking water cover structure.
The utility model discloses a further improvement lies in: the interlayer structure divides the inner cavity of the cup body structure into two parts with the same volume.
The utility model discloses a further improvement lies in: the annular groove structure is internally sleeved with a sealing ring structure.
The utility model discloses a further improvement lies in: the bottom of the cup body structure is provided with a cup bottom sleeve structure, and a cylindrical cavity structure is arranged inside the cup bottom sleeve structure.
The utility model discloses a further improvement lies in: the cross section of the cup bottom sleeve structure is of an isosceles trapezoid structure.
The utility model discloses a further improvement lies in: the bottom of the cup bottom sleeve structure is provided with a plurality of thread raised strip structures.
The utility model has the advantages that:
the utility model discloses a set up interlayer structure and with interlayer structure's upper end plays the block sealed effect the bowl cover structure lower extreme sunk structure can realize simultaneously taking two kinds of liquid and each other not influencing greatly, and simple structure, convenient to use open when drinking the bowl cover structure of crease one end both can realize the effect that the liquid was drunk to the macrostoma, if need the osculum drink in the time of the water of interlayer one side, only need open drinking water mouthful upper end drinking water lid structure, such design has the characteristics that the practicality is strong and maneuverability is strong, has wide market application prospect.
Drawings

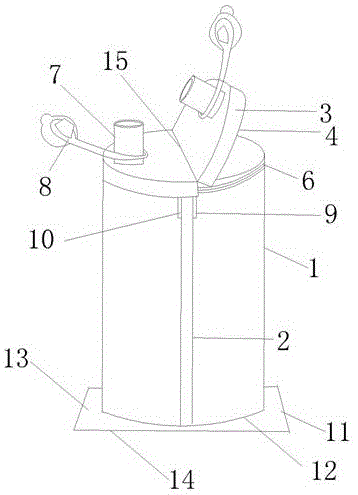

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the inner side structure of the cup cover of the present invention;
description of the drawings: 1-cup body structure, 2-interlayer structure, 3-cup cover structure, 4-annular groove structure, 5-sealing ring structure, 6-convex annular structure, 7-drinking water port structure, 8-drinking water cover structure, 9-convex structure, 10-concave structure, 11-cup bottom sleeve structure, 12-cylindrical cavity structure, 13-isosceles trapezoid structure, 14-thread raised strip structure and 15-crease structure.
Detailed Description
In order to make the technical field person understand the scheme of the present invention better, the following will combine the drawings in the embodiments of the present invention to clearly and completely describe the technical scheme in the embodiments of the present invention.
The embodiment provides a water cup structure with an interlayer, which comprises a cup body structure 1, wherein an interlayer structure 2 which is integrally formed with the cup body structure 1 is arranged on the inner side of the cup body structure 1, a cup cover structure 3 is arranged at the upper end of the cup body structure 1, a plurality of annular groove structures 4 are arranged on the inner side of the cup cover structure 3, a sealing ring structure 5 is sleeved in each annular groove structure 4, a raised annular structure 6 is arranged on the outer side of the upper end of the cup body structure 1, the annular groove structures 4 and the raised annular structures 6 are connected in a matched and clamped mode, a drinking water port structure 7 is respectively arranged on each of the left side and the right side of the cup cover structure 3, a drinking water cover structure 8 is sleeved on each drinking water port structure 7, a crease structure 15 is arranged at the central position of the cup cover structure 3, and a raised structure 9 is arranged at the position, close to the upper end of, a concave structure 10 is arranged at the central part of the inner side of the convex structure 9, the concave structure 10 is in matched clamping connection with the upper end of the interlayer structure 2, the interlayer structure 2 divides the inner cavity of the cup body structure 1 into two parts with the same volume, the bottom of the cup body structure 1 is provided with a cup bottom sleeve structure 11, the cup bottom sleeve structure 11 can make the whole cup more stable, prevent the inclination caused by the condition that one side has liquid and the other side has no liquid, possibly leading to the breaking of the cup, the inside of the cup bottom sleeve structure 11 is a cylindrical cavity structure 12, the cross-section of the cup bottom sleeve structure 11 is an isosceles trapezoid structure 13, the bottom of the cup bottom sleeve structure 11 is provided with a plurality of thread raised strip structures 14, and the thread raised strip structures 14 are arranged to increase friction force, so that a cup can be placed more stably.
The utility model has the advantages that:
the utility model discloses a set up interlayer structure and with interlayer structure's upper end plays the block sealed effect the bowl cover structure lower extreme sunk structure can realize simultaneously taking two kinds of liquid and each other not influencing greatly, and simple structure, convenient to use open when drinking the bowl cover structure of crease one end both can realize the effect that the liquid was drunk to the macrostoma, if need the osculum drink in the time of the water of interlayer one side, only need open drinking water mouthful upper end drinking water lid structure, such design has the characteristics that the practicality is strong and maneuverability is strong, has wide market application prospect.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing detailed description, or equivalent replacements may be made for some of the technical features of the embodiments. All utilize the equivalent structure that the content of the utility model discloses a specification and attached drawing was done, direct or indirect application is in other relevant technical field, all is in the same way the utility model discloses within the patent protection scope.

Claims (7)

1. A cup structure with an interlayer is characterized in that: including cup body structure, cup body structure inboard be provided with cup body structure integrated into one piece's interlayer structure, cup lid structure is installed to the upper end of cup body structure, cup lid structure inboard is provided with a plurality of annular groove structure, the upper end outside of cup body structure is provided with protruding annular structure, annular groove structure with the block mode of carrying on of protruding annular structure looks adaptation is connected, the left and right sides of cup lid structure upper end is provided with a drinking water mouth structure respectively, the central point of cup lid structure puts and is equipped with the crease structure, the lower extreme of crease structure is close to the position of interlayer structure upper end is provided with protruding structure, the inboard central point of protruding structure is provided with sunk structure, sunk structure with the block of interlayer structure upper end looks adaptation is connected.
2. The cup structure with the interlayer of claim 1, wherein: the drinking water port structure is sleeved with a drinking water cover structure.
3. The cup structure with the interlayer of claim 1, wherein: the interlayer structure divides the inner cavity of the cup body structure into two parts with the same volume.
4. The cup structure with the interlayer of claim 1, wherein: the annular groove structure is internally sleeved with a sealing ring structure.
5. The cup structure with the interlayer of claim 1, wherein: the bottom of the cup body structure is provided with a cup bottom sleeve structure, and a cylindrical cavity structure is arranged inside the cup bottom sleeve structure.
6. The cup structure with the interlayer of claim 5, wherein: the cross section of the cup bottom sleeve structure is of an isosceles trapezoid structure.
7. The cup structure with the interlayer of claim 6, wherein: the bottom of the cup bottom sleeve structure is provided with a plurality of thread raised strip structures.
