Abstract
The utility model discloses a multifunctional magnetic suction double-drinking cup cover and cup, which comprises a cover body, wherein a straight drinking hole is formed in the cover body, and a rotary cover for blocking the straight drinking hole is rotatably connected to the cover body; the advantage can directly drink, also can insert the straw with the straw and carry out the straw drinking water, drinking water mode is diversified, adopts the mode of magnetism to inhale, and it is more smooth to uncap to close to cover.
Description
Technical Field
The utility model relates to a water cup, in particular to a multifunctional magnetic double-drinking cup cover of the cup.
Background
The cup is a container used for containing liquid in daily life of people, and is mainly used for drinking tea, water, coffee, beverages and other drinks. The disposable cup is usually made of plastic, glass, porcelain or stainless steel, and the like, wherein the disposable cup is usually made of paper cups or plastic cups, and the cup body is generally cylindrical, is open on the upper surface and is hollow for containing articles.
The rotary sliding magnet cup cover with the publication number of CN212591487U comprises a cover body, an upper sliding cover component, a lower sliding cover component and a water sealing silica gel component, wherein the cover body is provided with a water outlet hole, an arc-shaped slotted hole, an upper arc-shaped sliding groove and a lower arc-shaped sliding groove, the water outlet hole and the arc-shaped slotted hole are arranged in two ends of the upper arc-shaped sliding groove, and the upper sliding cover component is arranged in the upper arc-shaped sliding groove and can rotatably slide along the upper arc-shaped sliding groove; the lower sliding cover component is arranged in the lower arc-shaped sliding groove and can rotationally slide along the lower arc-shaped sliding groove; the upper sliding cover assembly is movably connected with the lower sliding cover assembly, and the lower sliding cover assembly is arranged in the water sealing silica gel piece.
The magnet cup cover is only provided with one water outlet hole, and the drinking mode is single.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem of providing a multifunctional magnetic double-drinking cup cover which is smooth in opening and has multiple drinking modes, and further provides a cup with the multifunctional magnetic double-drinking cup cover.
The technical scheme adopted by the utility model for solving the technical problems is as follows: multifunctional magnetic suction double-drinking cup cover comprises a cover body, wherein a direct drinking port is formed in the cover body, a rotary cover used for blocking the direct drinking port is connected to the cover body in a rotating mode, a connecting hole is formed in the center of the cover body, a suction pipe port corresponding to the connecting hole is formed in the rotary cover, a clamping portion extends downwards along the outer edge of the suction pipe port on the rotary cover, the clamping portion is inserted into the connecting hole and is connected with the connecting hole in a rotating mode, a sliding cover used for blocking the suction pipe port is arranged on the rotary cover, a first magnet is arranged on the rotary cover, and a cover opening magnet and a cover closing magnet which are matched with the first magnet in a magnetic suction mode are arranged at the bottom of the cover body.
The further preferable scheme of the utility model is as follows: when straight drink mouthful department in the open mode, first magnet is located uncap magnet directly over, and straight drink mouthful exposes, when straight drink mouthful department in the closure state, first magnet is located and closes directly over covering magnet, the spiral cover will directly drink mouthful cover and seal.
The further preferable scheme of the utility model is as follows: the spiral cover comprises a rotary connecting part and an upper cover, the suction pipe opening is formed in the rotary connecting part, a first magnet mounting groove is formed in the rotary connecting part, a first magnet is arranged in the first magnet mounting groove, and the upper cover covers the rotary connecting part and covers the first magnet.
The further preferable scheme of the utility model is as follows: the side wall of the clamping portion is provided with a clamping hook, and the clamping hook is matched with the cover body in a clamping mode after the clamping portion penetrates through the connecting hole.
The further preferable scheme of the utility model is as follows: the quantity of joint portion is two, and two joint portion combinations are cylindricly, are equipped with the clearance between two joint portions.
The further preferable scheme of the utility model is as follows: be equipped with uncap magnet mounting groove and close and cover the magnet mounting groove on the bottom surface of lid, uncap magnet and establish in uncap magnet mounting groove, close and cover magnet and establish in closing and cover the magnet mounting groove.
The further preferable scheme of the utility model is as follows: the bottom of the cover body is provided with a bottom cover, the bottom cover covers the cover opening magnet and the cover closing magnet at the same time, and the center of the bottom cover is provided with a through hole matched with the clamping part.
The further preferable scheme of the utility model is as follows: a sliding cover mounting groove is formed in the rotary cover, and the sliding cover is connected in the sliding cover mounting groove in a sliding mode.
The further preferable scheme of the utility model is as follows: be equipped with the anticreep on the inside wall of sliding closure mounting groove protruding with close the lid arch, be equipped with on the lateral wall of sliding closure with the anticreep protruding with close lid protruding joint complex joint protruding.
The cup comprises the multifunctional magnetic double-cup lid.
Compared with the prior art, the drinking water bottle has the advantages that the connecting hole is formed in the center of the cover body, the suction pipe opening corresponding to the connecting hole is formed in the spiral cover, the clamping portion extends downwards along the outer edge of the suction pipe opening and is inserted into the connecting hole and rotationally connected with the connecting hole, the sliding cover used for blocking the suction pipe opening is arranged on the spiral cover, the first magnet is arranged on the spiral cover, the cover opening magnet and the cover closing magnet which are in magnetic attraction fit with the first magnet are arranged at the bottom of the cover body, drinking water can be directly drunk, the suction pipe can be inserted into the suction pipe opening to drink water through the suction pipe, the drinking water mode is diversified, and the cover opening and the cover closing are smoother by adopting the magnetic attraction mode.
Drawings
The present invention will be described in further detail below with reference to the drawings and preferred embodiments, but those skilled in the art will appreciate that the drawings are only drawn for the purpose of illustrating the preferred embodiments and therefore should not be taken as limiting the scope of the utility model. Furthermore, unless specifically stated otherwise, the drawings are merely schematic representations based on conceptual representations of elements or structures depicted and may contain exaggerated displays and are not necessarily drawn to scale.
FIG. 1 is a schematic view of the overall structure of the cup;
FIG. 2 is an exploded view of the lid;

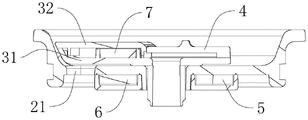

FIG. 3 is a cross-sectional view of the cup cover in an open state of the direct drinking spout;
FIG. 4 is a schematic view of the cup cover in a state where the straight drinking hole and the straw hole are both closed;
FIG. 5 is a cross-sectional view of FIG. 4;
FIG. 6 is a schematic view of the lid in an open state of the straw opening;
FIG. 7 is a cross-sectional view of FIG. 6;
FIG. 8 is a schematic view of the cover;
FIG. 9 is a schematic view of a swivel joint;
FIG. 10 is a schematic view of the upper cover;
fig. 11 is a schematic view of a slide cover.
In the figure: 1. a cup body; 2. a cover body; 21. a straight drinking spout; 22. a suction pipe orifice; 23. connecting holes; 24. uncovering the magnet mounting groove; 25. closing the cover magnet mounting groove; 3. screwing a cover; 31. a rotation connection part; 311. a first magnet mounting groove; 32. an upper cover; 321. grooving; 323. the anti-drop bulge; 324. a cover closing protrusion; 33. a clamping part; 331. a hook is clamped; 332. a gap; 4. a sliding cover; 41. clamping the bulges; 42. a guide slope; 5. opening a cover of the magnet; 6. a cover closing magnet; 7. a first magnet; 8. a bottom cover; 81. and a through hole.
Detailed Description
Hereinafter, preferred embodiments of the present invention will be described in detail with reference to the accompanying drawings. Those skilled in the art will appreciate that the description is illustrative only, and is not to be construed as limiting the scope of the utility model.
It should be noted that: like reference numerals refer to like items in the following figures, and thus, once an item is defined in one figure, it may not be further defined and explained in subsequent figures.
The cup comprises a cup body 1 and a cup cover, wherein the cup cover can cover the top end of the cup body 1 and is used for sealing a top opening of the cup body 1, preferably, a sealing ring is arranged on the outer wall of the cup cover, and the bottom of the cup cover is inserted into the cup body 1 and is connected with the inner wall of the cup body 1 in a sealing mode through the sealing ring.
Two drink bowl covers are inhaled to multi-functional magnetism, including lid 2, have seted up on the lid 2 and have directly drunk mouthful 21 and straw mouth 22, directly drink mouthful 21 and be used for people directly to drink water, straw mouth 22 is used for people to insert the straw into straw mouth 22, then drinks water through the straw.
The straight drinking port 21 is provided at a side portion of the upper surface of the lid body 2, so that a person can drink water conveniently.
Be equipped with spiral cover 3 on the lid 2, spiral cover 3 rotates to be connected on lid 2, and spiral cover 3 is used for the shutoff to drink mouthful 21 directly, and above-mentioned suction pipe mouth 22 is seted up on spiral cover 3, is equipped with sliding closure 4 on the spiral cover 3, and sliding closure 4 sliding connection is on spiral cover 3, and sliding closure 4 is used for the shutoff suction pipe mouth 22.
The inner side wall of the slot 321 is provided with an anti-falling protrusion 323 and a cover closing protrusion 324, and the outer side wall of the sliding cover 4 is provided with a clamping protrusion 41 which is clamped and matched with the anti-falling protrusion 323 and the cover closing protrusion 324.
The sliding cover 4 is inserted from the end part of the sliding cover assembly groove, the clamping protrusion 41 firstly crosses the anti-falling protrusion 323, at the moment, the sliding cover 4 is assembled on the rotating cover 3, the anti-falling protrusion 323 can limit the sliding cover 4 to fall off from the sliding cover assembly groove, the sliding cover 4 continues to slide, the clamping protrusion 324 crosses the closing protrusion 324, at the moment, the sliding cover 4 seals the straw opening 22, the closing protrusion 324 can limit the sliding cover 4 to slide, and the straw opening 22 is prevented from being opened.
The front end of the sliding cover 4 is provided with a guide inclined plane 42, which is convenient for the sliding cover 4 to be inserted from the end part of the sliding cover assembly groove.
Furthermore, a connecting hole 23 is formed in the center of the cover body 2, a clamping portion 33 extends downwards along the outer edge of the suction pipe opening 22 on the rotary connecting portion 31, and the clamping portion 33 is rotatably connected with the cover body 2 after being inserted into the connecting hole 23.
Further, the side wall of the clamping portion 33 is provided with a hook 331, and after the clamping portion 33 passes through the connecting hole 23, the hook 331 is clamped on the cover body 2 to prevent the rotary connecting portion 31 from falling off from the cover body 2.
The quantity of joint portion 33 is two, and two combinations of joint portion 33 are cylindricly, are equipped with clearance 332 between two joint portions 33, and when the assembly, joint portion 33 inserts from the top of connecting hole 23, and when inserting connecting hole 23, joint portion 33 is because the elasticity that self has, and two joint portions 33 draw close together, and after trip 331 passed connecting hole 23 completely, joint portion 33 kick-backed, made trip 331 block on lid 2.
Be equipped with uncap magnet 5 and close lid magnet 6 on the lid 2, be equipped with on the spiral cover 3 with uncap magnet 5 and close lid magnet 6 magnetism and inhale complex first magnet 7.
When the straight drinking hole 21 is in the open state, the first magnet 7 is positioned right above the lid opening magnet 5, the straight drinking hole 21 is exposed, the lid opening magnet 5 attracts the first magnet 7, and the screw cap 3 is always in the open state.
When the straight drinking hole 21 is in the closed state, the first magnet 7 is positioned right above the closing cap magnet 6, the straight drinking hole 21 is covered and sealed by the screw cap 3, the closing cap magnet 6 attracts the first magnet 7, and the straight drinking hole 21 is always closed by the screw cap 3.
The rotation connecting portion 31 is provided with a first magnet mounting groove 311, the first magnet 7 is disposed in the first magnet mounting groove 311, and the upper cover 32 is disposed on the rotation connecting portion 31 to cover the first magnet 7.
Be equipped with uncap magnet mounting groove 24 and close and cover magnet mounting groove 25 on the bottom surface of lid 2, uncap magnet 5 establishes in uncap magnet mounting groove 24, closes and covers magnet 6 and establish in closing and cover magnet mounting groove 25, and the bottom of lid 2 is equipped with bottom 8, and bottom 8 will uncap magnet 5 and close and cover magnet 6 and cover simultaneously, and the center department of bottom 8 offers the through-hole 81 with joint portion 33 looks adaptation.
The axis of the cover opening magnet 5, the axis of the cover closing magnet 6, the axis of the connecting hole 23 and the center of the straight drinking spout 21 are on the same straight line, and the cover opening magnet 5 and the cover closing magnet 6 are symmetrically arranged on two sides of the connecting hole 23.
In the description of the present invention, it should be noted that the terms "upper", "lower", "front", "back", "inner", "outer", and the like refer to the orientation or positional relationship shown in the drawings, or the orientation or positional relationship which the products of the present invention usually put in use, are only for convenience of describing the present invention and simplifying the description, but do not refer to or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
The multifunctional magnetic suction double-drinking cup cover and cup provided by the utility model are described in detail, specific examples are applied in the description to explain the principle and the implementation mode of the utility model, and the description of the embodiments is only used for helping to understand the utility model and the core idea. It should be noted that, for those skilled in the art, it is possible to make various improvements and modifications to the present invention without departing from the principle of the present invention, and those improvements and modifications also fall within the scope of the claims of the present invention.
Claims (10)
1. Two drink bowl covers are inhaled to multi-functional magnetism, including the lid, seted up on the lid and directly drunk the mouth, rotate on the lid and be connected with the spiral cover that is used for the shutoff to drink the mouth directly, its characterized in that: the improved suction pipe cover is characterized in that a connecting hole is formed in the center of the cover body, a suction pipe opening corresponding to the connecting hole is formed in the spiral cover, a clamping portion extends downwards along the outer edge of the suction pipe opening on the spiral cover, the clamping portion is inserted into the connecting hole and is connected with the connecting hole in a rotating mode, a sliding cover used for blocking the suction pipe opening is arranged on the spiral cover, a first magnet is arranged on the spiral cover, and a cover opening magnet and a cover closing magnet which are matched with the first magnet in a magnetic suction mode are arranged at the bottom of the cover body.
2. The dual drink bowl cover of multi-functional magnetism of claim 1, characterized in that: when straight drink mouthful department in the open mode, first magnet is located uncap magnet directly over, and straight drink mouthful exposes, when straight drink mouthful department in the closure state, first magnet is located and closes directly over covering magnet, the spiral cover will directly drink mouthful cover and seal.
3. The dual drink bowl cover of multi-functional magnetism of claim 1, characterized in that: the spiral cover comprises a rotary connecting part and an upper cover, the suction pipe opening is formed in the rotary connecting part, a first magnet mounting groove is formed in the rotary connecting part, a first magnet is arranged in the first magnet mounting groove, and the upper cover covers the rotary connecting part and covers the first magnet.
4. The dual drink bowl cover of multi-functional magnetism of claim 1, characterized in that: the side wall of the clamping portion is provided with a clamping hook, and the clamping hook is matched with the cover body in a clamping mode after the clamping portion penetrates through the connecting hole.
5. The dual drink bowl cover of multi-functional magnetism of claim 1, characterized in that: the quantity of joint portion is two, and two joint portion combinations are cylindricly, are equipped with the clearance between two joint portions.
6. The dual drink bowl cover of multi-functional magnetism of claim 1, characterized in that: be equipped with uncap magnet mounting groove and close and cover the magnet mounting groove on the bottom surface of lid, uncap magnet and establish in uncap magnet mounting groove, close and cover magnet and establish in closing and cover the magnet mounting groove.
7. The dual drink bowl cover of multi-functional magnetism of claim 1, characterized in that: the bottom of the cover body is provided with a bottom cover, the bottom cover covers the cover opening magnet and the cover closing magnet at the same time, and the center of the bottom cover is provided with a through hole matched with the clamping part.
8. The dual drink bowl cover of multi-functional magnetism of claim 1, characterized in that: a sliding cover mounting groove is formed in the rotary cover, and the sliding cover is connected in the sliding cover mounting groove in a sliding mode.
9. The dual drink bowl cover of multi-functional magnetism of claim 8, characterized in that: be equipped with the anticreep on the inside wall of sliding closure mounting groove protruding with close the lid arch, be equipped with on the lateral wall of sliding closure with the anticreep protruding with close lid protruding joint complex joint protruding.
10. A cup, characterized in that: comprises the multifunctional magnetic double-cup lid as claimed in any one of claims 1 to 9.
