CN213037003U - Paperboard die-cutting machine with paper feeding device - Google Patents
Paperboard die-cutting machine with paper feeding device Download PDFInfo
- Publication number
- CN213037003U CN213037003U CN202021778116.5U CN202021778116U CN213037003U CN 213037003 U CN213037003 U CN 213037003U CN 202021778116 U CN202021778116 U CN 202021778116U CN 213037003 U CN213037003 U CN 213037003U
- Authority
- CN
- China
- Prior art keywords
- plate
- fixedly connected
- cardboard
- movably connected
- cutting machine
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Making Paper Articles (AREA)
Abstract
The utility model relates to a cardboard cross cutting machine technical field specifically is a cardboard cross cutting machine with adsorption paper feeding device, the on-line screen storage device comprises a base, the top fixedly connected with locating plate of base, the top swing joint of base have the lead screw, the surface swing joint of lead screw have the delivery board, delivery board swing joint in one side of locating plate, the top fixedly connected with backup pad of locating plate, the top fixedly connected with connecting plate of backup pad. The utility model has the advantages that: through setting up the link, rotate as the lead screw, make the delivery board remove to the direction of base, when placing the cardboard to the top of delivery board, promote cardboard to the top of delivery board, make the one end and the fixed plate contact of cardboard, make the cardboard put neatly, after putting the completion, remove the baffle, fix a position the other end of cardboard, make the delivery board drive the cardboard at the in-process that removes, baffle and fixed plate are fixed a position the cardboard at the cardboard both ends, convenient operation.
Description
Technical Field
The utility model relates to a cardboard cross cutting machine technical field, especially a cardboard cross cutting machine with adsorption paper feeding device.
Background
In present life, no matter food or clothing all can use corrugated box to pack or store to along with people's standard of living's improvement, also more and more high to the demand of corrugated box's outward appearance, quality and quantity, a fashioned corrugated box at first need cut into certain shape with the corrugated paper, just can make through folding, binding etc. again, generally adopt the cardboard cross cutting machine to accomplish to the cutting of corrugated paper.
The feeding device of the paperboard die-cutting machine is disclosed in Chinese patent CN210453915U, the feeding device of the paperboard die-cutting machine, though, install the crane on the host computer frame, install the layer board on the crane, and set up the axis of rotation on the host computer frame, be provided with lifting unit in the axis of rotation, be provided with driving motor on the lateral wall of host computer frame, coaxial being fixed with the initiative driver plate on driving motor's the output shaft, the sheave sets up the one end at the axis of rotation, the initiative driver plate cooperatees with the sheave, use the machine automatic to pile up the paperboard and raise, the operation is convenient, but, the feeding device of this paperboard die-cutting machine, it places the cardboard in the die-cutting machine one by.
The defects of the prior paperboard die cutting machine are as follows:
1. when the existing paperboard die-cutting machine works, workers need to place paperboards in the die-cutting machine one by one, so that the labor intensity is increased;
2. when the existing paperboard die-cutting machine moves the paperboard, the paperboard is easy to incline, and the operation is inconvenient.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome prior art's shortcoming, provide a cardboard cross cutting machine with adsorption paper feeding device, solved the problem of proposing among the above-mentioned background art.
The purpose of the utility model is realized through the following technical scheme: a paperboard die-cutting machine with a paper feeding device comprises a base, wherein the top of the base is fixedly connected with a positioning plate, the top of the base is movably connected with a screw rod, the outer surface of the screw rod is movably connected with a conveying plate, and the conveying plate is movably connected to one side of the positioning plate;
the top of the positioning plate is fixedly connected with a supporting plate, the top of the supporting plate is fixedly connected with a connecting plate, a sliding groove is formed in the connecting plate, a sliding block is movably connected in the sliding groove, and a push plate is fixedly connected to one side of the sliding block;
one side of the sliding block is movably connected with a first connecting rod, one side of the first connecting rod is movably connected with a second connecting rod, and one side of the second connecting rod is fixedly connected with a motor;
the conveying plate is characterized in that a connecting frame is fixedly connected to one side of the base, a positioning groove is formed in the connecting frame, a baffle is movably connected to the inside of the positioning groove, and the baffle is movably connected to one side of the conveying plate.
Optionally, the positioning plates are L-shaped, the number of the positioning plates is four, and the four positioning plates are movably connected to four corners of the conveying plate respectively.
Optionally, the outer surface of the screw rod is fixedly connected with a first gear and a second gear, the first gear is located at the bottom of the second gear, the first gear is movably connected to the top of the base, the outer surface of the first gear is movably connected with a first transmission chain, and the outer surface of the second gear is movably connected with a second transmission chain.
Optionally, the number of the screw rod, the first gears and the second gears is two, the two first gears are movably connected to two ends inside the first transmission chain respectively, and the two second gears are movably connected to two ends inside the second transmission chain respectively.
Optionally, one side fixedly connected with pivot of motor, pivot fixed connection in the inside of second connecting rod, slider and first connecting rod pass through connecting axle swing joint, connecting axle fixed connection in the slider keep away from one side of push pedal.
Optionally, the top of the base is fixedly connected with a fixing plate, the fixing plate is fixedly connected to one side of the positioning plate, and the fixing plate is movably connected to one side of the conveying plate.
The utility model has the advantages of it is following:
1. this cardboard cross cutting machine with adsorption paper feeding device, through setting up the connecting plate, the spout has been seted up to the inside of connecting plate, motor and second connecting rod pass through pivot fixed connection, open the motor, pivot and second connecting rod rotate, first connecting rod and second connecting rod pass through connecting axle swing joint, the one end that makes first connecting rod and second connecting rod contact rotates along with first connecting rod, and the other end of first connecting rod is because the effect of slider, it slides in the inside of spout to drive the slider, make the push pedal slide in one side of connecting plate, the cardboard that can promote the delivery board top removes to the one side of keeping away from the link, transport the cardboard to cross cutting machine and cut, realize the purpose of cardboard automatic conveying, and the labor intensity is reduced.
2. This cardboard cross cutting machine with adsorption paper feeding device, through setting up the link, the constant head tank has been seted up to the inside of link, rotate as the lead screw, make the delivery board remove to the direction of base, when placing the cardboard to the top of delivery board, promote the top of cardboard to delivery board, make the one end and the fixed plate contact of cardboard, it is neat to make the cardboard put, after putting the completion, remove the baffle, fix a position the other end of cardboard, make the delivery board drive the in-process of cardboard at the removal, baffle and fixed plate are at the both ends of cardboard always, fix a position the cardboard, convenient operation.
Drawings

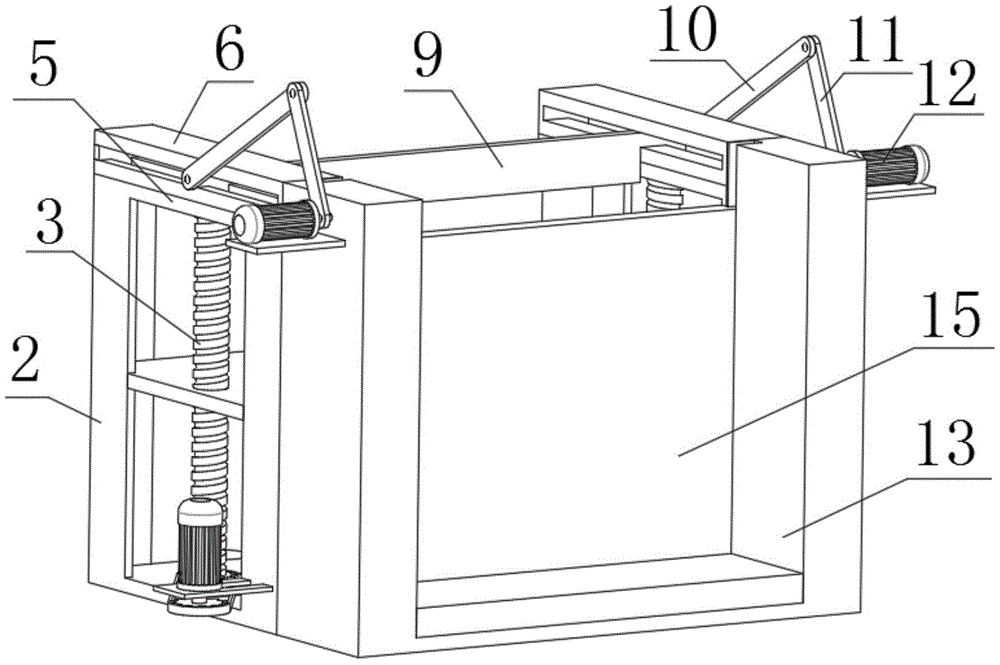

Fig. 1 is a schematic perspective view of a first viewing angle of the present invention;
fig. 2 is a schematic perspective view of a second viewing angle of the present invention;
FIG. 3 is a schematic structural view of the slider of the present invention;
FIG. 4 is a schematic structural view of a conveying plate according to the present invention;
fig. 5 is a schematic structural diagram of the connection plate of the present invention.
In the figure: 1-base, 2-positioning plate, 3-screw rod, 4-conveying plate, 5-supporting plate, 6-connecting plate, 7-sliding chute, 8-sliding block, 9-pushing plate, 10-first connecting rod, 11-second connecting rod, 12-motor, 13-connecting frame, 14-positioning groove, 15-baffle, 16-first gear, 17-second gear, 18-first transmission chain, 19-second transmission chain and 20-fixing plate.
Detailed Description
The invention will be further described with reference to the accompanying drawings, but the scope of the invention is not limited to the following description.
As shown in fig. 1-5, a paperboard die-cutting machine with a paper feeding device comprises a base 1, wherein a positioning plate 2 is fixedly connected to the top of the base 1, a screw rod 3 is movably connected to the top of the base 1, a conveying plate 4 is movably connected to the outer surface of the screw rod 3, and the conveying plate 4 is movably connected to one side of the positioning plate 2;
the top of the positioning plate 2 is fixedly connected with a supporting plate 5, the top of the supporting plate 5 is fixedly connected with a connecting plate 6, a sliding groove 7 is formed in the connecting plate 6, a sliding block 8 is movably connected in the sliding groove 7, and one side of the sliding block 8 is fixedly connected with a push plate 9;
one side of the sliding block 8 is movably connected with a first connecting rod 10, one side of the first connecting rod 10 is movably connected with a second connecting rod 11, and one side of the second connecting rod 11 is fixedly connected with a motor 12;
one side fixedly connected with link 13 of base 1, constant head tank 14 has been seted up to the inside of link 13, and the inside swing joint of constant head tank 14 has baffle 15, and baffle 15 swing joint is in one side of delivery board 4.
As an optional technical solution of the utility model:
the shape of locating plate 2 is L shape, and the quantity of locating plate 2 is four, and four locating plates 2 swing joint are in the four corners department of delivery board 4 respectively, when delivery board 4 removed, fix a position delivery board 4, make to remove steadily.
As an optional technical solution of the utility model:
the outer surface of the screw rod 3 is fixedly connected with a first gear 16 and a second gear 17, the first gear 16 is positioned at the bottom of the second gear 17, the first gear 16 is movably connected to the top of the base 1, the outer surface of the first gear 16 is movably connected with a first transmission chain 18, the outer surface of the second gear 17 is movably connected with a second transmission chain 19, and the two first gears 16 and the two second gears 17 are enabled to rotate through the first transmission chain 18 and the second transmission chain 19.
As an optional technical solution of the utility model:
the number of the screw rods 3, the first gears 16 and the second gears 17 is two, the two first gears 16 are movably connected to two ends inside the first transmission chain 18 respectively, and the two second gears 17 are movably connected to two ends inside the second transmission chain 19 respectively, so that the rotating speeds of the two screw rods 3 are the same.
As an optional technical solution of the utility model:
one side fixedly connected with pivot of motor 12, pivot fixed connection are in the inside of second connecting rod 11, and slider 8 and first connecting rod 10 pass through connecting axle swing joint, and connecting axle fixed connection is in the one side that push pedal 9 was kept away from to slider 8, opens motor 12, and the pivot rotates, drives second connecting rod 11 and rotates.
As an optional technical solution of the utility model:
the top fixedly connected with fixed plate 20 of base 1, fixed plate 20 fixed connection in one side of locating plate 2, fixed plate 20 swing joint in one side of delivery board 4 makes the cardboard at delivery board 4 top be located fixed plate 20 one end, makes the cardboard put neatly.
The working process of the utility model is as follows: the number of the second gears 17 is two, and the two second gears 17 are respectively positioned at two ends inside the second transmission chain 19, wherein a motor is arranged on one second gear 17 at one side of the second transmission chain 19 far away from the screw rod 3, the motor is fixedly connected to one side of the positioning plate 2, the connection mode of the motor and the second gear 17 is the same as that of the motor 12 and the second connecting rod 11, the motor on the second gear 17 is turned on, the second gear 17 rotates, the second transmission chain 19 moves, the second gear 17 on the other screw rod 3 is driven to rotate, the screw rod 3 rotates, the first gear 16 on the screw rod 3 rotates, the first transmission chain 18 moves, the first gear 16 on the two screw rods 3 rotates, the two screw rods 3 rotate, the threaded holes are formed in the conveying plate 4, the conveying plate 4 moves upwards, the four positioning plates 2 are positioned at four corners of the conveying plate 4 to position the conveying plate 4, the movement is stable, the conveying plate 4 drives the paper board to move upwards, through the arrangement of the connecting plate 6, the connecting plate 6 is internally provided with a sliding groove 7, the motor 12 is fixedly connected with the second connecting rod 11 through a rotating shaft, the motor 12 is opened, the rotating shaft and the second connecting rod 11 rotate, the first connecting rod 10 is movably connected with the second connecting rod 11 through a connecting shaft, one end of the first connecting rod 10, which is contacted with the second connecting rod 11, rotates along with the first connecting rod 10, the other end of the first connecting rod 10 drives the sliding block 8 to slide in the sliding groove 7 under the action of the sliding block 8, so that the push plate 9 slides on one side of the connecting plate 6, the paper board at the top of the conveying plate 4 can be pushed to move to one side far away from the connecting frame 13, the paper board is conveyed to a die cutting machine for cutting, the purpose of automatic conveying of the paper board is realized, the labor intensity, the paper boards are moved in the horizontal direction, after one paper board moves upwards, the push plate 9 pushes the paper boards to the die cutting machine, the paper boards are restored to the original position, the other paper board is pushed to move upwards through the conveying plate 4, circulation is carried out, through the arrangement of the connecting frame 13, the positioning groove 14 is formed in the connecting frame 13, the motor on the second gear 17 is opened, the motor is rotated reversely, the lead screw 3 is rotated reversely, the conveying plate 4 is enabled to move towards the base 1, when the paper boards are placed on the top of the conveying plate 4, the paper boards are pushed to the top of the conveying plate 4, one end of each paper board is enabled to be in contact with the fixed plate 20, the paper boards are placed neatly, after the placement is completed, the baffle plate 15 is moved, the baffle plate 15 is placed in the positioning groove 14, the other end of each paper board is positioned, the conveying plate 4 drives the paper boards to move, the paperboard is positioned, operation is convenient, the supporting columns are fixedly connected to the top of the base 1 and are movably connected to the bottom of the conveying plate 4, the height of each supporting column is larger than the sum of the heights of the first gear 16 and the second gear 17, and the supporting columns are located at the tops of the supporting columns when the conveying plate 4 moves downwards, so that the conveying plate 4 is prevented from contacting with the second transmission chain 19.
To sum up, when the paperboard die-cutting machine with the paper feeding device is used, the connecting plate 6 is arranged, the chute 7 is formed in the connecting plate 6, the motor 12 and the second connecting rod 11 are fixedly connected through the rotating shaft, the motor 12 is opened, the rotating shaft and the second connecting rod 11 rotate, the first connecting rod 10 and the second connecting rod 11 are movably connected through the connecting shaft, one end, in contact with the first connecting rod 10 and the second connecting rod 11, of the first connecting rod 10 rotates along with the first connecting rod 10, the other end of the first connecting rod 10 drives the sliding block 8 to slide in the chute 7 under the action of the sliding block 8, the push plate 9 slides on one side of the connecting plate 6, the paperboard on the top of the conveying plate 4 can be pushed to move to one side far away from the connecting frame 13, the paperboard is conveyed to the die-cutting machine for cutting, the; through setting up link 13, constant head tank 14 has been seted up to the inside of link 13, rotate when lead screw 3, make delivery board 4 remove to base 1's direction, when placing the cardboard to delivery board 4's top, promote cardboard to delivery board 4's top, make the one end and the fixed plate 20 contact of cardboard, it is neat to make the cardboard put, after putting the completion, movable baffle 15, fix a position the other end of cardboard, make delivery board 4 drive the cardboard at the in-process that removes, baffle 15 and fixed plate 20 are at the both ends of cardboard always, fix a position the cardboard, convenient operation.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a cardboard cross cutting machine with adsorption paper feeding device which characterized in that: the device comprises a base (1), wherein a positioning plate (2) is fixedly connected to the top of the base (1), a screw rod (3) is movably connected to the top of the base (1), a conveying plate (4) is movably connected to the outer surface of the screw rod (3), and the conveying plate (4) is movably connected to one side of the positioning plate (2);
the top of the positioning plate (2) is fixedly connected with a supporting plate (5), the top of the supporting plate (5) is fixedly connected with a connecting plate (6), a sliding groove (7) is formed in the connecting plate (6), a sliding block (8) is movably connected in the sliding groove (7), and one side of the sliding block (8) is fixedly connected with a push plate (9);
one side of the sliding block (8) is movably connected with a first connecting rod (10), one side of the first connecting rod (10) is movably connected with a second connecting rod (11), and one side of the second connecting rod (11) is fixedly connected with a motor (12);
one side fixedly connected with link (13) of base (1), the inside of link (13) seted up constant head tank (14), the inside swing joint of constant head tank (14) have baffle (15), baffle (15) swing joint in one side of delivery board (4).
2. The die cutting machine for the paperboard with the paper feeding device according to claim 1, characterized in that: the positioning plates (2) are L-shaped, the number of the positioning plates (2) is four, and the four positioning plates (2) are movably connected to four corners of the conveying plate (4) respectively.
3. The die cutting machine for the paperboard with the paper feeding device according to claim 1, characterized in that: the outer fixed surface of lead screw (3) be connected with first gear (16) and second gear (17), first gear (16) be located the bottom of second gear (17), first gear (16) swing joint in the top of base (1), the surface swing joint of first gear (16) have first drive chain (18), the surface swing joint of second gear (17) have second drive chain (19).
4. The die cutting machine for the paperboard with the paper feeding device according to claim 3, characterized in that: the number of the screw rod (3), the first gears (16) and the second gears (17) is two, the first gears (16) are movably connected to two ends inside the first transmission chain (18) respectively, and the second gears (17) are movably connected to two ends inside the second transmission chain (19) respectively.
5. The die cutting machine for the paperboard with the paper feeding device according to claim 1, characterized in that: one side fixedly connected with pivot of motor (12), pivot fixed connection in the inside of second connecting rod (11), slider (8) and first connecting rod (10) pass through connecting axle swing joint, connecting axle fixed connection in slider (8) keep away from one side of push pedal (9).
6. The die cutting machine for the paperboard with the paper feeding device according to claim 1, characterized in that: the top of the base (1) is fixedly connected with a fixing plate (20), the fixing plate (20) is fixedly connected to one side of the positioning plate (2), and the fixing plate (20) is movably connected to one side of the conveying plate (4).
