Abstract
本实用新型公开了一种焊管加工模具，包括模具本体，所述模具本体的顶部与底部分别设置有顶板与底板，且模具本体的外表面设置有弧形槽，所述模具本体内设置有放置槽，所述放置槽内嵌套配合设置有轴套，所述模具本体内靠近顶部位置设置有内槽，所述内槽内设置有移动块，且内槽的内壁一侧与移动块的外表面一侧之间连接设置有弹簧，所述移动块的外表面远离弹簧的一侧固定连接有限位块。本实用新型中，整个结构连接稳定，使用便捷，通过设置的可更换轴套能够适应不同加工机器上不同尺寸的连接轴结构，轴套的外径设置与放置槽的尺寸相对应，内径设置成与连接轴的尺寸相对应，即可使模具能够更具适应性，同时也可以降低结构的使用成本。
The utility model discloses a welding pipe processing mold, comprising a mold body, a top plate and a bottom plate are respectively provided on the top and bottom of the mold body, an arc-shaped groove is provided on the outer surface of the mold body, and a placement is arranged in the mold body. A shaft sleeve is nested in the placement groove, an inner groove is arranged in the mold body near the top, a moving block is arranged in the inner groove, and one side of the inner wall of the inner groove is connected to the outer side of the moving block. A spring is connected between one side of the surface, and a side of the outer surface of the moving block away from the spring is fixedly connected to the limiting block. In the utility model, the whole structure is connected stably and is convenient to use, and the replaceable shaft sleeve provided can be adapted to the connecting shaft structures of different sizes on different processing machines. Corresponding to the size of the connecting shaft, the mold can be more adaptable, and the use cost of the structure can also be reduced.
Description
Technical Field
The utility model relates to a welded tube technical field especially relates to a welded tube mold processing.
Background
The welded pipe is a steel pipe made by welding a steel plate or strip steel after being curled and formed, and is generally 6 meters in fixed length. The welded steel pipe has simple production process, high production efficiency, multiple varieties and specifications and less equipment investment, and the welded pipe is processed by matching with a die, so the welded pipe processing die has certain requirements;
the existing welded pipe processing die is different in size of an installation connecting shaft used on the machine due to the difference of used processing machines during production, so that the processing die with different sizes needs to be accurate, inconvenience is caused during replacement and installation, and the production cost is increased.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a welded pipe processing die.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a welded tube mold processing, includes the mould body, the top and the bottom of mould body are provided with roof and bottom plate respectively, and the surface of mould body is provided with the arc wall, this internal standing groove that is provided with of mould, nested cooperation is provided with the axle sleeve in the standing groove, this internal top position that is close to of mould is provided with the inside groove, be provided with the movable block in the inside groove, and be connected between the inner wall one side of inside groove and the surface one side of movable block and be provided with the spring, one side fixedly connected with stopper of spring is kept away from to the surface of movable block, and the top fixedly connected with carriage release lever of movable block, the top of carriage release lever is rotated and is connected with the turning block, the top of turning block is provided with the dwang.
As a further description of the above technical solution:
and one side of the outer surface of the shaft sleeve is provided with a limiting groove which is in nested fit with the limiting block.
As a further description of the above technical solution:
the top of the die body is provided with a movable notch communicated with the inner groove, and the movable rod is connected with the movable notch in a nested sliding mode.
As a further description of the above technical solution:
the dwang passes through the axis of rotation and is connected with connecting the notch looks rotation.
As a further description of the above technical solution:
the top evenly distributed of mould body is provided with four screw holes.
As a further description of the above technical solution:
and a clamping groove is formed in one side of the inner wall of the shaft sleeve.
The utility model discloses following beneficial effect has:
the welded pipe processing die comprises a die body, a bottom plate, a top plate, an arc-shaped groove, a placing groove, a shaft sleeve, an inner groove, a movable block, a spring, a limiting block, a limiting groove, a movable rod, a movable notch, a rotating block, a rotating rod, a connecting notch, a rotating shaft, a threaded hole and a clamping groove, wherein the shaft sleeve with the corresponding inner diameter is selected according to the size of a connecting shaft on a processing machine, the outer diameter of the shaft sleeve is uniformly arranged to be in nested fit with the placing groove in front of the placing groove, the shaft sleeve is clamped into the placing groove, the rotating rod is pulled to drive the movable rod to move, the movable rod drives the movable block to move, the limiting block is also driven to be contained into the inner groove while the movable block compresses the spring, the movable rod is loosened after the shaft sleeve is clamped into the placing groove, the spring automatically resets to drive the movable block to push the limiting block to be, whole structural connection is stable, and it is convenient to use, can adapt to not unidimensional connecting axle structure on the different processing machines through the removable axle sleeve that sets up, and the external diameter setting of axle sleeve is corresponding with the size of standing groove, and the internal diameter sets to corresponding with the size of connecting axle, can make the mould have more the adaptability, and during the installation that need not conventionally adds man-hour, need to change not unidimensional mould and adapt to the troublesome operating procedure of machine, need not to prepare too much mould simultaneously, can reduce use cost.
Drawings

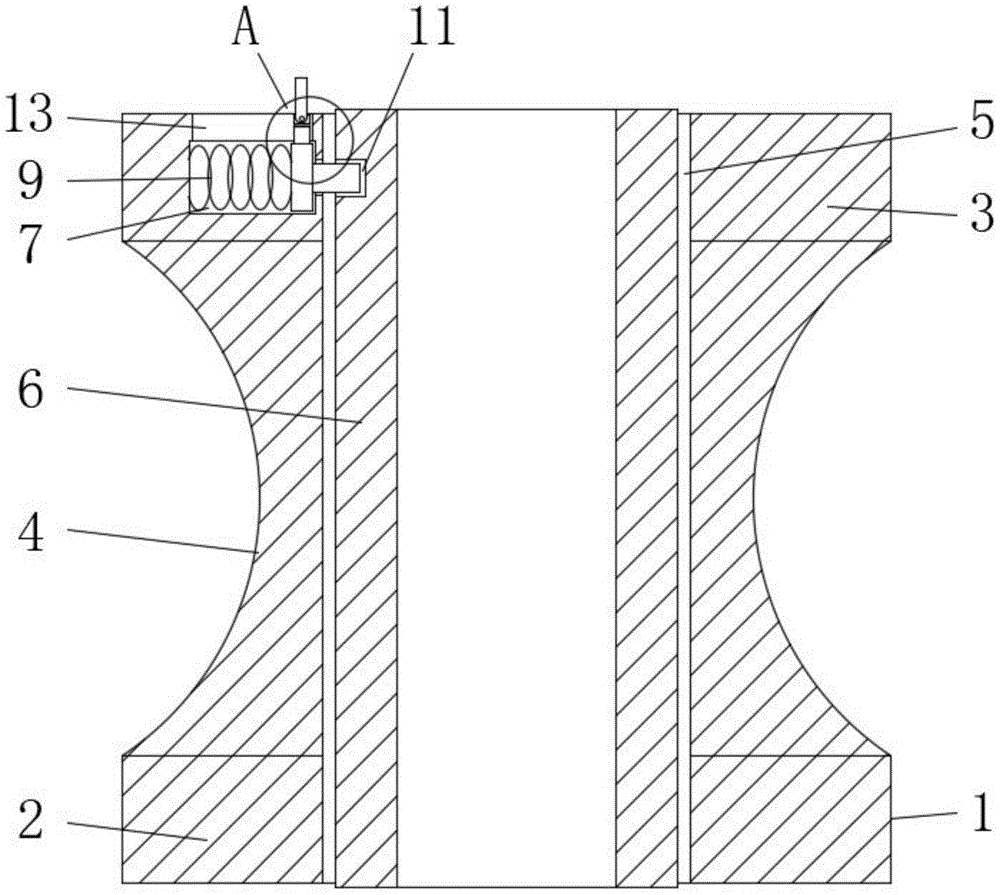

Fig. 1 is a front view of a welded pipe processing mold according to the present invention;
fig. 2 is a top view of a welded pipe processing mold according to the present invention;
fig. 3 is an enlarged view of a position a in fig. 1 of the welded pipe processing mold according to the present invention.
Illustration of the drawings:
1. a mold body; 2. a base plate; 3. a top plate; 4. an arc-shaped slot; 5. a placement groove; 6. a shaft sleeve; 7. an inner tank; 8. a moving block; 9. a spring; 10. a limiting block; 11. a limiting groove; 12. a travel bar; 13. a movable notch; 14. rotating the block; 15. rotating the rod; 16. a connecting notch; 17. a rotating shaft; 18. a threaded hole; 19. a clamping groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, the present invention provides an embodiment: the utility model provides a welded tube mold processing, including mould body 1, the top and the bottom of mould body 1 are provided with roof 3 and bottom plate 2 respectively, and the surface of mould body 1 is provided with arc wall 4, be provided with standing groove 5 in the mould body 1, nested cooperation is provided with axle sleeve 6 in the standing groove 5, be provided with inside groove 7 near the top position in the mould body 1, be provided with movable block 8 in the inside groove 7, and be connected between the inner wall one side of inside groove 7 and the surface one side of movable block 8 and be provided with spring 9, one side fixedly connected with stopper 10 that spring 9 was kept away from to the surface of movable block 8, and the top fixedly connected with carriage release lever 12 of movable block 8, the top of carriage release lever 12 is rotated and is connected with turning block 14, the top of turning block 14 is provided with dwang 15, and the top of turning block.
A limiting groove 11 which is in nested fit with a limiting block 10 is formed in one side of the outer surface of the shaft sleeve 6, the shaft sleeve 6 can be stably fixed in a nested manner with the die body 1 through the limiting structure, so that the die can be conveniently fixed on a processing structure, subsequent welded pipe processing work is facilitated, and meanwhile, shaft sleeves 6 with different sizes can be replaced to conveniently adapt to connecting shafts with different sizes on different welded pipe processing machines, the inner diameter of each shaft sleeve 6 is set to be the size corresponding to the corresponding connecting shaft, the outer diameter of each shaft sleeve is nested and matched with the corresponding placing groove 5, the applicability is higher, and the limitation of the use of the die is reduced; the top of the die body 1 is provided with a movable notch 13 communicated with the inner groove 7, the movable rod 12 is in nested sliding connection with the movable notch 13, and the movable rod 12 can be conveniently matched with a limiting locking structure through the arrangement of the structure of the movable rod 12, so that the locking structure can be conveniently opened; the rotating rod 15 is rotatably connected with the connecting notch 16 through the rotating shaft 17, and the rotating rod 15 is rotatably connected, so that the locking structure can be conveniently opened by matching with the moving rod 12, and meanwhile, the rotating rod can also be rotatably accommodated in the notch structure when not used, the volume space cannot be occupied, the normal use of the integral die structure cannot be influenced, the connection is stable, the operation is simple and convenient, and the use is flexible; the four threaded holes 18 are uniformly distributed in the top of the die body 1, and the die can be conveniently matched with a fixed structure for positioning, fixing and mounting when being mounted on a machine through the arrangement of the threaded holes 18; a clamping groove 19 is formed in one side of the inner wall of the shaft sleeve 6, and the shaft sleeve 6 can be stably and fixedly connected with a connecting shaft on a machine through the clamping groove 19, so that the die can be guaranteed to normally operate to perform machining of welded pipes.
The working principle is as follows: when using welded tube mold processing, the axle sleeve 6 that corresponds the internal diameter is selected according to the size of the last connecting axle of processing machine, the external diameter setting of axle sleeve 6 cooperates with standing groove 5 nested mutually, go into standing groove 5 with axle sleeve 6 card, pulling dwang 15, dwang 15 drives the carriage release 12 and removes, carriage release 12 drives movable block 8 and removes, also drive stopper 10 income inside groove 7 in the time of movable block 8 compression spring 9, go into standing groove 5 with axle sleeve 6 card after, loosen dwang 15, spring 9 automatic re-setting drives movable block 8 and promotes stopper 10 card and go into in the spacing groove 11, can accomplish the locking installation of axle sleeve 6, install mould body 1 on the connecting axle of processing machine, can cooperate the processing work that carries out the welded tube through setting of arc wall 4.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (6)
1. The utility model provides a welded tube mold processing, includes mould body (1), its characterized in that: the die comprises a die body (1), wherein a top plate (3) and a bottom plate (2) are respectively arranged at the top and the bottom of the die body (1), an arc-shaped groove (4) is formed in the outer surface of the die body (1), a placing groove (5) is formed in the die body (1), a shaft sleeve (6) is arranged in the placing groove (5) in a nested fit mode, an inner groove (7) is formed in the die body (1) and close to the top, a moving block (8) is arranged in the inner groove (7), a spring (9) is connected between one side of the inner wall of the inner groove (7) and one side of the outer surface of the moving block (8), a limiting block (10) is fixedly connected to one side, away from the spring (9), of the outer surface of the moving block (8), a moving rod (12) is fixedly connected to the top of the moving rod (12), a rotating block (14, and the top of the rotating block (14) is provided with a connecting notch (16) which is nested and matched with the rotating rod (15).
2. The welded pipe processing die according to claim 1, wherein: and one side of the outer surface of the shaft sleeve (6) is provided with a limiting groove (11) which is in nested fit with the limiting block (10).
3. The welded pipe processing die according to claim 1, wherein: the top of the die body (1) is provided with a movable notch (13) communicated with the inner groove (7), and the movable rod (12) is connected with the movable notch (13) in a nested sliding manner.
4. The welded pipe processing die according to claim 1, wherein: the rotating rod (15) is rotatably connected with the connecting notch (16) through a rotating shaft (17).
5. The welded pipe processing die according to claim 1, wherein: the top of the die body (1) is uniformly provided with four threaded holes (18).
6. The welded pipe processing die according to claim 1, wherein: and a clamping groove (19) is formed in one side of the inner wall of the shaft sleeve (6).
