CN212898115U

CN212898115U - Windowsill veneer mounting structure of prefabricated assembled window that wafts

Info

Publication number: CN212898115U
Application number: CN202022021385.3U
Authority: CN
Inventors: 迟玉华; 吴艳阳; 赵士勇; 张学应; 张羽; 史佳兴
Original assignee: Gold Mantis Fine Decoration Technology Suzhou Co Ltd
Current assignee: Gold Mantis Fine Decoration Technology Suzhou Co Ltd
Priority date: 2020-09-15
Filing date: 2020-09-15
Publication date: 2021-04-06
Anticipated expiration: 2030-09-15

Abstract

The utility model relates to an assembly type structure technical field just discloses a prefabricated assembled windowsill veneer mounting structure of window that wafts, including wall and prefabricated plate, its characterized in that: one side joint of prefabricated plate has first connecting device, and the opposite side joint of prefabricated plate has first protector, and the positive joint of prefabricated plate has second protector, and the back joint of prefabricated plate has second connecting device, and one side joint of second protector has third protector, and second protector's opposite side joint has first fixing device. Through the arrangement of the prefabricated plate, the first connecting device, the second connecting device and the like, the working personnel can use the first connecting device and the second connecting device in a matched mode, the prefabricated plate is spliced, and the prefabricated plate is fixed through the rivets after the splicing is completed, so that the working personnel can adjust the size of the prefabricated plate according to different construction requirements, and the construction efficiency of the working personnel is improved.

Description

Windowsill veneer mounting structure of prefabricated assembled window that wafts

Technical Field

The utility model relates to an assembly type structure technical field specifically is a prefabricated assembled mounting structure of windowsill veneer of window that wafts.

Background

The prefabricated building is a building which is formed by transferring a large amount of field operation work in the traditional construction mode to a factory, processing and manufacturing building components and accessories (such as floor slabs, wall plates, stairs, balconies and the like) in the factory, transporting the components and accessories to a building construction site, and assembling and installing the components and the accessories on the site in a reliable connection mode.

The existing floating window decoration surface is mostly integrally prefabricated for pouring, a pouring mold needs to be built in advance before pouring, the size of the window decoration surface is not convenient to adjust, time and labor are wasted, labor and materials are wasted, time and manual manufacturing and processing are wasted, the window decoration surface is easy to damage, and the window decoration surface is not convenient to maintain and replace.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a prefabricated assembled mounting structure of windowsill veneer of wafing window possesses and is convenient for adjust the size of windowsill veneer, and maintenance and advantage such as change have solved the problem of being not convenient for adjust and maintain, still easy damage that above-mentioned background art mentioned.

(II) technical scheme

For the purpose of realizing above-mentioned regulation and maintenance of being convenient for, the utility model provides a following technical scheme: the utility model provides a prefabricated assembled windowsill veneer mounting structure that wafts window, includes wall and prefabricated plate, one side joint of prefabricated plate has first connecting device, the opposite side joint of prefabricated plate has first protector, the positive joint of prefabricated plate has second protector, the back joint of prefabricated plate has second connecting device, one side joint of second protector has third protector, the opposite side joint of second protector has first fixing device, one side joint of first protector has second fixing device, one side fixedly connected with U type cassette of wall, the wall is close to U type cassette department fixedly connected with bearing diagonal of department

Preferably, the first connecting device comprises a first connecting block, first positioning posts are fixedly connected to two sides of the first connecting block, and a first connecting plate is fixedly connected to the upper surface of the first connecting block

Preferably, the first protection device comprises a first protection frame, a first clamping groove is formed in one side of the first protection frame, and a second positioning column is fixedly connected to the inner wall of the first protection frame

Preferably, the second protection device comprises a second protection frame, a clamping block is fixedly connected to one side of the second protection frame, a second groove is formed in the other side of the second protection frame, and a first inserting block is fixedly connected to the back of the second protection frame

Preferably, the second connecting device comprises a second connecting block, the two sides of the second connecting block are fixedly connected with second inserting blocks, and the upper surface of the second connecting block is fixedly connected with a second connecting plate

Preferably, the third protection device comprises a third protection frame, a clamping groove is formed in the inner wall of the third protection device, the clamping groove is matched with the clamping block, and the third protection device is matched with the first protection device and the second protection device

Preferably, the first fixing device comprises a first U-shaped protection frame, first fixing blocks are fixedly connected to two sides of the first U-shaped protection frame, and the first fixing blocks are matched with the second grooves

Preferably, the second fixing device comprises a second U-shaped protection frame, second fixing blocks are fixedly connected to two sides of the second U-shaped protection frame, and the second fixing blocks are matched with the first clamping grooves

Preferably, the two sides of the prefabricated slab are both provided with positioning holes, the front surface and the back surface of the prefabricated slab are both provided with jacks, and the upper surface of the prefabricated slab is provided with through holes corresponding to the jacks and the positioning holes.

(III) advantageous effects

Compared with the prior art, the utility model provides a prefabricated assembled mounting structure of windowsill veneer of window that wafts possesses following beneficial effect:

1. the windowsill veneer mounting structure of the prefabricated bay window enables workers to use the first connecting device and the second connecting device in a matched mode through the arrangement of the prefabricated plates, the first connecting device and the second connecting device, the prefabricated plates are spliced and fixed through the rivets after splicing, the sizes of the prefabricated plates can be adjusted conveniently by the workers according to different construction requirements, the construction efficiency of the workers is improved, the first protecting device, the second protecting device, the third protecting device, the first fixing device and the second fixing device are connected through the arrangement of the first protecting device, the second protecting device and the third protecting device which are connected with the prefabricated plates in an inserted mode, and the second fixing device are used for connecting the first protecting device and the second protecting device, and finally, the first protection device, the second protection device, the third protection device and the prefabricated plate are reinforced through rivets, so that the effects of reinforcing and protecting the prefabricated plate are achieved.

2. This prefabricated assembled floating window's windowsill veneer mounting structure, through the prefabricated plate, first connecting device, the second connecting device, first protector, the second protector, the third protector, devices such as first fixing device and second fixing device set up, when the prefabricated plate needs to be maintained and change, the staff only need dismantle the prefabricated plate that damages wherein get off, and maintain and change it, the cooperation of devices such as rethread first connecting device, the second connecting device, first protector, the second protector and the third protector is used, the prefabricated plate that will maintain or change is installed it, thereby the staff of being convenient for maintains and changes the windowsill veneer, and then staff's work efficiency has been improved, and then reach labour saving and time saving's effect.

Drawings

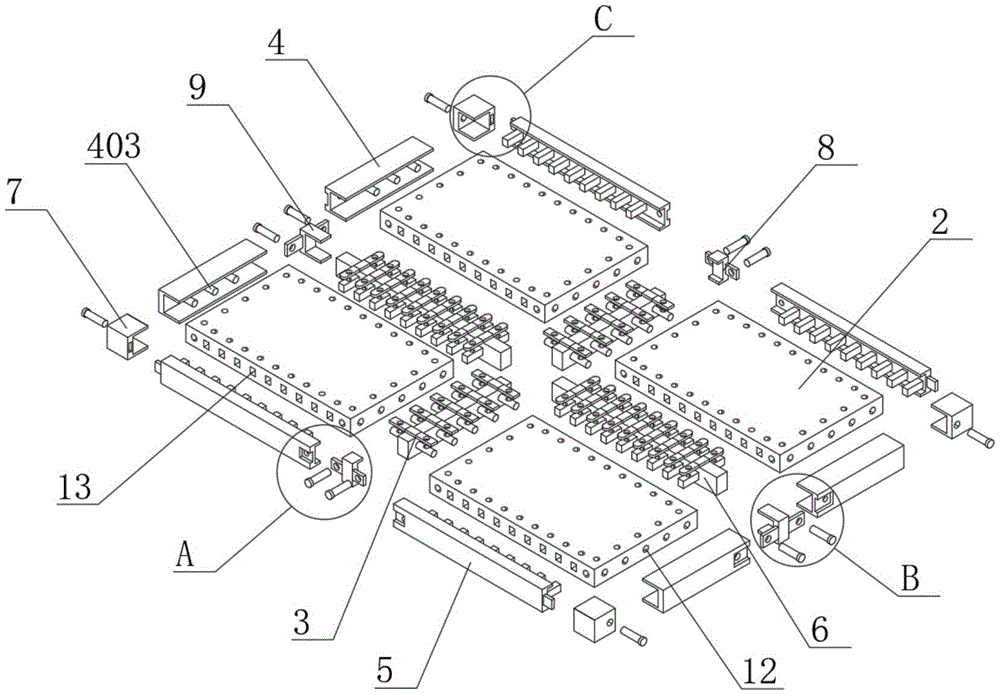

Fig. 1 is a schematic view of a disassembled structure of a mounting structure of a windowsill facing of a prefabricated bay window of the present invention;

fig. 2 is a schematic view of a three-dimensional partial structure of a windowsill facing mounting structure of a prefabricated bay window of the present invention;

fig. 3 is a schematic diagram of a splicing structure of prefabricated panels of a windowsill facing mounting structure of a prefabricated bay window of the present invention;

fig. 4 is a schematic front view of a mounting structure of a windowsill facing of a prefabricated bay window of the present invention;

fig. 5 is a schematic partial structure view of a first connecting device of a windowsill facing mounting structure of a prefabricated bay window of the present invention;

fig. 6 is a schematic partial structure view of a second connecting device of a windowsill facing mounting structure of a prefabricated bay window of the present invention;

fig. 7 is a schematic structural view of a point a in a mounting structure diagram of a windowsill facing of a prefabricated bay window of the present invention;

fig. 8 is a schematic structural view of a first structure B of a mounting structure diagram of a windowsill facing of a prefabricated bay window of the present invention;

fig. 9 is a schematic structural diagram of a C position in a first window sill facing installation structure diagram of a prefabricated bay window of the present invention.

In the figure: 1-wall surface, 2-prefabricated plate, 3-first connecting device, 301-first connecting block, 302-first positioning column, 303-first connecting plate, 4-first protecting device, 401-first protecting frame, 402-first clamping groove, 403-second positioning column, 5-second protecting device, 501-second protecting frame, 502-clamping block, 503-second groove, 504-first inserting block, 6-second connecting device, 601-second connecting block, 602-second inserting block, 603-second connecting plate, 7-third protecting device, 701-third protecting frame, 702-clamping groove, 8-first fixing device, 801-first U-shaped protecting frame, 802-first fixing block, 9-second fixing device, 901-second U-shaped protecting frame, 902-a second fixed block, 10-a U-shaped clamping seat, 11-an inclined support, 12-a positioning hole and 13-an insertion hole.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-9, the prefabricated panel comprises a wall surface 1 and a prefabricated panel 2, wherein positioning holes 12 are formed on both sides of the prefabricated panel 2, insertion holes 13 are formed on both front and back surfaces of the prefabricated panel 2, through holes corresponding to the insertion holes 13 and the positioning holes 12 are formed on the upper surface of the prefabricated panel 2, a first connecting device 3 is fastened to one side of the prefabricated panel 2, the first connecting device 3 comprises a first connecting block 301, first positioning posts 302 are fixedly connected to both sides of the first connecting block 301, a first connecting plate 303 is fixedly connected to the upper surface of the first connecting block 301, a first protective device 4 is fastened to the other side of the prefabricated panel 2, the first protective device 4 comprises a first protective frame 401, a first clamping groove 402 is formed on one side of the first protective frame 401, a second positioning post 403 is fixedly connected to the inner wall of the first protective frame 401, a second protective device 5 is fastened to the front surface of the prefabricated panel 2, the second protective device 5 comprises a, one side of the second protection frame 501 is fixedly connected with a fixture block 502, the other side of the second protection frame 501 is provided with a second groove 503, the back of the second protection frame 501 is fixedly connected with a first insert block 504, the back of the prefabricated plate 2 is clamped with a second connecting device 6, the second connecting device 6 comprises a second connecting block 601, both sides of the second connecting block 601 are fixedly connected with a second insert block 602, the upper surface of the second connecting block 601 is fixedly connected with a second connecting plate 603, the surfaces of the first connecting plate 303, the first positioning column 302 of the second connecting plate 603 and the second insert block 602 are respectively provided with a preformed hole matched with the through hole on the upper surface of the prefabricated plate 2, one side of the second protection device 5 is clamped with a third protection device 7, the third protection device 7 comprises a third protection frame 701, the inner wall of the third protection device 7 is provided with a clamping groove 702, the clamping groove 702 is matched with the fixture block 502, the third protection device 7 is matched with the first protection device 4 and the second protection device 5, the other side joint of second protector 5 has first fixing device 8, first fixing device 8 includes first U type protecting frame 801, the equal first fixed block 802 of fixedly connected with in both sides of first U type protecting frame 801, first fixed block 802 and second recess 503 looks adaptation, one side joint of first protector 4 has second fixing device 9, second fixing device 9 includes second U type protecting frame 901, the equal fixedly connected with second fixed block 902 in both sides of second U type protecting frame 901, second fixed block 902 and first draw-in groove 402 looks adaptation, one side fixedly connected with U type cassette 10 of wall 1, wall 1 is close to U type cassette 10 fixedly connected with bearing diagonal 11.

The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.

In summary, in the windowsill facing mounting structure of the prefabricated bay window, when in use, through the arrangement of the prefabricated panels 2, the first connecting device 3, the second connecting device 6, the first protecting device 4, the second protecting device 5, the third protecting device 7, the first fixing device 8 and the second fixing device 9, and the like, a worker inserts the first connecting device 3 into the positioning hole 12 on one side of the prefabricated panel 2 through the first positioning post 302, inserts the other prefabricated panel 2 into the first positioning post 302 on the other side of the first connecting device 3 through the positioning hole 12, inserts the second connecting device 6 into the insertion hole 13 on the prefabricated panel 2 through the second insertion block 602, inserts the other prefabricated panel 2 into the second insertion block 602 on the other side of the second connecting device 6 through the insertion hole 13, and after the worker finishes the splicing, fixes the prefabricated panels by using rivets through the through holes reserved on the first connecting plate 303 and the second connecting plate 603, the staff is pegging graft first protector 4, second protector 5 and third protector 7 and prefabricated plate 2, being connected first protector 4 and second protector 5 through first fixing device 8 and second fixing device 9, the rethread rivet is fixed it, thereby accomplish prefabricated plate 2's concatenation and protection, the staff is fixed U type cassette 10 with wall 1 through the bolt, prefabricated plate 2 and the joint of U type cassette 10 of accomplishing the concatenation again, and fix through the rivet, fix the both ends of bearing diagonal 11 respectively in prefabricated plate 2 and wall 1 through the bolt at last, thereby accomplish the installation of windowsill veneer.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, the use of the verb "comprise a" to define an element does not exclude the presence of another, same element in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a prefabricated assembled floating window's windowsill veneer mounting structure, includes wall (1) and prefabricated plate (2), its characterized in that: one side joint of prefabricated plate (2) has first connecting device (3), the opposite side joint of prefabricated plate (2) has first protector (4), the positive joint of prefabricated plate (2) has second protector (5), the back joint of prefabricated plate (2) has second connecting device (6), one side joint of second protector (5) has third protector (7), the opposite side joint of second protector (5) has first fixing device (8), one side joint of first protector (4) has second fixing device (9), one side fixedly connected with U type cassette (10) of wall (1), wall (1) is close to U type cassette (10) and locates fixedly connected with bearing diagonal (11).

2. The window sill facing mounting structure of a prefabricated bay window of claim 1, wherein: first connecting device (3) include first connecting block (301), the equal fixedly connected with first locating column (302) in both sides of first connecting block (301), the last fixed surface of first connecting block (301) is connected with first connecting plate (303).

3. The window sill facing mounting structure of a prefabricated bay window of claim 1, wherein: the first protection device (4) comprises a first protection frame (401), a first clamping groove (402) is formed in one side of the first protection frame (401), and a second positioning column (403) is fixedly connected to the inner wall of the first protection frame (401).

4. The window sill facing mounting structure of a prefabricated bay window of claim 1, wherein: the second protection device (5) comprises a second protection frame (501), a clamping block (502) is fixedly connected to one side of the second protection frame (501), a second groove (503) is formed in the other side of the second protection frame (501), and a first inserting block (504) is fixedly connected to the back of the second protection frame (501).

5. The window sill facing mounting structure of a prefabricated bay window of claim 1, wherein: the second connecting device (6) comprises a second connecting block (601), the two sides of the second connecting block (601) are fixedly connected with second inserting blocks (602), and the upper surface of the second connecting block (601) is fixedly connected with a second connecting plate (603).

6. The window sill facing mounting structure of a prefabricated bay window of claim 1, wherein: the third protection device (7) comprises a third protection frame (701), a clamping groove (702) is formed in the inner wall of the third protection device (7), the clamping groove (702) is matched with the clamping block (502), and the third protection device (7) is matched with the first protection device (4) and the second protection device (5).

7. The window sill facing mounting structure of a prefabricated bay window of claim 1, wherein: the first fixing device (8) comprises a first U-shaped protection frame (801), first fixing blocks (802) are fixedly connected to two sides of the first U-shaped protection frame (801), and the first fixing blocks (802) are matched with the second grooves (503).

8. The window sill facing mounting structure of a prefabricated bay window of claim 1, wherein: the second fixing device (9) comprises a second U-shaped protection frame (901), second fixing blocks (902) are fixedly connected to two sides of the second U-shaped protection frame (901), and the second fixing blocks (902) are matched with the first clamping grooves (402).

9. The window sill facing mounting structure of a prefabricated bay window of claim 1, wherein: positioning holes (12) are formed in the two sides of the prefabricated plate (2), jacks (13) are formed in the front and back of the prefabricated plate (2), and through holes corresponding to the jacks (13) and the positioning holes (12) are formed in the upper surface of the prefabricated plate (2).
