Abstract
The utility model relates to a stagnant water steel sheet reinforcing apparatus, relate to water conservancy construction equipment technical field, the problem that current stagnant water steel sheet reinforcing mode can destroy stagnant water steel sheet self structure has been solved, including the stagnant water steel sheet, the both sides of stagnant water steel sheet all are provided with horizontal reinforcing bar and vertical reinforcing bar, the stagnant water steel sheet forms the crosspoint with the horizontal reinforcing bar and the vertical reinforcing bar cross welding of one side together, be provided with coupling assembling between crosspoint and the stagnant water steel sheet, coupling assembling includes the connecting rod, the one end and the crosspoint welding of connecting rod, the other end of connecting rod is provided with the carriage that the stagnant water steel sheet is parallel, carriage welding is on the stagnant water steel sheet, fix together through many dead. The water-stopping steel plate has the advantage that the water-stopping steel plate is more stable on the basis of not damaging the original structure of the water-stopping steel plate.
Description
Technical Field
The utility model belongs to the technical field of water conservancy construction equipment technique and specifically relates to a stagnant water steel sheet reinforcing apparatus is related to.
Background
With the progress of society, some water conservancy facilities are continuously established for better utilization of water conservancy resources, the waterproof function is one of the most basic functions required by the quality of building engineering in the construction process of the water conservancy facilities, the water-stopping steel plate is widely applied to building construction at present, and the water-stopping steel plate is generally called as a galvanized steel plate water-stopping belt, a metal steel plate water-stopping belt and the like in material. The water-stop steel plate belt is mainly used for reinforced concrete water-stop steel plate structures, dams and other large-scale projects. The waterproof system of the water-stopping steel plate is one of the necessary conditions of excellent engineering standards, the water-stopping effect of the water-stopping steel plate directly influences the effect in construction, and part or all of the water-stopping steel plate is embedded in concrete in the concrete pouring process, so the reinforcing method needs to be paid attention to in the reinforcing process of the water-stopping steel plate. The traditional water stop steel plate installation method refers to fig. 1, two steel bars are perpendicular to a bottom plate and fixed, the water stop steel plate 1 is placed between the two steel bars, the water stop steel plate 1 penetrates through one horizontal steel bar, a water stop ring 8 is welded on the horizontal steel bar, and the water stop ring 8 and the water stop steel plate 1 are connected in a full welding mode. The method has the disadvantages that the integrity of the water-stopping steel plate 1 is damaged after the water-stopping steel plate 1 is perforated, the perforated part is easy to generate stress concentration, and cracks are easy to generate in the pouring and vibrating process.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art exists, the utility model aims at providing a stagnant water steel sheet reinforcing apparatus, it has on the basis of not destroying the original structure of stagnant water steel sheet, makes the more stable advantage of stagnant water steel sheet.
The above utility model discloses an above-mentioned utility model purpose can realize through following technical scheme:
the utility model provides a stagnant water steel sheet reinforcing apparatus, including the stagnant water steel sheet, the both sides of stagnant water steel sheet all are provided with horizontal reinforcing bar and vertical reinforcing bar, the stagnant water steel sheet forms the intersect with horizontal reinforcing bar and the vertical reinforcing bar cross welding of one side together, be provided with coupling assembling between intersect and the stagnant water steel sheet, it includes the connecting rod to connect the group price, the one end and the intersect welding of connecting rod, the other end of connecting rod is provided with the carriage that the stagnant water steel sheet is parallel, the carriage welding is on the stagnant water steel sheet, it is together fixed through many dead levers of welding between.
Through adopting above-mentioned technical scheme, the stagnant water steel sheet passes through three vertical reinforcing bars and a horizontal reinforcing bar of connecting piece and stagnant water steel sheet dorsal surface one side and three vertical reinforcing bars and a horizontal reinforcing bar of upstream face one side and makes up into a whole, and the original structure of stagnant water steel sheet can not destroyed to the connecting piece simultaneously to make stagnant water steel sheet stability more.
The present invention may be further configured in a preferred embodiment as: the fixed frame sets up to the rectangle, and many dead levers set up to four, and the one end of four dead levers all keeps away from the one end welded fastening of crosspoint with the connecting rod, and the other end of four dead levers is welded fastening respectively in the four corners position department of carriage.
Through adopting above-mentioned technical scheme, the carriage makes the area of contact of connecting rod and stagnant water steel sheet bigger, and on material saving's basis, the carriage and four connecting rods of rectangle can exert the best effect simultaneously.
The present invention may be further configured in a preferred embodiment as: vertical reinforcing bar sets up to three, horizontal reinforcing bar sets up to one, stagnant water steel sheet all is provided with three intersect with one side, and equal rigid coupling has coupling assembling between intersection and the stagnant water steel sheet.
By adopting the technical scheme, the water stop steel plate is more stable on the premise that the water stop steel plate is more stable.
The present invention may be further configured in a preferred embodiment as: the connecting rod is connected with the connecting plate towards the one end at crosspoint, and the connecting plate is parallel with the stagnant water steel sheet, offers the recess with the horizontal reinforcing bar adaptation on the lateral wall at connecting plate orientation crosspoint.
Through adopting above-mentioned technical scheme, when welding the connecting rod on the intersect, the recess can carry out a simple location to the connecting rod for the welding of connecting rod is more convenient.
The present invention may be further configured in a preferred embodiment as: the rigid coupling has the first joint board of laying along horizontal reinforcing bar length direction in the recess, first joint board sets up to the arc with horizontal reinforcing bar adaptation, the welding has the second joint board of two curved and with vertical reinforcing bar adaptations on the lateral wall of connecting plate orientation intersect, two second joint boards are all laid along the length direction of vertical reinforcing bar, and two second joint boards are located the both sides of recess respectively, horizontal reinforcing bar is located first joint board, vertical reinforcing bar is located two second joint boards, and horizontal reinforcing bar is in the same place with the welding of first joint board, vertical reinforcing bar is in the same place with the welding of two second joint boards.
Through adopting above-mentioned technical scheme, increased the connection area of the horizontal reinforcing bar of connecting plate and cross point department and vertical reinforcing bar, and then make coupling assembling to the fixed more stability of stagnant water steel sheet.
The present invention may be further configured in a preferred embodiment as: the lateral wall of the connecting plate facing the connecting rod is provided with a connecting hole matched with the connecting rod, and the connecting rod is in threaded connection with the connecting hole.
Through adopting above-mentioned technical scheme, the staff at first places the connecting piece between crosspoint and stagnant water baffle, finishes welding first joint board and second joint board the back through revolving soon and is the connecting rod, makes carriage and stagnant water steel sheet contact, then with the carriage to stagnant water steel sheet welding together, makes the connecting piece more convenient when placing between stagnant water steel sheet and crosspoint like this.
The present invention may be further configured in a preferred embodiment as: the connecting rod is fixedly connected with a stress block which is convenient for workers to rotate the connecting rod, the stress block and the connecting rod are coaxially arranged, and the cross section of the stress rod is hexagonal.
Through adopting above-mentioned technical scheme, make the staff more laborsaving convenience when revolving the wrong connecting block.
To sum up, the utility model discloses a following at least one useful technological effect:
1. by welding the connecting piece between the water stop steel plate and the cross point, the connecting piece cannot damage the original structure of the water stop steel plate, so that the water stop steel plate is more stable;
2. through setting up the connecting plate on the connecting rod, set up the recess on the connecting plate, set up first joint board in the recess, two second joint boards of rigid coupling on the connecting plate, when making coupling assembling fixed more stable, also make staff more convenient in welding coupling assembling.
Drawings
FIG. 1 is a schematic structural view of a fixing manner of a water stop steel plate in the prior art;
FIG. 2 is a schematic diagram showing the position of the salient cross-point in the present embodiment;

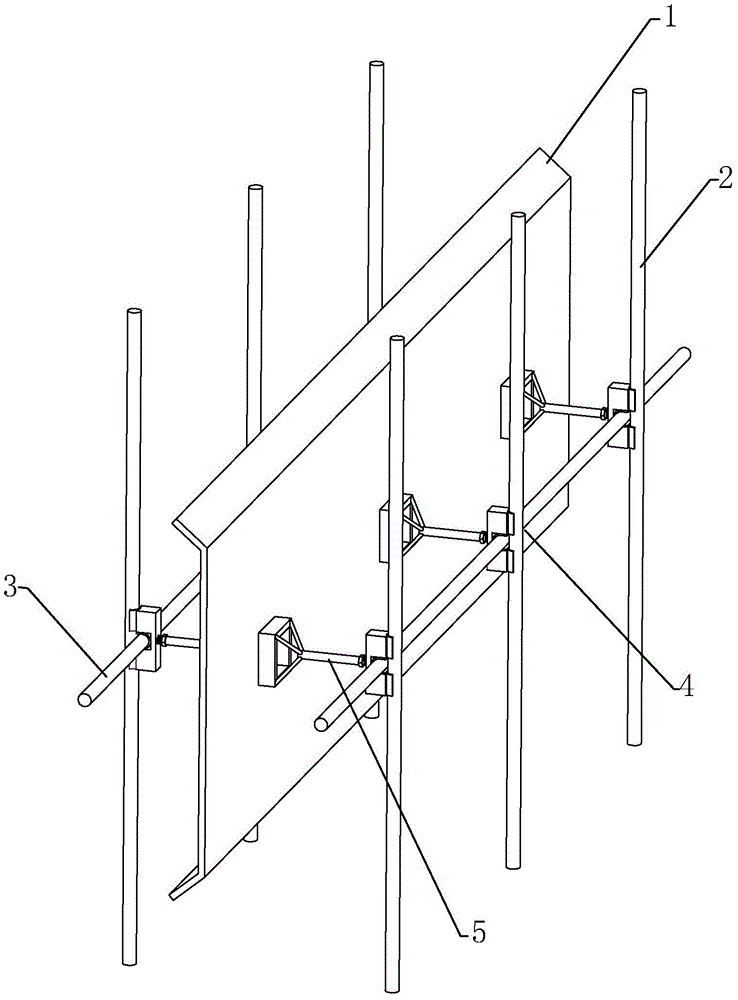

FIG. 3 is a schematic view of the fixing structure of the water stop steel plate according to the present embodiment;
fig. 4 is a schematic structural diagram of the connecting assembly in the present embodiment.
In the figure, 1, a water stop steel plate; 11. a water-facing surface; 12. a water-backed surface; 2. vertical reinforcing steel bars; 3. transverse reinforcing steel bars; 4. an intersection point; 5. a connecting assembly; 51. a connecting rod; 52. a support frame; 53. fixing the rod; 6. a connecting plate; 61. a groove; 611. a first clamping connection plate; 62. a second clamping plate; 63. connecting holes; 7. a stress block; 8. and a water stop ring.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
Referring to fig. 2, fig. 3, for the utility model discloses a 1 reinforcing apparatus of stagnant water steel sheet, including stagnant water steel sheet 1, stagnant water steel sheet 1 includes upstream face 11 and dorsal surface 12, stagnant water steel sheet 1's both sides all are provided with three vertical reinforcement 2, three vertical reinforcement 2 are laid along stagnant water steel sheet 1's length direction equidistant, three vertical reinforcement 2 all are provided with a transverse reinforcement 3 towards one side that the stagnant water is just, three vertical reinforcement 2 all with transverse reinforcement 3 welding together, form three crosspoint 4 between three vertical reinforcement 2 and the transverse reinforcement 3. The both sides of stagnant water steel sheet 1 all are provided with three coupling assembling 5, and stagnant water steel sheet 1 corresponds each other with three coupling assembling 5 and three intersect 4 of one side.
Referring to fig. 4, the connection assembly 5 includes a connection rod 51, one end of the connection rod 51 is connected to the transverse steel bar 3 at the intersection 4, the other end of the connection rod 51 is provided with a rectangular support frame 52 parallel to the water stop steel plate 1, and the connection rod 51 and the support frame 52 are connected together through four fixing rods 53. The support frame 52 and the water stop steel plate 1 are connected together by welding.
Stagnant water steel sheet 1 makes up into a whole through three vertical reinforcement 2 and a horizontal reinforcing bar 3 of connecting piece 5 and 1 surface of water 12 one side of the back of stagnant water steel sheet and three vertical reinforcement 2 and a horizontal reinforcing bar 3 of 11 one sides of upstream face, and connecting piece 5 can not destroy stagnant water steel sheet 1's original structure simultaneously to make stagnant water steel sheet 1 more stable.
The connecting rod 51 of the connecting member 5 is not well fixed in the state of the connecting rod 51 when it is welded to the transverse reinforcing bars 3 at the crossing points 4, so that the connecting rod 51 is not well welded. For this reason, the connecting rod 51 is connected with connecting plate 6 towards the one end of crosspoint 4, and connecting plate 6 is parallel with stagnant water steel sheet 1, has seted up recess 61 on the connecting plate 6 towards the lateral wall of crosspoint 4, and the rigid coupling has the first joint board 611 of laying along transverse reinforcement 3 length direction in the recess 61, and the joint board sets up the arc with transverse reinforcement 3 adaptation. Connecting plate 6 on the lateral wall towards crosspoint 4 the rigid coupling have two curved and with the second joint board 62 of 2 adaptations of vertical reinforcing bar, two second joint boards 62 all lay along the length direction of vertical reinforcing bar 2, and two second joint boards 62 are located the both sides of recess 61 respectively, horizontal reinforcing bar 3 is located first joint board 611, vertical reinforcing bar 2 is located two second joint boards 62, and horizontal reinforcing bar 3 is in the same place with first joint board 611 welding, vertical reinforcing bar 2 is in the same place with the welding of two second joint boards 62. Like this when installation connecting rod 51, first joint board 611 and second joint board 62 can play the effect of location, and first joint board 611 and second joint board 62 have increased the area of connection between connecting rod 51 and the horizontal reinforcing bar 3 and the vertical reinforcing bar 2 of crosspoint 4 department simultaneously, make connecting rod 51 more stable, and first joint board 611 and second joint board 62 liquid can be fixed horizontal reinforcing bar 3 and vertical reinforcing bar 2 simultaneously for be connected more stable between horizontal reinforcing bar 3 and the vertical reinforcing bar 2.
The side wall of the connecting plate 6 facing the connecting rod 51 is provided with a connecting hole 63 matched with the connecting rod 51, and the connecting rod 51 is in threaded connection with the connecting hole 63. The staff first places connecting piece 5 between crosspoint 4 and stagnant water baffle, and it is connecting rod 51 through revolving to finish welding first joint board 611 and second joint board 62, makes carriage 52 and stagnant water steel sheet 1 contact, then welds carriage 52 to stagnant water steel sheet 1 together, makes connecting piece 5 more convenient when placing between stagnant water steel sheet 1 and crosspoint 4 like this.
The upper portion of the connecting rod 51 is provided with a stress block 7 which is arranged along the length direction of the connecting rod 51, the cross section of the stress block 7 is hexagonal, the connecting rod 51 and the stress block 7 are coaxially arranged, the connecting rod 51 penetrates through the stress block 7, and the stress block 7 is fixedly connected with the connecting block. When screwing the connecting rod 51, the worker can rotate the stress block 7 by a wrench, so that the worker can screw the connecting block more conveniently in a labor-saving manner.
The implementation principle of the embodiment is as follows: when reinforcing stagnant water steel sheet 1, the staff at first places connecting piece 5 between stagnant water steel sheet 1 and crosspoint 4, then aligns first joint board 611 and second joint board 62 on connecting piece 5 with horizontal reinforcing bar 3 and vertical reinforcing bar 2 on crosspoint 4, later with first joint board 611 and second joint board 62 with horizontal reinforcing bar 3 and vertical reinforcing bar 2 of crosspoint 4 department, the welding together, later the staff will rotate atress piece 7 on connecting rod 51 through the spanner, make carriage 52 and stagnant water steel sheet 1 contact, later with carriage 52 and stagnant water steel sheet 1 welding together can.
The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.
Claims (7)
1. The utility model provides a stagnant water steel sheet reinforcing apparatus, including stagnant water steel sheet (1), the both sides of its characterized in that stagnant water steel sheet (1) all are provided with horizontal reinforcing bar (3) and vertical reinforcement (2), stagnant water steel sheet (1) is with horizontal reinforcing bar (3) and vertical reinforcement (2) cross welding of one side and is in the same place formed crosspoint (4), be provided with coupling assembling (5) between crosspoint (4) and stagnant water steel sheet (1), coupling assembling (5) are including connecting rod (51), the one end and the crosspoint (4) welding of connecting rod (51), the other end of connecting rod (51) is provided with the carriage (52) that stagnant water steel sheet (1) is parallel, carriage (52) welding is on stagnant water steel sheet (1), fix together through many dead levers (53) of welding between carriage (52) and connecting rod (51).
2. The waterstop steel plate reinforcing device according to claim 1, characterized in that: the supporting frame (52) is set to be rectangular, the fixing rods (53) are set to be four, one ends of the four fixing rods (53) are fixedly welded with one ends, far away from the intersection point (4), of the connecting rods (51), and the other ends of the four fixing rods (53) are fixedly welded at the four corners of the supporting frame (52) respectively.
3. The waterstop steel plate reinforcing device according to claim 2, characterized in that: vertical reinforcing bar (2) set up to three, horizontal reinforcing bar (3) set up to one, stagnant water steel sheet (1) all are provided with three intersect (4) with one side, and equal rigid coupling has coupling assembling (5) between intersect (4) and stagnant water steel sheet (1).
4. The waterstop steel plate reinforcing device according to claim 3, characterized in that: connecting rod (51) are connected with connecting plate (6) towards the one end of crosspoint (4), and horizontal reinforcing bar (3) are located between vertical reinforcement (2) and stagnant water steel sheet (1), and connecting plate (6) are parallel with stagnant water steel sheet (1), offer on connecting plate (6) the lateral wall towards crosspoint (4) with recess (61) of horizontal reinforcing bar (3) adaptation.
5. The waterstop steel plate reinforcing device according to claim 4, characterized in that: the rigid coupling has first joint board (611) of laying along horizontal reinforcing bar (3) length direction in recess (61), first joint board (611) set up to the arc with horizontal reinforcing bar (3) adaptation, welding has second joint board (62) of two curved and with vertical reinforcing bar (2) adaptation on connecting plate (6) towards the lateral wall of crosspoint (4), two second joint boards (62) are all laid along the length direction of vertical reinforcing bar (2), and two second joint boards (62) are located the both sides of recess (61) respectively, horizontal reinforcing bar (3) are located first joint board (611), vertical reinforcing bar (2) are located two second joint board (62), and horizontal reinforcing bar (3) are in the same place with first joint board (611) welding, vertical reinforcing bar (2) are in the same place with two second joint board (62) welding.
6. The waterstop steel plate reinforcing device according to claim 5, characterized in that: connecting holes (63) matched with the connecting rods (51) are formed in the side walls, facing the connecting rods (51), of the connecting plates (6), and the connecting rods (51) are connected in the connecting holes (63) in a threaded mode.
7. The waterstop steel plate reinforcing device according to claim 6, characterized in that: the utility model discloses a pressure-bearing device, including connecting rod (51), atress piece (7), connecting rod (51), atress piece (7) and connecting rod (51), the rigid coupling has the atress piece (7) that makes things convenient for the staff to connecting rod (51) pivoted on connecting rod (51), and atress piece (7) and connecting rod (51) coaxial setting, and the cross section of atress pole sets up to the.
