CN212842018U

CN212842018U - A computer room ventilation structure

Info

Publication number: CN212842018U
Application number: CN202021128863.4U
Authority: CN
Inventors: 赵东旸; 于沛; 闫清尧; 李龙
Original assignee: Huanghe Science and Technology College
Current assignee: Huanghe Science and Technology College
Priority date: 2020-06-09
Filing date: 2020-06-09
Publication date: 2021-03-30
Anticipated expiration: 2030-06-09

Abstract

The utility model discloses a ventilation structure for a computer room, which comprises a computer room and a dust-removal chamber, a dust-removal chamber is arranged on one side of the computer room, a water pool is arranged at the bottom of the dust-removal chamber, and the water pool is communicated with the dust-removal chamber, One side of the top of the dust chamber is provided with an exhaust fan, and one side of the bottom of the exhaust fan is connected with a first pipe, the first pipe leads into the pool, and one side of the computer room is provided with a column, the The upright column is provided with a swinging air plate, there are a plurality of the swinging air plates, a connecting piece is arranged between the swinging air plates, and both ends of the connecting piece are movable with the swinging air plate through a first movable shaft provided A motor is installed on one side of the bottom of the computer room, the output end of the motor is connected with a rotating shaft, the other end of the rotating shaft is installed with a rotating disk, and a fixing rod is arranged on the upper side of the rotating disk. There is an active rod on the top. Beneficial effects: the utility model has complete dust removal and good ventilation effect, and is suitable for promotion.

Description

Computer room ventilation structure

Technical Field

The utility model relates to a ventilation technical field particularly, relates to a computer room ventilation structure.

Background

The computer, commonly known as computer, is a modern electronic computing machine for high-speed computation, can perform numerical computation and logic computation, and also has the function of storage and memory. The intelligent electronic device can be operated according to a program, and can automatically process mass data at a high speed.

Among the prior art, need ventilate in real time at the during operation in the computer lab, and general ventilation structure can bring the dust in the outside air into the computer lab to adsorb on equipment, influence the work efficiency of this equipment, make its life shorten, and now generally all not have what good dustproof measure, this just produced the dust greatly increased, and current ventilation structure ventilates relatively poorly in the corner of computer lab simultaneously, ventilates unevenly, also brings some potential safety hazards.

An effective solution to the problems in the related art has not been proposed yet.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a computer room ventilation structure to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a ventilation structure of a computer room comprises the computer room and a dust removal chamber, wherein the dust removal chamber is arranged on one side of the computer room, a water pool is arranged at the bottom in the dust removal chamber, the water pool is communicated with the dust removal chamber, an exhaust fan is arranged on one side of the top of the dust removal chamber, a first pipeline is connected to one side of the bottom of the exhaust fan, the first pipeline is introduced into the water pool, a second pipeline is connected to one side of the exhaust fan, the other end of the second pipeline is led out of the dust removal chamber, stand columns are arranged on one side in the computer room, two stand columns are arranged on each stand column, a plurality of air swinging plates are arranged on each stand column, the air swinging plates are movably connected with the stand columns through first movable shafts, connecting pieces are arranged between the air swinging plates, and two ends of each connecting piece are movably connected with the air swinging plates through the first movable shafts, the computer room is characterized in that a motor is arranged on one side of the bottom of the computer room, a rotating shaft is connected to the output end of the motor, a rotating disc is installed at the other end of the rotating shaft, a fixed rod is arranged on one side of the rotating disc, and a movable rod is arranged at the top of the fixed rod.

Furthermore, the bottom of the movable rod is sleeved on the fixed rod, a second movable shaft is welded on one side of the bottom of the air swinging plate, and the movable rod is movably connected with the second movable shaft.

Further, an air blower is arranged between the dust removal chamber and the computer room, a third pipeline is connected to one side of the air blower, and the other end of the third pipeline is communicated into the dust removal chamber.

Furthermore, the other side of the air blower is connected with a fourth pipeline, the other end of the fourth pipeline is communicated into the computer room, and the third pipeline and the fourth pipeline are both provided with pipe orifices.

Furthermore, the other end of the second pipeline is provided with an air suction opening, and a plurality of air suction pipes are installed on the air suction opening.

Furthermore, a plurality of groups of heat dissipation ports are arranged on one side outside the computer room.

Furthermore, one side of the water pool is provided with an inclined plate.

Compared with the prior art, the utility model discloses following beneficial effect has:

(1) through the arranged air swinging plate, outside and filtered air can be uniformly blown into the computer room, so that the uniform heat dissipation effect is achieved, and the ventilation effect is good;

(2) through the clean room and the pond that set up, with during the clean room is inhaled to the outside air to through pond filtration dust, filter thoroughly, accord with the requirement of computer lab to air cleanliness factor completely.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

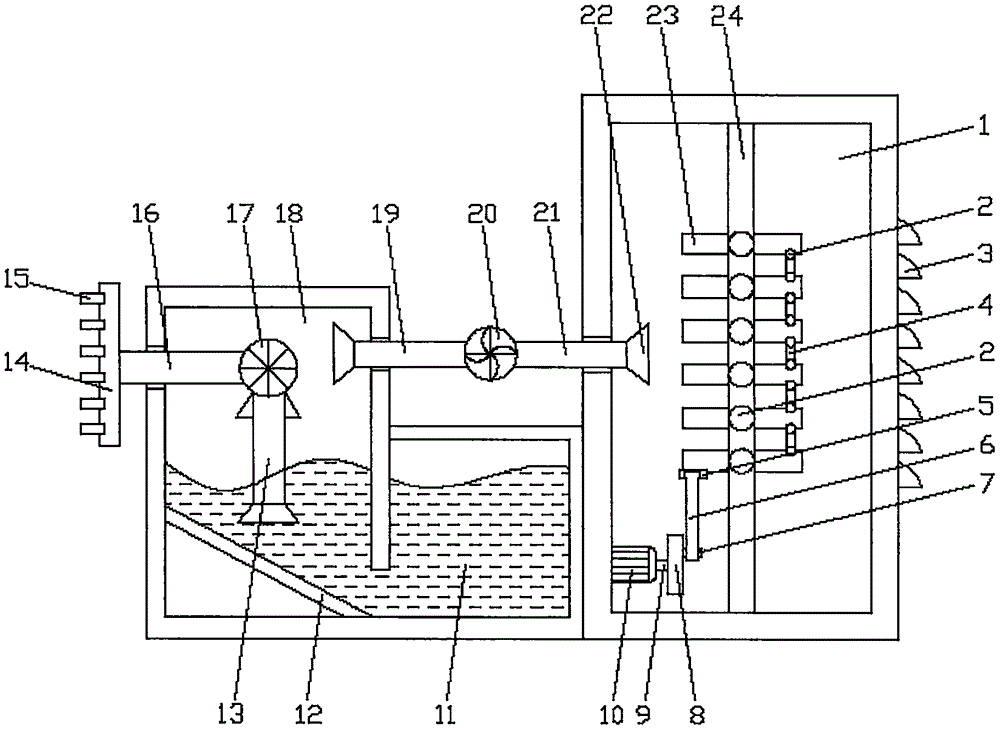

Fig. 1 is a schematic structural diagram of a ventilation structure of a computer room according to an embodiment of the present invention;

fig. 2 is a schematic structural diagram of a second movable shaft and a movable rod according to an embodiment of the present invention.

Reference numerals:

1. a computer room; 2. a first movable shaft; 3. a heat dissipation port; 4. a connecting member; 5. a second movable shaft; 6. a movable rod; 7. fixing the rod; 8. rotating the disc; 9. a rotating shaft; 10. a motor; 11. a pool; 12. an inclined plate; 13. a first conduit; 14. an air suction opening; 15. an air suction pipe; 16. a second conduit; 17. an exhaust fan; 18. a dust chamber; 19. a third pipeline; 20. a blower; 21. a fourth conduit; 22. a pipe orifice; 23. a wind swing plate; 24. and (4) a column.

Detailed Description

The following, with reference to the drawings and the detailed description, further description of the present invention is made:

referring to fig. 1-2, a ventilation structure for a computer room according to an embodiment of the present invention includes a computer room 1 and a clean room 18, the clean room 18 is disposed on one side of the computer room 1, a water tank 11 is disposed at the bottom of the clean room 18, the water tank 11 is communicated with the clean room 18, an exhaust fan 17 is disposed at one side of the top of the clean room 18, a first pipe 13 is connected to one side of the bottom of the exhaust fan 17, the first pipe 13 is led into the water tank 11, a second pipe 16 is connected to one side of the exhaust fan 17, the other end of the second pipe 16 is led out of the clean room 18, two columns 24 are disposed at one side of the computer room 1, a plurality of swing plates 23 are disposed on the columns 24, the swing plates 23 are movably connected to the columns 24 through a first movable shaft 2, be provided with connecting piece 4 between the pendulum aerofoil 23, 4 both ends of connecting piece all through the first loose axle 2 that sets up with pendulum aerofoil 23 swing joint, 1 bottom one side of computer lab is provided with motor 10, the output of motor 10 is connected with pivot 9, rotary disk 8 is installed to the other end of pivot 9, one side is provided with dead lever 7 on the rotary disk 8, dead lever 7 top is provided with movable rod 6.

Through the above scheme of the utility model, the bottom of the movable rod 6 is sleeved on the fixed rod 7, one side of the bottom of the air swing plate 23 is welded with the second movable shaft 5, the movable rod 6 is movably connected with the second movable shaft 5, and the second movable shaft 5 is arranged to enable the movable rod 6 to move in a certain range, which is beneficial to the swing of the air swing plate 23; an air blower 20 is arranged between the dust chamber 18 and the computer room 1, one side of the air blower 20 is connected with a third pipeline 19, the other end of the third pipeline 19 is communicated into the dust chamber 18, the other side of the air blower 20 is connected with a fourth pipeline 21, the other end of the fourth pipeline 21 is communicated into the computer room 1, both the third pipeline 19 and the fourth pipeline 21 are provided with pipe orifices 22, and the arranged air blower 20 is used for pumping air which is dedusted in the dust chamber 18 into the computer room 1 for ventilation and heat dissipation; an air suction opening 14 is formed in the other end of the second pipeline 16, and a plurality of air suction pipes 15 are mounted on the air suction opening 14 and used for extracting outside air; a plurality of groups of heat dissipation ports 3 are arranged on one side outside the computer room 1, and the heat dissipation ports 3 are used for ventilation and heat dissipation; one side of the water tank 11 is provided with an inclined plate 12, the inclined plate 12 can save water under the condition of not influencing dust removal, and the other end of the water tank 11 (namely the bottom of the blower 20) can be provided with an observation port (not shown in the figure) and a water filling port (not shown in the figure) for observing the water level and filling water.

When specifically using, start air exhauster 17, air exhauster 17 is with external wind from aspiration channel 15 and inlet scoop 14 suction, through second pipeline 16 and first pipeline 13, the dust in the filtered air in the suction water, start air-blower 20 after that, air-blower 20 is with the air after the filtration in the clean room 18 from third pipeline 19 drum into, through fourth pipeline 21, from mouth of pipe 22 drum to pendulum aerofoil 23, starter motor 10 after that, pivot 9 rotates and drives rotary disk 8 and dead lever 7 and rotate, dead lever 7 rotates and drives movable rod 6 and reciprocate, movable rod 6 reciprocates and drives whole pendulum aerofoil 23 luffing motion, blow the air evenly in to computer lab 1.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A ventilation structure for a computer room, characterized in that it comprises a computer room (1) and a dust removal chamber (18), a side of the computer room (1) is provided with a dust removal chamber (18), and the dust removal chamber (18) ) is provided with a pool (11) at the inner bottom, the pool (11) communicates with the dust chamber (18), and a suction fan (17) is provided on one side of the top of the dust chamber (18), and the suction fan (17) ) is connected with a first pipe (13) on one side of the bottom, the first pipe (13) leads into the pool (11), and one side of the exhaust fan (17) is connected with a second pipe (16), The other end of the second pipe (16) leads to the outside of the dust removal chamber (18), and one side of the computer room (1) is provided with uprights (24), and there are two uprights (24), so The upright column (24) is provided with a swinging air plate (23), the swinging air plate (23) is plural, and the swinging air plate (23) is connected to the upright column (23) through the first movable shaft (2) provided. 24) Active connection, a connecting piece (4) is provided between the swinging air plates (23), and both ends of the connecting piece (4) are connected to the swinging air plate (2) through the first movable shaft (2) provided. 23) Active connection, a motor (10) is provided on one side of the bottom of the computer room (1), the output end of the motor (10) is connected with a rotating shaft (9), and the other end of the rotating shaft (9) is equipped with a rotating shaft (9). A disk (8), a fixed rod (7) is provided on the upper side of the rotating disk (8), and a movable rod (6) is provided on the top of the fixed rod (7).

2. A computer room ventilation structure according to claim 1, wherein the bottom of the movable rod (6) is sleeved on the fixed rod (7), and one side of the bottom of the swing plate (23) is A second movable shaft (5) is welded, and the movable rod (6) is movably connected with the second movable shaft (5).

3. A computer room ventilation structure according to claim 1, characterized in that, a blower (20) is provided between the dust chamber (18) and the computer room (1), and a blower (20) is provided with a blower (20). A third pipe (19) is connected to the side, and the other end of the third pipe (19) leads into the dust chamber (18).

4. A computer room ventilation structure according to claim 3, characterized in that a fourth pipe (21) is connected to the other side of the blower (20), and the other end of the fourth pipe (21) Into the computer room (1), the third pipe (19) and the fourth pipe (21) are both provided with nozzles (22).

5. A computer room ventilation structure according to claim 1, wherein the other end of the second duct (16) is provided with an air suction port (14), and a plurality of air suction ports (14) are installed on the air suction port (14). a suction tube (15).

6 . The ventilation structure of a computer room according to claim 1 , wherein a plurality of groups of cooling vents ( 3 ) are arranged on the outer side of the computer room ( 1 ). 7 .

7. A computer room ventilation structure according to claim 1, characterized in that, an inclined plate (12) is provided on one side of the pool (11).
