Fixing device for water conservancy pipeline

Technical Field

The utility model relates to a water conservancy pipeline technical field specifically is a fixing device for water conservancy pipeline.

Background

The pipeline fixing frame is used for a structure for laying a pipeline support on the ground in an overhead manner, can be used in any place where a pipeline is laid, and is also called a pipeline support, a pipe part and the like, and serves as a supporting structure of the pipeline.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a fixing device for water conservancy pipeline possesses fixed effectual advantage, has solved the poor problem of current device fixed effect.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a fixing device for water conservancy pipeline, includes the base, the top of base is provided with the standing groove, the left side at base top is provided with first recess, the inner chamber of first recess has the fixed block through bull stick swing joint, the fixed block inboard is provided with the second recess, the inner chamber of second recess is provided with fixture, the right side fixedly connected with fixed plate of fixed block bottom, the right side fixedly connected with locating hole of fixed plate, the right side at base top is provided with the draw-in groove, the right side of base is provided with the through-hole, the inner chamber of through-hole is provided with locking mechanism, the fixed case of bottom fixedly connected with of base, the inner chamber at the fixed case is provided with buffer gear, buffer gear's bottom fixedly connected with support column.

Preferably, the clamping mechanism comprises a first spring, a limiting plate and a clamping block, the inner cavity of the second groove is fixedly connected with the first spring, the other end of the first spring is fixedly connected with the limiting plate, and the other side of the limiting plate is fixedly connected with the clamping block.

Preferably, the locking mechanism comprises a bolt and a second spring, the bolt is arranged in the inner cavity of the through hole, and the second spring is sleeved on the surface of the bolt.

Preferably, the buffer mechanism comprises a third spring and a baffle plate, the third spring is fixedly connected to the top of the inner cavity of the fixed box, and the baffle plate is fixedly connected to the other end of the third spring.

Preferably, the top of the baffle is provided with a limiting hole, and an inner cavity of the limiting hole is provided with a limiting rod.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a standing groove, the fixed block, the second recess, fixture, the fixed plate, locating hole and locking mechanism's cooperation, place the water pipe in the standing groove, insert the draw-in groove with the fixed plate, the bolt inserts in the locating hole under the effect of second spring, accomplish fixedly, high durability and convenient operation, effect through first spring and grip block, realized scurrying when the rivers in the water pipe are urgent, the impact flow of water pipe can be cushioned to first spring, can not lead to the water pipe to break, the life of water pipe has been prolonged, thereby improve fixed effect, the poor problem of the fixed effect of current device has been solved.

2. The utility model discloses a cooperation of third spring and baffle is convenient for wholly cushion fixing device, and through the cooperation of spacing hole and gag lever post, be convenient for carry on spacingly to the baffle, improve the security performance of device.

Drawings

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a top view of the present invention;

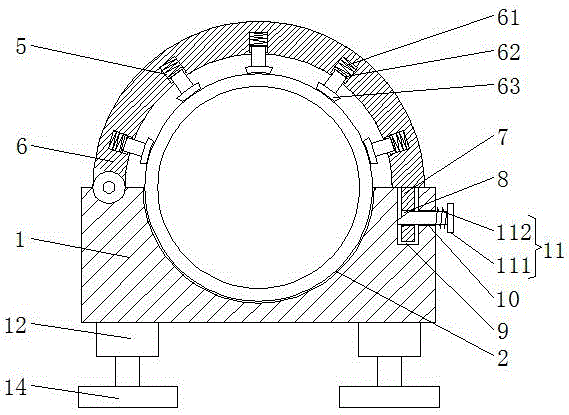

fig. 3 is a front sectional view of the fixing box structure of the present invention.

In the figure: 1. a base; 2. a placement groove; 3. a first groove; 4. a fixed block; 5. a second groove; 6. a clamping mechanism; 61. a first spring; 62. a limiting plate; 63. a clamping block; 7. a fixing plate; 8. positioning holes; 9. a card slot; 10. a through hole; 11. a locking mechanism; 111. a bolt; 112. a second spring; 12. a fixed box; 13. a buffer mechanism; 131. a third spring; 132. a baffle plate; 14. a support pillar; 15. a limiting hole; 16. a limiting rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, a fixing device for a water conservancy pipeline comprises a base 1, a placing groove 2 is arranged at the top of the base 1, a first groove 3 is arranged at the left side of the top of the base 1, the inner cavity of the first groove 3 is movably connected with a fixing block 4 through a rotating rod, a second groove 5 is arranged at the inner side of the fixing block 4, a clamping mechanism 6 is arranged in the inner cavity of the second groove 5, the clamping mechanism 6 comprises a first spring 61, a limiting plate 62 and a clamping block 63, the inner cavity of the second groove 5 is fixedly connected with the first spring 61, the other end of the first spring 61 is fixedly connected with the limiting plate 62, the other end of the limiting plate 62 is fixedly connected with the clamping block 63, the whole fixing device is conveniently buffered through the matching of a third spring 131 and a baffle 132, the baffle 132 is conveniently limited through the matching of a limiting hole 15 and a limiting rod 16, the right side of the bottom of the fixed block 4 is fixedly connected with a fixed plate 7, the right side of the fixed plate 7 is fixedly connected with a positioning hole 8, the right side of the top of the base 1 is provided with a clamping groove 9, the right side of the base 1 is provided with a through hole 10, the inner cavity of the through hole 10 is provided with a locking mechanism 11, the locking mechanism 11 comprises a bolt 111 and a second spring 112, the inner cavity of the through hole 10 is provided with the bolt 111, the surface of the bolt 111 is sleeved with the second spring 112, the bottom of the base 1 is fixedly connected with a fixed box 12, the inner cavity of the fixed box 12 is provided with a buffer mechanism 13, the buffer mechanism 13 comprises a third spring 131 and a baffle 132, the top of the inner cavity of the fixed box 12 is fixedly connected with the third spring 131, the other end of the third spring 131 is fixedly connected with a baffle 132, the, through standing groove 2, fixed block 4, second recess 5, fixture 6, fixed plate 7, the cooperation of locating hole 8 and locking mechanism 11, place the water pipe in standing groove 2, insert draw-in groove 9 with fixed plate 7, bolt 111 inserts in locating hole 8 under second spring 112's effect, the completion is fixed, high durability and convenient operation, effect through first spring 61 and grip block 63, realized scurrying when the rivers of intraductal water are urgent, the impact flow of water pipe can be cushioned to first spring 61, can not lead to the water pipe to break, the life of water pipe has been prolonged, thereby improve fixed effect, the poor problem of current device fixed effect has been solved.

During the use, place the water pipe in standing groove 2, insert draw-in groove 9 with fixed plate 7, bolt 111 inserts in locating hole 8 under second spring 112's effect, it is fixed to accomplish, high durability and convenient operation, effect through first spring 61 and grip block 63, realized scurrying when the rivers in the water pipe are urgent, the impact flow of water pipe can be cushioned off to first spring 61, can not lead to the water pipe to break, the life of water pipe has been prolonged, cooperation through third spring 131 and baffle 132, be convenient for wholly cushion fixing device, thereby improve fixed effect.

In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent. In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A fixing device for a water conservancy pipeline, comprising a base (1), characterized in that: the top of the base (1) is provided with a placement groove (2), and the left side of the top of the base (1) is provided with a first A groove (3), the inner cavity of the first groove (3) is movably connected with a fixing block (4) through a rotating rod, and a second groove (5) is arranged on the inner side of the fixing block (4). The inner cavity of the second groove (5) is provided with a clamping mechanism (6), a fixing plate (7) is fixedly connected to the right side of the bottom of the fixing block (4), and the right side of the fixing plate (7) is fixed A positioning hole (8) is connected, a card slot (9) is provided on the right side of the top of the base (1), a through hole (10) is provided on the right side of the base (1), and the through hole (10) A locking mechanism (11) is arranged in the inner cavity of the base (1), a fixing box (12) is fixedly connected to the bottom of the base (1), and a buffering mechanism (13) is arranged in the inner cavity of the fixing box (12), and the buffering mechanism The bottom of (13) is fixedly connected with a support column (14).

2 . The fixing device for a water conservancy pipeline according to claim 1 , wherein the clamping mechanism ( 6 ) comprises a first spring ( 61 ), a limit plate ( 62 ) and a clamping block ( 63 ). 3 . , the inner cavity of the second groove (5) is fixedly connected with a first spring (61), and the other end of the first spring (61) is fixedly connected with a limit plate (62), the limit plate (62) ) is fixedly connected with a clamping block (63).

3 . The fixing device for water conservancy pipelines according to claim 1 , wherein the locking mechanism ( 11 ) comprises a latch ( 111 ) and a second spring ( 112 ), and the through hole ( 10 ) has a The inner cavity is provided with a plug (111), and a second spring (112) is sleeved on the surface of the plug (111).

4 . The fixing device for water conservancy pipelines according to claim 1 , wherein the buffer mechanism ( 13 ) comprises a third spring ( 131 ) and a baffle plate ( 132 ), and inside the fixing box ( 12 ) A third spring (131) is fixedly connected to the top of the cavity, and a baffle plate (132) is fixedly connected to the other end of the third spring (131).

5 . The fixing device for a water conservancy pipeline according to claim 4 , wherein a limiting hole ( 15 ) is provided at the top of the baffle plate ( 132 ), and the inner cavity of the limiting hole ( 15 ) is limited. 6 . Bit rod (16).
