Abstract
The utility model provides an automatic die cutting device, which comprises a base; the first shell is fixedly arranged on the base; the second shell is fixedly arranged on the first shell; the hydraulic machine is fixedly arranged at the bottom of the second shell; the stamping plate is fixedly arranged on an output shaft of the hydraulic machine; the falling object hole is formed in the base; the two supporting plates are symmetrically and fixedly arranged on the base; two dwang, two the dwang is all rotated and is installed two in the backup pad, just the one end of dwang extends to one outside the backup pad. The utility model provides an automatic change cutting device has the product of being convenient for take off machine-shaping, and does not influence the advantage of device function speed.
Description
Technical Field
The utility model relates to a cutting device technical field especially relates to an automatic change cutting device.
Background
The die cutting machine is called a beer machine, a cutting machine and a numerical control punching machine, and the die cutting machine applies certain pressure through a printing plate by utilizing a steel knife, a hardware die and a steel wire (or a template carved by a steel plate) to roll and cut a printed product or a paperboard into a certain shape. The die cutting machine is important equipment for processing and forming after printing, and is generally used for die cutting of corresponding non-metal materials, non-setting adhesive, EVA (ethylene vinyl acetate), double-sided adhesive, electronic and mobile phone rubber mats and the like by an automatic die cutting device.
However, the conventional automatic die cutting device is inconvenient to take off the formed product during the use process and is liable to influence the operation speed of the device.
Therefore, there is a need to provide a new automatic die cutting device to solve the above-mentioned technical problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a technical problem provide a product convenient to take off machine-shaping, and do not influence the automatic cutting device of device function speed.
For solving the technical problem, the utility model provides an automatic cross cutting device includes: a base; the first shell is fixedly arranged on the base; the second shell is fixedly arranged on the first shell; the hydraulic machine is fixedly arranged at the bottom of the second shell; the stamping plate is fixedly arranged on an output shaft of the hydraulic machine; the falling object hole is formed in the base; the two supporting plates are symmetrically and fixedly arranged on the base; the two rotating rods are rotatably arranged on the two supporting plates, and one end of each rotating rod extends out of one supporting plate; the two gears are fixedly arranged at one end of the corresponding rotating rod and are meshed; a worm fixedly mounted on one of said gears; the motor is fixedly arranged on one supporting plate; the first belt pulley is fixedly arranged on an output shaft of the motor; the second belt pulley is fixedly sleeved on the worm; the first belt is sleeved on the first belt pulley and the second belt pulley; the two rollers are respectively and fixedly arranged on the corresponding rotating rods; the lifting mechanism is arranged on the base.
Preferably, the fixed cover of symmetry is equipped with two first bearings on the dwang, two first rotation hole and rotation groove have been seted up respectively in the backup pad, two the outer lane of first bearing respectively with the first rotation hole that corresponds and the inner wall fixed connection who rotates the groove.
Preferably, the lifting mechanism comprises a third housing, the third housing is fixedly mounted on the base, a support rod is rotatably mounted in the third housing, a third belt pulley is fixedly mounted on the support rod, one end of the support rod extends out of the third housing and is fixedly mounted with a worm wheel, the worm wheel is meshed with the worm, a support rod is rotatably mounted in the third housing, a fourth belt pulley is fixedly mounted on the support rod, the third belt pulley and the fourth belt pulley are sleeved with the same second belt, a rotating disc is fixedly mounted on the support rod, a connecting rod is rotatably mounted on the rotating disc, a shift lever is rotatably mounted on the third housing and is slidably connected with the connecting rod, one end of the shift lever extends out of the third housing and is rotatably mounted with a connecting block, and the connecting block is slidably connected with the third housing, and a lug is arranged at the bottom of the connecting block.
Preferably, a through hole is formed in the third shell, two limiting rods are symmetrically and fixedly mounted on the shifting rod, and the limiting rods are rotatably connected with the inner wall of the through hole.
Preferably, one end of the shifting lever is provided with a sliding groove, and the connecting rod is connected with the inner wall of the sliding groove in a sliding manner.
Preferably, the top of the connecting block is fixedly provided with a connecting frame, one end of the shifting lever is provided with a second rotating hole, and the connecting frame is movably connected with the inner wall of the second rotating hole.
Preferably, an extension plate is fixedly mounted on the inner wall of the top of the third shell, and the support rod is rotatably connected with the extension plate.
Preferably, the bottom of the base is fixedly provided with four supporting columns, and the four supporting columns are distributed in a rectangular shape.
Compared with the prior art, the utility model provides an automatic change cutting device has following beneficial effect:
the utility model provides an automatic change cutting device, hydraulic press fixed mounting is in the bottom of second casing, the platen fixed mounting can carry out impression processing to the product on the output shaft of hydraulic press, the junk hole is seted up on the base, be convenient for collect the product after the machine-shaping, two gear fixed mounting is in the one end of the dwang that corresponds, and two gear engagement, motor fixed mounting is one in the backup pad, two the roller is fixed mounting respectively on the dwang that corresponds, can make the product move, is convenient for process the product, worm fixed mounting is one on the gear, elevating system establishes on the base, can take off the product after the shaping, fall into the junk hole, be convenient for collect the product.
Drawings

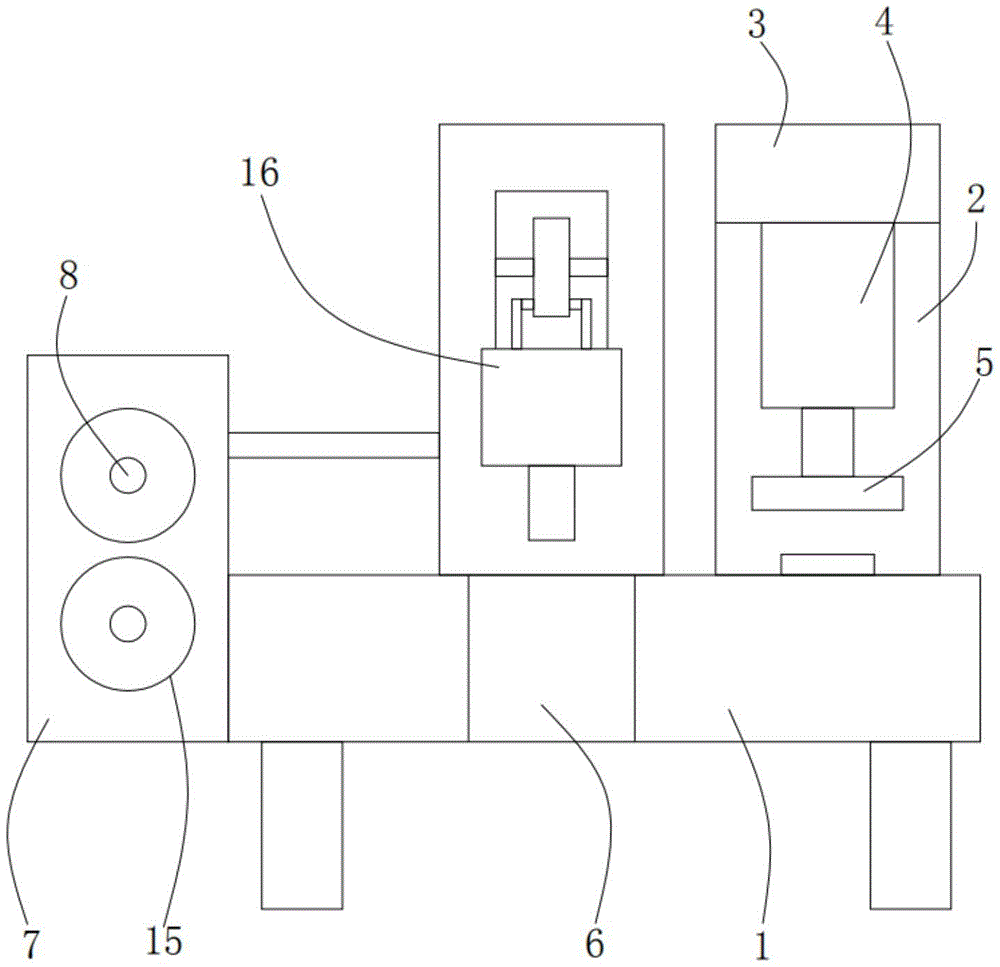

Fig. 1 is a schematic structural diagram of a preferred embodiment of an automatic die-cutting device according to the present invention;
FIG. 2 is a left side sectional view of the support plate of the present invention;
fig. 3 is a schematic front sectional view of the lifting mechanism of the present invention;
fig. 4 is a schematic top sectional view of the present invention;
fig. 5 is a schematic diagram of a right sectional view of the middle lifting mechanism of the present invention.
Reference numbers in the figures: 1. a base; 2. a first housing; 3. a second housing; 4. a hydraulic press; 5. a platen; 6. a falling object hole; 7. a support plate; 8. rotating the rod; 9. a gear; 10. a worm; 11. a motor; 12. a first pulley; 13. a second pulley; 14. a first belt; 15. a roller; 16. a lifting mechanism; 1601. a third housing; 1602. a support rod; 1603. a third belt pulley; 1604. a worm gear; 1605. a support bar; 1606. a fourth belt pulley; 1607. a second belt; 1608. rotating the disc; 1609. a connecting rod; 1610. a deflector rod; 1611. connecting blocks; 1612. and (4) a bump.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Referring to fig. 1, fig. 2, fig. 3, fig. 4 and fig. 5, wherein fig. 1 is a schematic structural diagram of a preferred embodiment of an automatic die-cutting device according to the present invention; FIG. 2 is a left side sectional view of the support plate of the present invention; fig. 3 is a schematic front sectional view of the lifting mechanism of the present invention; fig. 4 is a schematic top sectional view of the present invention; fig. 5 is a schematic diagram of a right sectional view of the middle lifting mechanism of the present invention. The automatic die cutting device comprises: a base 1; the first shell 2 is fixedly arranged on the base 1; the second shell 3, the said second shell 3 is fixedly mounted on said first shell 2; the hydraulic machine 4 is fixedly arranged at the bottom of the second shell 3; the stamping plate 5 is fixedly arranged on an output shaft of the hydraulic machine 4; the falling object hole 6 is formed in the base 1; the two supporting plates 7 are symmetrically and fixedly arranged on the base 1; the two rotating rods 8 are rotatably mounted on the two support plates 7, and one end of each rotating rod 8 extends out of one support plate 7; the two gears 9 are fixedly arranged at one end of the corresponding rotating rod 8, and the two gears 9 are meshed; a worm 10, said worm 10 being fixedly mounted on one of said gears 9; the motor 11 is fixedly arranged on one support plate 7; the first belt pulley 12, the said first belt pulley 12 is fixedly mounted on output shaft of the said motor 11; the second belt pulley 13 is fixedly sleeved on the worm 10; the first belt 14 is sleeved on the first belt pulley 12 and the second belt pulley 13; the two rollers 15 are respectively and fixedly arranged on the corresponding rotating rods 8; the lifting mechanism 16 is arranged on the base 1.
The fixed cover of symmetry is equipped with two first bearings, two on the dwang 8 first rotation hole and rotation groove have been seted up respectively on the backup pad 7, two the outer lane of first bearing respectively with the first inner wall fixed connection who rotates hole and rotation groove that corresponds.
The lifting mechanism 16 includes a third housing 1601, the third housing 1601 is fixedly mounted on the base 1, a support rod 1602 is installed in the third housing 1601 in a rotating manner, a third belt pulley 1603 is fixedly mounted on the support rod 1602, a worm wheel 1604 is fixedly mounted at one end of the support rod 1602 and extends to the outside of the third housing 1601, the worm wheel 1604 is meshed with the worm 10, a support rod 1605 is installed in the third housing 1601 in a rotating manner, a fourth belt pulley 1606 is fixedly mounted on the support rod 1605, a same second belt 1607 is sleeved on the third belt pulley 1603 and the fourth belt pulley 1606, a rotating disc 1608 is fixedly mounted on the support rod 1605, a connecting rod 1609 is rotatably mounted on the rotating disc 1605, a shift lever 1610 is rotatably mounted on the third housing 1601, the shift lever 1610 is connected with the connecting rod 1609 in a sliding manner, one end of the shift lever 1610 extends to the outside of the third housing 1601 and rotatably mounts a connecting block 1611, the connecting block 1611 is slidably connected with the third casing 1601, and a projection 1612 is arranged at the bottom of the connecting block 1611.
A through hole is formed in the third shell 1601, two limiting rods are symmetrically and fixedly mounted on the shifting rod 1610, and the limiting rods are rotatably connected with the inner wall of the through hole.
A sliding groove is formed in one end of the shifting lever 1610, and the connecting rod 1609 is connected with the inner wall of the sliding groove in a sliding mode.
The top of the connecting block 1611 is fixedly provided with a connecting frame, one end of the driving lever 1610 is provided with a second rotating hole, and the connecting frame is movably connected with the inner wall of the second rotating hole.
Fixed mounting has the extension board on the top inner wall of third casing 1601, bracing piece 1605 is connected with the rotation of extension board.
The bottom fixed mounting of base 1 has four support columns, four the support column is the rectangle and distributes.
The utility model provides an automatic change cutting device's theory of operation as follows:
firstly, a hydraulic press 4 drives a stamping plate 5 to die-cut a product, a starting motor 11 drives a first belt pulley 12 to rotate, the first belt pulley 12 drives a second belt pulley 13 to rotate through a first belt 14, the second belt pulley 13 drives a worm 10 to rotate, the worm 10 drives a gear 9 to rotate, the rotation directions of the two gears 9 are opposite, the two gears 9 drive two rotating rods 8 to rotate, the two rotating rods 8 drive two rollers 15 to rotate, the product can be driven to move, the worm 10 drives a worm wheel 1604 to rotate, the worm wheel 1604 drives a supporting rod 1602 to rotate, the supporting rod 1602 drives a third belt pulley 1603 to rotate, the third belt pulley drives a supporting rod 1605 to rotate through a second belt 1607, the supporting rod 1605 drives a rotating disc 1608 to rotate, the rotating disc 1608 drives a connecting rod 1609 to move, the connecting rod 1609 drives a deflector rod 1610 to rotate, the deflector rod 1610 drives a connecting block 1611, connecting block 1611 drives the reciprocal perpendicular of lug 1612, can pull down the product after the platen processing, is convenient for to the arrangement and the collection of product.
Compared with the prior art, the utility model provides an automatic change cutting device has following beneficial effect:
the utility model provides an automatic die cutting device, wherein a hydraulic machine 4 is fixedly arranged at the bottom of a second shell 3, a stamping plate 5 is fixedly arranged on an output shaft of the hydraulic machine 4, the product can be imprinted, the falling object holes 6 are formed on the base 1, so that the product after being processed and formed can be conveniently collected, the two gears 9 are fixedly arranged at one end of the corresponding rotating rod 8, the two gears 9 are meshed, the motor 11 is fixedly arranged on one supporting plate 7, the two rollers 15 are respectively and fixedly arranged on the corresponding rotating rods 8, can move the product, is convenient for processing the product, the worm 10 is fixedly arranged on one gear 9, the lifting mechanism 16 is arranged on the base 1, the formed product can be taken down and falls into the falling hole 6, so that the product can be conveniently collected.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (8)
1. An automated die cutting apparatus, comprising:
a base;
the first shell is fixedly arranged on the base;
the second shell is fixedly arranged on the first shell;
the hydraulic machine is fixedly arranged at the bottom of the second shell;
the stamping plate is fixedly arranged on an output shaft of the hydraulic machine;
the falling object hole is formed in the base;
the two supporting plates are symmetrically and fixedly arranged on the base;
the two rotating rods are rotatably arranged on the two supporting plates, and one end of each rotating rod extends out of one supporting plate;
the two gears are fixedly arranged at one end of the corresponding rotating rod and are meshed;
a worm fixedly mounted on one of said gears;
the motor is fixedly arranged on one supporting plate;
the first belt pulley is fixedly arranged on an output shaft of the motor;
the second belt pulley is fixedly sleeved on the worm;
the first belt is sleeved on the first belt pulley and the second belt pulley;
the two rollers are respectively and fixedly arranged on the corresponding rotating rods;
the lifting mechanism is arranged on the base.
2. The automatic die-cutting device according to claim 1, wherein two first bearings are symmetrically fixed on said rotating rod, two said supporting plates are respectively provided with a first rotating hole and a rotating groove, and outer rings of two said first bearings are respectively fixedly connected with inner walls of the corresponding first rotating hole and rotating groove.
3. The automatic die-cutting device according to claim 1, wherein the lifting mechanism comprises a third housing, the third housing is fixedly installed on the base, a supporting rod is rotatably installed in the third housing, a third belt pulley is fixedly installed on the supporting rod, one end of the supporting rod extends out of the third housing and is fixedly installed with a worm wheel, the worm wheel is engaged with a worm, a supporting rod is rotatably installed in the third housing, a fourth belt pulley is fixedly installed on the supporting rod, the third belt pulley and the fourth belt pulley are sleeved with the same second belt, a rotating disc is fixedly installed on the supporting rod, a connecting rod is rotatably installed on the rotating disc, a shift lever is rotatably installed on the third housing and is slidably connected with the connecting rod, one end of the shift lever extends out of the third housing and is rotatably installed with a connecting block, the connecting block is connected with the third shell in a sliding mode, and a protruding block is arranged at the bottom of the connecting block.
4. The automatic die cutting device according to claim 3, wherein the third housing has a through hole, and the shift lever has two position-limiting rods symmetrically fixed thereon, and the position-limiting rods are rotatably connected to the inner wall of the through hole.
5. The automatic die cutting device according to claim 3, wherein one end of said shift lever is provided with a sliding groove, and said connecting rod is slidably connected with the inner wall of said sliding groove.
6. The automatic die cutting device according to claim 3, wherein a connecting frame is fixedly mounted at the top of the connecting block, a second rotating hole is formed at one end of the shifting lever, and the connecting frame is movably connected with the inner wall of the second rotating hole.
7. The automatic die cutting device according to claim 3, wherein an extension plate is fixedly installed on the top inner wall of the third housing, and the support bar is rotatably connected with the extension plate.
8. The automatic die cutting device according to claim 1, wherein four support posts are fixedly mounted on the bottom of the base, and the four support posts are distributed in a rectangular shape.
