CN212825784U

CN212825784U - Polymer pressfitting template trimming device

Info

Publication number: CN212825784U
Application number: CN202021097529.7U
Authority: CN
Inventors: 宋进琼; 王传攀
Original assignee: Langfang Zunpeng Wood Industry Co ltd
Current assignee: Langfang Zunpeng Wood Industry Co ltd
Priority date: 2020-06-15
Filing date: 2020-06-15
Publication date: 2021-03-30
Anticipated expiration: 2030-06-15

Abstract

The utility model discloses a polymer pressing template trimming device, which comprises a workbench, wherein two sides of the top end of the workbench are fixedly provided with supporting plates, the top ends of the two supporting plates are respectively fixedly connected with two sides of the bottom end of a top plate, and the middle part of the top end of the top plate is provided with a first chute, the polymer pressing template trimming device is provided with a slider, two cutting knives are driven to move reversely by the matching use of a U-shaped plate, a gear strip, a sliding plate and the slider, the distance between the two cutting knives is convenient to adjust, trimming is convenient to templates with different widths, the trimming efficiency of the template is improved, the clamping bar is pulled out from a clamping groove by the movement of a push plate and the clamping bar, then a cover plate moves downwards under the action of gravity, a collecting groove can be opened, residues can fall into a collecting basket through the collecting groove, and uniform collection and treatment of the residues are convenient, the efficiency of the clearance of residue has been improved.

Description

Polymer pressfitting template trimming device

Technical Field

The utility model relates to a trimming device, in particular to polymer pressfitting template trimming device.

Background

The polymer material is a material based on a polymer compound. The polymer material is a material composed of compounds with relatively high molecular mass, and comprises rubber, plastics, fibers, paint, an adhesive and a polymer-based composite material, and the polymer is a life existing form. All living bodies can be regarded as a polymer aggregate, a template made of a polymer material is a polymer template, and the edge side of the polymer template needs to be cut during processing of the polymer template so as to keep the smoothness of the polymer template.

Among the prior art, when carrying out the cutting edge to polymer template, need will tailor the sword and place the both sides in the template and tailor, and the position of the sword of tailorring that has now is fixed mostly, and when the width of template is different, then can not tailor it, reduced the cutting edge efficiency of template, and if the residue after tailorring clears up when not in time, easily cause the dirtiness of cutting edge device, reduced the cleaning efficiency of cutting edge device.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a polymer pressfitting template cutting edge device to solve the problem that template cutting edge and residue clearance that can not the width difference that provide among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a polymer pressfitting template trimming device, includes the workstation, the both sides on workstation top are all fixed and are equipped with the backup pad, two the top of backup pad respectively with the both sides fixed connection of roof bottom, first spout has been seted up at the middle part on roof top, the both sides of first spout inner wall respectively with the both sides sliding connection of two sliders, two the middle part of slider bottom is all fixed and is equipped with electric telescopic handle, two electric telescopic handle's flexible end respectively with the middle part fixed connection on two bottom plate tops, two one side of bottom plate bottom is all fixed and is equipped with the sword of tailorring, electric telescopic handle is through setting up electric telescopic handle switch and external power supply electric connection in workstation one side.

As a preferred technical scheme of the utility model, the fixed U template that is equipped with in middle part on roof top, the middle part on U template top is rotated and is connected with the bull stick, the bottom mounting of bull stick is equipped with the gear, the gear is connected, two with two gear rack meshing respectively the one end of gear rack respectively with the top fixed connection of two dead levers, two the bottom of dead lever respectively with one side fixed connection on two slider tops.

As a preferred technical scheme of the utility model, the second spout, two have all been seted up at the middle part of U template inner wall both sides the both sides of second spout inner wall respectively with the both sides sliding connection of two slides, two the slide is fixed the middle part that sets up in two gear racks one side respectively.

As a preferred technical scheme of the utility model, two the opposite side of bottom plate bottom is all fixed and is equipped with the spring, two the bottom of spring respectively with the middle part fixed connection on two clamp plate tops.

As a preferred technical scheme of the utility model, the collecting vat has been seted up at the middle part on workstation top, the both ends of collecting vat inner wall both sides are rotated through the one end of four pivots and two apron both sides respectively and are connected.

As a preferred technical scheme of the utility model, the both ends of workstation one side alternate with the one end of two kellies respectively and are connected, two the other end of kellies respectively with the both ends fixed connection of push pedal one side, two the kellies are connected with two draw-in groove blocks respectively, two the middle part in two apron one sides is seted up respectively to the draw-in groove.

As a preferred technical scheme of the utility model, the third spout has been seted up at the middle part of a workstation avris, the third spout is with the fixed intercommunication of collecting vat, the both sides of third spout inner wall respectively with the both sides sliding connection of collecting basket.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses set up the slider, used through the cooperation of U template, gear, rack, slide and slider, driven two promptly and tailor sword reverse motion, be convenient for adjust two distances of tailorring between the sword, the convenient template to different widths is cut a border, has improved the cutting edge efficiency of template.

2. The utility model discloses set up the apron, through the motion of push pedal and kelly, extract the kelly from the draw-in groove, then the apron downstream under the action of gravity, can open the collecting vat, the residue can drop in collecting basket through the collecting vat, is convenient for unify the collection processing to the residue, has improved the cleaning efficiency of residue.

Drawings

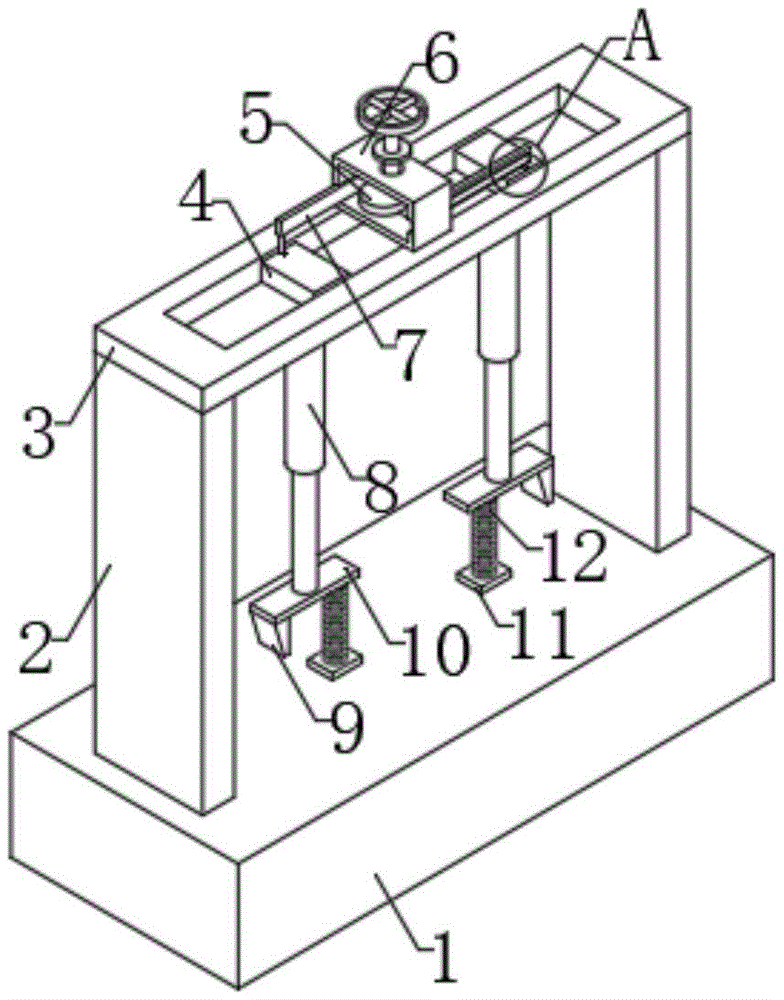

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the cover plate structure of the present invention;

fig. 3 is a schematic view of a partially enlarged structure at a position in fig. 1 according to the present invention.

In the figure: 1. a work table; 2. a support plate; 3. a top plate; 4. a slider; 5. a gear; 6. a U-shaped plate; 7. A gear rack; 8. an electric telescopic rod; 9. a cutting knife; 10. a base plate; 11. pressing a plate; 12. a spring; 13. Pushing the plate; 14. a clamping rod; 15. a card slot; 16. a cover plate; 17. a collection basket; 18. a slide plate; 19. and (5) fixing the rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution of a polymer press-fit template trimming device:

referring to fig. 1 and 3, the cutting device comprises a worktable 1, wherein supporting plates 2 are fixedly arranged on both sides of the top end of the worktable 1, the top ends of the two supporting plates 2 are respectively fixedly connected with both sides of the bottom end of a top plate 3, a first chute is arranged in the middle of the top end of the top plate 3, both sides of the inner wall of the first chute are respectively slidably connected with both sides of two sliders 4, two cutting knives 9 can be driven to move by the movement of the two sliders 4, so as to adjust the distance between the two cutting knives 9, facilitate the cutting of templates with different widths, improve the cutting efficiency of the templates, an electric telescopic rod 8 is fixedly arranged in the middle of the bottom ends of the two sliders 4, the telescopic ends of the two electric telescopic rods 8 are respectively fixedly connected with the middle of the top ends of two bottom plates 10, the cutting knives 9 are fixedly arranged on one side of the bottom ends of the two bottom plates 10, and the electric telescopic rod 8, the middle part of the top end of the top plate 3 is fixedly provided with a U-shaped plate 6, the middle part of the top end of the U-shaped plate 6 is rotatably connected with a rotating rod, the top end of the rotating rod is fixedly provided with a rotating handle, the outer wall of the rotating rod is in threaded connection with a fastening nut, the bottom end of the rotating rod is fixedly provided with a gear 5, the gear 5 is respectively engaged and connected with two gear strips 7, one ends of the two gear strips 7 are respectively fixedly connected with the top ends of two fixed rods 19, the distance between two cutting knives 9 can be adjusted by matching the gear 5, the gear strips 7, the fixed rods 19 and the sliding blocks 4, the bottom ends of the two fixed rods 19 are respectively fixedly connected with one side of the top ends of the two sliding blocks 4, the middle parts of two sides of the inner wall of the U-shaped plate 6 are respectively provided with second sliding grooves, two sides of the inner wall of the two second sliding grooves are respectively connected with, the opposite side of two bottom plates 10 bottoms all is fixed and is equipped with spring 12, the bottom of two springs 12 respectively with the middle part fixed connection on two clamp plates 11 tops, through the use of spring 12 and clamp plate 11, press the fastening to the template before tailorring and fix, avoid the template to take place to remove, improved the accuracy of tailorring.

According to the illustration of fig. 2, the middle of the top end of the workbench 1 is provided with a collecting tank, two ends of two sides of the inner wall of the collecting tank are respectively rotatably connected with one end of two sides of two cover plates 16 through four rotating shafts, two ends of one side of the workbench 1 are respectively and alternately connected with one end of two clamping rods 14, the other ends of the two clamping rods 14 are respectively and fixedly connected with two ends of one side of a push plate 13, the two clamping rods 14 are respectively and fixedly connected with two clamping grooves 15, after the kelly 14 is extracted, apron 16 whereabouts under the action of gravity to in collecting basket 17 with the residue on workstation 1, the unified collection and the processing of the residue of being convenient for, two draw-in grooves 15 are seted up respectively at the middle part of two apron 16 one sides, and the third spout has been seted up at the middle part of 1 avris of workstation, and the third spout communicates with the collecting vat is fixed, the both sides of third spout inner wall respectively with collect basket 17's both sides sliding connection.

When the device is used in detail, when the template is cut, the template is placed on the workbench 1, then the rotating handle is rotated to drive the rotating rod to rotate, the rotating rod drives the gear 5 to rotate, the gear 5 drives the gear rack 7 to do reverse motion, thereby driving the slide block 4 to do reverse motion, the slide block 4 drives the cutting knife 9 to do reverse motion, the distance between the two cutting knives 9 can be adjusted, thereby being convenient for cutting edges of templates with different widths, improving the cutting efficiency of the template, then the electric telescopic rod switch is opened, the electric telescopic rod 8 drives the bottom plate 10 to do downward motion, the bottom plate 10 firstly drives the pressing plate 11 to contact with the template, in the process that the bottom plate 10 continues to go downward, the template is pressed and fixed through the pressing plate 11, the template is prevented from moving when being cut, the cutting accuracy of the template is improved, then under the acting force of the spring 12, cut out sword 9 and continue downstream, cut out the limit to the template, after tailorring the completion, outside pulling push pedal 13, push pedal 13 drives the outside lateral movement of kelly 14 to extract kelly 14 from draw-in groove 15, thereby apron 16 downstream under the action of gravity makes the residue on the workstation 1 because gravity drops in collecting basket 17, the unified collection of the residue of being convenient for is handled.

In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the indicated device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.

In the present invention, unless otherwise explicitly specified or limited, for example, it may be fixedly connected, detachably connected, or integrated; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a polymer pressfitting template trimming device, includes workstation (1), its characterized in that: the utility model discloses a cutting tool, including workstation (1), top, first spout, bottom plate (10), electric telescopic handle (8), two, the both sides on workstation (1) top all are fixed backup pad (2), two the top of backup pad (2) respectively with the both sides fixed connection of roof (3) bottom, first spout has been seted up at the middle part on roof (3) top, the both sides of first spout inner wall respectively with the both sides sliding connection of two slider (4), two the middle part of slider (4) bottom is all fixed and is equipped with electric telescopic handle (8), two the flexible end of electric telescopic handle (8) respectively with the middle part fixed connection on two bottom plate (10) tops, two one side of bottom plate (10) bottom is all fixed and is equipped with and cuts out sword (9), electric telescopic handle (8) are through setting.

2. The polymer lamination template trimming device according to claim 1, wherein: the fixed U template (6) that is equipped with in middle part on roof (3) top, the middle part on U template (6) top rotates and is connected with the bull stick, the bottom mounting of bull stick is equipped with gear (5), gear (5) are connected with two gear strip (7) meshing respectively, two the one end of gear strip (7) respectively with the top fixed connection on two dead levers (19), two the bottom of dead lever (19) respectively with one side fixed connection on two slider (4) tops.

3. The polymer lamination template trimming device according to claim 2, wherein: the middle parts of two sides of the inner wall of the U-shaped plate (6) are provided with second sliding grooves, two sides of the inner wall of each second sliding groove are respectively in sliding connection with two sides of two sliding plates (18), and the two sliding plates (18) are respectively and fixedly arranged in the middle parts of one sides of the two gear strips (7).

4. The polymer lamination template trimming device according to claim 1, wherein: and springs (12) are fixedly arranged on the other sides of the bottom ends of the two bottom plates (10), and the bottom ends of the two springs (12) are fixedly connected with the middle parts of the top ends of the two pressing plates (11) respectively.

5. The polymer lamination template trimming device according to claim 1, wherein: the collecting tank is arranged in the middle of the top end of the workbench (1), and two ends of two sides of the inner wall of the collecting tank are respectively and rotatably connected with one end of two sides of the two cover plates (16) through four rotating shafts.

6. The polymer lamination template trimming device according to claim 1, wherein: the both ends of workstation (1) one side alternate with the one end of two kellies (14) respectively and are connected, two the other end of kellies (14) respectively with the both ends fixed connection of push pedal (13) one side, two kellies (14) are connected with two draw-in groove (15) block respectively, two draw-in groove (15) are seted up respectively at the middle part of two apron (16) one sides.

7. The polymer lamination template trimming device according to claim 1, wherein: the middle part of one side of the workbench (1) is provided with a third sliding groove, the third sliding groove is fixedly communicated with the collecting groove, and two sides of the inner wall of the third sliding groove are respectively connected with two sides of the collecting basket (17) in a sliding manner.
