Abstract
The utility model discloses a guitar body polishing device, which comprises a frame, an operating platform, a polishing unit, a driving unit and a transmission unit, wherein the polishing unit comprises a fixed pulley arranged at the top of the frame, a left rotating wheel and a right rotating wheel arranged at the two sides of the front side of the frame and a polishing belt connecting the fixed pulley, the left rotating wheel and the right rotating wheel; the driving unit comprises a motor arranged at the top of the frame, a driving wheel arranged at the back of the frame and a belt connecting the motor and the driving wheel; the transmission unit comprises a left transmission rod, a right transmission rod and a transmission assembly. The technical scheme of the utility model, the working plate of operation panel can slide from beginning to end, places the musical instrument body on the working plate, polishes the musical instrument body through pressing down and continuously the pivoted belt of polishing, and such structural design makes the efficiency greatly increased of polishing.
Description
Technical Field
The utility model relates to a transportation utensil field, more specifically say, relate to a guitar body grinding device.
Background
The production technology of electric guitar divide into a plurality of steps, need cut panel into the shape of headstock and body, then punch respectively headstock and body, polish, spray paint, polish, polishing, equipment etc. and handle many times, wherein the polishing of body adopts manual operation more, how provide a dedicated body grinding device with improve work efficiency and be the problem that awaits the solution urgently.
SUMMERY OF THE UTILITY MODEL
1. Technical problem to be solved by the utility model
Not enough to prior art exists, the utility model aims to provide a guitar body grinding device, the working plate of operation panel can slide from beginning to end, places the body on the working plate, polishes the body through pressing down and last pivoted belt of polishing, and such structural design makes the efficiency greatly increased that polishes.
2. Technical scheme
In order to achieve the above purpose, the utility model provides a technical scheme does:
a guitar body polishing device comprises a frame, an operation table, a polishing unit, a driving unit and a transmission unit, wherein the polishing unit comprises a fixed pulley arranged at the top of the frame, a left rotating wheel and a right rotating wheel arranged at two sides of the front surface of the frame and a polishing belt connecting the fixed pulley, the left rotating wheel and the right rotating wheel; the driving unit comprises a motor arranged at the top of the frame, a driving wheel arranged at the back of the frame and a belt connecting the motor and the driving wheel; the transmission unit comprises a left transmission rod, a right transmission rod and a transmission assembly.
As a further improvement, the transmission assembly include supporting shoe and bearing, the supporting shoe link firmly with the frame, the bearing inlay in the inside of supporting shoe and run through it, the one end and the left runner of left transfer line be connected, the both ends of right transfer line be connected with right runner and action wheel respectively, above-mentioned left transfer line and the body of rod that has the transfer line erect the side at the frame through transmission assembly.
As a further improvement, the operation panel be located the below of the belt of polishing, the operation panel includes frame and working plate, the inside slide bar that is provided with two I-shaped of frame, foretell slide bar is parallel with the vertical limit of frame, the lower extreme of four corners of working plate be provided with the gyro wheel, connect through the connecting rod between the gyro wheel and between each gyro wheel and the working plate.
As a further improvement of the utility model, the outer frame of operation panel pass through support and frame connection, foretell operation panel is located the below of the belt of polishing.
3. Advantageous effects
Adopt the technical scheme provided by the utility model, compare with prior art, have following effect of showing:
(1) the utility model discloses a guitar body grinding device only utilizes a motor as power source, utilizes multiple transmission simultaneously, has improved the effective area who polishes greatly.
(2) The utility model discloses a guitar body grinding device, the working plate of operation panel can slide from beginning to end, places the body on the working plate, polishes the body through pressing down and lasting the pivoted belt of polishing, and such structural design makes the efficiency greatly increased of polishing.
(3) The utility model discloses a guitar body grinding device, it is rational in infrastructure, simple manufacture, the practicality is strong, easily promotes.
Drawings

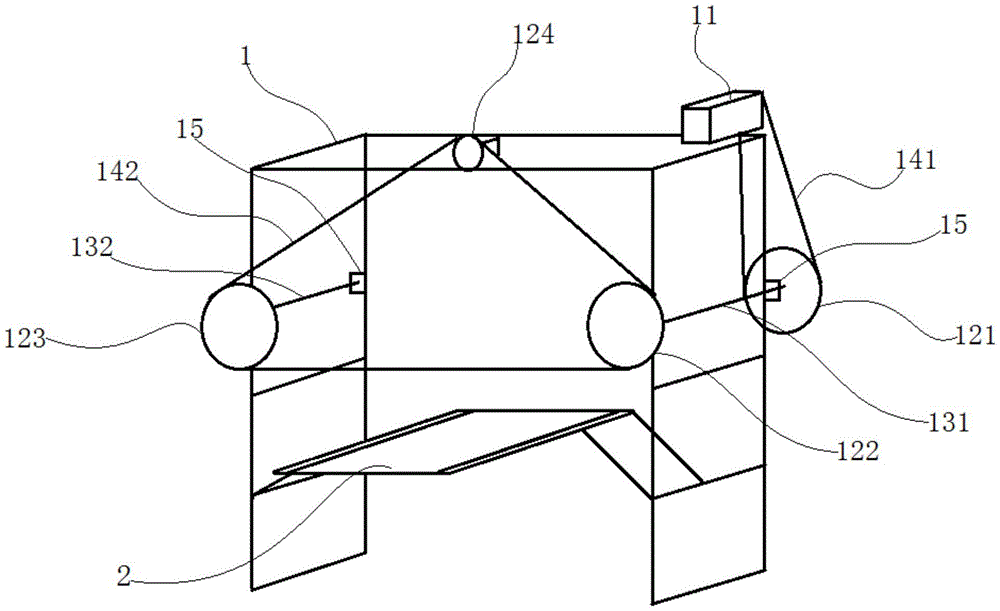

Fig. 1 is a schematic structural view of a guitar body polishing device of the present invention;
fig. 2 is an exploded view of an operation table of a guitar body polishing device of the present invention;
fig. 3 is a partial view of an operation table of a guitar body polishing device according to the present invention;
fig. 4 is a schematic structural view of a transmission assembly of the guitar body polishing device of the present invention.
The reference numerals in the schematic drawings illustrate:
1. frame 11, motor 121, driving wheel 122, right turning wheel 123, left turning wheel 124, fixed pulley 131, right driving rod 132, left driving rod 141, belt 142, grinding belt 15, driving component 151, supporting block 152, bearing 2, operating platform 21, outer frame 211, sliding rod 212, roller 213, connecting rod 22 and working plate
Detailed Description
For a further understanding of the present invention, reference will be made to the following detailed description taken in conjunction with the accompanying drawings and examples.
Example 1
As shown in fig. 1-4, a guitar body polishing device comprises a frame 1, a console 2, a polishing unit, a driving unit and a transmission unit, wherein the polishing unit comprises a fixed pulley 124 arranged at the top of the frame 1, a left rotating wheel 123 and a right rotating wheel 122 arranged at two sides of the front surface of the frame 1 and a polishing belt 142 connecting the three; the driving unit comprises a motor 11 arranged at the top of the frame 1, a driving wheel 121 arranged at the back of the frame 1 and a belt 141 connecting the motor 11 and the driving wheel 121; the transmission unit includes a left transmission rod 132, a right transmission rod 131 and a transmission assembly 15. The driving assembly 15 includes a supporting block 151 and a bearing 152, the supporting block 151 is fixedly connected to the frame 1, the bearing 152 is embedded in the supporting block 151 and penetrates through the supporting block 151, one end of the left driving rod 132 is connected to the left turning wheel 123, two ends of the right driving rod 131 are respectively connected to the right turning wheel 122 and the driving wheel 121, and the left driving rod 132 and the rod body with the driving rod 131 are erected on the side surface of the frame 1 through the driving assembly 15. The operation table 2 is located below the polishing belt 142, the operation table 2 comprises an outer frame 21 and a working plate 22, two I-shaped sliding rods 211 are arranged inside the outer frame 21, the sliding rods 211 are parallel to the longitudinal edges of the outer frame 21, rollers 212 are arranged at the lower ends of four corners of the working plate 22, and the rollers 212 and the working plate 22 are connected through connecting rods 213. The outer frame 21 of the operating platform 2 is connected with the frame 1 through a bracket, and the operating platform 2 is positioned below the grinding belt 142.
It should be noted that there are two rollers 212 in each set, which are respectively embedded into two sides of the i-shaped sliding rod 211, and the rollers 212 on the same side and the rollers 212 and the working plate 22 are connected by a connecting rod 213. It should be noted that the console 2 is provided with a clamping device for clamping the guitar body.
The mechanism of the operation of the above mechanism is that the belt 141 is driven by the motor 11 to drive the driving wheel 121 to rotate, the driving wheel 121 rotates to drive the right driving rod 131 to drive the right turning wheel 122 to rotate, the right turning wheel 122 drives the polishing belt 142 to rotate around, the guitar body is placed on the working plate 22 of the operating table 2, the working plate 22 slides back and forth by the slide rod 213 and the roller 212, and the polishing belt 142 above the guitar body is pressed, so that the polishing work is performed.
The present invention and its embodiments have been described above schematically, and the description is not limited thereto, and what is shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. Therefore, if the person skilled in the art receives the teaching of the present invention, without departing from the inventive spirit of the present invention, the person skilled in the art should also design the similar structural modes and embodiments without creativity to the technical solution, and all shall fall within the protection scope of the present invention.
Claims (4)
1. The utility model provides a guitar body grinding device, includes frame (1), operation panel (2), grinds unit, drive unit and transmission unit and constitutes its characterized in that: the polishing unit comprises a fixed pulley (124) arranged at the top of the frame (1), a left rotating wheel (123) and a right rotating wheel (122) arranged at two sides of the front surface of the frame (1) and a polishing belt (142) connecting the fixed pulley and the right rotating wheel; the driving unit comprises a motor (11) arranged at the top of the frame (1), a driving wheel (121) arranged at the back of the frame (1) and a belt (141) connecting the motor (11) and the driving wheel (121); the transmission unit comprises a left transmission rod (132), a right transmission rod (131) and a transmission assembly (15).
2. A guitar body sharpening device as claimed in claim 1, characterized in that: the transmission assembly (15) comprises a supporting block (151) and a bearing (152), the supporting block (151) is fixedly connected with the frame (1), the bearing (152) is embedded in the supporting block (151) and penetrates through the supporting block, one end of the left transmission rod (132) is connected with the left rotating wheel (123), two ends of the right transmission rod (131) are respectively connected with the right rotating wheel (122) and the driving wheel (121), and rod bodies of the left transmission rod (132) and the right transmission rod (131) are erected on the side face of the frame (1) through the transmission assembly (15).
3. A guitar body sharpening device as claimed in claim 2, characterized in that: operation panel (2) be located the below of polishing belt (142), operation panel (2) include frame (21) and working plate (22), frame (21) inside be provided with two I-shaped slide bars (211), foretell slide bar (211) are parallel with the vertical limit of frame (21), the lower extreme of four corners of working plate (22) be provided with gyro wheel (212), connect through connecting rod (213) between gyro wheel (212) and between each gyro wheel (212) and working plate (22).
4. A guitar body sharpening device as claimed in claim 3, characterized in that: the outer frame (21) of the operating platform (2) is connected with the frame (1) through a support, and the operating platform (2) is positioned below the grinding belt (142).
