CN212689545U - Corner pole setting device for lifting aluminum alloy climbing frame - Google Patents
Corner pole setting device for lifting aluminum alloy climbing frame Download PDFInfo
- Publication number
- CN212689545U CN212689545U CN202021392631.XU CN202021392631U CN212689545U CN 212689545 U CN212689545 U CN 212689545U CN 202021392631 U CN202021392631 U CN 202021392631U CN 212689545 U CN212689545 U CN 212689545U
- Authority
- CN
- China
- Prior art keywords
- fixed
- corner
- pole setting
- block
- support
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Ladders (AREA)
Abstract
The utility model discloses a frame corner pole setting device is climbed to lift aluminum alloy relates to pole setting technical field, for solving the current frame corner pole setting device is climbed to lift aluminum alloy inconvenient fixed problem of connecting when using. The top of corner fixed connection pole setting is installed and is connected the kicking block, the externally mounted of corner fixed connection pole setting top has fixed support shoe, the below of fixed support shoe is installed and is strengthened the fixed block, stabilizing base is installed to the below of corner fixed connection pole setting, the support horizontal pole is installed to one side of corner fixed connection pole setting, the below of supporting the horizontal pole is installed and is supported the down tube, support one side of horizontal pole and install first support pole setting, the kicking block is installed to the top of first support pole setting, the second is installed to one side of first support pole setting and is supported the pole setting.
Description
Technical Field
The utility model relates to a pole setting technical field specifically is a frame corner pole setting device is climbed to lift aluminum alloy.
Background
The pole setting is the component part of engineering construction scaffold frame engineering, reads like the literal meaning, is the pole of standing up, and the pole setting has many requirements in the aspect of interval, connection etc. if: the vertical rods need to be butted by adopting a butting fastener, and are not lapped, and the vertical rods are arranged in a staggered manner, so that the stress among the rods is evenly distributed, and the overall stability is enhanced; the climbing frame is also called a lifting frame, can be divided into hydraulic type, electrodynamic type, manual pull type and other main types according to the power source, is a novel scaffold system developed in recent years, is mainly applied to high-rise shear wall type floors, can ascend or descend upwards along buildings, and makes the scaffold technology completely changed by the system: firstly, the frame does not need to be turned over; secondly, the dismounting process of the scaffold (the scaffold is used till the construction is finished after one-time assembly) is omitted, the scaffold is not limited by the height of a building, the manpower and the materials are greatly saved, the traditional scaffold is greatly improved in the safety angle, and the scaffold has great development advantages in high-rise buildings; the aluminum alloy is an alloy with a certain amount of other alloying elements added on the basis of aluminum, and is one of light metal materials.
However, the existing lifting aluminum alloy climbing frame corner upright device is inconvenient to connect and fix when in use; therefore, the existing requirements are not met, and the lifting aluminum alloy climbing frame corner upright device is provided for the requirements.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a frame corner pole setting device is climbed to lift aluminum alloy to current lift aluminum alloy who proposes in the solution above-mentioned background art climbs frame corner pole setting device inconvenient the problem of connecting fixedly when using.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a lift aluminum alloy climbs a corner pole setting device, includes corner fixed connection pole setting, the connection kicking block is installed to the top of corner fixed connection pole setting, the externally mounted of corner fixed connection pole setting top has fixed supporting shoe, the below of fixed supporting shoe is installed and is strengthened the fixed block, stabilizing base is installed to the below of corner fixed connection pole setting, the support horizontal pole is installed to one side of corner fixed connection pole setting, the below of supporting the horizontal pole is installed and is supported the down tube, support one side of horizontal pole and install first support pole setting, the kicking block is installed to the top of first support pole setting, the second is installed to one side of first support pole setting and is supported the pole setting.
Preferably, the corner fixed connection upright rod, the fixed supporting block and the reinforced fixing block are of an integrated structure.
Preferably, the strengthening rib is installed to the inside one side of second support pole setting, the strengthening rib is provided with a plurality of, and a plurality of strengthening rib distributes in proper order, the front end of second support pole setting below is installed fixed connection board, the second supports pole setting and the equal welded connection of fixed connection board and strengthening rib.
Preferably, the inside both sides of fixed connection board all are provided with the installation fixed orifices, the inside intermediate position department of fixed connection board is provided with connects fixed mouthful, the fixed block is all installed at the both ends of connecting fixed mouthful.
Preferably, strengthen the both sides of fixed block and all install the side and connect the fixed block, strengthen the fixed block and the fixed block structure as an organic whole is connected to the side, the inside of fixed block is connected to the side is provided with the side and connects the fixed orifices.
Preferably, the fixed supporting block is externally provided with a corner connecting fixed disk, the fixed supporting block and the corner connecting fixed disk are of an integrated structure, a corner connector is arranged in the corner connecting fixed disk, the corner connector is provided with a plurality of corner connectors which are sequentially distributed, the reinforcing rib supporting block is arranged above the corner connecting fixed disk, and the reinforcing rib supporting block is connected with the corner connecting fixed disk and the fixed supporting block in a welding manner.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a set up fixed stay piece, corner connection fixed disk, corner connector and strengthening rib supporting shoe, during the use, when needing to be connected lifting aluminum alloy climbing frame and corner fixed connection pole setting, can carry out welded connection through the splice bar with the corner connector in the corner connection fixed disk outside the fixed stay piece with the connecting rod, the connected mode is various, the operation of being convenient for, the strengthening rib supporting shoe makes the connection stable, reliable;
2. the utility model discloses a set up strengthening rib, first support pole setting, second support pole setting, support the horizontal pole and support the down tube, during the use, support the horizontal pole and supported the down tube and ensured the steadiness of being connected between corner fixed connection pole setting and first support pole setting and the second support pole setting for whole factor of safety is higher, through being provided with a plurality of strengthening ribs, makes first support pole setting and second support to connect more firm between the pole setting, and wholeness can be perfect more.
Drawings

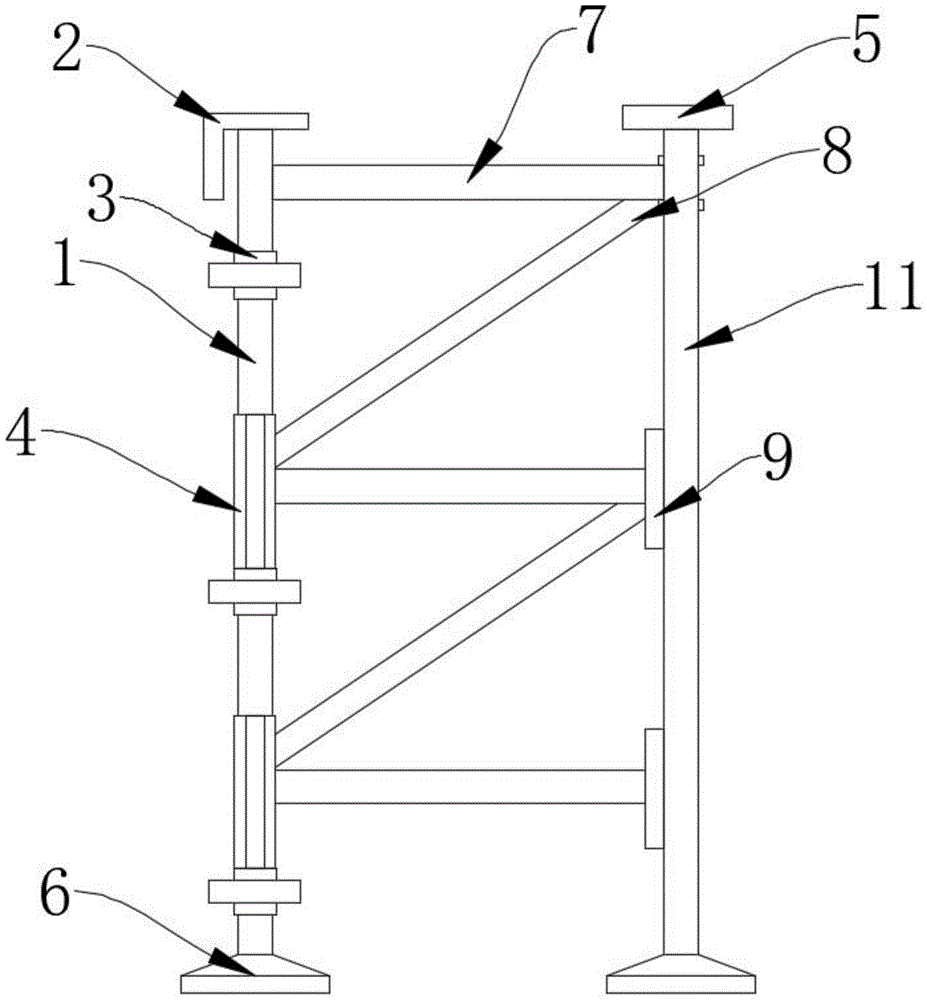

Fig. 1 is a front view of a corner pole erecting device of a lifting aluminum alloy climbing frame of the utility model;
fig. 2 is a schematic structural view of the corner fixed connection upright rod of the present invention;
fig. 3 is a schematic structural view of the first and second supporting vertical rods of the present invention;
fig. 4 is a perspective view of the fixing support block of the present invention.
In the figure: 1. the corner is fixedly connected with the upright rod; 2. connecting the top block; 3. fixing a supporting block; 4. reinforcing the fixed block; 5. a top block; 6. a stabilizing base; 7. a support rail; 8. supporting the diagonal rods; 9. fixing the connecting plate; 10. reinforcing ribs; 11. a first support upright rod; 12. a second supporting upright rod; 13. mounting a fixing hole; 14. connecting the fixed port; 15. a fixed block; 16. the side is connected with a fixed block; 17. the side is connected with a fixing hole; 18. the corner is connected with the fixed disc; 19. a corner connector; 20. and reinforcing rib supporting blocks.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-4, the present invention provides an embodiment: the utility model provides a lift aluminum alloy climbs a corner pole setting device, including corner fixed connection pole setting 1, connect kicking block 2 is installed to the top of corner fixed connection pole setting 1, the externally mounted of 1 top of corner fixed connection pole setting has fixed support shoe 3, the below of fixed support shoe 3 is installed and is strengthened fixed block 4, structural stability is strong, stabilizing base 6 is installed to the below of corner fixed connection pole setting 1, support horizontal pole 7 is installed to one side of corner fixed connection pole setting 1, support down tube 8 is installed to the below of support horizontal pole 7, support one side of horizontal pole 7 and install first support pole setting 11, kicking block 5 is installed to the top of first support pole setting 11, second support pole setting 12 is installed to one side of first support pole setting 11, support stability is higher.
Further, corner fixed connection pole setting 1 and fixed bolster 3 and enhancement fixed block 4 are a body structure, stable in structure.
Further, the strengthening rib 10 is installed to the inside one side of second support pole setting 12, and strengthening rib 10 is provided with a plurality of, and a plurality of strengthening rib 10 distributes in proper order, and fixed connection board 9 is installed to the front end of second support pole setting 12 below, and second support pole setting 12 and fixed connection board 9 and the equal welded connection of strengthening rib 10, and welded connection's gas tightness and water proofness are all better, and structural rigidity is also great.
Further, both sides of the inside of the fixed connection plate 9 are provided with installation fixing holes 13, a connection fixing port 14 is arranged at the middle position of the inside of the fixed connection plate 9, and fixing blocks 15 are installed at both ends of the connection fixing port 14, so that the fixing is facilitated.
Further, strengthen the both sides of fixed block 4 and all install the side and connect fixed block 16, strengthen fixed block 4 and side and connect fixed block 16 structure as an organic whole, the inside of fixed block 16 is connected to the side is provided with side connection fixed orifices 17, simple structure, and stability is high.
Further, the external mounting of fixed supporting shoe 3 has corner connection fixed disk 18, fixed supporting shoe 3 and corner connection fixed disk 18 structure as an organic whole, the inside of corner connection fixed disk 18 is provided with corner connector 19, corner connector 19 is provided with a plurality of, and a plurality of corner connector 19 distributes in proper order, reinforcing rib supporting shoe 20 is installed to the top of corner connection fixed disk 18, reinforcing rib supporting shoe 20 is connected fixed disk 18 with the corner and the equal welded connection of fixed supporting shoe 3, structural wholeness is good.
The working principle is as follows: when in use, the stabilizing base 6 is fixed with the installation ground through the fixing foot bolt, so that the corner fixed connecting upright rod 1 is fixed with the first supporting upright rod 11 and the second supporting upright rod 12, the reinforcing ribs 10 ensure the connection fixity between the first supporting upright rod 11 and the second supporting upright rod 12, one end of the supporting cross rod 7 and one end of the supporting diagonal rod 8 pass through the connecting and fixing port 14 inside the fixed connecting plate 9 and are welded and connected through the fixing block 15, the stability of relative support is ensured, a connecting rod can respectively pass through the side connecting and fixing holes 17 inside the side connecting and fixing blocks 16 at the two sides of the reinforcing fixing block 4 and the mounting and fixing holes 13 inside the fixed connecting plate 9 to be connected through a fastener, so that the overall supporting stability is higher, when the connecting rod is required to be connected with the lifting aluminum alloy climbing frame, the connecting rod can be welded and connected with the connecting port corner 19 inside the corner connecting fixing disc 18 outside the fixed, the connected mode is various, and the stability of connection has been ensured to strengthening rib supporting shoe 20.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a lift aluminum alloy climbs a corner pole setting device, includes corner fixed connection pole setting (1), its characterized in that: the utility model discloses a building block support device, including corner fixed connection pole setting (1), the top of corner fixed connection pole setting (1) is installed and is connected kicking block (2), the externally mounted of corner fixed connection pole setting (1) top has fixed supporting shoe (3), strengthen fixed block (4) are installed to the below of fixed supporting shoe (3), stabilizing base (6) are installed to the below of corner fixed connection pole setting (1), support horizontal pole (7) are installed to one side of corner fixed connection pole setting (1), support down tube (8) are installed to the below of support horizontal pole (7), first support pole setting (11) are installed to one side of support horizontal pole (7), kicking block (5) are installed to the top of first support pole setting (11), second support pole setting (12) are installed to one side of first support pole setting.
2. The corner pole setting device of lifting aluminum alloy climbing frame of claim 1, characterized in that: the corner fixed connection upright rod (1), the fixed supporting block (3) and the reinforcing fixed block (4) are of an integrated structure.
3. The corner pole setting device of lifting aluminum alloy climbing frame of claim 1, characterized in that: the second supports pole setting (12) inside one side and installs strengthening rib (10), strengthening rib (10) are provided with a plurality of, and a plurality of strengthening rib (10) distribute in proper order, the second supports the front end of pole setting (12) below and installs fixed connection board (9), the second supports pole setting (12) and fixed connection board (9) and the equal welded connection of strengthening rib (10).
4. The corner pole setting device of lifting aluminum alloy climbing frame of claim 3, characterized in that: the inside both sides of fixed connection board (9) all are provided with installation fixed orifices (13), the inside intermediate position department of fixed connection board (9) is provided with connects fixed mouthful (14), fixed block (15) are all installed at the both ends of connecting fixed mouthful (14).
5. The corner pole setting device of lifting aluminum alloy climbing frame of claim 1, characterized in that: strengthen the both sides of fixed block (4) and all install side connection fixed block (16), strengthen fixed block (4) and side connection fixed block (16) structure as an organic whole, the inside of side connection fixed block (16) is provided with side connection fixed orifices (17).
6. The corner pole setting device of lifting aluminum alloy climbing frame of claim 1, characterized in that: the external mounting of fixed stay block (3) has corner connection fixed disk (18), fixed stay block (3) and corner connection fixed disk (18) structure as an organic whole, the inside that fixed disk (18) was connected in the corner is provided with corner connector (19), corner connector (19) are provided with a plurality of, and a plurality of corner connector (19) distribute in proper order, strengthening rib supporting shoe (20) are installed to the top that fixed disk (18) is connected in the corner, strengthening rib supporting shoe (20) are connected fixed disk (18) and the equal welded connection of fixed stay block (3) with the corner.
