Abstract
本实用新型属于控制柜领域，尤其是一种计算机电脑控制柜，针对现有的传统的装置在使用时，不能对装置内部的用电器元件进行散热，特别是夏天高温的时候，容易导致控制柜内的电器元件短路，给人们带来损失，所以不能满足人们的需要的问题，现提出如下方案，其包括控制柜主体、放置座、放置槽、开口、防尘网、滑动槽、轴承座、限位孔、限位杆、转动槽、转动杆、扇叶、挡板、齿条、齿轮和复位弹簧，所述控制柜主体的底部内壁上固定安装有放置座，本实用新型结构简单，操作方便，能够快速方便的对控制柜主体内的电器元件进行散热，通过对扇叶的左右移动，使散热更加均匀，防止了因稳定过高导致电器元件损坏的情况，减小了人们的损失。
The utility model belongs to the field of control cabinets, in particular to a computer computer control cabinet. When the existing traditional device is in use, the electrical components inside the device cannot be radiated, especially when the temperature is high in summer, the control cabinet is likely to be damaged. The electrical components inside are short-circuited, causing losses to people, so they cannot meet people's needs. The following scheme is now proposed, which includes the main body of the control cabinet, the placement seat, the placement slot, the opening, the dust-proof net, the sliding slot, the bearing seat, Limiting holes, limiting rods, rotating slots, rotating rods, fan blades, baffles, racks, gears and return springs, a placing seat is fixedly installed on the bottom inner wall of the main body of the control cabinet, and the utility model has a simple structure and is easy to operate. It is convenient and can quickly and conveniently dissipate the electrical components in the main body of the control cabinet. By moving the fan blades left and right, the heat dissipation is more uniform, which prevents the electrical components from being damaged due to excessive stability and reduces people's losses.
Description
Technical Field
The utility model relates to a switch board technical field especially relates to a computer control cabinet.
Background
The control cabinet is formed by assembling switch equipment, measuring instruments, protective electrical appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen according to the electrical wiring requirement, the arrangement of the control cabinet meets the requirement of normal operation of a power system, the control cabinet is convenient to overhaul and does not endanger the safety of human bodies and surrounding equipment, and the control cabinet can be switched on or switched off a circuit by a manual or automatic switch in normal operation;
when the traditional device is used, the heat of electrical equipment elements in the device cannot be dissipated, and particularly, when the temperature is high in summer, the electrical equipment elements in the control cabinet are easily short-circuited to bring loss to people, so that the requirements of people cannot be met.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving and having traditional device among the prior art when using, can not dispel the heat to the device is inside with electrical components, especially in summer high temperature, lead to the electrical components short circuit in the switch board easily, give people and bring the loss, so can not satisfy the shortcoming of people's needs, and a computer control cabinet who provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a computer control cabinet comprises a control cabinet main body, a placing seat, a placing groove, an opening, a dustproof net, sliding grooves, bearing seats, limiting holes, a limiting rod, a rotating groove, a rotating rod, fan blades, a baffle plate, a rack, a gear and a reset spring, wherein the placing seat is fixedly installed on the inner wall of the bottom of the control cabinet main body, the placing groove is formed in the top of the placing seat, electric elements are placed in the placing groove, the opening is formed in each of two sides of the control cabinet main body, the same dustproof net is fixedly installed on the inner wall of the top of the opening and the inner wall of the bottom of the opening, two sliding grooves are formed in the inner wall of the top of the control cabinet main body, the bearing seats are slidably installed in the two sliding grooves, the limiting holes are formed in the two bearing seats, the limiting rods are slidably installed in the two limiting holes, and the two ends of the limiting rods are fixedly connected with the inner wall of one side of the, the bottom ends of the two bearing seats are respectively provided with a rotating groove, rotating rods are respectively rotatably arranged in the two rotating grooves, the outer sides of the rotating rods are fixedly provided with fan blades, the inner wall of the top of the control cabinet main body is fixedly provided with two baffles, one sides of the two baffles, which are far away from each other, are fixedly provided with racks, one ends of the two racks, which are far away from each other, are respectively and fixedly connected with the inner wall of one side of the corresponding control cabinet main body, the outer sides of the two rotating rods are fixedly sleeved with gears, and the two gears are respectively meshed with the corresponding racks, the two ends, away from each other, of the bearing seats are fixedly provided with return springs sleeved on the outer sides of the limiting rods, the two ends, away from each other, of the return springs are respectively fixedly connected with the inner wall of one side of the corresponding sliding groove, and the two return springs play roles in limiting and resetting.
Preferably, the switch board main part is provided with two rotating holes, the rotating holes are internally and rotatably provided with the installation rods, the top of the switch board main part is provided with a motor groove, the inner wall of the bottom of the motor groove is fixedly provided with a motor, an output shaft of the motor is meshed with a chain, the output shaft of the motor is in transmission connection with the two installation rods through the chain, and the output shaft of the motor drives the two installation rods to rotate through the chain.
Preferably, a fixing groove is formed in the side wall of the control cabinet main body, a sealing plate is hinged to the side wall of the control cabinet main body and is in sealing fit with the fixing groove, the bottom ends of the two mounting rods extend into the control cabinet main body and are fixedly provided with eccentric wheels, one sides, far away from each other, of the bearing blocks are respectively in contact with the corresponding eccentric wheels, and the bearing blocks are driven to move by the rotation of the eccentric wheels.
Preferably, the walking wheel is all installed in the bottom four corners of switch board main part rotation, and four the walking wheel be universal lockable wheel, four walking wheels are convenient to remove the switch board main part.
Preferably, the quantity of flabellum is three, and three the flabellum be annular equidistance and distribute in the outside of dwang, a plurality of flabellums have improved radiating efficiency.
In the utility model, when the computer control cabinet is used, the motor is started, the output shaft of the motor drives the two mounting rods to rotate through the chain, the two mounting rods drive the two eccentric wheels to rotate, meanwhile, the two bearing seats drive the two rotating rods to rotate, and the two rotating rods drive the plurality of fan blades to move;
meanwhile, the two rotating rods drive the two gears to move, and the two gears are meshed with the two racks, so that the two gears move to drive the two gears to rotate through the two racks, the bearing seat continuously moves through continuous rotation of the eccentric wheel, the bearing seat drives the plurality of fan blades to continuously rotate and simultaneously continuously horizontally move, and the plurality of fan blades uniformly dissipate heat of electrical components in the control cabinet main body;
the utility model discloses simple structure, convenient operation, can be fast convenient dispel the heat to the electrical components in the switch board main part, through controlling the flabellum, make the heat dissipation more even, prevented because of stabilizing the condition that too high leads to electrical components to damage, reduced people's loss.
Drawings

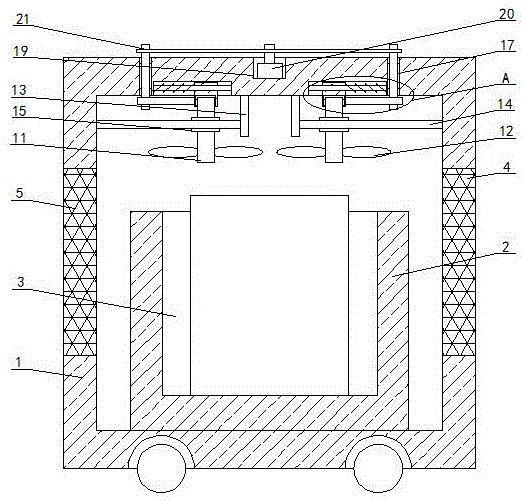

Fig. 1 is a schematic view of a computer control cabinet according to the present invention;
fig. 2 is an enlarged schematic structural diagram of a portion a of a computer control cabinet according to the present invention;
fig. 3 is a schematic side view of the computer control cabinet according to the present invention.
In the figure: the control cabinet comprises a control cabinet body 1, a placing seat 2, a placing groove 3, an opening 4, a dust screen 5, a sliding groove 6, a bearing seat 7, a limiting hole 8, a limiting rod 9, a rotating groove 10, a rotating rod 11, fan blades 12, a baffle plate 13, a rack 14, a gear 15, a return spring 16, a rotating hole 17, an installation rod 18, a motor groove 19, a motor 20, a chain 21, a fixing groove 22, a sealing plate 23 and an eccentric wheel 24.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a computer control cabinet comprises a control cabinet main body 1, a placing seat 2, a placing groove 3, an opening 4, a dust screen 5, a sliding groove 6, a bearing seat 7, a limiting hole 8, a limiting rod 9, a rotating groove 10, a rotating rod 11, a fan blade 12, a baffle 13, a rack 14, a gear 15 and a reset spring 16, wherein the placing seat 2 is fixedly installed on the inner wall of the bottom of the control cabinet main body 1, the placing groove 3 is arranged at the top of the placing seat 2, an electrical component is placed in the placing groove 3, the opening 4 is respectively arranged on both sides of the control cabinet main body 1, the same dust screen 5 is fixedly installed on the inner wall of the top of the opening 4 and the inner wall of the bottom, two sliding grooves 6 are arranged on the inner wall of the top of the control cabinet main body 1, the bearing seats 7 are arranged in the two sliding grooves 6 in a sliding manner, the limiting holes 8 are arranged on the, two limiting holes 8 are internally and respectively provided with a limiting rod 9 in a sliding way, the two ends of the limiting rod 9 are respectively fixedly connected with one side inner wall of the corresponding sliding groove 6, the bottom ends of the two bearing seats 7 are respectively provided with a rotating groove 10, the two rotating grooves 10 are internally and respectively provided with a rotating rod 11 in a rotating way, the outer side of the rotating rod 11 is fixedly provided with a fan blade 12, the inner wall of the top part of the control cabinet main body 1 is fixedly provided with two baffle plates 13, one sides of the two baffle plates 13 which are far away from each other are respectively and fixedly provided with a rack 14, one ends of the two rack plates 14 which are far away from each other are respectively fixedly connected with one side inner wall of the corresponding control cabinet main body 1, the outer sides of the two rotating rods 11 are respectively and fixedly sleeved with a gear 15, the two gears 15 are respectively meshed with the corresponding racks 14, and one ends of the two bearing seats 7 which are far away from each other, one end of each of the two return springs 16, which is far away from each other, is fixedly connected with the inner wall of one side of the corresponding sliding groove 6, and the two return springs 16 play roles in limiting and resetting.
The utility model discloses in, seted up two rotation holes 17 on the switch board main part 1, two rotation hole 17 in all rotate and install installation pole 18, the top of switch board main part 1 seted up motor groove 19, the bottom inner wall of motor groove 19 on fixed mounting have motor 20, motor 20's output shaft on mesh and have chain 21, just motor 20's output shaft pass through chain 21 and two installation 18 transmissions of pole and be connected, motor 20's output shaft drives two installation poles 18 through chain 21 and rotates.
The utility model discloses in, fixed slot 22 has been seted up on the lateral wall of switch board main part 1, the lateral wall of switch board main part 1 on articulated have closing plate 23, just closing plate 23 and the sealed cooperation of fixed slot 22, two the bottom of installation pole 18 all extend to in the switch board main part 1 and fixed mounting have eccentric wheel 24, and two one side that keeps away from each other of bearing frame 7 contact with corresponding eccentric wheel 24 respectively, eccentric wheel 24's rotation drives bearing frame 7 and removes.
The utility model discloses in, the bottom four corners of switch board main part 1 all rotates and installs the walking wheel, and four the walking wheel be universal lockable wheel, four walking wheels are convenient to be removed switch board main part 1.
The utility model discloses in, the quantity of flabellum 12 is three, and three flabellum 12 be the annular equidistance and distribute in the outside of dwang 11, a plurality of flabellums 12 have improved radiating efficiency.
In the utility model, when in use, the motor 20 is started, the motor 20 is controlled by the control switch, the motor 20 is powered by commercial power, the output shaft of the motor 20 drives the two mounting rods 18 to rotate through the chain 21, the two mounting rods 18 drive the two eccentric wheels 24 to rotate, the two eccentric wheels 24 drive the two bearing seats 7 to move, the two bearing seats 7 stretch the two reset springs 16, the two reset springs 16 absorb energy, simultaneously, the two bearing seats 7 drive the two rotating rods 11 to rotate, the two rotating rods 11 drive the plurality of fan blades 12 to move, simultaneously, the two rotating rods 11 drive the two gears 15 to move, and are engaged with the two gears 15 through the two racks 14, so that the two gears 15 move to drive the two gears 15 to rotate through the two racks 14, the bearing seats 7 are constantly moved through the continuous rotation of the eccentric wheels 24, bearing frame 7 drives a plurality of flabellums 12 and constantly carries out horizontal migration when constantly carrying out the pivoted, and a plurality of flabellums 12 carry out even heat dissipation to the electrical components in the switch board main part 1 to can be fast convenient dispel the heat to the electrical components in the switch board main part 1, through controlling about to flabellum 12, make the heat dissipation more even, prevented because of stabilizing the condition that too high leads to electrical components to damage, reduced people's loss.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. A computer control cabinet comprises a control cabinet main body (1), a placing seat (2), a placing groove (3), an opening (4), a dustproof net (5), a sliding groove (6), a bearing seat (7), a limiting hole (8), a limiting rod (9), a rotating groove (10), a rotating rod (11), fan blades (12), a baffle (13), a rack (14), a gear (15) and a reset spring (16), and is characterized in that the placing seat (2) is fixedly installed on the inner wall of the bottom of the control cabinet main body (1), the placing groove (3) is installed at the top of the placing seat (2), electrical components are placed in the placing groove (3), the openings (4) are respectively installed on two sides of the control cabinet main body (1), the same dustproof net (5) is fixedly installed on the inner wall of the top and the inner wall of the bottom of the opening (4), the two sliding grooves (6) are installed on the inner wall of the top of the control cabinet main body (1), two equal slidable mounting have bearing frame (7) in sliding tray (6), two all seted up spacing hole (8) on bearing frame (7), two equal slidable mounting have gag lever post (9) in spacing hole (8), just the both ends of gag lever post (9) respectively with one side inner wall fixed connection of corresponding sliding tray (6), the bottom of two bearing frame (7) all seted up rotation groove (10), two rotation groove (10) in all rotate and install dwang (11), the outside fixed mounting of dwang (11) have flabellum (12), the top inner wall of switch board main part (1) on fixed mounting have two baffles (13), two equal fixed mounting have rack (14) in one side that baffle (13) kept away from each other, two one end that rack (14) kept away from each other respectively with one side inner wall fixed connection of corresponding switch board main part (1), two the outside of dwang (11) all fixed cover be equipped with gear (15), and two gear (15) mesh with corresponding rack (14) respectively mutually, two the equal fixed mounting of one end of keeping away from each other of bearing frame (7) establish reset spring (16) in gag lever post (9) outside, two reset spring (16) the one end of keeping away from each other respectively with one side inner wall fixed connection of corresponding sliding tray (6).
2. The computer control cabinet according to claim 1, wherein the control cabinet main body (1) is provided with two rotating holes (17), the two rotating holes (17) are rotatably provided with mounting rods (18), the top of the control cabinet main body (1) is provided with a motor groove (19), the inner wall of the bottom of the motor groove (19) is fixedly provided with a motor (20), the output shaft of the motor (20) is engaged with a chain (21), and the output shaft of the motor (20) is in transmission connection with the two mounting rods (18) through the chain (21).
3. The computer control cabinet according to claim 2, wherein a fixing groove (22) is formed in the side wall of the control cabinet main body (1), a sealing plate (23) is hinged to the side wall of the control cabinet main body (1), the sealing plate (23) is in sealing fit with the fixing groove (22), the bottom ends of the two mounting rods (18) extend into the control cabinet main body (1) and are fixedly provided with eccentric wheels (24), and one sides, away from each other, of the two bearing seats (7) are respectively in contact with the corresponding eccentric wheels (24).
4. The computer control cabinet according to claim 1, wherein four corners of the bottom of the control cabinet main body (1) are rotatably provided with walking wheels, and the four walking wheels are universal lockable wheels.
5. The computer control cabinet according to claim 1, wherein the number of the fan blades (12) is three, and the three fan blades (12) are annularly and equidistantly distributed on the outer side of the rotating rod (11).
