Abstract
本实用新型公开了一种空心砖切割装置用可调节绳锯，包括工作台、夹板、切割绳、支撑座和伸缩护罩，所述工作台顶部左右两侧均设置有夹板，工作台顶部前侧固定安装有支撑座，支撑座上下两侧均固定安装有导向座，导向座与支撑座之间设置有伸缩护罩，伸缩护罩与支撑座滑动连接，固定护罩与支撑座之间设置有倾斜护罩，与现有技术相比，本实用新型的有益效果是：在进行切割时，通过第二电机带动绳锯的前侧向空心砖移动，自动进行切割工作，切割过程中无需移动空心砖，使用时更加安全，伸缩护罩移动时，伸缩护罩移动时，切割绳的后侧会拉动从动轮，使得从动轮、压轮、滑块一同向后侧移动，使得切割绳在靠近空心砖时，越来越紧绷，使切面更加平整。
The utility model discloses an adjustable wire saw for a hollow brick cutting device, comprising a workbench, a splint, a cutting rope, a support seat and a telescopic shield. The left and right sides of the top of the workbench are provided with splints, and the front side of the top of the workbench is provided with splints. A support seat is fixedly installed, a guide seat is fixedly installed on the upper and lower sides of the support seat, a telescopic shield is arranged between the guide seat and the support seat, the telescopic shield is slidingly connected with the support seat, and a telescopic shield is arranged between the fixed shield and the support seat. Compared with the prior art, the utility model has the beneficial effect of: when cutting, the front side of the wire saw is driven to move toward the hollow brick by the second motor, and the cutting work is performed automatically, and the hollow brick does not need to be moved during the cutting process. It is safer to use. When the telescopic cover moves, the back side of the cutting rope will pull the driven wheel, so that the driven wheel, the pressing wheel and the slider move to the back side together, so that when the cutting rope is close to the hollow brick, Tighter and tighter to make the cut flatter.
Description
Technical Field
The utility model relates to an air brick processing technology field specifically is an air brick cutting device is with adjustable rope saw.
Background
The hollow brick is often used for the non-bearing position of building, as wall body main material, and the hollow brick is generally through the mould sintering production, and the hollow brick after the drawing of patterns need cut into the fritter, and common cutting device is when using, is fixed with blade or rope saw, cuts through removing the hollow brick, and the energy consumption is great, and is inefficient, and has certain danger when removing the hollow brick and cutting. Accordingly, one skilled in the art has provided an adjustable wire saw for a cavity block cutting apparatus to solve the problems set forth in the background art as described above.
Disclosure of Invention
An object of the utility model is to provide an adjustable rope saw is used to hollow brick cutting device to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides an adjustable rope saw is used to hollow brick cutting device, includes workstation, splint, cutting rope, supporting seat and flexible guard shield, the workstation top left and right sides all is provided with splint, and workstation top front side fixed mounting has the supporting seat, and the equal fixed mounting in both sides has the guide holder about the supporting seat, is provided with flexible guard shield between guide holder and the supporting seat, flexible guard shield and supporting seat sliding connection, and the supporting seat front end corresponds flexible guard shield department and is provided with fixed guard shield, is provided with the slope guard shield between fixed guard shield and the supporting seat, the cutting rope is installed in flexible guard shield, and the workstation middle part corresponds cutting rope department and is provided with the joint-cutting.
As a further aspect of the present invention: the cutting rope is in a closed ring shape, the cutting rope is sleeved on the pushing wheel and the driven wheel, and the outer side of the cutting rope is attached to the driving wheel.
As a further aspect of the present invention: the supporting seat is characterized in that a pushing device is installed at the top of the supporting seat, a lead screw is installed in the pushing device, a pushing block is arranged on the lead screw and in threaded connection with the lead screw, the bottom of the pushing block is fixedly connected with a telescopic shield, a second motor is fixedly installed at the front end of the pushing device, and the lead screw is connected with a rotating shaft of the second motor.
As a further aspect of the present invention: the supporting seat is internally provided with a sliding sleeve, a spring is arranged in the sliding sleeve, the front end of the spring is fixedly connected with a sliding block, the sliding block is arranged at the rear side of the driven wheel, the front end of the sliding block corresponds to a fixed sheet fixedly connected with the left side and the right side of the driven wheel, the driven wheel is rotatably connected with the fixed sheet, and the fixed sheet corresponds to the front side of the driven wheel and is provided with a.
As a further aspect of the present invention: all be provided with the spacing groove on the lateral wall about the sliding sleeve, correspond spacing groove fixedly connected with stopper on the slider.
As a further aspect of the present invention: the utility model discloses a table top, including workstation top, splint, guide slot, T shape boss, splint middle part, splint and screw thread connection, the splint are run through to the screw, the workstation top corresponds splint department and is provided with a plurality of guide slot, and the guide slot below is provided with T shape boss, T shape boss top and splint fixed connection, and the splint middle part is provided with the screw, splint and screw thread connection, the.
Compared with the prior art, the beneficial effects of the utility model are that:
when cutting, the preceding side direction hollow brick that drives the rope saw through the second motor removes, cut work automatically, need not to remove the hollow brick in the cutting process, it is safer during the use, when flexible guard shield removed, the rear side of cutting rope can stimulate from the driving wheel, make from the driving wheel, the pinch roller, the slider is together to the rear side removal, make the cutting rope when being close to the hollow brick, it is increasingly tight, make the tangent plane more level and more smooth, in addition, the required space of reducible installation cutting rope, the pinch roller can compress tightly the cutting rope in addition, make under initial condition, the cutting rope can keep at the race.
Drawings

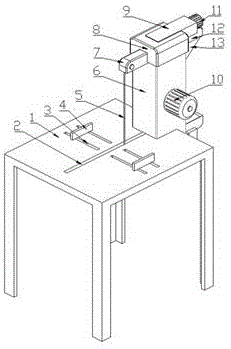

Fig. 1 is a schematic structural view of an adjustable wire saw for a hollow brick cutting device.
Fig. 2 is a schematic view of a driving structure of a cutting rope in an adjustable rope saw for a hollow brick cutting device.
Fig. 3 is a schematic structural view of a sliding sleeve in an adjustable rope saw for a hollow brick cutting device.
Fig. 4 is a schematic view showing the structure of a clamping plate of an adjustable wire saw for a hollow brick cutting device.
In the figure: 1-workbench, 2-cutting seam, 3-guide groove, 4-splint, 5-cutting rope, 6-support seat, 7-telescopic shield, 8-guide seat, 9-propulsion unit, 10-first motor, 11-second motor, 12-fixed shield, 13-inclined shield, 14-sliding sleeve, 15-spring, 16-sliding block, 17-propulsion wheel, 18-driven wheel, 19-pressing wheel, 20-driving wheel, 21-limiting groove, 22-fixing piece, 23-limiting block, 401-T-shaped boss, 402-screw, 91-lead screw and 92-pushing block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, in the embodiment of the utility model, an adjustable rope saw is used to hollow brick cutting device, including workstation 1, splint 4, cutting rope 5, supporting seat 6 and flexible guard shield 7, the 1 top left and right sides of workstation all is provided with splint 4, and 1 top front side fixed mounting of workstation has supporting seat 6, and the equal fixed mounting in both sides has guide holder 8 about supporting seat 6, is provided with flexible guard shield 7 between guide holder 8 and the supporting seat 6, and flexible guard shield 7 and 6 sliding connection of supporting seat, 6 front ends of supporting seat correspond flexible guard shield 7 and are provided with fixed guard shield 12, are provided with slope guard shield 13 between fixed guard shield 12 and the supporting seat 6, cutting rope 5 installs in flexible guard shield 7, and 1 middle part of workstation corresponds cutting rope 5 and is provided with joint-cutting 2.
Referring to fig. 2 and 3, a propelling wheel 17 is installed on the left side inside the telescopic shield 7, a driven wheel 18 is installed on the right side inside the fixed shield 12, a driving wheel 20 is installed in the middle of the supporting seat 6, a first motor 10 is installed on the right wall of the supporting seat 6, the rotating shaft of the first motor 10 is connected with the driving wheel 20, the cutting rope 3 is in a closed ring shape, the cutting rope 3 is sleeved on the propelling wheel 17 and the driven wheel 18, the outer side of the cutting rope 3 is attached to the driving wheel 20, a propelling device 9 is installed on the top of the supporting seat 6, a screw rod 91 is installed in the propelling device 9, a push block 92 is arranged on the screw rod 91, the push block 92 is in threaded connection with the screw rod 91, the bottom of the push block 92 is fixedly connected with the telescopic shield 7, a second motor 11 is fixedly installed at the front end of the propelling device 9, the screw rod 91 is, the front end of the spring 15 is fixedly connected with a sliding block 16, the sliding block 16 is arranged at the rear side of the driven wheel 18, the front end of the sliding block 16 corresponds to a fixed plate 22 fixedly connected with the left side and the right side of the driven wheel 18, the driven wheel 18 is rotatably connected with the fixed plate 22, a pressing wheel 19 is arranged on the fixed plate 22 corresponding to the front side of the driven wheel 18, limiting grooves 21 are formed in the left side wall and the right side wall of the sliding sleeve 14, and limiting blocks 23 are fixedly connected to the sliding block 16 corresponding to.
Referring to fig. 4, a plurality of guide grooves 3 are formed in the top of the workbench 1 corresponding to the clamping plate 4, a T-shaped boss 401 is arranged below the guide grooves 3, the top of the T-shaped boss 401 is fixedly connected with the clamping plate 4, a screw 402 is arranged in the middle of the clamping plate 4, the clamping plate 4 is in threaded connection with the screw 402, and the screw 402 penetrates through the clamping plate 4.
The utility model discloses a theory of operation is:
the utility model relates to an adjustable rope saw for a hollow brick cutting device, in the using process, a hollow brick is placed on a workbench 1, a screw 402 is unscrewed, a clamping plate 4 is moved to the two sides of the hollow brick, the screw 402 is locked, then a first motor 10 and a second motor 11 are started, after the first motor 10 is started, the cutting rope 5 is driven by the driving wheel 20 to cut, the lead screw 91 is driven by the second motor 11 to rotate, so as to drive the push block 92 to move backwards, further pushing the telescopic shield 7 to move backwards, so that the cutting rope 5 moves towards the hollow brick for cutting, when the telescopic shield 7 moves, the rear side of the cutting cord 5 pulls the driven pulley 18, so that the driven pulley 18 and the slider 16 move together to the rear side, at the same time, the pressing wheel 19 moves along with the sliding block 16, the spring 15 is compressed, and the pressing wheel 19 can press the cutting rope 5, so that the cutting rope 5 can be kept in the wheel groove in the initial state.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (6)
1. An adjustable rope saw for a hollow brick cutting device comprises a workbench (1), a clamping plate (4), a cutting rope (5), a supporting seat (6) and a telescopic protective cover (7), it is characterized in that the left side and the right side of the top of the workbench (1) are respectively provided with a clamping plate (4), the front side of the top of the workbench (1) is fixedly provided with a supporting seat (6), the upper side and the lower side of the supporting seat (6) are respectively fixedly provided with a guide seat (8), a telescopic shield (7) is arranged between the guide seat (8) and the supporting seat (6), the telescopic shield (7) is in sliding connection with the supporting seat (6), the front end of the supporting seat (6) is provided with a fixed shield (12) corresponding to the telescopic shield (7), an inclined shield (13) is arranged between the fixed shield (12) and the supporting seat (, the cutting rope (5) is arranged in the telescopic protective cover (7), and a cutting seam (2) is arranged in the middle of the workbench (1) corresponding to the cutting rope (5).
2. An adjustable rope saw for a hollow brick cutting device according to claim 1, characterized in that a propelling wheel (17) is mounted on the left side inside the telescopic shield (7), a driven wheel (18) is mounted on the right side inside the fixed shield (12), a driving wheel (20) is mounted in the middle of the supporting seat (6), a first motor (10) is mounted on the right wall of the supporting seat (6), the rotating shaft of the first motor (10) is connected with the driving wheel (20), the cutting rope (5) is in a closed ring shape, the cutting rope (5) is sleeved on the propelling wheel (17) and the driven wheel (18), and the outer side of the cutting rope (5) is attached to the driving wheel (20).
3. The adjustable rope saw for the hollow brick cutting device according to claim 2, wherein the top of the supporting seat (6) is provided with a pushing device (9), a screw rod (91) is arranged in the pushing device (9), a pushing block (92) is arranged on the screw rod (91), the pushing block (92) is in threaded connection with the screw rod (91), the bottom of the pushing block (92) is fixedly connected with the telescopic shield (7), the front end of the pushing device (9) is fixedly provided with a second motor (11), and the screw rod (91) is connected with a rotating shaft of the second motor (11).
4. An adjustable rope saw for a hollow brick cutting device according to claim 3, characterized in that a sliding sleeve (14) is installed in the supporting seat (6), a spring (15) is installed in the sliding sleeve (14), a sliding block (16) is fixedly connected to the front end of the spring (15), the sliding block (16) is arranged on the rear side of the driven wheel (18), the front end of the sliding block (16) is fixedly connected with a fixing piece (22) corresponding to the left side and the right side of the driving wheel (18), the driven wheel (18) is rotatably connected with the fixing piece (22), and a pressing wheel (19) is installed on the fixing piece (22) corresponding to the front side of the driven wheel (18).
5. An adjustable rope saw for a hollow brick cutting device according to claim 4, characterized in that the left and right side walls of the sliding sleeve (14) are provided with limiting grooves (21), and the sliding block (16) is fixedly connected with limiting blocks (23) corresponding to the limiting grooves (21).
6. An adjustable rope saw for a hollow brick cutting device according to claim 5, characterized in that a plurality of guide grooves (3) are arranged at the top of the working table (1) corresponding to the clamping plate (4), T-shaped bosses (401) are arranged below the guide grooves (3), the tops of the T-shaped bosses (401) are fixedly connected with the clamping plate (4), screws (402) are arranged in the middle of the clamping plate (4), the clamping plate (4) is in threaded connection with the screws (402), and the screws (402) penetrate through the clamping plate (4).
