Abstract

The invention relates to the technical field of power supply construction, and specifically discloses a cable cutting device for power supply construction, which includes a mobile frame, and fixed columns are vertically connected to both ends of the top of the mobile frame, and the outer walls on both sides of the two fixed columns pass through The telescopic cylinders fixedly installed are jointly connected with a fixed seat, and the two sides of the top of the fixed seat are respectively equipped with a platen, and there is a gap in the middle of the two platens. The outer walls on the sides of the table plates away from each other are provided with drive mechanisms, and the outside of the drive mechanisms are provided with installation components, the inner side of the installation components is slidingly provided with a moving plate, and the lower part of the moving plate is provided with a clamping assembly , the present invention can cut multiple groups of cables with high efficiency and relative safety, and the dust and waste on the surface of the table can be cleaned later.

Description

Cable cutting device for power supply construction

technical field

The invention relates to the technical field of power supply construction, and specifically discloses a cable cutting device for power supply construction.

Background technique

Cables need to be cut during power supply construction, and the sheath of the cables is made of flexible materials. If manual cutting is used, it is easy to hurt the hands, and manual cutting is slow in efficiency and labor-intensive. If the same batch of It is too difficult to cut the cable, so we need to improve the existing structure.

Contents of the invention

The object of the present invention is to propose a cable cutting device for power supply construction in order to solve the shortcomings in the background technology.

In order to achieve the above purpose, the present invention provides a cable cutting device for power supply construction, including a mobile frame, the two ends of the top of the mobile frame are vertically connected with fixed columns, and the outer walls on both sides of the two fixed columns are fixed and installed The telescopic cylinders of the telescopic cylinders are jointly connected with a fixed seat, and the two sides of the top of the fixed seat are respectively equipped with a platen, and there is a gap between the two platens, and a tangent assembly is arranged in the middle of the inner side of the fixed seat, and the two platforms The outer walls of the plates away from each other are provided with a driving mechanism, and the outside of the driving mechanism is provided with a mounting assembly, the inner side of the mounting assembly is slidably provided with a moving plate, and the lower part of the moving plate is provided with a clamping assembly.

Preferably, the thread cutting assembly includes a bar-shaped slot opened in the middle of the inner side of the fixing seat, a saw blade is arranged inside the bar-shaped slot, and a rotating mechanism is arranged in the middle of the outer side of the saw blade.

Preferably, the rotating mechanism includes a second motor arranged in the middle of the outer side of the saw blade, the output end of the second motor is fixedly connected to the middle of the outer side of the saw blade, and the outer side of the second motor is installed in it through the mounting seat of the fixed sleeve The bottom of a deck.

Preferably, the drive mechanism includes mounting rods installed equidistantly along the horizontal direction on the bottom of one side of the platen, and the ends of a plurality of mounting rods are jointly connected with a U-shaped frame, and the inside of the U-shaped frame is rotatably connected There is a threaded rod, the mounting assembly is threadedly matched with the threaded rod, one end of the threaded rod runs through the inside of one end of the U-shaped frame and the end is connected with a first motor, and the first motor is fixedly connected to the outer wall of one end of the U-shaped frame, And the output end of the first motor is fixedly connected to the end of the screw rod.

Preferably, the installation assembly includes a sliding seat threaded on the outside of the screw rod, the sliding seat and the U-shaped frame are slidably fitted, and an L-shaped frame is fixedly connected to one side of the sliding seat, and the L-shaped frame A lifting mechanism is arranged inside one end, horizontal frames are extended from both sides of the L-shaped frame, guide rods are fixedly inserted inside the two sets of horizontal frames, and the bottom ends of the two guide rods are jointly connected with a frame.

Preferably, the lifting mechanism includes a cylinder fixedly clamped inside one end of the L-shaped frame, the telescopic end of the cylinder slides through the inside of the frame and the end is fixedly connected to the middle of the top of the moving plate, and the bottom of the inside of the frame is provided with a clamping wire Assemblies, roller sets are installed on both sides of the frame, and the bottoms of the two roller sets are rolled and attached to the top of the table.

Preferably, the wire clamping assembly includes wire-stretching seats installed equidistantly along the horizontal direction on the inner bottom of the frame, and multiple groups of the wire-stretching seats are provided with wire grooves in the middle of the inner sides.

Preferably, the clamping line assembly includes a circular seat equidistantly clamped on the inner side of the moving plate along the horizontal direction, and the bottoms of multiple sets of circular seats are fixedly connected with V-shaped plates. Form plate active contact.

Preferably, the outer wall of one end of the fixed base is fixedly connected with a fixed plate, the top of the fixed plate is fixedly connected with an air outlet chamber, and an air outlet pipe is horizontally clamped in the middle of the inner side of the air outlet chamber, and one end of the air outlet pipe is internally connected A hard pipe is installed, and a ventilation pipe is installed under one end of the hard pipe, and an air pump is connected to the end of the ventilation pipe away from the hard pipe, and the bottom of the air pump is fixedly connected to the top side of the mobile frame.

Compared with the prior art, the present invention has the following beneficial effects:

1. By setting the driving mechanism on one side of the two tabletops, the installation components on the upper side of the outer side and the corresponding frame can be driven to move above the tabletop, so as to pass through the saw blade, resulting in multiple groups of cables clamped inside the frame Can be cut at the same time, high efficiency, and the thread cutting is relatively safe.

2. The air pump can be connected and cooperated with the ventilation pipe, hard pipe and air outlet pipe, and the air flow can be evenly blown out from the air outlet chamber, so as to blow away the dust and waste on the surface of the two tabletops, and the subsequent saving Gone is the hassle of manual cleanup.

Description of drawings

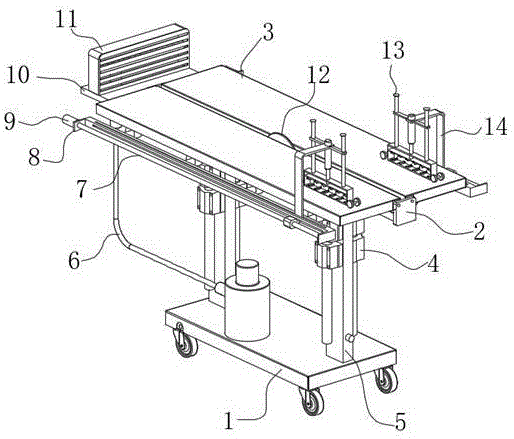

Fig. 1 is a structural representation of the present invention;

Fig. 2 is a structural schematic diagram of another angle of the present invention;

Fig. 3 is a cross-sectional view of the saw blade installation structure of the present invention;

Fig. 4 is a schematic diagram of the connection between the air pump and the air outlet chamber of the present invention;

Fig. 5 is a schematic diagram of the connection between the mounting assembly and the frame of the present invention;

Fig. 6 is an enlarged view of A in Fig. 5 of the present invention.

In the figure: 1. mobile frame; 2. fixed seat; 3. platen; 4. telescopic cylinder; 5. fixed column; 6. ventilation pipe; 7. screw rod; 8. U-shaped frame; 10. Fixed plate; 11. Outlet chamber; 12. Saw blade; 13. Guide rod; 14. L-shaped frame; 15. Inter-slot; 16. Cylinder; 20. Strip groove; 21. Second motor; 22. Hard pipe; 23. Air outlet pipe; 24. Sliding seat; 25. Roller group; 26. Wire seat; 27. Frame; V-shaped plate; 30, moving plate; 31, round seat.

Detailed ways

In order to understand the above-mentioned purpose, features and advantages of the present invention more clearly, the present invention will be further described in detail below in conjunction with the accompanying drawings and specific embodiments.

In the following description, many specific details are set forth in order to fully understand the present invention, but the present invention can also be implemented in other ways different from those described here, therefore, the present invention is not limited to the specific embodiments disclosed below limit.

A cable cutting device for power supply construction as shown in Figures 1 to 6, includes a mobile frame 1, and fixed columns 5 are vertically connected to both ends of the top of the mobile frame 1, and the outer walls on both sides of the two fixed columns 5 are fixed and installed The telescopic cylinder 4 of the telescopic cylinder 4 is jointly connected with a fixed seat 2, and the two sides of the top of the fixed seat 2 are respectively equipped with a platen 3, and a gap 15 is left in the middle of the two platens 3, and a tangent assembly is arranged in the middle of the inner side of the fixed seat 2, and the two platens 3 The outer walls of the sides far away from each other are provided with drive mechanisms, and the outside of the drive mechanisms are provided with installation components, the inner side of the installation components is slidably provided with a moving plate 30, and the lower part of the movable plate 30 is provided with a clamping assembly.

The set telescopic cylinder 4 can drive two sets of platens 3 to be used up and down, so as to adjust the use height of the platen 3 according to the needs of the user, and the fixed seat 2 can be used to install two sets of platen 3 on its fixed position. The top of column 5 is used.

The thread cutting assembly includes a bar-shaped slot 20 set in the middle of the inner side of the fixing seat 2 , a saw blade 12 is arranged inside the bar-shaped slot 20 , and a rotating mechanism is arranged in the middle of the outer side of the saw blade 12 .

The strip groove 20 provided in the middle of the inner side of the fixing seat 2 can facilitate the saw blade 12 to penetrate one end for thread cutting.

The rotating mechanism includes a second motor 21 arranged in the middle of the outer side of the saw blade 12, the output end of the second motor 21 is fixedly connected to the middle of the outer side of the saw blade 12, and the outer side of the second motor 21 is installed on one of the platens through the mounting seat 19 of the fixed set 3 bottom.

The second motor 21 can be stably installed on the bottom of the corresponding platen 3 through the provided mounting base 19 , so that the second motor 21 can drive the saw blade 12 to perform cutting operations after being connected to a power source.

The drive mechanism includes rack mounting rods that are equidistantly installed on the bottom of one side of the platen 3 along the horizontal direction. The ends of multiple rack mounting rods are jointly connected with a U-shaped frame 8, and the inner side of the U-shaped frame 8 is connected with a screw rod 7 for rotation. The thread fits between the assembly and the screw rod 7, one end of the screw rod 7 runs through the inside of one end of the U-shaped frame 8 and the end is connected with a first motor 9, the first motor 9 is fixedly connected to the outer wall of one end of the U-shaped frame 8, and the first motor 9 The output end is fixedly connected with the end of the screw rod 7 .

After the first motor 9 is connected to the power supply, it can drive the screw mandrel 7 to rotate, so that the driven mounting assembly can be moved outside the screw mandrel 7 for use, and the U-shaped frame 8 on one side is supported under the platen 3 by multiple groups of rack mounting rods. use.

The mounting assembly includes a sliding seat 24 threaded on the outside of the screw mandrel 7, slidingly fitted between the sliding seat 24 and the U-shaped frame 8, one side of the sliding seat 24 is fixedly connected with an L-shaped frame 14, and one end of the L-shaped frame 14 is internally provided with a Lifting mechanism, both sides of the L-shaped frame 14 are extended with horizontal frames 17, the inner sides of two groups of horizontal frames 17 are fixedly inserted with guide rods 13, and the bottom ends of the two guide rods 13 are jointly connected with a frame 27.

The sliding seat 24 cooperates with the screw thread of the screw mandrel 7 to move the outer side of the screw mandrel 7 laterally, so that the cable is drawn close to the saw blade 12 for cutting. The L-shaped frame 14 can support the lifting mechanism at one end, and the horizontal frame 17 And guide rod 13 can connect frame 27 above one end.

The lifting mechanism includes a cylinder 16 that is fixedly clamped inside one end of the L-shaped frame 14. The telescopic end of the cylinder 16 slides through the inside of the frame 27 and the end is fixedly connected to the middle of the top of the moving plate 30. The bottom of the inside of the frame 27 is provided with a clamp assembly. Roller groups 25 are installed on both sides of 27, and the bottoms of the two roller groups 25 are rolled and attached to the top of the platen 3 .

The cylinder 16 can drive the moving plate 30 to move up and down, so as to clamp the wires. The roller groups 25 at both ends of the frame 27 can drive the frame 27 to move more easily and smoothly along with the driving mechanism.

The clamping assembly includes a wire-stretching seat 26 installed equidistantly in the horizontal direction on the inner bottom of the frame 27, and multiple groups of wire-stretching seats 26 are provided with wire slots 28 in the middle of the inner side;

The clamping assembly includes a round seat 31 that is mounted equidistantly in the horizontal direction below the inner side of the moving plate 30. The bottoms of multiple sets of round seats 31 are fixedly connected with V-shaped plates 29, and multiple sets of line sets 26 are movable with the corresponding V-shaped plates 29. touch;

The V-shaped plate 29 and the round seat 31 can be matched with the cable holder 26 to position and clamp the cables clamped in the wire groove 28 inside the cable holder 26, and the cables are tightened at both ends, so that when cutting It saves effort.

The outer wall of one end of the fixed seat 2 is fixedly connected with a fixed plate 10, and the top of the fixed plate 10 is fixedly connected with an air outlet bin 11, and the inner side of the air outlet bin 11 is horizontally mounted with an air outlet pipe 23, and one end of the air outlet pipe 23 is internally connected and installed with a hard pipe 22. A ventilation pipe 6 is installed under one end of the hard pipe 22, and an air pump 18 is connected to the end of the ventilation pipe 6 away from the hard pipe 22. The bottom of the air pump 18 is fixedly connected to the top side of the mobile frame 1.

The air outlet chamber 11 can be stably installed on one side of the fixed seat 2 through the fixed plate 10 provided, so that the air outlet chamber 11 can be stably used at one end of the fixed seat 2, and then the air pump 18 is connected to an external power supply, and the air flow passes through in sequence The ventilation pipe 6, the hard pipe 22, and the air outlet pipe 23 evenly spray out from the air outlet chamber 11, so as to clean the dust on the surface of the platen 3.

Working principle: When in use, the user can place the two ends of the cables that need to be cut in the same batch on the cable holders 26 inside the two sets of frames 27, snap them into the wire slots 28 of the cable holders 26, and then The corresponding drive cylinder 16 drives the moving plate 30 to press down, and the multiple sets of V-shaped plates 29 on the inner side and lower side of the moving plate 30 will be clamped on the outer edge of the cable holder 26, and the lower surface in the middle of the round seat 31 is closely attached to the outer skin of the cable, so as to This will position multiple groups of cables at the same time, and thus the same batch of multiple cables can be cut and used. After the first motor 9 is connected to the power supply, it drives the screw mandrel 7 to rotate, and the slide seat 24 threaded with the screw mandrel 7 It will move from one end to the other in the transverse direction, push the clamped cable to the saw blade 12, pass through the saw blade 12, and the saw blade 12 can pass through the passing cable with the high-speed rotation of the second motor 21. Cutting, in order to achieve the purpose of cutting, through this method can efficiently use multiple cables, greatly improve work efficiency, and high safety performance, after the cutting is completed, the air pump 18 passes through the ventilation pipe 6, the hard pipe 22, the outlet The air duct 23, and then blows the airflow evenly through the air outlet chamber 11 to the surface of the platen 3 on both sides, so as to blow away the dust and fine waste left by cutting, which can save the manual cleaning in the later stage work, reducing the burden on users.

In the description of this specification, if the description of the terms "one embodiment", "some embodiments", "specific embodiment" etc. means that the specific features, structures, materials or characteristics described in conjunction with the embodiment or example are included in the In at least one embodiment or example of the invention. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the specific features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

Claims (9)

1. The utility model provides a cable cutting device for power supply construction, is including removing frame (1), its characterized in that: the movable rack is characterized in that fixed columns (5) are vertically connected to two ends of the top of the movable rack (1), outer walls of two sides of each fixed column (5) are connected with a fixed seat (2) through a fixedly mounted telescopic cylinder (4) together, platens (3) are mounted on two sides of the top of each fixed seat (2) respectively, a spacing groove (15) is reserved between the two platens (3), a wire cutting assembly is arranged in the middle of the inner side of each fixed seat (2), a driving mechanism is arranged on the outer wall of one side, far away from each other, of each platen (3), an installation assembly is arranged on the outer side of each driving mechanism, a movable plate (30) is arranged on the inner side of each installation assembly in a sliding mode, and a wire clamping assembly is arranged below the movable plate (30).

2. The power supply construction cable cutting device according to claim 1, wherein: the cutting line component comprises a strip-shaped groove (20) formed in the middle of the inner side of the fixing seat (2), a saw blade (12) is arranged on the inner side of the strip-shaped groove (20), and a rotating mechanism is arranged in the middle of the outer side of the saw blade (12).

3. The power supply construction cable cutting device according to claim 2, wherein: the rotating mechanism comprises a second motor (21) arranged in the middle of the outer side of the saw blade (12), the output end of the second motor (21) is fixedly connected with the middle of the outer side of the saw blade (12), and the outer side of the second motor (21) is installed at the bottom of one of the table plates (3) through a mounting seat (19) which is fixedly sleeved.

4. The power supply construction cable cutting device according to claim 1, wherein: the driving mechanism comprises erection rods which are uniformly installed at the bottom of one side of the bedplate (3) at equal intervals in the horizontal direction, the end parts of the erection rods are jointly connected with a U-shaped frame (8), the inner side of the U-shaped frame (8) is rotatably connected with a lead screw (7), the installation assembly is in threaded fit with the lead screw (7), one end of the lead screw (7) penetrates through the inner part of one end of the U-shaped frame (8), the end part of the lead screw is connected with a first motor (9), the first motor (9) is fixedly connected to the outer wall of one end of the U-shaped frame (8), and the output end of the first motor (9) is fixedly connected with the end part of the lead screw (7).

5. The power supply construction cable cutting device according to claim 1, wherein: the installation component comprises a sliding seat (24) sleeved outside the screw rod (7) in a threaded manner, the sliding seat (24) is in sliding fit with the U-shaped frame (8), one side of the sliding seat (24) is fixedly connected with an L-shaped frame (14), a lifting mechanism is arranged inside one end of the L-shaped frame (14), cross frames (17) extend from two sides of the L-shaped frame (14), guide rods (13) are fixed on the inner sides of the cross frames (17) in an inserted manner, and the bottom ends of the guide rods (13) are connected with a frame (27) together.

6. The power supply construction cable cutting device according to claim 5, wherein: the lifting mechanism comprises an air cylinder (16) fixedly clamped in one end of the L-shaped frame (14), the telescopic end of the air cylinder (16) penetrates through the inner side of the frame (27) in a sliding mode, the end portion of the telescopic end of the air cylinder is fixedly connected with the middle of the top of the movable plate (30), a wire clamping assembly is arranged at the bottom of the inner side of the frame (27), roller groups (25) are installed on two sides of the frame (27), and the bottoms of the roller groups (25) are in rolling fit with the top of the bedplate (3).

7. The power supply construction cable cutting device according to claim 6, wherein: the wire clamping assembly comprises a plurality of groups of wire erecting seats (26) which are arranged at the bottom of the inner side of a frame (27) at equal intervals in the horizontal direction, and wire grooves (28) are formed in the middle of the inner side of each wire erecting seat (26).

8. The power supply construction cable cutting device according to claim 7, wherein: the wire clamping assembly comprises circular seats (31) clamped below the inner side of the moving plate (30) at equal intervals in the horizontal direction, the bottoms of the multiple groups of circular seats (31) are fixedly connected with V-shaped plates (29), and the multiple groups of wire stringing seats (26) are in movable contact with the corresponding V-shaped plates (29).

9. The power supply construction cable cutting device according to claim 1, wherein: fixing base (2) one end outer wall fixedly connected with fixed plate (10), fixed plate (10) top fixedly connected with goes out wind storehouse (11), transversely clamp in the middle of going out wind storehouse (11) inboard and have a tuber pipe (23), hard tube (22) are installed to the inside intercommunication of play tuber pipe (23) one end, ventilation pipe (6) are installed to hard tube (22) one end below intercommunication, ventilation pipe (6) are kept away from the one end intercommunication of hard tube (22) and are installed air pump (18), air pump (18) bottom fixed connection is in removing frame (1) top one side.
