Abstract
The utility model discloses a building board surface paint spraying apparatus, including bottom plate, first device shell and first fixed block, seventh device shell is installed to the one end of bottom plate, and one side of seventh device shell one end installs the second motor, second motor output end is installed through the bearing and is run through to the inside first transmission shaft of bottom plate, and first transmission shaft one side seventh device shell one end evenly installs through the bearing and runs through to the inside second transmission shaft of bottom plate, the bottom plate top is close to the one end of seventh device shell and transversely installs first device shell, and the inside bottom of first device shell evenly installs second electric telescopic handle. This building board surface paint spraying apparatus promotes the third fixed block through the inside recess of bottom plate, drives the baffle through the third fixed block simultaneously and removes the width to the device and adjust, improves the practicality of device.
Description
Technical Field
The utility model relates to a building field specifically is a building board surface paint spraying apparatus.
Background
The building is all available materials such as earth, stone, wood, steel, glass and the like, the building plates of the built structure are common building materials in building construction, the surfaces of the building plates need to be painted before the building plates are used, so as to ensure the attractiveness and the service life of the building plates, and the traditional painting device for the surfaces of the building plates can basically meet the use requirements of people, but still has certain problems, and the specific problems are as follows:
1. most building board surface paint spraying devices in the current market have certain defects on the size of the building board surface paint spraying treatment, so that the device can only spray paint on the fixed surfaces of some boards, and has certain disadvantages and poor practicability;
2. most building board surface paint spraying apparatus in the existing market often need carry out the surface paint spraying processing at the in-process of production, but the paint that current paint spraying apparatus spouts on panel surface distributes unevenly, and when paint condenses on panel surface the back, paint thickness is uneven, influences the paint quality of spraying paint.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a building board surface paint spraying apparatus to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a paint spraying device for the surface of a building board comprises a bottom plate, a first device shell and a first fixing block, wherein a seventh device shell is installed at one end of the bottom plate, a second motor is installed at one side of one end of the seventh device shell, a first transmission shaft penetrating into the bottom plate is installed at the output end of the second motor through a bearing, a second transmission shaft penetrating into the bottom plate is evenly installed at one end of the seventh device shell on one side of the first transmission shaft through a bearing, a first device shell is transversely installed at one end, close to the seventh device shell, of the top end of the bottom plate, a second electric telescopic rod is evenly installed at the bottom end of the first device shell, a first fixing block penetrating through the first device shell is installed at the top end of the second electric telescopic rod, a second device shell is transversely installed at the top end, far away from the seventh device shell, of the first fixing block, and a fourth device shell is installed at one, and one side on fourth device shell top articulates there is the door body, the intermediate position department of fourth device shell one side installs the diaphragm pump, and the diaphragm pump input installs and runs through to the inside second pipeline of fourth device shell, adjustable universal bamboo joint pipe is evenly installed to one side of second device shell bottom, and the internally mounted of adjustable universal bamboo joint pipe top second device shell has the third device shell, the intermediate position department on the inside top of second device shell evenly installs the lift-shrink pole, and all installs the spring in the outside of lift-shrink pole, the bottom of lift-shrink pole transversely installs the fifth device shell that runs through second device shell bottom, and the bottom of fifth device shell articulates there is the rolling barrel.
Preferably, first gears are installed on the outer sides of the second transmission shafts inside the seventh device shell, second gears meshed with the first gears are installed on the outer sides of the first transmission shafts inside the seventh device shell, rollers penetrating through the top end of the bottom plate are installed on the outer sides of the second transmission shafts inside the bottom plate, and rubber sheets are adhered to the outer sides of the rollers.
Preferably, the bottom plate bottom is kept away from the one end of seventh device shell and is seted up the recess, and the inside one end that is close to the seventh device shell of recess evenly installs third electric telescopic handle, third electric telescopic handle keeps away from seventh device shell one side and installs the fourth fixed block that runs through the recess, and the fourth fixed block keeps away from the one end of seventh device shell and installs the third fixed block, the vertical baffle of installing of one end that the seventh device shell was kept away from on third fixed block top.
Preferably, the top end of the fourth device shell is provided with a first motor, and the output end of the first motor is provided with a stirring blade penetrating into the fourth device shell through a bearing.
Preferably, the second device shell is kept away from diaphragm pump one side and is evenly installed and run through to the inside first fan of third device shell, the even horizontal shower nozzle of installing in bottom that adjustable universal joint pipe is close to diaphragm pump one side second device shell, the first pipeline that runs through the second device shell and be connected with the shower nozzle is installed to the diaphragm pump output.
Preferably, first electric telescopic handle is evenly installed on the inside top of fifth device shell both sides second device shell, and first electric telescopic handle's bottom is connected with fifth device shell both sides, third device shell one side second device shell top is kept away from to first electric telescopic handle and sixth device shell that runs through second device shell bottom is installed on the shell top, and the intermediate position department of the inside lateral wall of sixth device shell transversely installs the second fixed block, the internally mounted of second fixed block has the heating pipe, the second fan that runs through to sixth device shell bottom is installed to the inside bottom of sixth device shell.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the bottom plate, the baffle and the third fixed block are arranged, the third fixed block is pushed through the groove in the bottom plate, and meanwhile, the baffle is driven by the third fixed block to move so as to adjust the width of the device, so that the practicability of the device is improved;
2. simultaneously the device is through installing the cylinder, first device shell and second device shell, through the diaphragm pump with the inside paint of fourth device shell take out carry the shower nozzle on to the panel of device inside spray paint, after beginning to rotate first device shell through second motor drive simultaneously and promote certain position with first device shell, drive second device shell through second electric telescopic handle and descend to certain position after by rolling the barrel and flattening the panel performance and having prevented condensing on the panel surface when paint.
Drawings

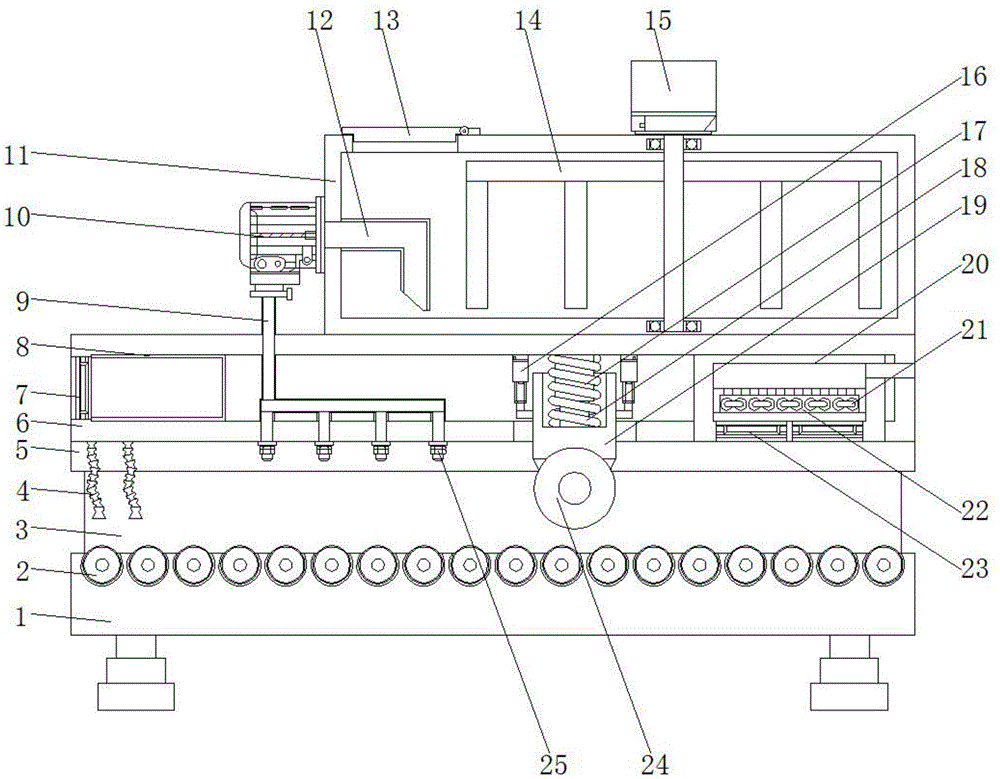

FIG. 1 is a front view of the cross-sectional structure of the present invention;
FIG. 2 is a schematic right sectional view of the present invention;
fig. 3 is a schematic top sectional view of the present invention.
In the figure: 1. a base plate; 2. a drum; 3. a first device housing; 4. the universal bamboo joint pipe can be adjusted; 5. a first fixed block; 6. a second device housing; 7. a first fan; 8. a third device housing; 9. a first conduit; 10. a diaphragm pump; 11. a fourth device housing; 12. a second conduit; 13. a door body; 14. stirring blades; 15. a first motor; 16. a first electric telescopic rod; 17. lifting and shrinking the rod; 18. a spring; 19. a fifth device housing; 20. a sixth device housing; 21. heating a tube; 22. a second fixed block; 23. a second fan; 24. rolling the drum; 25. a spray head; 26. a first gear; 27. a seventh device housing; 28. a second motor; 29. a second gear; 30. a second electric telescopic rod; 31. a first drive shaft; 32. a second drive shaft; 33. a baffle plate; 34. a third fixed block; 35. a rubber sheet; 36. a fourth fixed block; 37. a third electric telescopic rod; 38. and (4) a groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides an embodiment: a paint spraying device for the surface of a building board comprises a bottom plate 1, a first device shell 3 and a first fixing block 5, wherein a seventh device shell 27 is installed at one end of the bottom plate 1;
the first gear 26 is arranged on the outer side of the second transmission shaft 32 in the seventh device shell 27, the second gear 29 meshed with the first gear 26 is arranged on the outer side of the first transmission shaft 31 in the seventh device shell 27, the rollers 2 penetrating through the top end of the bottom plate 1 are arranged on the outer sides of the second transmission shaft 32 and the inner second gear 29 of the bottom plate 1, and the rubber sheets 35 are adhered on the outer sides of the rollers 2, so that the device can better transmit plates in the paint spraying process, and the plates are not required to be pushed in a manual pushing mode;
a groove 38 is formed in one end, far away from the seventh device shell 27, of the bottom end of the bottom plate 1, a third electric telescopic rod 37 is uniformly installed at one end, close to the seventh device shell 27, of the inside of the groove 38, the type of the third electric telescopic rod 37 can be LAF10-021D, a fourth fixing block 36 penetrating through the groove 38 is installed on one side, far away from the seventh device shell 27, of the third electric telescopic rod 37, a third fixing block 34 is installed at one end, far away from the seventh device shell 27, of the fourth fixing block 36, a baffle 33 is vertically installed at one end, far away from the seventh device shell 27, of the top end of the third fixing block 34, and when the device is used, the width of the device can be adjusted, so that the device can be;
and one side of one end of the seventh device housing 27 is installed with a second motor 28, the model of the second motor 28 can be MSME-011G1, the output end of the second motor 28 is installed with a first transmission shaft 31 penetrating to the inside of the bottom plate 1 through a bearing, and one end of the seventh device housing 27 at one side of the first transmission shaft 31 is uniformly provided with a second transmission shaft 32 penetrating into the bottom plate 1 through a bearing, one end of the top end of the bottom plate 1 close to the seventh device housing 27 is transversely provided with the first device housing 3, the bottom end of the interior of the first device housing 3 is uniformly provided with a second electric telescopic rod 30, the second electric telescopic rod 30 can be LAF10-021D, a first fixed block 5 penetrating through the first device shell 3 is arranged at the top end of the second electric telescopic rod 30, and the top end of the first fixed block 5 far away from one end of the seventh device shell 27 is transversely provided with a second device shell 6;
the first fan 7 penetrating into the third device shell 8 is uniformly installed on one side, far away from the diaphragm pump 10, of the second device shell 6, the type of the first fan 7 can be 4650N, the bottom end of the second device shell 6, close to one side of the diaphragm pump 10, of the adjustable universal bamboo joint pipe 4 is uniformly and transversely provided with a spray head 25, the output end of the diaphragm pump 10 is provided with a first pipeline 9 penetrating through the second device shell 6 and connected with the spray head 25, and the surface of a plate inside the device can be better sprayed in the using process;
a fourth device housing 11 is installed on one side of the top end of the second device housing 6;
the first motor 15 is installed at the top end of the fourth device shell 11, the type of the first motor 15 can be BLDC-38S, the stirring blade 14 penetrating into the fourth device shell 11 is installed at the output end of the first motor 15 through a bearing, paint in the fourth device shell 11 can be stirred in the using process, and the paint in the fourth device shell 11 is prevented from being solidified;
a door body 13 is hinged to one side of the top end of a fourth device shell 11, a diaphragm pump 10 is installed in the middle of one side of the fourth device shell 11, the model of the diaphragm pump 10 can be QBY-40, a second pipeline 12 penetrating into the fourth device shell 11 is installed at the input end of the diaphragm pump 10, an adjustable universal bamboo joint pipe 4 is evenly installed on one side of the bottom end of the second device shell 6, a third device shell 8 is installed inside the second device shell 6 at the top end of the adjustable universal bamboo joint pipe 4, a lifting and contracting rod 17 is evenly installed in the middle of the top end of the second device shell 6, springs 18 are installed on the outer sides of the lifting and contracting rod 17, and a fifth device shell 19 penetrating through the bottom end of the second device shell 6 is transversely installed at the bottom end of the lifting and contracting rod 17;
the first electric telescopic rod 16 is uniformly arranged at the top end in the second device shell 6 at two sides of the fifth device shell 19, the model of the first electric telescopic rod 16 can be LASF10-024D, the bottom end of the first electric telescopic rod 16 is connected with two sides of the fifth device shell 19, the top end of the second device shell 6 at one side of the first electric telescopic rod 16 far away from the third device shell 8 is provided with a sixth device shell 20 penetrating through the bottom end of the second device shell 6, a second fixed block 22 is transversely arranged at the middle position of the inner side wall of the sixth device shell 20, a heating pipe 21 is arranged in the second fixed block 22, the model of the heating pipe 21 can be JSD-006, the bottom end in the sixth device shell 20 is provided with a second fan 23 penetrating to the bottom end of the sixth device shell 20, the model of the second fan 23 can be JY15050HBL2, the surface of a plate can be compacted during the use, preventing paint spots from being formed on the surface of the plate inside the device;
and the bottom end of the fifth device housing 19 is hinged with a crushing drum 24.
The working principle is as follows: when the building board surface paint spraying device is used, the second motor 28 starts to rotate to drive the first transmission shaft 31 to rotate, when the first transmission shaft 31 rotates, the second gear 29 is driven to rotate, the first gear 26 meshed with the first gear is driven to rotate and simultaneously the second transmission shaft 32 is driven to rotate, when the first transmission shaft 31 and the second transmission shaft 32 rotate, the roller 2 is driven to rotate, the rubber sheet 35 on the outer side of the roller 2 is driven to rotate, the board on the surface of the rubber sheet 35 is driven to move, when the board moves on the rubber sheet 35, the external air pipe is connected to the adjustable universal bamboo joint pipe 4 to remove dust on the surface of the board on the device, meanwhile, the first fan 7 sucks dust generated on the adjustable universal bamboo joint pipe 4 into the third device shell 8, when the board moves to the spray head 25, pour into paint into the inside rethread first motor 15 drive stirring leaf 14 of fourth device shell 11 through opening a body 13 and stir fourth device shell 11 inside paint, diaphragm pump 10 carries the inside of first pipeline 9 through second pipeline 12 with the inside paint of fourth device shell 11 simultaneously and sprays paint to the panel surface through shower nozzle 25, after panel has spouted paint and has moved to rolling barrel 24 bottom, drive first fixed block 5 downstream through second electric telescopic handle 30 and make shower nozzle 25 spray to the panel surface, after panel moves to second fan 23 bottom behind through the inside heating pipe 21 of second fixed block 22 produce the heat, air-dry the processing to the panel surface through second fan 23, make panel air-dry fast, it is above the utility model discloses a whole theory of operation.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a building board surface paint spraying apparatus, includes bottom plate (1), first device shell (3) and first fixed block (5), its characterized in that: a seventh device shell (27) is installed at one end of the bottom plate (1), a second motor (28) is installed at one side of one end of the seventh device shell (27), a first transmission shaft (31) penetrating into the bottom plate (1) is installed at the output end of the second motor (28) through a bearing, a second transmission shaft (32) penetrating into the bottom plate (1) is evenly installed at one end of the seventh device shell (27) on one side of the first transmission shaft (31) through a bearing, a first device shell (3) is transversely installed at one end, close to the seventh device shell (27), of the top end of the bottom plate (1), a second electric telescopic rod (30) is evenly installed at the bottom end of the first device shell (3), a first fixing block (5) penetrating through the first device shell (3) is installed at the top end of the second electric telescopic rod (30), and a second device shell (6) is transversely installed at the top end, far away from one end of the seventh device shell (27), of the first fixing block (, a fourth device shell (11) is installed on one side of the top end of the second device shell (6), a door body (13) is hinged to one side of the top end of the fourth device shell (11), a diaphragm pump (10) is installed at the middle position of one side of the fourth device shell (11), a second pipeline (12) penetrating into the fourth device shell (11) is installed at the input end of the diaphragm pump (10), an adjustable universal bamboo joint pipe (4) is evenly installed on one side of the bottom end of the second device shell (6), a third device shell (8) is installed inside the second device shell (6) at the top end of the adjustable universal bamboo joint pipe (4), a lifting and shrinking rod (17) is evenly installed at the middle position of the top end of the inside of the second device shell (6), springs (18) are installed on the outer side of the lifting and shrinking rod (17), a fifth device shell (19) penetrating through the bottom end of the second device shell (6) is transversely installed at the bottom end of the lifting and shrinking rod (17), and the bottom end of the shell (19) of the fifth device is hinged with a rolling barrel (24).
2. A building board surface painting apparatus according to claim 1, wherein: first gear (26) are all installed in the outside of the inside second transmission shaft (32) of seventh device shell (27), second gear (29) with first gear (26) engaged with are installed in the inside first transmission shaft (31) outside of seventh device shell (27), cylinder (2) that run through bottom plate (1) top are all installed in inside second gear (29) of bottom plate (1) and second transmission shaft (32) outside, and all paste rubber sheet (35) in the outside of cylinder (2).
3. A building board surface painting apparatus according to claim 1, wherein: one end of the bottom plate (1) far away from the seventh device shell (27) is provided with a groove (38), one end of the groove (38) close to the seventh device shell (27) is uniformly provided with a third electric telescopic rod (37), one side of the seventh device shell (27) far away from the third electric telescopic rod (37) is provided with a fourth fixing block (36) penetrating through the groove (38), one end of the seventh device shell (27) far away from the fourth fixing block (36) is provided with a third fixing block (34), and one end of the seventh device shell (27) far away from the top end of the third fixing block (34) is vertically provided with a baffle (33).
4. A building board surface painting apparatus according to claim 1, wherein: first motor (15) are installed on the top of fourth device shell (11), and first motor (15) output is installed through the bearing and is run through to inside stirring leaf (14) of fourth device shell (11).
5. A building board surface painting apparatus according to claim 1, wherein: second device shell (6) are kept away from diaphragm pump (10) one side and are evenly installed and run through to inside first fan (7) of third device shell (8), shower nozzle (25) are evenly transversely installed to the bottom that adjustable universal bamboo joint pipe (4) are close to diaphragm pump (10) one side second device shell (6), first pipeline (9) that run through second device shell (6) and be connected with shower nozzle (25) are installed to diaphragm pump (10) output.
6. A building board surface painting apparatus according to claim 1, wherein: first electric telescopic handle (16) are evenly installed on the inside top of fifth device shell (19) both sides second device shell (6), and the bottom of first electric telescopic handle (16) is connected with fifth device shell (19) both sides, third device shell (8) one side second device shell (6) top is kept away from in first electric telescopic handle (16) and sixth device shell (20) that run through second device shell (6) bottom are installed on the top, and the intermediate position department of the inside lateral wall of sixth device shell (20) transversely installs second fixed block (22), the internally mounted of second fixed block (22) has heating pipe (21), second fan (23) that run through to sixth device shell (20) bottom are installed to the inside bottom of sixth device shell (20).
