本实用新型涉及室内装饰技术领域，且公开了一种室内装饰吊挂器，包括底板，所述底板的左右两侧均固定安装有吊挂钩，所述底板的顶部固定安有连接座。该室内装饰吊挂器，通过设置连接杆，在将吊挂器安装完成之后，在需要转动吊挂器底部的吊挂钩位置的时候，只需要手动转动连接杆，在连接杆转动的时候，由于力的作用将会带动限位块在卡块的下方转动，在固定吊挂器高度的时候，旋转套轴筒向下移动，卡于两侧插杆的外侧，从而减小两侧插杆之间的距离，将支撑块卡接于卡槽的内部来对吊挂钩的高度进行固定，在调节吊挂钩高度的方便快捷，不需要站在高空进行螺杆旋转，降低了改变吊挂器高度的危险性，使得吊挂器使用起来更加方便。
The utility model relates to the technical field of interior decoration, and discloses an interior decoration hanger, which comprises a bottom plate, hanging hooks are fixedly installed on the left and right sides of the bottom plate, and a connection seat is fixedly mounted on the top of the bottom plate. The interior decoration hanger, by setting the connecting rod, only needs to manually rotate the connecting rod when the hanging hook position at the bottom of the hanger needs to be rotated after the hanger is installed. The action of the force will drive the limit block to rotate under the clamping block. When the height of the hanger is fixed, the rotating sleeve shaft cylinder moves down and is stuck on the outside of the two sides of the rods, thereby reducing the distance between the two sides of the rods. The height of the hanging hook is fixed by clipping the support block to the inside of the card slot. It is convenient and quick to adjust the height of the hanging hook. It is not necessary to stand at a high altitude to rotate the screw, which reduces the risk of changing the height of the hanger. It makes the hanger more convenient to use.
Description
Technical Field
The utility model relates to an interior decoration technical field specifically is an interior decoration hanger.
Background
The indoor decoration is a comprehensive art which meets the needs of people on social activities and living, reasonably organizes and shapes the indoor environment with aesthetic feeling, comfort and convenience, is a door of environmental art, is also called indoor design, integrates modern scientific technology and cultural art, and has close connection with architectural design, geography, decorative art, human engineering, psychology, aesthetics, scientific and technological materials and the like.
The in-process hanger that interior decoration was decorated is common decorative article, but traditional hanger simple structure, the angle is inconvenient fixed after the angular rotation, adopts the mode of screw thread to carry out altitude mixture control, and it is comparatively troublesome to go to change the height after the installation is accomplished again, and daily use is got up convenient inadequately, so provides an interior decoration hanger and solve the above-mentioned problem that provides.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides an interior decoration hanger possesses the angle and can fix and be convenient for change advantages such as height, has solved traditional hanger simple structure, and the angle is inconvenient fixed after the angular rotation, adopts threaded mode to carry out altitude mixture control, goes after the installation completion again to change highly comparatively troublesome, daily use convenient problem inadequately.
(II) technical scheme
Can fix and be convenient for change the purpose of height for realizing above-mentioned angle, the utility model provides a following technical scheme: an indoor decoration hanger comprises a bottom plate, hanging hooks are fixedly mounted on the left side and the right side of the bottom plate, a connecting seat is fixedly mounted at the top of the bottom plate, a connecting rod is fixedly mounted at the top of the connecting seat, a connecting plate is movably mounted at the top of the connecting rod, an inserting rod is fixedly mounted at the top of the connecting plate, a supporting rod is movably mounted at the top of the inserting rod, a sleeve barrel is in threaded connection with the top of the inserting rod, a mounting plate is fixedly mounted at the top of the supporting rod, a connecting shaft is fixedly mounted at the top end of the connecting rod, a limiting block is fixedly mounted at the top of the outer side of the connecting rod, a clamping block is fixedly mounted at the bottom of the connecting plate and positioned at the outer side of the connecting rod, a slot is formed in the top of the inserting rod, a, the left side and the right side of the supporting rod are provided with clamping grooves which are arranged equidistantly.
Preferably, two the equal fixed mounting in top of hanging hook has the fixed ball, the quantity of connecting seat is two, and two connecting seats are the cross form fixed.
Preferably, the diameter of the connecting rod is smaller than that of the connecting plate, and the height of the inserted rod is not larger than that of the supporting rod.
Preferably, the sleeve shaft cylinder is movably arranged on the outer side of the supporting rod, and the limiting blocks are arranged on the outer side of the connecting rod at equal intervals.
Preferably, the fixture block is clamped between two adjacent limiting blocks and is a rubber soft block, and the top end of the connecting shaft is movably connected with the connecting plate.
Preferably, the bottom end of the supporting rod penetrates through the slot and extends to the inside of the slot, the sleeve barrel is trapezoidal, and the supporting block is clamped in the clamping groove.
(III) advantageous effects
Compared with the prior art, the utility model provides an interior decoration hanger possesses following beneficial effect:
the indoor decoration hanger is characterized in that the connecting rod is arranged, after the hanger is installed, when the position of a hanging hook at the bottom of the hanger needs to be rotated, the connecting rod only needs to be manually rotated, when the connecting rod rotates, a limiting block is driven to rotate below a clamping block due to force, after the position is determined, the connecting rod only needs to be stopped to rotate, after the force is lost, the clamping block is clamped between two adjacent limiting blocks, so that the hanging hook is fixed, the hanging hook cannot easily rotate when not subjected to left and right rotating force, the position of the hanging hook is fixed, different articles can be conveniently hung on the hanging hook by rotating the hanger, when the height of the hanger is changed, only the sleeve shaft cylinder needs to be rotated, the sleeve shaft cylinder moves towards the upper part of the supporting rod, the distance between the two sides of the inserting rod can be enlarged when the sleeve shaft cylinder moves upwards, the supporting shoe will lose the restriction of draw-in groove this moment, this moment alright with upwards perhaps the height that the ware was hung is adjusted to the downwardly moving bracing piece, in the fixed ware height of hanging, rotatory sleeve barrel moves down, block in the outside of both sides inserted bar, thereby reduce the distance between the inserted bar of both sides, come the height of hanging the ware with the supporting shoe joint in the inside of draw-in groove to fix, convenient and fast more when adjusting the ware height of hanging, it is rotatory not need stand to carry out the screw rod in the high altitude, the danger of changing the ware height of hanging has been reduced, make the ware of hanging use more convenient.
Drawings

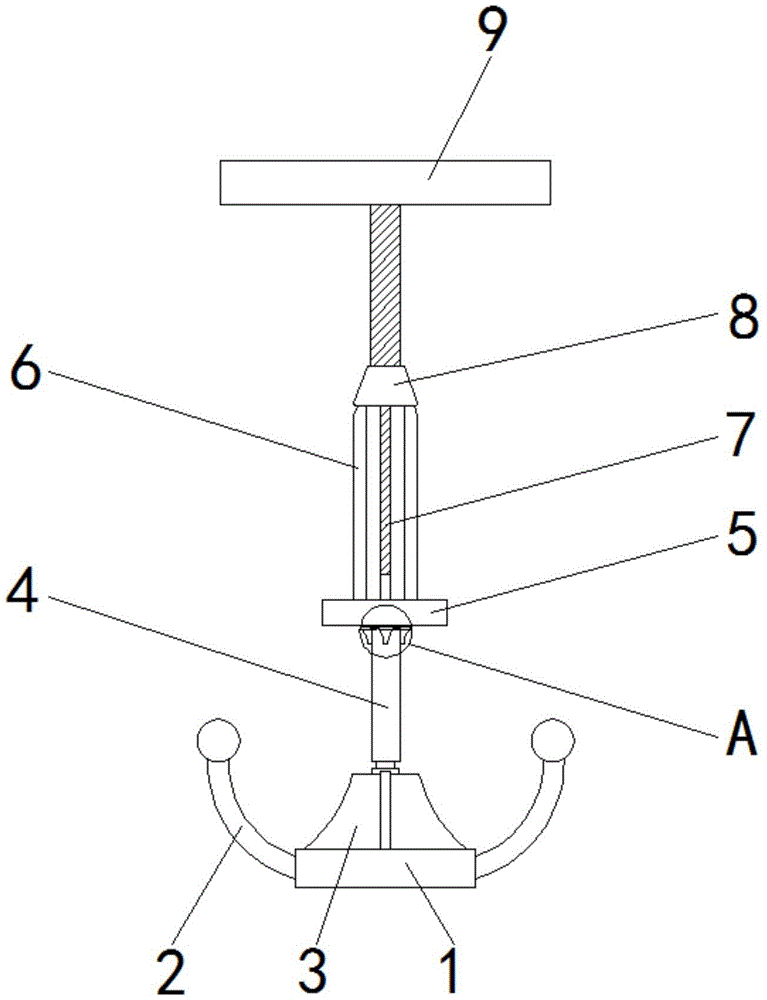

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged view of the structure A of FIG. 1 according to the present invention;
fig. 3 is a front sectional view of the insertion rod of the present invention.
In the figure: the device comprises a base plate 1, a hanging hook 2, a connecting seat 3, a connecting rod 4, a connecting plate 5, an inserting rod 6, a supporting rod 7, a shaft sleeve 8, a mounting plate 9, a connecting shaft 10, a limiting block 11, a clamping block 12, a slot 13, a trepanning 14, a supporting block 15 and a clamping groove 16.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, an interior decoration hanger comprises a bottom plate 1, hanging hooks 2 are fixedly installed on the left side and the right side of the bottom plate 1, connecting seats 3 are fixedly installed on the top of the bottom plate 1, fixing balls are fixedly installed on the tops of the two hanging hooks 2, the number of the connecting seats 3 is two, the two connecting seats 3 are fixed in a cross shape, connecting rods 4 are fixedly installed on the tops of the connecting seats 3, connecting plates 5 are movably installed on the tops of the connecting rods 4, inserting rods 6 are fixedly installed on the tops of the connecting plates 5, supporting rods 7 are movably installed on the tops of the inserting rods 6, the diameters of the connecting rods 4 are smaller than those of the connecting plates 5, the heights of the inserting rods 6 are not larger than those of the supporting rods 7, sleeve shafts 8 are connected on the tops of the inserting rods 6 through threads, mounting plates 9 are fixedly installed on the tops of the supporting rods 7, connecting shafts, the sleeve barrel 8 is movably arranged at the outer side of the supporting rod 7, the limiting blocks 11 are arranged at the outer side of the connecting rod 4 at equal intervals, the bottom of the connecting plate 5 is fixedly provided with a clamping block 12 positioned at the outer side of the connecting rod 4, the clamping block 12 is clamped between two adjacent limiting blocks 11, the clamping block 12 is a rubber soft block, the top end of the connecting shaft 10 is movably connected with the connecting plate 5, the top of the inserting rod 6 is provided with a slot 13, the top of the sleeve barrel 8 is provided with a sleeve hole 14, the left side and the right side of the inner wall of the slot 13 are fixedly provided with supporting blocks 15 arranged at equal intervals, the left side and the right side of the supporting rod 7 are provided with clamping grooves 16 arranged at equal intervals, the bottom end of the supporting rod 7 penetrates through the slot 13 and extends to the inside of the slot 13, the sleeve barrel 8 is trapezoidal, the supporting blocks 15 are clamped, only the connecting rod 4 needs to be rotated manually, when the connecting rod 4 rotates, the limiting blocks 11 are driven to rotate below the clamping blocks 12 under the action of force, after the position is determined, the connecting rod 4 only needs to be stopped rotating, after the force is lost, the clamping blocks 12 are clamped between the two adjacent limiting blocks 11, so that the hanging hook 2 is fixed, the hanging hook 2 cannot rotate easily when not receiving the left-right rotating force, the position of the hanging hook 2 is fixed, the hanger is convenient to rotate to hang different articles on the hanging hook 2, when the height of the hanger is changed, only the sleeve shaft barrel 8 needs to be rotated, the sleeve shaft barrel 8 moves towards the upper part of the supporting rod 7, the distance between two sides of the inserting rod 6 can be enlarged when the sleeve shaft barrel 8 moves upwards, at the moment, the supporting blocks 15 lose the limitation of the clamping grooves 16, at the moment, the supporting rod 7 can be moved upwards or downwards to adjust the height of the hanger, when the fixed ware height of hanging, 8 downstream of rotary sleeve axle barrels block in the outside of both sides inserted bar 6 to reduce the distance between the inserted bar 6 of both sides, come the height of hanging the ware in the inside of draw-in groove 16 with supporting shoe 15 joint, convenient and fast more when adjusting the ware height of hanging, need not stand and carry out the screw rod rotation at the high altitude, reduced the danger that changes the ware height of hanging, make the ware of hanging use more convenient.
When the hanging device is used, after the hanging device is installed, when the position of the hanging hook 2 at the bottom of the hanging device needs to be rotated, the connecting rod 4 only needs to be rotated manually, when the connecting rod 4 rotates, the limiting blocks 11 are driven to rotate below the clamping blocks 12 under the action of force, after the position is determined, the connecting rod 4 only needs to be stopped rotating, after the force is lost, the clamping blocks 12 are clamped between the two adjacent limiting blocks 11, so that the hanging hook 2 is fixed, the hanging hook 2 cannot rotate easily when not being subjected to left-right rotating force, the position of the hanging hook 2 is fixed, different articles can be hung on the hanging hook 2 by the rotating hanging device conveniently, when the height of the hanging device is changed, only the sleeve shaft cylinder 8 needs to be rotated, the sleeve shaft cylinder 8 moves towards the upper part of the supporting rod 7, and the distance between the two sides of the inserting rod 6 can be enlarged when the sleeve shaft cylinder 8 moves upwards, supporting shoe 15 will lose the restriction of draw-in groove 16 this moment, this moment alright with upwards or the height that the ware was hung in the regulation of downwardly moving bracing piece 7, when the ware height was hung in the fixed, 8 downstream of rotatory sleeve axle section of thick bamboo block in the outside of both sides inserted bar 6 to reduce the distance between the inserted bar 6 of both sides, come to fix the height of hanging the ware in the inside of draw-in groove 16 with supporting shoe 15 joint.
In conclusion, the indoor decoration hanger is provided with the connecting rod 4, after the hanger is installed, when the position of the hanging hook 2 at the bottom of the hanger needs to be rotated, the connecting rod 4 only needs to be rotated manually, when the connecting rod 4 rotates, the limiting blocks 11 are driven to rotate below the clamping blocks 12 due to force action, after the position is determined, the connecting rod 4 only needs to be stopped rotating, the clamping blocks 12 are clamped between the two adjacent limiting blocks 11 after the force is lost, so that the hanging hook 2 is fixed, the hanging hook 2 cannot rotate easily when the hanging hook 2 is not subjected to left-right rotating force, the position of the hanging hook 2 is fixed, different articles can be conveniently hung on the hanging hook 2 by rotating the hanger, when the height of the hanger is changed, only the sleeve shaft cylinder 8 needs to be rotated, the sleeve shaft cylinder 8 moves towards the upper part of the supporting rod 7, and the distance between two sides of the inserting rod 6 can be enlarged when the sleeve shaft cylinder 8 moves upwards, supporting shoe 15 will lose the restriction of draw-in groove 16 this moment, this moment alright with upwards or the height that the ware was hung in the regulation of downwards moving bracing piece 7, in the fixed ware height of hanging, 8 downstream of rotary sleeve axle sleeve, block in the outside of both sides inserted bar 6, thereby reduce the distance between the inserted bar 6 of both sides, come the height of hanging the ware in the inside of draw-in groove 16 with supporting shoe 15 joint, convenient and fast more when adjusting the ware height of hanging, do not need to stand and carry out the screw rod rotation in the high altitude, the danger of changing the ware height of hanging has been reduced, it is more convenient to make the ware of hanging use, traditional ware simple structure of hanging has been solved, the angle is inconvenient fixed after the angle rotation, adopt the mode of screw thread to carry out altitude mixture control, it is comparatively troublesome to go to change the height after the installation, daily convenient.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
