CN215304853U

CN215304853U - Indoor decoration hanger capable of being recycled

Info

Publication number: CN215304853U
Application number: CN202120822834.6U
Authority: CN
Inventors: 齐达; 李菲
Original assignee: Xijing University
Current assignee: Xijing University
Priority date: 2021-04-21
Filing date: 2021-04-21
Publication date: 2021-12-28
Anticipated expiration: 2031-04-21

Abstract

The utility model discloses a recyclable interior decoration hanger, which comprises a first fixing rod, two sides of the top of the first fixing rod are fixedly connected with mounting pieces, a first chute is opened in the first fixing rod, and a second A one-way screw is arranged in a chute, the right end of the one-way screw passes through the first fixing rod, the right end of the one-way screw is covered with a first rubber sleeve, and the one-way screw is screwed with a first slider, the first The bottom of the slider is fixedly connected with a telescopic rod, the bottom end of the telescopic rod is fixedly connected with an adjustment component, and the bottom of the adjustment component is connected with two sets of hooks; the position and height of the hooks can be adjusted through the telescopic rod, and the one-way screw is rotated through the first rubber sleeve. , the first slider slides in the first chute along the one-way screw, the first slider drives the adjustment assembly to move through the telescopic rod, the hook moves with the adjustment assembly, and the lateral position of the hook can be adjusted. The component can adjust the distance between the two sets of hooks, which is very convenient to use.

Description

Indoor decoration hanger capable of being recycled

Technical Field

The utility model relates to the technical field of indoor decoration, in particular to a recyclable indoor decoration hanger.

Background

Indoor decoration, also known as indoor design, combines modern scientific technology and cultural art, and has close relation with architectural design, decorative art, ergonomics, psychology and aesthetics. As for the scope and objects of their research, interior decorations are classified into home interior decorations, hotel interior decorations, shop interior decorations, and public facility interior decorations.

Interior decoration depends on the building entity, like spatial modeling, afforestation, decoration, mural, lighting and various architectural facilities's artistic treatment etc. collectively refer to interior decoration, need use the ware of hanging to carry out hanging of article during interior decoration and put, when the installation completion after, can not adjust the position of hanging the ware, it is comparatively inconvenient to use.

Based on the above, the utility model designs a recyclable indoor decoration hanger to solve the above mentioned problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a recyclable indoor decoration hanger, the position height of a hook can be adjusted through a telescopic rod, a one-way screw rod is rotated through a first rubber sleeve, a first sliding block slides in a first sliding groove along the one-way screw rod, the first sliding block drives an adjusting assembly to move through the telescopic rod, the hook moves along with the adjusting assembly, the transverse position of the hook can be adjusted, the distance between two groups of hooks can be adjusted through the adjusting assembly, the hanger is very convenient to use, and the problems in the background art are solved.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a ware is hung in interior decoration that can cyclic utilization, includes first dead lever, the equal fixedly connected with installation piece in first dead lever top both sides, it has first spout to open in the first dead lever, be equipped with one-way lead screw in the first spout, one-way lead screw right-hand member passes first dead lever, one-way lead screw right-hand member cover has first rubber sleeve, the spiro union has first slider on the one-way lead screw, first slider bottom fixedly connected with telescopic link, telescopic link bottom fixedly connected with adjusting part, the adjusting part bottom is connected with two sets of couples.

Preferably, the telescopic link includes the outer pole, outer pole and first slider bottom fixed connection, it has interior pole to peg graft in the outer pole, it has the multiunit draw-in groove to open on the interior pole, it has the bayonet lock to pass on the outer pole, the bayonet lock cooperatees with the draw-in groove.

Preferably, the adjusting part comprises a second fixing rod, the second fixing rod is fixedly connected with the telescopic rod, a second sliding groove is formed in the bottom of the second fixing rod, a bidirectional screw rod is arranged in the second sliding groove, a second sliding block is screwed on two sides of the bidirectional screw rod, a connecting column is fixedly connected to the bottom of the second sliding block, and the connecting column is connected with two groups of hooks respectively.

Preferably, the right end of the bidirectional screw rod penetrates through the second fixing rod, and the right end of the bidirectional screw rod is sleeved with the second rubber sleeve.

Preferably, the cross section of the mounting piece is L-shaped, and the mounting piece is provided with a mounting hole.

Preferably, the length of the first fixing rod is greater than that of the second fixing rod.

Compared with the prior art, the utility model has the beneficial effects that:

1. the adjustable hook is novel in structure, the position height of the hooks can be adjusted through the telescopic rod, the one-way screw rod is rotated through the first rubber sleeve, the first sliding block slides in the first sliding groove along the one-way screw rod, the first sliding block drives the adjusting assembly to move through the telescopic rod, the hooks move along with the adjusting assembly, the transverse position of the hooks can be adjusted, the distance between the two groups of hooks can be adjusted through the adjusting assembly, and the adjustable hook is very convenient to use.

2. In the utility model, when the distance between the two groups of hooks needs to be adjusted, the bidirectional screw rod is rotated through the second rubber sleeve, the two groups of second sliding blocks respectively move along the bidirectional screw rod in opposite directions, and the two groups of second sliding blocks respectively drive the two groups of hooks to move through the two groups of connecting columns, so that the distance between the two groups of hooks can be adjusted.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

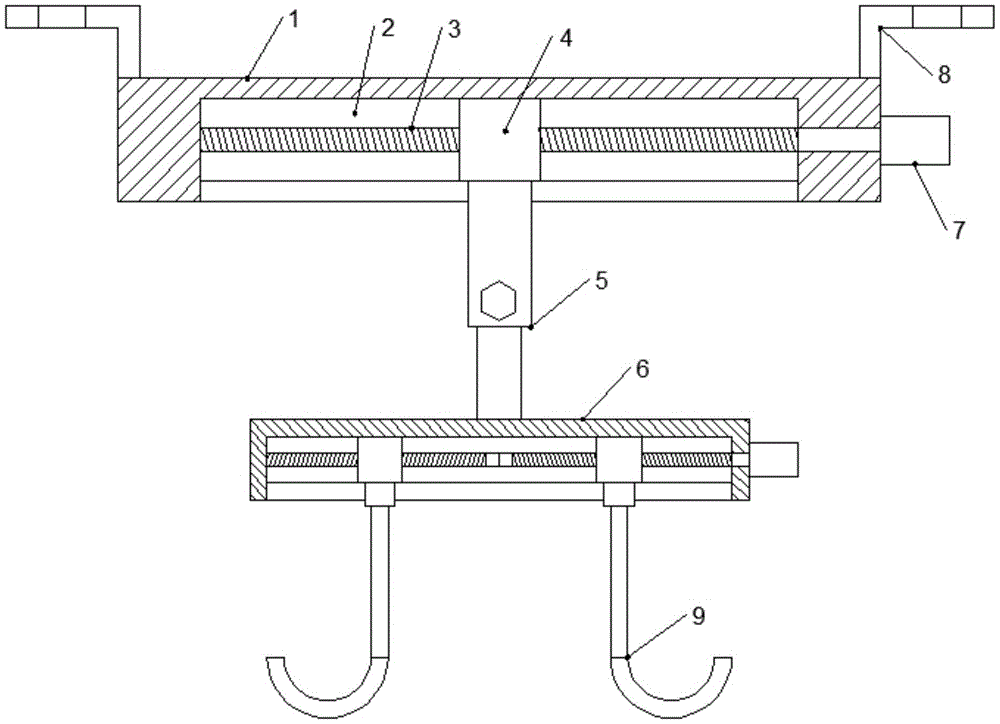

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the telescopic rod of the present invention;

fig. 3 is a schematic structural diagram of the adjusting assembly of the present invention.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a recyclable indoor decoration hanger, which comprises: comprises a first fixed rod 1, mounting pieces 8 are fixedly connected with both sides of the top of the first fixed rod 1, a first chute 2 is arranged in the first fixed rod 1, a one-way screw rod 3 is arranged in the first chute 2, the right end of the unidirectional screw rod 3 passes through the first fixed rod 1, the right end of the unidirectional screw rod 3 is sleeved with a first rubber sleeve 7, a first slide block 4 is screwed on the one-way screw rod 3, the bottom of the first slide block 4 is fixedly connected with a telescopic rod 5, the bottom end of the telescopic rod 5 is fixedly connected with an adjusting component 6, the bottom of the adjusting component 6 is connected with two groups of hooks 9, one-way lead screw 3 is rotated to the first rubber sleeve 7 of accessible, and first slider 4 slides in first spout 2 along one-way lead screw 3, and first slider 4 drives adjusting part 6 through telescopic link 5 and moves, and couple 9 can be adjusted the position of couple 9 along with adjusting part 6 moves together.

The telescopic rod 5 comprises an outer rod 51, the outer rod 51 is fixedly connected with the bottom of the first sliding block 4, an inner rod 52 is inserted in the outer rod 51, a plurality of groups of clamping grooves 53 are formed in the inner rod 52, clamping pins 54 penetrate through the outer rod 51, and the clamping pins 54 are matched with the clamping grooves 53.

Wherein, the adjusting assembly 6 comprises a second fixing rod 61, the second fixing rod 61 is fixedly connected with the telescopic rod 5, a second chute 62 is arranged at the bottom of the second fixing rod 61, a bidirectional screw 63 is arranged in the second chute 62, second sliders 64 are respectively screwed at two sides of the bidirectional screw 63, connecting posts 65 are respectively fixedly connected at the bottoms of the two groups of second sliders 64, the two groups of connecting posts 65 are respectively connected with the two groups of hooks 9, when the distance between the two groups of hooks 9 needs to be adjusted, the two groups of second sliders 64 respectively move along the bidirectional screw 63 by rotating the bidirectional screw 63, the two groups of second sliders 64 respectively drive the two groups of hooks 9 to move by the two groups of connecting posts 65, the distance between the two groups of hooks 9 can be adjusted, the right end of the bidirectional screw 63 passes through the second fixing rod 61, a second rubber sleeve 66 is sleeved at the right end of the bidirectional screw 63, it is convenient to rotate the bidirectional screw 63.

The cross section of the mounting piece 8 is L-shaped, and the mounting piece 8 is provided with a mounting hole, so that the mounting is convenient; the length of the first fixing rod 1 is greater than that of the second fixing rod 61.

The specific working principle is as follows:

when the adjustable hook is used, the first fixing rod 1 is installed on a wall body through the installation hole on the installation sheet 8, the bayonet 54 is pulled out according to the hanging requirement, the length of the telescopic rod 5 is adjusted, so that the position height of the hook 9 is adjusted, after the adjustment is finished, the length of the telescopic rod 5 is fixed through the bayonet 54, when the hanging position is required to be adjusted, the one-way screw rod 3 can be rotated through the first rubber sleeve 7, the first sliding block 4 slides in the first sliding groove 2 along the one-way screw rod 3, the first sliding block 4 drives the adjusting component 6 to move through the telescopic rod 5, the hook 9 moves along with the adjusting component 6, the position of the hook 9 can be adjusted, when the distance between the two groups of hooks 9 is required to be adjusted, the two-way screw rod 63 is rotated through the second rubber sleeve 66, the two groups of second sliding blocks 64 respectively move along the two-way screw rod 63 in opposite directions, the two groups of second sliding blocks 64 drive the two groups of hooks 9 to move through the two groups of connecting columns 65 respectively, and the distance between the two groups of hooks 9 can be adjusted.

In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the utility model. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the utility model disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the utility model to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the utility model and the practical application, to thereby enable others skilled in the art to best utilize the utility model. The utility model is limited only by the claims and their full scope and equivalents.

Claims

1. The utility model provides a ware is hung to cyclic utilization's interior decoration which characterized in that: including first dead lever (1), the equal fixedly connected with installation piece (8) in first dead lever (1) top both sides, it has first spout (2) to open in first dead lever (1), be equipped with one-way lead screw (3) in first spout (2), one-way lead screw (3) right-hand member passes first dead lever (1), one-way lead screw (3) right-hand member cover has first rubber sleeve (7), the spiro union has first slider (4) on one-way lead screw (3), first slider (4) bottom fixedly connected with telescopic link (5), telescopic link (5) bottom fixedly connected with adjusting part (6), adjusting part (6) bottom is connected with two sets of couples (9).

2. The indoor decoration hanger capable of being recycled according to claim 1, wherein: the telescopic link (5) includes outer pole (51), outer pole (51) and first slider (4) bottom fixed connection, it has interior pole (52) to peg graft in outer pole (51), it has multiunit draw-in groove (53) to open on interior pole (52), it has bayonet lock (54) to pass on outer pole (51), bayonet lock (54) cooperate with draw-in groove (53).

3. The indoor decoration hanger capable of being recycled according to claim 1, wherein: adjusting part (6) include second dead lever (61), fixed connection between second dead lever (61) and telescopic link (5), second spout (62) have been opened to second dead lever (61) bottom, be equipped with two-way lead screw (63) in second spout (62), two-way lead screw (63) both sides equal spiro union have second slider (64), and are two sets of equal fixedly connected with spliced pole (65) in second slider (64) bottom, two sets of spliced pole (65) are connected respectively with between two sets of couple (9).

4. The indoor decoration hanger capable of being recycled of claim 3, wherein: the right end of the bidirectional screw rod (63) penetrates through the second fixing rod (61), and a second rubber sleeve (66) is sleeved at the right end of the bidirectional screw rod (63).

5. The indoor decoration hanger capable of being recycled according to claim 1, wherein: the cross section of the installation sheet (8) is L-shaped, and an installation hole is formed in the installation sheet (8).

6. The indoor decoration hanger capable of being recycled according to claim 1, wherein: the length of the first fixing rod (1) is greater than that of the second fixing rod (61).
