The utility model discloses a novel desk for fine arts design, including the desk board, the lower fixed surface of desk board is connected with the table case, the side fixedly connected with mainframe box of table case, the lower fixed surface of desk board is connected with the supporting leg, the side fixedly connected with horizontal pole of supporting leg, the last fixed surface of horizontal pole is connected with the step board, the upper surface of desk board is seted up flutedly, the interior diapire fixedly connected with bracing piece of recess, the top fixedly connected with hand drawing board of bracing piece. This a novel desk for fine arts design through setting up desk board, graphoscope, recess, drawing board, bracing piece, painting brush clamp and paper holder, can prop up drawing board and adjust the angle of drawing board, and the pen of fixed drawing usefulness is convenient for press from both sides tight drawing paper to reach the effect that computer drawing and manual drawing can go on simultaneously at a desktop.
Description
Technical Field
The utility model relates to a desk technical field specifically is a novel desk for fine arts design.
Background
Art design is an independent art subject and mainly comprises: manufacturing and designing of industrial art, environmental design, planar design, multimedia design and the like. The research content and the service object of the artistic door are different from those of the traditional artistic door, meanwhile, the artistic design is a subject with extremely strong comprehensiveness, and relates to a plurality of factors of society, culture, economy, market, science and technology, and the aesthetic standard of the artistic door changes along with the change of the factors.
Along with quality of life's continuous improvement, people also increase increasingly to living environment's requirement, and fine arts designer is more lean on the refinement when carrying out the creation, often will carry out manual drawing and combine together with the computer drawing, and the desktop of traditional desk is the horizontally drawing of not being convenient for, and some drawing table desktops are fixed slope, the placing of the computer of not being convenient for, make computer and manual drawing can not go on at a desktop simultaneously.
Therefore, we provide a new computer desk for artistic design.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel desk for artistic design to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a novel desk for fine arts design, includes the desk board, the lower fixed surface of desk board is connected with the table case, the side fixedly connected with mainframe box of table case, the lower fixed surface of desk board is connected with the supporting leg, the side fixedly connected with horizontal pole of supporting leg, the last fixed surface of horizontal pole is connected with the step board, the upper surface of desk board is seted up flutedly, the interior diapire fixedly connected with bracing piece of recess, the top fixedly connected with drawing board of bracing piece, the side fixedly connected with drawing pen clip of drawing board, the positive fixedly connected with paper clip of drawing board, the upper surface of desk board is provided with computer display.
Preferably, the front of the table box is provided with a drawer through a sliding rail, and the front of the mainframe box is fixedly connected with an opening and closing door through a hinge.
Preferably, the number of the supporting legs is four, and the four supporting legs are fixedly connected to four corners of the lower surface of the computer desk board respectively.
Preferably, the number of the cross rods is four, and the four cross rods are respectively and fixedly connected among the four supporting legs.
Preferably, the size of recess and hand drawing board looks adaptation, the quantity of bracing piece is two, two equal fixed connection of bracing piece is between the back of hand drawing board and the end inner wall of recess, and the bracing piece is foldable bracing piece.
Preferably, the lower surface of the computer display is provided with a fixed disk, the upper surface of the fixed disk is fixedly connected with a supporting column, and the side surface of the supporting column is provided with a lifting groove used for the computer display to move up and down.
Advantageous effects
The utility model provides a novel desk for fine arts design possesses following beneficial effect:
1. this a novel desk for fine arts design, through setting up the desk board, be convenient for place graphoscope, through setting up the recess, can place the inside at the recess by the hand drawing board, be a plane with the desk board, through setting up the bracing piece, can prop up the hand drawing board and adjust the angle of hand drawing board, through setting up the painting pen clip, can fix the pen of drawing usefulness, through setting up the paper clip, be convenient for press from both sides tight paper of drawing, thereby reach the effect that computer drawing and manual drawing can go on simultaneously at a desktop.
2. This a novel desk for artistic design through setting up a case, can place the drawing apparatus in a case, through setting up the step board, the foot can be put on the step board when being convenient for draw, through setting up the hand drawing board, and the manual drawing of being convenient for through setting up computer display, can adjust the height of display, makes things convenient for the drawing to watch.
Drawings

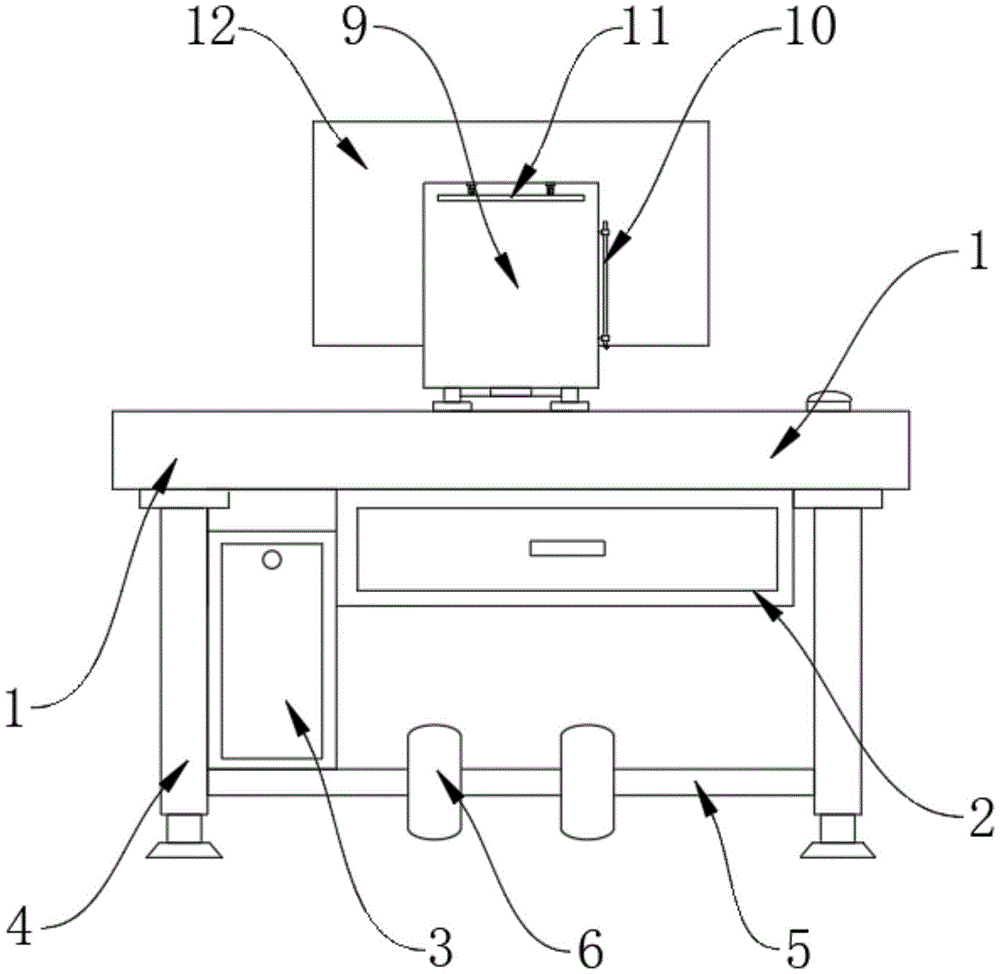

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic side view of the present invention;
fig. 3 is a schematic view of the top view structure of the present invention.
In the figure: 1 computer desk plate, 2 desk boxes, 3 main case, 4 supporting legs, 5 cross bars, 6 foot pedals, 7 grooves, 8 supporting rods, 9 sketchpad boards, 10 painting pen clips, 11 paper clips and 12 computer displays.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a novel desk for fine arts design, including desk board 1, desk board 1's lower fixed surface is connected with table case 2, the front of table case 2 is provided with the drawer through the slide rail, hinge fixedly connected with door that opens and shuts is passed through in the front of mainframe box 3, table case 2's side fixedly connected with mainframe box 3, desk board 1's lower fixed surface is connected with supporting leg 4, supporting leg 4's quantity is four, four supporting leg 4 are the four corners of fixed connection at desk board 1 lower surface respectively, supporting leg 4's side fixedly connected with horizontal pole 5, horizontal pole 5's quantity is four, four horizontal poles 5 are fixed connection respectively between four supporting legs 4.
The upper surface of the cross rod 5 is fixedly connected with a foot pedal 6, the upper surface of the computer desk plate 1 is provided with a groove 7, the size of the groove 7 is matched with that of the manual drawing plate 9, the inner bottom wall of the groove 7 is fixedly connected with two support rods 8, the two support rods 8 are fixedly connected between the back of the manual drawing plate 9 and the inner bottom wall of the groove 7, and the bracing piece 8 is foldable bracing piece, the both ends of bracing piece 8 are provided with the ball pivot, positive intermediate position is provided with the pivot, the top fixedly connected with hand drawing board 9 of bracing piece 8, the side fixedly connected with drawing pen clip 10 of hand drawing board 9, the positive fixedly connected with paper clip 11 of hand drawing board 9, the upper surface of desk board 1 is provided with computer display 12, the lower surface of computer display 12 is provided with the fixed disk, the upper surface fixedly connected with support column of fixed disk, the lift groove that is used for computer display 12 from top to bottom is seted up to the side of support column.
The working principle is as follows: when this a novel desk for fine arts design uses, during the computer is drawn, start mainframe box 3, it can draw to directly open drawing software on graphoscope 12, when needing to watch the manual drawing of computer, from in the recess 7 on the desk board 1, support through bracing piece 8 handle drawing board 9, adjust suitable angle, then fix drawing paper on paper clip 11, take out the painting brush on the painting brush holder 10, can carry out manual drawing on hand drawing board 9, thereby reach the effect that this desk can be carried out with the computer drawing by hand simultaneously.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a novel desk for artistic design, includes desk board (1), its characterized in that: the utility model discloses a computer desk, including computer desk board (1), lower fixed surface is connected with table case (2) of computer desk board (1), side fixedly connected with mainframe box (3) of table case (2), lower fixed surface is connected with supporting leg (4) of computer desk board (1), side fixedly connected with horizontal pole (5) of supporting leg (4), the last fixed surface of horizontal pole (5) is connected with step board (6), recess (7) are seted up to the upper surface of computer desk board (1), interior diapire fixedly connected with bracing piece (8) of recess (7), top fixedly connected with drawing board (9) of bracing piece (8), side fixedly connected with drawing pen clip (10) of drawing board (9), the positive fixedly connected with paper clip (11) of drawing board (9), the upper surface of computer desk board (1) is provided with computer display (12).
2. The novel computer desk for artistic design of claim 1, wherein: the front of the table box (2) is provided with a drawer through a sliding rail, and the front of the mainframe box (3) is fixedly connected with an opening and closing door through a hinge.
3. The novel computer desk for artistic design of claim 1, wherein: the number of the supporting legs (4) is four, and the supporting legs (4) are respectively and fixedly connected to four corners of the lower surface of the computer desk board (1).
4. The novel computer desk for artistic design of claim 1, wherein: the number of the cross rods (5) is four, and the four cross rods (5) are respectively and fixedly connected among the four supporting legs (4).
5. The novel computer desk for artistic design of claim 1, wherein: the size of recess (7) and hand drawing board (9) looks adaptation, the quantity of bracing piece (8) is two, two equal fixed connection of bracing piece (8) is between the back of hand drawing board (9) and the end inner wall of recess (7), and bracing piece (8) are foldable bracing piece.
6. The novel computer desk for artistic design of claim 1, wherein: the lower surface of the computer display (12) is provided with a fixed disc, the upper surface of the fixed disc is fixedly connected with a supporting column, and a lifting groove used for the computer display (12) to move up and down is formed in the side surface of the supporting column.
