Abstract

The utility model relates to the field of calligraphy desks, and discloses a multifunctional modular calligraphy desk, which is characterized in that it comprises a table top, a storage module, a table frame, an inkstone table box and a screen board; the two ends of the table top are provided with the table frame , the storage module is arranged below the table top, the screen plate is arranged at the rear end of the table top; the inkstone box is arranged in front of the screen plate; the utility model has sufficient storage space, For storing the tools needed for calligraphy creation, the table top is made of high-grade wood, which increases the service life of the product. The table frame adopts an assembled structure, which is convenient for the transportation and storage of the product; the independent inkstone table box is easy to use, and the product has high practicability.

Description

A multifunctional modular calligraphy desk

technical field

The utility model relates to the field of calligraphy desks, in particular to a multifunctional modular calligraphy desk.

Background technique

The calligraphy desk has always been an important tool in calligraphy learning, which not only facilitates calligraphy creation for calligraphy lovers, but also reflects personal aesthetics.

Now many people like to practice calligraphy, so they need a more comfortable and convenient calligraphy desk. The traditional calligraphy practice is carried out on a wooden desk. The desk itself has a single function and is very inconvenient to use. In order to improve this and make the calligraphy desk have more practical functions, it is necessary to design a multifunctional calligraphy desk.

Utility model content

The purpose of this utility model is to provide a multifunctional modular calligraphy table, so as to realize the multifunctionality of the calligraphy table.

For realizing the above-mentioned purpose, the technical scheme that the utility model provides is as follows:

A multifunctional modular calligraphy desk, characterized in that it comprises a table top (1), a storage module (2), a table frame (3), an inkstone table box (4) and a screen board (5); Both ends are provided with the table frame (3), the storage module (2) is provided below the table top (1), and the screen plate (5) is provided at the rear end of the table top (1); The inkstone box (4) is arranged in front of the screen plate (5). The screen panel (5) and the table top (1) are connected by hinges, so that the screen panel (5) can be turned 180 degrees, which is convenient for use and storage.

Preferably, the storage module (2) includes a drawer box (201), a drawer (202) and a three-section rail (203); the drawer (202) is placed in the drawer box (201), and the drawer (202) ) and the drawer box (201) are connected by the three-section rails (203). The three-section rails (203) can fully open the drawer (202) and fully use its space.

Preferably, the table frame (3) includes a table leg (301), a felt board (302), a connecting joint (303) and a connecting piece (304); both ends of the felt board (302) are provided with the connection A joint (303), the connecting joint (303) is connected to the table leg (301); the table leg (301) is provided with the connecting piece (304). The connecting piece (304) is used for fixedly connecting the table leg (301) and the table top (1); the felt board (302) is used for pressing and fixing the felt.

Preferably, the inkstone table box (4) comprises an inkstone table box shell (401), an inkstone table base (402) and an inkstone table (403); the inkstone table (403) is provided on the upper end of the inkstone table base (402); the inkstone table The base (402) is placed in the shell (401) of the inkstone box.

Compared with the prior art, the beneficial effects of the present utility model:

The utility model has sufficient storage space for storing the tools needed for calligraphy creation, the table top is made of high-grade wood, which increases the service life of the product, and the table frame adopts an assembly structure, which is convenient for the transportation and storage of the product; an independent inkstone table box Easy to use, the product has high practicality.

Description of drawings

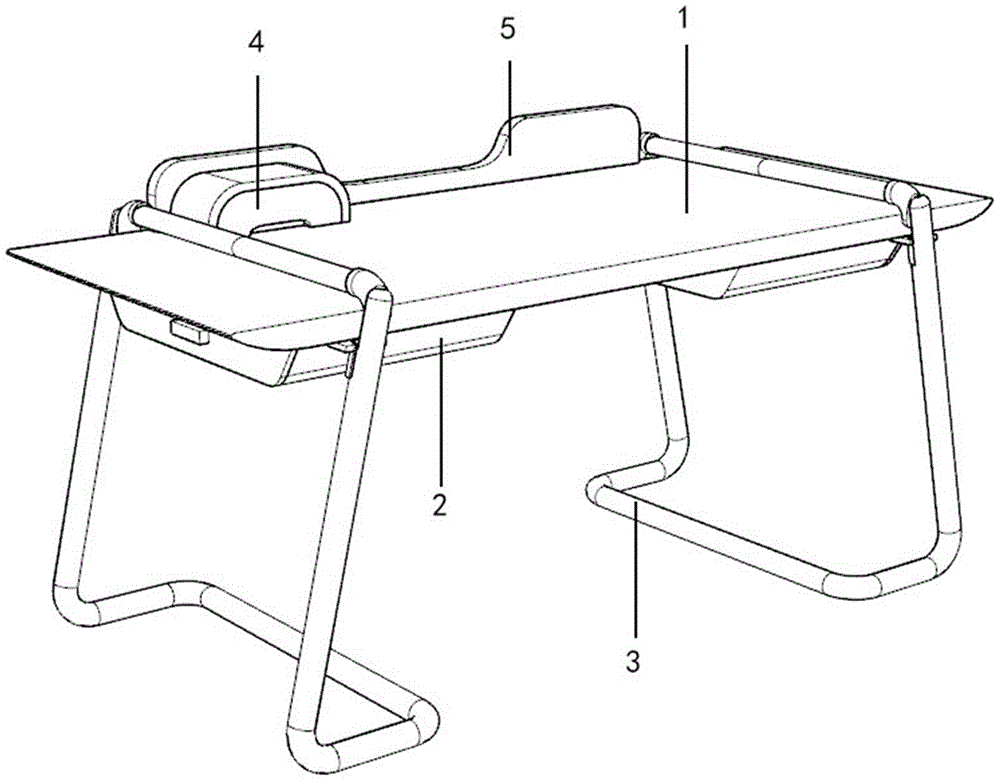

Fig. 1 is one of the schematic diagrams of the multifunctional modular calligraphy desk;

Figure 2 is the second schematic diagram of the multifunctional modular calligraphy table;

Figure 3 is the third schematic diagram of the multifunctional modular calligraphy table;

Figure 4 is the fourth schematic diagram of the multifunctional modular calligraphy table;

Fig. 5 is the schematic diagram of the multifunctional modular calligraphy table frame;

FIG. 6 is a schematic diagram of a multifunctional modular calligraphy table and inkstone box.

In the picture: 1. Countertop; 2. Storage module; 3. Desk frame; 4. Inkstone box; 5. Screen board; 201, Drawer box; 202, Drawer; 203, Three-section rail; ; 303, connecting joints; 304, connecting pieces; 401, inkstone box shell; 402, inkstone table base; 403, inkstone table.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.

As shown in Figures 1 to 4, a multifunctional modular calligraphy desk is characterized in that it comprises a table top (1), a storage module (2), a table frame (3), an inkstone box (4) and a screen panel (5). ); the two ends of the table top (1) are provided with the table frame (3), the lower part of the table top (1) is provided with the storage module (2), and the rear end of the table top (1) is provided with The screen board (5); the inkstone box (4) is arranged in front of the screen board (5). The screen panel (5) and the table top (1) are connected by hinges, so that the screen panel (5) can be turned 180 degrees, which is convenient for use and storage.

As a possible implementation manner, the storage module (2) includes a drawer box (201), a drawer (202) and a three-section rail (203); the drawer (202) is placed in the drawer box (201), The drawer (202) and the drawer box (201) are connected by the three-section rail (203). The three-section rails (203) can fully open the drawer (202) and fully use its space.

As shown in FIG. 5 , as a possible implementation manner, the table frame (3) includes a table leg (301), a felt board (302), a connecting joint (303) and a connecting piece (304); the felt board Both ends of (302) are provided with the connecting joints (303), and the connecting joints (303) are connected to the table legs (301); the table legs (301) are provided with the connecting pieces (304). The connecting piece (304) is used for fixedly connecting the table leg (301) and the table top (1); the felt board (302) is used for pressing and fixing the felt.

As shown in Figure 6, as a possible implementation manner, the inkstone box (4) includes an inkstone box shell (401), an inkstone table base (402) and an inkstone table (403); the upper end of the inkstone table base (402) is provided with There is the inkstone table (403); the inkstone table base (402) is placed in the inkstone table box shell (401).

As a possible implementation manner, during use, the table frame (3) is connected under the table top (1) through the connecting piece (304), and the drawer (202) is used for storing calligraphy tools; The inkstone box (4) is placed on the table top (1), and the inkstone base (402) is pulled out for use; the felt is placed under the felt board (302), and then the felt board (302) is pressed. 302), just fix the felt.

The basic principles, main features and advantages of the present invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions are only preferred examples of the present invention, and are not intended to limit the present invention, without departing from the present invention. Under the premise of the spirit and scope, the present invention will have various changes and improvements, and these changes and improvements all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (1)

1. A multifunctional modular calligraphy desk, characterized in that: comprising a table top (1), a storage module (2), a table frame (3), an inkstone table box (4) and a screen panel (5); the table top (1) ) is provided with the table frame (3) at both ends, the storage module (2) is provided below the table top (1), and the screen panel (5) is provided at the rear end of the table top (1). The front of the screen panel (5) is provided with the inkstone box (4); the storage module (2) includes a drawer box (201), a drawer (202) and a three-section rail (203); the drawer (202) ) is placed in the drawer box (201), the drawer (202) and the drawer box (201) are connected by the three-section rails (203); the table frame (3) includes table legs (301) ), a felt plate (302), a connecting joint (303) and a connecting piece (304); the two ends of the felt plate (302) are provided with the connecting joints (303), and the connecting joints (303) connect the A table leg (301); the connecting piece (304) is provided on the table leg (301); the inkstone table box (4) comprises an inkstone table box shell (401), an inkstone table base (402) and an inkstone table (403); The inkstone table (403) is arranged on the upper end of the inkstone table base (402); the inkstone table base (402) is placed in the inkstone box shell (401).
