Abstract
The utility model discloses an interior wall equipment of polishing for building engineering, the on-line screen storage device comprises a base, the axis department of base bottom is provided with first motor, the output fixedly connected with pivot of first motor, the top of pivot is run through the base and is extended to the top of base, main belt pulley has been cup jointed on the surface of pivot, and the surface cover of main belt pulley is equipped with the belt, and the outside cover of belt internal surface is equipped with vice belt pulley. The utility model discloses a first motor drives the pivot and rotates, the pivot can drive the threaded rod and rotate, the threaded rod drives the thread bush and removes, the thread bush drives the horizontal pole and removes, the horizontal pole drives the second motor and removes, the second motor drives the mill and removes, thereby polish about convenient, when polishing, through the cooperation of fan and second dust absorption head, a part dust that will polish the production inhales, through first dust absorption head, will polish and splash and do not inhale by the first inspiratory dust of second dust absorption, side by side to the rose box in.
Description
Technical Field
The utility model relates to a building engineering technical field specifically is interior wall equipment of polishing for building engineering.
Background
The building engineering refers to an engineering entity formed by the construction of various house buildings and auxiliary facilities thereof and the installation activities of lines, pipelines and equipment matched with the house buildings, the wall surfaces in the buildings generally need to be polished in the building construction process, the polishing equipment is manually held at present to polish, labor force is wasted, the dust removal effect is poor during polishing, and the physical health of workers is seriously damaged.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an interior wall equipment of polishing for building engineering to solve the problem that proposes in the above-mentioned background art.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: the inner wall polishing equipment for the building engineering comprises a base, wherein a first motor is arranged at a middle shaft at the bottom of the base, a rotating shaft is fixedly connected to the output end of the first motor, the top of the rotating shaft penetrates through the base and extends to the top of the base, a main belt pulley is sleeved on the surface of the rotating shaft, a belt is sleeved on the surface of the main belt pulley, an auxiliary belt pulley is sleeved on the outer side of the inner surface of the belt, a threaded rod is sleeved in the inner cavity of the auxiliary belt pulley, a threaded sleeve is connected to the top of the surface of the threaded rod in a threaded manner, a cross rod is fixedly connected to the inner side of the threaded sleeve, a second motor is fixedly connected to the middle shaft at the back of the cross rod, a polishing disc is fixedly connected to the output end of the second motor, a fixing frame is fixedly connected to the outer side of the top of the base, the dust exhaust device comprises a dust exhaust pipe, a fan, a corrugated pipe, a first dust suction head, a dust suction pipe, a connecting ring pipe and a second dust suction head, wherein the fan is fixedly connected to the top of the dust exhaust pipe, the corrugated pipe is fixedly connected to the left side of the fan, the flow dividing pipe is communicated with one side, away from the fan, of the corrugated pipe, the first dust suction head is communicated with the outer side of the top of the flow dividing pipe, the dust suction pipe is communicated with the middle shaft of the top of the flow.
Preferably, the outer side of the first motor is fixedly connected with a limiting frame, and the top of the limiting frame is fixedly connected with the base.
Preferably, the top fixedly connected with filter screen of rose box inner wall, logical groove has been seted up to the right side at filter box top, the bottom intercommunication on rose box right side has the blow off pipe.
Preferably, the sliding grooves are formed in the two sides of the inner cavity of the fixing frame, the sliding blocks are connected to the inner cavities of the sliding grooves in a sliding mode, the connecting blocks are fixedly connected to the inner sides of the sliding blocks, and the inner sides of the connecting blocks are fixedly connected with the cross rods.
Preferably, the outer side of the bottom of the cross rod is fixedly connected with a concave frame, the bottom of the inner surface of the concave frame is fixedly connected with the flow dividing pipe, the front face of the connecting ring pipe is fixedly connected with a fixing rod, and the front face of the fixing rod is fixedly connected with the cross rod.
(III) advantageous effects
Compared with the prior art, the utility model provides an interior wall equipment of polishing for building engineering possesses following beneficial effect:
1. the utility model discloses a first motor drives the pivot and rotates, through the cooperation of main belt pulley, belt and auxiliary belt pulley, the pivot can drive the threaded rod and rotate, the threaded rod drives the thread bush and moves, the thread bush drives the horizontal pole and moves, the horizontal pole drives the second motor and moves, the second motor drives the polishing disc and moves, thereby convenient polishing from top to bottom, and the user can promote the polishing equipment, thereby polish from side to side, when polishing, through the cooperation of fan, dust exhaust pipe, bellows, shunt tubes, dust absorption pipe, connecting ring pipe and second dust absorption head, inhale a part of dust that produces of polishing, through first dust absorption head, will polish and splash and not inhaled dust by the second dust absorption head and inhale to the rose box, solved and all polished by the manual hand-held polishing equipment at present, waste the labour, and the dust removal effect is poor when polishing, seriously harming the physical health of workers.
2. The utility model discloses a set up spacing, stabilized the work of first motor, carried out spacingly to first motor, avoided first motor can't carry out work, through setting up spout, slider and connecting block, stabilized the work of horizontal pole, carried out the balanced support to the horizontal pole, avoided horizontal pole during operation unstable, through setting up concave type frame and dead lever, carry on spacingly to shunt tubes and connection ring canal, avoided shunt tubes and connection ring canal can't carry out work.
Drawings

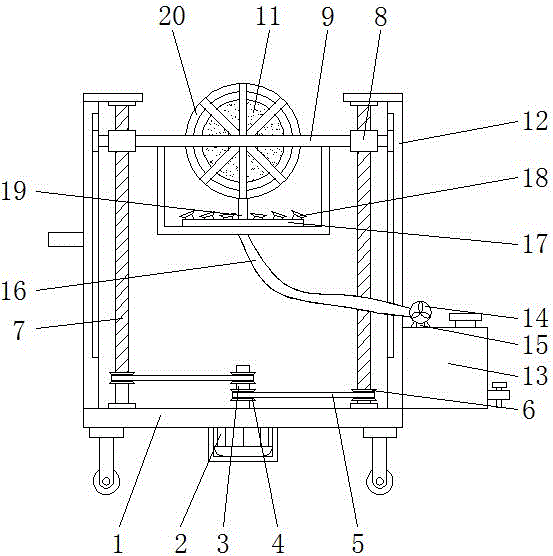

FIG. 1 is a schematic view of the structure of the present invention;
FIG. 2 is a schematic view of the side view of the present invention;
fig. 3 is the schematic view of the cross-sectional structure of the filtering box of the present invention.
In the figure: 1. a base; 2. a first motor; 3. a rotating shaft; 4. a primary pulley; 5. a belt; 6. a secondary pulley; 7. a threaded rod; 8. a threaded sleeve; 9. a cross bar; 10. a second motor; 11. grinding disc; 12. a fixed mount; 13. a filter box; 14. a fan; 15. a dust exhaust pipe; 16. a bellows; 17. a shunt tube; 18. a first dust suction head; 19. a dust collection pipe; 20. connecting a ring pipe; 21. a second dust suction head; 22. and (4) a filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to be referred must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "connected", and the like are to be construed broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model discloses a base 1, first motor 2, pivot 3, main belt pulley 4, belt 5, vice belt pulley 6, threaded rod 7, thread bush 8, horizontal pole 9, second motor 10, polishing disc 11, mount 12, rose box 13, fan 14, dust exhaust pipe 15, bellows 16, shunt tubes 17, first dust absorption head 18, dust absorption pipe 19, connecting ring pipe 20, second dust absorption head 21 and filter screen 22 part are the parts that universal standard spare or technical personnel in the field know, its structure and principle all are that this technical staff all can learn through the technical manual or learn through conventional experimental method.
Referring to fig. 1-3, the inner wall polishing device for building engineering comprises a base 1, a first motor 2 is arranged at a central shaft at the bottom of the base 1, a limiting frame is fixedly connected to the outer side of the first motor 2, the top of the limiting frame is fixedly connected with the base 1, the working of the first motor 2 is stabilized by arranging the limiting frame, the first motor 2 is limited, and the first motor 2 is prevented from failing to work, a rotating shaft 3 is fixedly connected to the output end of the first motor 2, the top of the rotating shaft 3 penetrates through the base 1 and extends to the top of the base 1, a main belt pulley 4 is sleeved on the surface of the rotating shaft 3, a belt 5 is sleeved on the surface of the main belt pulley 4, an auxiliary belt pulley 6 is sleeved on the outer side of the inner surface of the belt 5, a threaded rod 7 is sleeved in an inner cavity of the auxiliary belt pulley 6, a threaded sleeve 8 is connected to the top of the surface of the threaded rod 7, the two sides of the inner cavity of the fixing frame 12 are both provided with sliding grooves, the inner cavity of each sliding groove is connected with a sliding block in a sliding manner, the inner sides of the sliding blocks are fixedly connected with connecting blocks, the inner sides of the connecting blocks are fixedly connected with the cross rod 9, the work of the cross rod 9 is stabilized by arranging the sliding grooves, the sliding blocks and the connecting blocks, the cross rod 9 is supported in a balanced manner, the instability of the cross rod 9 in work is avoided, a second motor 10 is fixedly connected with the middle shaft of the back of the cross rod 9, the output end of the second motor 10 is fixedly connected with a polishing disc 11, the outer side of the top of the base 1 is fixedly connected with the fixing frame 12, the bottom of the right side of the fixing frame 12 is fixedly connected with a filter box 13, the top of the inner wall of the filter box 13 is fixedly connected with a filter screen 22, the right side of the top of, fan 14's left side fixedly connected with bellows 16, bellows 16 keeps away from one side intercommunication of fan 14 has shunt tubes 17, the outside intercommunication at shunt tubes 17 top has first dust absorption head 18, the axis department intercommunication at shunt tubes 17 top has dust absorption pipe 19, dust absorption pipe 19's top intercommunication has connection ring pipe 20, the concave type frame of outside fixedly connected with of horizontal pole 9 bottom, and the bottom and shunt tubes 17 fixed connection of concave type frame internal surface, connect the positive fixedly connected with dead lever of ring pipe 20, and the front and horizontal pole 9 fixed connection of dead lever, through setting up concave type frame and dead lever, it is spacing to shunt tubes 17 and connection ring pipe 20, shunt tubes 17 and connection ring pipe 20 can't work have been avoided, the back intercommunication of connection ring pipe 20 has second dust absorption head 21.
When the dust-removing device is used, the first motor 2, the second motor 10 and the fan 14 are controlled to work through the external controller, the rotating shaft 3 is driven to rotate through the first motor 2, the rotating shaft 3 can drive the threaded rod 7 to rotate through the matching of the main belt pulley 4, the belt 5 and the auxiliary belt pulley 6, the threaded rod 7 drives the threaded sleeve 8 to move, the threaded sleeve 8 drives the cross rod 9 to move, the cross rod 9 drives the second motor 10 to move, the second motor 10 drives the polishing disc 11 to move, so that up-and-down polishing is facilitated, a user can push polishing equipment to perform left-and-right polishing, when polishing is performed, a part of dust generated by polishing is sucked through the matching of the fan 14, the dust exhaust pipe 15, the corrugated pipe 16, the flow dividing pipe 17, the dust suction pipe 19, the connecting ring pipe 20 and the second dust suction head 21, and the dust splashed during polishing and not sucked by the second dust suction head 21 is sucked through the first dust suction, and arrange to rose box 13 in, it all is artifical handheld equipment of polishing to have solved at present and has polished, extravagant labour, and dust removal effect is poor when polishing moreover, serious harm the healthy problem of worker, peripheral controller is the PLC controller in this application, and simultaneously, two wiring ends of peripheral controller are connected with power plug through the wire, and adopt the commercial power to supply power in this application.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. Interior wall equipment of polishing for building engineering, including base (1), its characterized in that: the grinding machine is characterized in that a first motor (2) is arranged at the middle shaft at the bottom of the base (1), a rotating shaft (3) is fixedly connected to the output end of the first motor (2), the top of the rotating shaft (3) penetrates through the base (1) and extends to the top of the base (1), a main belt pulley (4) is sleeved on the surface of the rotating shaft (3), a belt (5) is sleeved on the surface of the main belt pulley (4), an auxiliary belt pulley (6) is sleeved on the outer side of the inner surface of the belt (5), a threaded rod (7) is sleeved in the inner cavity of the auxiliary belt pulley (6), a threaded sleeve (8) is connected to the top of the surface of the threaded rod (7) in a threaded mode, a transverse rod (9) is fixedly connected to the inner side of the threaded sleeve (8), a second motor (10) is fixedly connected to the middle shaft at the back of the transverse rod (9), and, the dust collector is characterized in that a fixing frame (12) is fixedly connected to the outer side of the top of the base (1), a filtering box (13) is fixedly connected to the bottom of the right side of the fixing frame (12), a dust exhaust pipe (15) is sleeved on the left side of the top of the filtering box (13), a fan (14) is fixedly connected to the top of the dust exhaust pipe (15), a corrugated pipe (16) is fixedly connected to the left side of the fan (14), one side, far away from the fan (14), of the corrugated pipe (16) is communicated with a flow dividing pipe (17), the outer side of the top of the flow dividing pipe (17) is communicated with a first dust suction head (18), a dust suction pipe (19) is communicated with the middle shaft of the top of the flow dividing pipe (17), a connecting ring pipe (20) is communicated with the top of the dust suction pipe.
2. The interior wall grinding apparatus for construction engineering according to claim 1, wherein: the outer side of the first motor (2) is fixedly connected with a limiting frame, and the top of the limiting frame is fixedly connected with the base (1).
3. The interior wall grinding apparatus for construction engineering according to claim 1, wherein: the top fixedly connected with filter screen (22) of rose box (13) inner wall, logical groove has been seted up on the right side at rose box (13) top, the bottom intercommunication on rose box (13) right side has the blow off pipe.
4. The interior wall grinding apparatus for construction engineering according to claim 1, wherein: the sliding grooves are formed in the two sides of the inner cavity of the fixing frame (12), the sliding blocks are connected to the inner cavity of the sliding grooves in a sliding mode, the connecting blocks are fixedly connected to the inner sides of the sliding blocks, and the inner sides of the connecting blocks are fixedly connected with the cross rods (9).
5. The interior wall grinding apparatus for construction engineering according to claim 1, wherein: the outer side of the bottom of the cross rod (9) is fixedly connected with a concave frame, the bottom of the inner surface of the concave frame is fixedly connected with the flow dividing pipe (17), the front face of the connecting ring pipe (20) is fixedly connected with a fixed rod, and the front face of the fixed rod is fixedly connected with the cross rod (9).
