The utility model discloses a screening plant for electronic ceramics, include the base, set up in the lower margin mounting panel of base below, still include: the automatic material conveying device comprises a first mounting block, a vibrating motor, a separating disc, a second mounting block, a material conveying rail, elastic supporting rib plates, an outlet slide, rotating screw rods and a moving baffle, wherein the first mounting block is uniformly arranged on the upper surface of a base, the vibrating motor is fixedly mounted at the center of the upper surface of the base, the separating disc is arranged above the base and is connected with one end of the vibrating motor, the second mounting block is uniformly distributed on the lower portion of the separating disc, the material conveying rail is arranged in the separating disc, the elastic supporting rib plates are fixed on the first supporting plate and the second supporting plate, the outlet slide is arranged. The ceramic cover separating device has the advantages that the ceramic cover and the ceramic base are separated, the ceramic base and the ceramic cover are separated, the structure is simple, the service life is long, manual participation is reduced, and the economic benefit of an enterprise is improved.
Description
Technical Field
The utility model relates to an electron ceramic production field specifically is a screening plant for electron pottery.
Background
Ceramics having electrical and magnetic properties can be used in the electronics industry and are called electronic ceramics. The electronic ceramic is a ceramic with new functions finally obtained through controlling the surface, grain boundary and size structure. Can be widely applied to the aspects of energy sources, household appliances, automobiles and the like. The production process of the electronic ceramic generally comprises principle preparation, ceramic forming, high-temperature sintering, surface treatment, quality detection and packaging, wherein the surface treatment comprises grinding, polishing, cleaning and drying. The high-temperature sintering is an important process for ensuring the quality of the ceramic, but most of electronic ceramics can shrink in the sintering process, and in order to solve the problem that the electronic ceramics shrink in the sintering process and cause deformation, the electronic ceramic parts like a ceramic base and a ceramic cover are usually sintered together by using matched blanks, so that the shrinkage in the sintering process of the ceramic cover can be avoided, but the ceramic cover can be adhered to the ceramic base after the sintering, so that serious influence can be caused in the later processing process, and the electronic ceramic parts need to be separated.
Present separation mode often adopts manual separation, need consume a large amount of labours and time, work efficiency is not high, also partial company uses mechanical equipment to separate ceramic product, patent CN201820367155.2 (a ceramic product separator) has introduced a ceramic product separator, can rock the vibrations separation to the work piece, make work piece striking baffle, thereby with two sintering ceramic product separations together, can improve the work efficiency of separation ceramic product, manpower resources are saved, people of being convenient for use. But it separates the product that bonds through the striking, causes certain injury to the product surface, and separation efficiency is low simultaneously, can not process in batches, often needs the manual work to rework, wastes time and energy, influences production efficiency, can not sort ceramic seat and ceramic lid simultaneously.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a screening plant for electronic ceramics to the separation bonds ceramic seat and the pottery lid together through the sintering, selects separately ceramic seat and pottery lid simultaneously, improves production efficiency, reduces artifical the participation.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a screening plant for electronic ceramic, includes the base, sets up the lower margin mounting panel of base below, still includes:
the first mounting blocks are uniformly arranged on the upper surface of the base;
the vibration motor is fixedly arranged in the center of the upper surface of the base;
the separation disc is arranged above the base and is connected with one end of the vibration motor, second mounting blocks are uniformly arranged on the lower portion of the separation disc, a spirally-rising conveying track is arranged inside the separation disc, and an outlet slide way is arranged at the outlet end of the conveying track;
one end of the elastic supporting rib plate is fixedly arranged on the first mounting block, and the other end of the elastic supporting rib plate is fixedly arranged on the second mounting block;
the two rotary screw rods are movably arranged on two sides of the outlet slide way, and one end of each rotary screw rod is connected with the output end of the transmission piece through a transmission chain wheel and a transmission chain;
the movable baffle is perpendicular to the rotary screw rod and arranged on the upper portion of the outlet slide way, threaded sleeves are fixedly mounted at two ends of the movable baffle, and the threaded sleeves are movably connected with the rotary screw rod.
As a further improvement of the above technical solution:
the lower end of the foundation mounting plate is provided with an elastic gasket, and a spring is arranged above the elastic gasket.
The number of the elastic supporting ribbed plates is 3, and the three elastic supporting ribbed plates are obliquely arranged between the separating disc and the base, and the range of the inclination angle is 30-60 degrees. The angular range facilitates a rational utilization of the spring force of the resilient support ribs for selecting the position with the best resilience.
The outer movable sleeve of movable baffle establishes the one deck gum cover, and the gum cover can reduce the striking buffering, reduces the injury of movable baffle motion to ceramic seat, the gum cover surface has a plurality of brushes of scraping, scrapes the brush and is used for assisting ceramic lid to select separately.
The outlet slideway is provided with a filter screen, a collecting device of the ceramic cover is arranged below the filter screen, and the ceramic cover can pass through the filter screen.
The bottom of the separation disc is provided with a plurality of impact columns, the impact columns increase the impact rate of the product, and the separation effect is enhanced.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses a setting of movable baffle can make ceramic cover pass through from the movable baffle below, intercept ceramic seat simultaneously, the outer movable gum cover of movable baffle with scrape the brush and drive ceramic cover, be convenient for select separately ceramic cover and ceramic seat, the output of driving medium drives rotatory screw rod through drive sprocket and drive chain and rotates, movable baffle is under the effect of swivel nut, along rotatory screw rod removes repeatedly, can clean on the filter screen, avoid ceramic cover card at the filter screen, accelerate the collection of ceramic cover simultaneously. The elastic support rib plate arranged in an inclined mode guarantees the vibration effect of the separating disc, meanwhile, the stability of the whole structure is guaranteed, the service life of the whole structure is prolonged, when the separating disc is separated in a vibration mode, the conveying rail inside conveys products to an outlet, the products are sorted, and the machine is multifunctional, and the production efficiency is guaranteed. The whole device ensures the separation effect of the ceramic cover and the ceramic base, realizes the separation of the ceramic base and the ceramic cover, has high production efficiency and high accuracy, reduces manual participation and improves enterprise benefits.
Drawings
Fig. 1 is a schematic view of a ceramic holder and a ceramic tube.

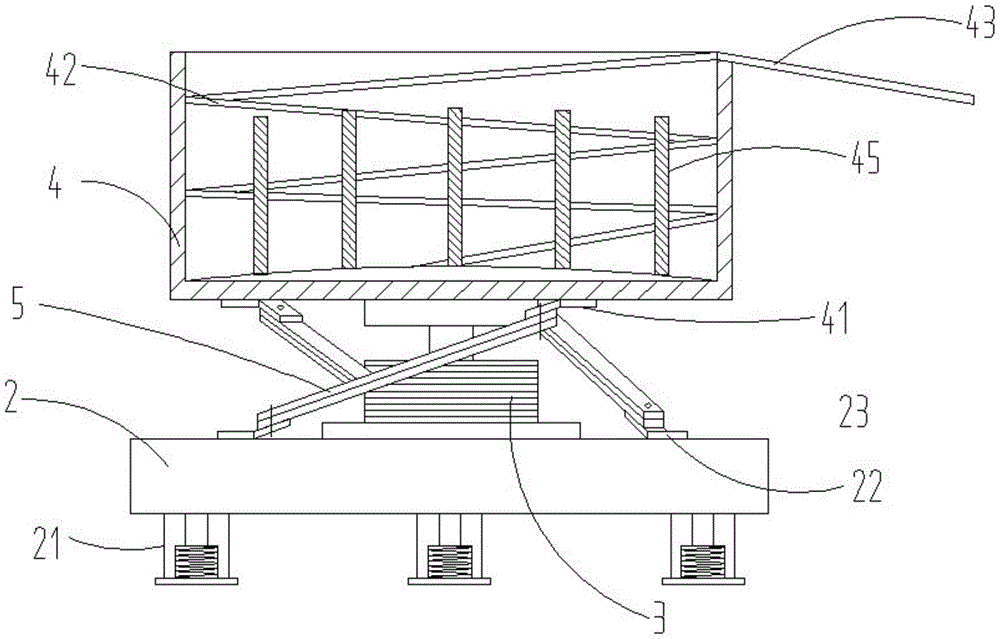

FIG. 2 is a schematic view of the overall structure of the device of the present invention;
fig. 3 is a schematic view of the structure of the outlet chute of the present invention.
Fig. 4 is a cross-sectional view of the outlet chute of the present invention.
Reference numerals: 11. a ceramic base; 12. a ceramic cover; 2. a base; 21. a ground foot mounting plate; 22. a first mounting block; 3. a vibration motor; 4. a separation disc; 41. a second mounting block; 42. a material conveying track; 43. an outlet chute; 44. filtering with a screen; 45. an impact post; 5. an elastic support rib; 6. rotating the screw; 61. a transmission member; 7. moving the baffle; 71. a threaded sleeve; 72. a rubber sleeve; 73. and (4) scraping and brushing.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end" and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to which the reference is made must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, and for example, "connected" may be either fixedly connected or detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1 to 4, the screening device for electronic ceramics of this embodiment is used for separating and sorting a ceramic base 11 and a ceramic cover 12, where the ceramic base 11 and the ceramic cover 12 are called products for short, and includes a base 2, and a foot mounting plate 21 disposed below the base 2, and further includes:
first mounting blocks 22 uniformly arranged on the upper surface of the base 2;
a vibration motor 3 fixedly installed at the center of the upper surface of the base 2; the vibration source is provided for the device, so that the products are separated and are arranged at the central position, and the vibration of the device can not cause serious damage to the whole device.
The separating disc 4 is arranged above the base 2 and is connected with one end of the vibration motor 3, the lower part of the separating disc is uniformly provided with a second mounting block 41, a spirally-rising material conveying rail 42 is arranged in the separating disc 4, and the outlet end of the material conveying rail 42 is provided with an outlet slide way 43; the products can be sequentially output upwards from the conveying track 42 through the vibration frequency and enter the outlet slide 43 for sorting.
An elastic support rib 5 having one end fixedly mounted on the first mounting block 22 and the other end fixedly mounted on the second mounting block 41; the elastic supporting rib plate 5 is composed of a plurality of layers of spring pieces, the elastic performance of the elastic supporting rib plate is almost the same as that of a spiral spring, the service life of the elastic supporting rib plate is about 10 times that of a common spiral spring, and the bearing pressure of the elastic supporting rib plate is far larger than that of the common spring.
Two rotary screws 6 are movably arranged on two sides of the outlet slideway 43, and one end of each rotary screw is connected with the output end of the transmission piece 61 through a transmission chain wheel and a transmission chain; the rotating screw rod 6 is driven by a transmission piece 61, the transmission piece 61 is a low-speed motor, and the output rotating speed is 20 r/min.
The movable baffle 7 is perpendicular to the rotating screw 6 and arranged at the upper part of the outlet slideway 43, threaded sleeves 71 are fixedly arranged at two ends of the movable baffle 7, and the threaded sleeves 71 are movably connected with the rotating screw 6. The movable baffle 7 is spaced from the lower outlet chute 43 by a distance of 2-3 ceramic covers 12 thick, and the ceramic seat 11 cannot pass through the space.
The lower extreme of lower margin mounting panel 21 is provided with the gasket, and the gasket top is provided with the spring. The lower margin mounting panel 21 is installed on ground, and the setting up of resilient pads and spring can reduce the destruction to ground, plays certain cushioning effect.
The number of the elastic supporting ribbed plates 5 is 3, and three elastic supporting ribbed plates 5 are obliquely arranged between the separating disc 4 and the base 2, and the inclination angle ranges from 30 degrees to 60 degrees. The separation discs 4 are supported by the cross-tiltingly arranged elastic support ribs 5, which are elastic and which, together with the vibration motor 3, vibrate the separation discs 4.
A layer of rubber sleeve 72 is movably sleeved on the outer layer of the movable baffle 7, and a plurality of scraping brushes 73 are arranged on the surface of the rubber sleeve 72. The rubber sleeve 72 can rotate along with the vibration, and then the scraping brush 73 is driven to move, so that the ceramic cover 12 is driven to move, and meanwhile, the rubber sleeve 72 plays a role in buffering, so that the impact on the product is reduced.
A sieve 44 is arranged on the outlet chute 43. The sieve 44 is dedicated to the ceramic cover 12, the ceramic cover 12 being able to pass through the sieve 44, the ceramic cover 12 being able to pass through the sieve in combination with the scraping action of the mobile shutter 7.
The bottom of the separation discs 4 is provided with several impingement columns 45. The arrangement of the impact column 45 can improve the product separation effect and provide possibility for transverse impact of the product.
The specific working principle is as follows:
when the device is used by a user, firstly, a product to be processed is poured into the separating disc 4, the vibrating motor 3 is started, the ceramic base 11 and the ceramic cover 12 which are bonded into a whole are separated in vibration, the vibrating motor 3 and the elastic supporting rib plates 5 drive the product to vibrate, when the product vibrates, the possibility of separation is increased when the product is impacted on the impacting column 45, the separation effect is better, the separated ceramic base 11 and the ceramic cover 12 are conveyed to the outlet slideway 43 through the conveying track 42, the outlet slideway 43 is inclined downwards, the product moves downwards on the outlet slideway 43, the movable baffle 7 sieves the ceramic cover 12 on the screen 44 through the driving of the transmission piece 61 and the rotating screw 6, the ceramic base 11 is intercepted, the ceramic cover 12 is completely collected after separation for a period of time, at the moment, the ceramic base 11 is discharged, the separation and the separation of the ceramic base 11 and the ceramic cover 12 are completed, the movable baffle 7 impacts the ceramic base 11 in the moving process, the impact process may separate the unseparated ceramic holder 11 and ceramic cover 12.
The utility model discloses an use the vibration of the supplementary separating disc of elastic support floor, increase the striking post in the separating disc, the separation effect improves, and the effect of selecting separately of ceramic seat and ceramic lid has been strengthened in moving the joining of baffle, has improved separation efficiency. The labor participation is less, and the economic benefit of enterprises is improved.
The above description is only an example of the present invention, and the common general knowledge of the known specific structures and characteristics of the embodiments is not described herein. It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a screening plant for electronic ceramic, includes base (2), sets up lower margin mounting panel (21) of base (2) below, its characterized in that still includes:
first mounting blocks (22) uniformly arranged on an upper surface of the base (2);
the vibration motor (3) is fixedly arranged at the center of the upper surface of the base (2);
the separating disc (4) is arranged above the base (2) and is connected with one end of the vibration motor (3), second mounting blocks (41) are uniformly arranged on the lower portion of the separating disc, a spirally-rising conveying track (42) is arranged inside the separating disc (4), and an outlet slide way (43) is arranged at the outlet end of the conveying track (42);
an elastic support rib plate (5) having one end fixedly mounted on the first mounting block (22) and the other end fixedly mounted on the second mounting block (41);
the two rotary screw rods (6) are movably arranged on two sides of the outlet slide way (43), and one end of each rotary screw rod is connected with the output end of the transmission piece (61) through a transmission chain wheel and a transmission chain;
the movable baffle (7) is perpendicular to the rotary screw (6) and arranged on the upper portion of the outlet slide way (43), threaded sleeves (71) are fixedly mounted at two ends of the movable baffle, and the threaded sleeves (71) are movably connected with the rotary screw (6).
2. A screening device for electronic ceramics according to claim 1, characterized in that: the lower end of the ground foot mounting plate (21) is provided with an elastic gasket, and a spring is arranged above the elastic gasket.
3. A screening device for electronic ceramics according to claim 2, characterized in that: the number of the elastic supporting ribbed plates (5) is 3, and the three elastic supporting ribbed plates (5) are obliquely arranged between the separating disc (4) and the base (2), and the range of the oblique angle is 30-60 degrees.
4. A screening device for electronic ceramics according to claim 1, characterized in that: the outer layer of the movable baffle (7) is movably sleeved with a rubber sleeve (72), and the surface of the rubber sleeve (72) is provided with a plurality of scraping brushes (73).
5. A screening device for electronic ceramics according to claim 4, characterized in that: a filter screen (44) is arranged on the outlet slide way (43).
6. A screening device for electronic ceramics according to claim 5, characterized in that: and a plurality of impact columns (45) are arranged at the bottom of the separation disc (4).
