CN212369195U - A multi-functional nursing bed for medical care - Google Patents
A multi-functional nursing bed for medical care Download PDFInfo
- Publication number
- CN212369195U CN212369195U CN201921529142.1U CN201921529142U CN212369195U CN 212369195 U CN212369195 U CN 212369195U CN 201921529142 U CN201921529142 U CN 201921529142U CN 212369195 U CN212369195 U CN 212369195U
- Authority
- CN
- China
- Prior art keywords
- nursing bed
- movable back
- back plate
- medical care
- bed
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model relates to a multifunctional nursing bed for medical care, which can adjust the states of a left movable back plate and a right movable back plate according to the needs by operating a control box, so that the left movable back plate, the right movable back plate and a horizontal plane can be adjusted by a large angle, the position and the comfort level of a patient can be adjusted, and the labor intensity of nursing staff is reduced; the utility model is provided with the pedal control panel on the support frame, medical staff controls the expansion of the first cylinder through the pedal control panel, thereby controlling the ascending and descending of the bedstead through controlling the expansion of the first cylinder, and liberating the hands of the medical staff; the utility model discloses be provided with in the both sides of bedstead with bedstead articulated guardrail, need shift if patient can with the guardrail down is rolled over and is received, makes the bottom and the bedstead parallel and level of guardrail, then steps on the height that the nursing bed was adjusted to the foot control board, and the medical personnel of being convenient for shifts patient from the nursing bed to the nursing shallow on, has reduced medical personnel's working strength, has improved the efficiency of shifting.
Description
Technical Field
The utility model relates to the technical field of medical equipment, concretely relates to a multi-functional nursing bed for medical care.
Background
At present, medical aids represented by nursing beds are increasingly used. For patients with inconvenient movement, a nursing bed is often used in the process of hospitalization or home care. The existing nursing bed has single function, and solves the problems of sitting and lying and bed angle adjustment of a user, but has inconvenience for leaving the nursing bed or doing special activities properly. Therefore, the current nursing bed is not suitable for all kinds of people, and a multifunctional nursing bed needs to be designed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a multi-functional nursing bed for medical care to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a multi-functional nursing bed for medical care, includes first support frame, left side activity backplate, right side activity backplate, bedstead and guardrail, the bedstead adopts the frame construction that is the rectangle, the bottom of bedstead is provided with first support frame, the bottom of first support frame is provided with the universal wheel, be provided with brake pedal on the universal wheel, the last fixed surface of first support frame is connected with down the sleeve, the inside first cylinder that is provided with of sleeve down, first cylinder is installed on the upper surface of first support frame, the piston rod and the last muffjoint of first cylinder, it is on the sleeve down to go up the sleeve suit, go up telescopic upper end and U-shaped plate fixed connection, the both sides of bedstead be provided with bedstead articulated guardrail.
Preferably, the front end and the rear end of the bedstead are respectively provided with a fixed rod, two sides of the fixed rod are respectively provided with an ear plate, the ear plate is provided with a guide hole, and the ear plate is further provided with a through hole for the first pin shaft to pass through.
Preferably, the both ends of guardrail are provided with the ear seat, the ear seat inserts in the otic placode, the ear seat hole has been seted up on the ear seat, still be provided with waist shape hole on the ear seat, the through-hole with first round pin axle has been pegged graft in the waist shape hole, the guiding hole with it has the second round pin axle to peg graft in the ear seat hole.
Preferably, the bed frame is provided with a left movable back plate and a right movable back plate, the lower surfaces of the left movable back plate and the right movable back plate are respectively provided with a second support frame, and the second support frames are hinged on the U-shaped plate.
Preferably, the second support frame is hinged to a piston rod of a second cylinder, the second cylinder is mounted on a fixing frame, and the fixing frame is mounted on the U-shaped plate.
Preferably, the left movable back plate and the right movable back plate are provided with mattresses.
Preferably, the second cylinder is connected with the control box.
Preferably, a pedal control board is arranged on the first support frame and connected with the first air cylinder.
Compared with the prior art, the utility model relates to a multifunctional nursing bed for medical care, the state of the left movable back plate and the right movable back plate can be adjusted according to the needs by operating the control box, so that the left movable back plate, the right movable back plate and the horizontal plane can be adjusted in a large angle, the body position and the comfort level of a patient can be adjusted, and the labor intensity of nursing staff is reduced; the utility model is provided with the pedal control panel on the first support frame, the pedal control panel is connected with the first cylinder, medical care personnel control the expansion of the first cylinder through the pedal control panel, thereby controlling the ascending and descending of the bedstead through controlling the expansion of the first cylinder, liberating the two hands of the medical care personnel and reducing the labor intensity of the medical care personnel; the utility model is provided with the guardrails hinged with the bedstead at the two sides of the bedstead, if the patient needs to be transferred, the guardrails can be folded downwards, so that the bottom of the guardrail is flush with the bedstead, then the pedal control panel is stepped to adjust the height of the nursing bed, thereby being convenient for the medical care personnel to transfer the patient from the nursing bed to the nursing cart, reducing the working intensity of the medical care personnel, improving the transfer efficiency and reducing the secondary injury to the patient; the utility model discloses be provided with brake pedal on the universal wheel, the convenient nursing bed of universal wheel of area brake pedal removes assigned position and is fixed.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description, do not constitute a limitation of the invention, in which:

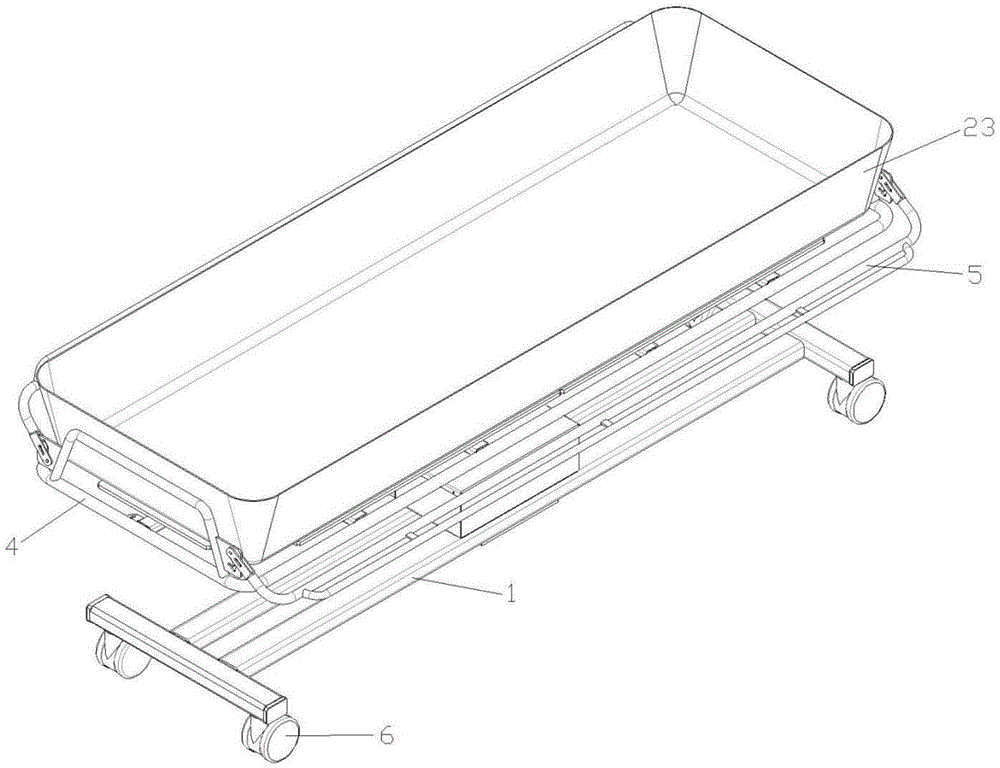

fig. 1 is a schematic structural view of a multifunctional nursing bed for medical care of the present invention;
fig. 2 is a side view of a multifunctional nursing bed for medical care of the present invention;
fig. 3 is a rear view of a multifunctional nursing bed for medical care of the present invention;
fig. 4 is a schematic structural view of the utility model with the mattress removed.
In the figure: 1. a first support frame; 2. a left movable back plate; 3. a right movable back plate; 4. a bed frame; 5. a guardrail; 6. a universal wheel; 7. a lower sleeve; 8. a first cylinder; 9. an upper sleeve; 10. a U-shaped plate; 11. fixing the rod; 12. an ear plate; 13. a guide hole; 14. a first pin shaft; 15. a through hole; 16. an ear mount; 17. an ear mount hole; 18. a waist-shaped hole; 19. a second pin shaft; 20. a second support frame; 21. a second cylinder; 22. a fixed mount; 23. a mattress; 24. a foot control panel.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a multi-functional nursing bed for medical care, includes first support frame 1, left side activity backplate 2, right side activity backplate 3, bedstead 4 and guardrail 5, bedstead 4 adopts the frame construction who is the rectangle, the bottom of bedstead 4 is provided with first support frame 1, the bottom of first support frame 1 is provided with universal wheel 6, sleeve 7 under the last fixed surface of first support frame 1 is connected with, the inside first cylinder 8 that is provided with of lower sleeve 7, first cylinder 8 is installed on the upper surface of first support frame 1, the piston rod of first cylinder 8 is connected with last sleeve 9, go up sleeve 9 suit on sleeve 7 down, the upper end and the U-shaped board 10 fixed connection of going up sleeve 9, 4 both sides be provided with bedstead 4 articulated guardrail 5.
The utility model discloses a guardrail, including bedstead 4, both ends are provided with dead lever 11 respectively around the bedstead 4, the both sides of dead lever 11 all are provided with otic placode 12, guiding hole 13 has been seted up on the otic placode 12, still set up the through-hole 15 that supplies first round pin axle 14 to pass on the otic placode 12, the both ends of guardrail 5 are provided with ear seat 16, ear seat 16 inserts in the otic placode 12, ear seat hole 17 has been seted up on the ear seat 16, still be provided with waist shape hole 18 on the ear seat 16, through-hole 15 with first round pin axle 14 has been inserted in the waist shape hole 18, guiding hole 13 with second round pin axle 19 has been inserted in ear seat hole 17.
In this embodiment, the bed frame 4 is provided with a left movable back plate 2 and a right movable back plate 3, the lower surfaces of the left movable back plate 2 and the right movable back plate 3 are respectively provided with a second supporting frame 20, the second supporting frames 20 are hinged on the U-shaped plate 10, the second supporting frames 20 are hinged with the piston rods of a second cylinder 21, the second cylinder 21 is mounted on a fixed frame 22, and the fixed frame 22 is mounted on the U-shaped plate 10.
The left and right movable back panels 2 and 3 in this embodiment are provided with mattresses 23.
In this embodiment be provided with brake pedal on the universal wheel 6, the universal wheel 6 of taking brake pedal can make the utility model discloses removal that can be convenient is to the assigned position and fixed.
In this embodiment, the first support frame 1 is provided with the foot control panel 24, the foot control panel 24 is connected with the first cylinder 8, and medical personnel controls the stretching of the first cylinder 8 through the foot control panel 24, so that the ascending and descending of the bed frame 4 can be controlled by controlling the stretching of the first cylinder 8, the hands of the medical personnel are liberated, and the labor intensity of the medical personnel is reduced.
The utility model discloses during the use, need shift if patient can with 5 down folding of guardrail, the manual work is with 5 down folding of guardrail, makes the bottom and the 4 parallel and levels of bedstead of guardrail 5, then tramples foot control board 24 and adjust the height of nursing bed, and the medical personnel of being convenient for shifts patient from nursing bed to the nursing shallow on, has reduced medical personnel's working strength, has improved the efficiency of shifting, reduces the secondary injury to patient.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a multi-functional nursing bed for medical care, includes first support frame (1), left side activity backplate (2), right side activity backplate (3), bedstead (4) and guardrail (5), its characterized in that: the improved bed is characterized in that the bed frame (4) adopts a rectangular frame structure, a first support frame (1) is arranged at the bottom of the bed frame (4), universal wheels (6) are arranged at the bottom of the first support frame (1), brake pedals are arranged on the universal wheels (6), a lower sleeve (7) is fixedly connected to the upper surface of the first support frame (1), a first air cylinder (8) is arranged inside the lower sleeve (7), the first air cylinder (8) is installed on the upper surface of the first support frame (1), a piston rod of the first air cylinder (8) is connected with an upper sleeve (9), the upper sleeve (9) is sleeved on the lower sleeve (7), the upper end of the upper sleeve (9) is fixedly connected with a U-shaped plate (10), and guardrails (5) hinged to the bed frame (4) are arranged on two sides of the bed frame (4).
2. The multifunctional nursing bed for medical care according to claim 1, characterized in that: the front end and the rear end of the bedstead (4) are respectively provided with a fixed rod (11), two sides of each fixed rod (11) are respectively provided with an ear plate (12), each ear plate (12) is provided with a guide hole (13), and each ear plate (12) is further provided with a through hole (15) for the first pin shaft (14) to pass through.
3. The multifunctional nursing bed for medical care according to claim 1, characterized in that: the two ends of the guardrail (5) are provided with ear seats (16), ear seat holes (17) are formed in the ear seats (16), and waist-shaped holes (18) are further formed in the ear seats (16).
4. The multifunctional nursing bed for medical care according to claim 1, characterized in that: the bed frame (4) is provided with a left movable back plate (2) and a right movable back plate (3), the lower surfaces of the left movable back plate (2) and the right movable back plate (3) are respectively provided with a second supporting frame (20), and the second supporting frames (20) are hinged on the U-shaped plate (10).
5. The multifunctional nursing bed for medical care according to claim 4, wherein: the second support frame (20) is hinged to a piston rod of a second cylinder (21), the second cylinder (21) is installed on a fixing frame (22), and the fixing frame (22) is installed on the U-shaped plate (10).
6. The multifunctional nursing bed for medical care according to claim 1, characterized in that: mattresses (23) are arranged on the left movable back plate (2) and the right movable back plate (3).
7. The multifunctional nursing bed for medical care according to claim 5, characterized in that: the second air cylinder (21) is connected with the control box.
8. The multifunctional nursing bed for medical care according to claim 1, characterized in that: a pedal control plate (24) is arranged on the first support frame (1), and the pedal control plate (24) is connected with the first air cylinder (8).
