Abstract
本实用新型公开了一种智能便捷组合电动床，包括床头板、床尾板、连接架、手机支架、床头插灯、双侧折叠翻桌、补液架、约束带固定架、移动氧气架、移动呼吸机翻桌、USB充电插口、床尾书写板、嵌入式白板、胸部及腿部约束带、三折气垫床垫、四片式床栏、床外罩、轮刹和万向轮。智能便捷组合床的设计改变了护理床的传统理念，优化了各项辅助功能，改善了患者住院环境的同时，更加让患者体验到各种便捷的人性化、智能化设计，调适不良情绪与感受，患者舒适的心理及便捷的医护观察，有利患者的康复，多功能模块组合大大提高临床护理的效率性和安全性，提高了医院机构的服务水平，提升患者满意度。
The utility model discloses an intelligent and convenient combined electric bed, which comprises a headboard, a footboard, a connecting frame, a mobile phone support, a bedside lamp, a double-sided folding table, a liquid replenishing frame, a restraint belt fixing frame, a mobile oxygen frame, Mobile ventilator turning table, USB charging socket, end-of-bed writing board, built-in whiteboard, chest and leg restraints, tri-fold air mattress, four-piece bed rail, bed cover, wheel brakes and swivel wheels. The design of the intelligent and convenient combination bed has changed the traditional concept of nursing beds, optimized various auxiliary functions, improved the patient's hospital environment, and allowed patients to experience a variety of convenient humanized and intelligent designs to adjust negative emotions and feelings. , the patient's comfortable psychology and convenient medical observation are beneficial to the patient's recovery. The multi-functional module combination greatly improves the efficiency and safety of clinical care, improves the service level of hospital institutions, and improves patient satisfaction.
Description
Technical Field
The utility model relates to the technical field of medical equipment, specifically be a convenient combination beddo of intelligence.
Background
At present, the number of disabled elderly is rapidly increasing, and in addition, the number of patients with limb dysfunction caused by cerebrovascular diseases, fractures, senile dementia and other diseases is also increasing, so that severe patients with the diseases and basic care, daily life care, transportation and the like of the severe patients cannot be met in the treatment process of the hospital III. With the higher integration of the functions of the nursing bed, how to develop a simplified and effective actuator and improve the use comfort level is an important direction for future research.
The nursing bed for nursing personnel has certain physical and physical consumption for the body and spirit of the nursing personnel, the common problems of the nursing bed in clinical application at present, the most important nursing function deficiency, the general comfort experience of patients and the insufficient safety performance, and the main reasons are as follows: firstly, the limited space of nursing bed is little, is not enough to hold all the simple operation functions of protecting, secondly lacks further deep optimization to the current function of nursing bed, specifically gets off, and the problem that current nursing bed exists has:
1. the restraint strap can only be fixed on the guardrail, does not have a special fixed position, causes the guardrail loss serious, and the guardrail fastness is lack, sways seriously, and the neutral gear easily takes place to inlay the dune incident, and the bearing nature is not good enough.
2. The bed bumper is simple to open, and the patient can unblock by oneself, has the potential safety hazard.
3. Bedside lamps are fixed on the bed head, so that the bedside lamps are limited in operation and cannot illuminate in all directions according to operation requirements.
4. The placement position of the transfusion stand is limited.
5. The space around the bed is narrow and small, and the nurse is not placed with article and monitor etc. department during the operation, lacks convenient instrument and influences the nurse operation.
6. The lifting function of the bed handle is old, the bed handle cannot be disassembled, the bed handle is inconvenient to adjust, and the bed handle is easy to trip to cause touch, fall and other traumas.
7. The instruments such as a breathing machine, an oxygen cylinder and the like are placed everywhere when a patient goes out for examination or is transported.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a convenient combination beddo of intelligence to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a convenient combination beddo of intelligence, includes head board, tailstock board, link, cell phone stand, head of a bed plug-in lamp, two side folding turn-tables, fluid infusion frame, about band mount, removal oxygen frame, removal breathing machine turn-tables, USB charging socket, tailstock clipboard, embedded whiteboard, chest and the about band of shank, three folding air cushion mattresses, four formula bedrails, bedhousing, wheel brake and universal wheel, head board and tailstock board link to each other through two links, two side folding turn-tables are established on the head board, fluid infusion frame cup joints in the pole setting of head board, about band mount is established in the outside of link, the about band of chest and shank is established on about band mount, the outside at the tailstock board is all established to removal oxygen frame and tailstock clipboard, it establishes the inboard at the tailstock board to remove the breathing machine turn-tables, the quantity of USB charging socket is four and the symmetry is established on two links, the embedded white board is fixedly connected between two upright rods of the headboard, the three-folding air cushion mattress is arranged on the bed board between the two connecting frames, the four-piece bed bars are symmetrically arranged at the tops of the connecting frames in pairs, and the four wheel brakes and the four universal wheels are respectively arranged at the bottom ends of the headboard and the upright rods of the footboard;
the mobile phone support comprises a first sleeve, a first screw is arranged on the side face of the first sleeve, and the outer side of the first sleeve is fixedly connected with a mobile phone clip through a first flexible rod;
the bedside plug lamp comprises a second sleeve, a second screw is arranged on the side face of the second sleeve, and an LED lamp is fixedly connected to the outer side of the second sleeve through a second flexible rod.
Preferably, the length of the first flexible rod is 1.1m, and the length of the second flexible rod is.m.
Preferably, the fluid infusion frame is designed in a telescopic manner, and four hooks for the infusion bottle are arranged on the top end of the fluid infusion frame in an encircling manner at equal intervals.
Preferably, the inside and outside both sides of the footboard have all been seted up the fretwork handrail.
Preferably, the chest and leg restraint strap is 40cm long and 30cm wide, is made of cotton and linen, and has a magic tape on the surface.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the material used by the restriction part is a special customized material, so that restriction is performed on the restless patient, skin injury is effectively prevented, and the functions of the restraint part can be expanded in a modular manner according to different patient requirements.
2. When a patient goes out for examination, the instrument and equipment support, the turnover table and the like can conveniently carry various life support and monitoring systems, such as an oxygen supply device, a monitoring device and the like, can provide necessary life support (such as oxygen, auxiliary respiration and the like) for the patient during the whole examination outgoing period, and can observe the condition of the patient (such as the monitoring device) at any time and master the dynamic change of the state of illness of the patient.
3. The detachable infusion support is a handheld handle, so that the transfer safety is improved, and the bedstead is protected from being damaged.
4. The mobile phone support which can be disassembled and replaced is convenient for a patient to listen to music, interact videos, learn related disease knowledge and the like, and a USB interface is arranged for synchronous charging.
5. The outer cover can be used for outdoor examination under the condition of wind and rain, and the USB fan is applied, so that the patient feels more comfortable.
6. Detachable USB plug lamp can use when night, and the medical care operation of being convenient for and observation also can throw light on the effect when going out the inspection night.
7. The writing board at the tail of the bed can facilitate patient nursing and communication, record dynamic information of patients at any time and facilitate nursing and shift.
8. The design of the convenient combination bed of intelligence has changed the traditional theory of nursing bed, has optimized each item auxiliary function, when having improved the patient environment of being in hospital, let the patient experience various convenient hommizations more, intelligent design, adapt bad mood and impression, the comfortable psychology of patient and convenient medical observation, favourable patient's recovery, the efficiency and the security that clinical care was improved greatly in the combination of multifunctional module, the service level of hospital's mechanism has been improved, promote patient's satisfaction.
Drawings

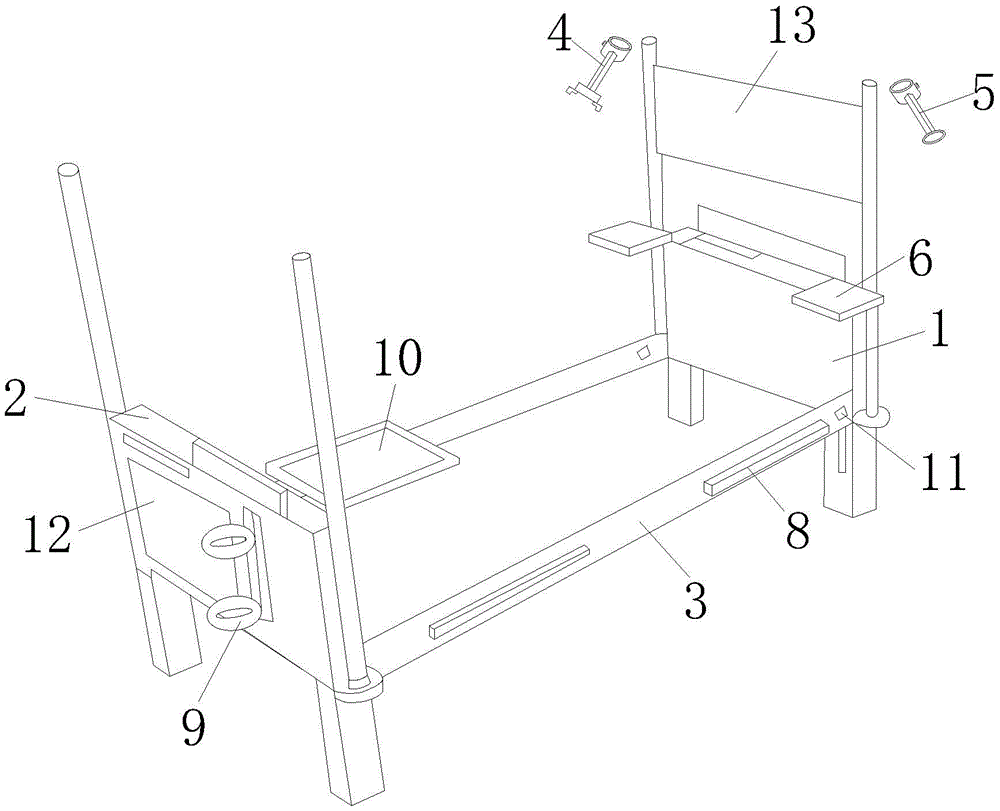

Fig. 1 is a schematic perspective view of a first state of the present invention;
FIG. 2 is a schematic perspective view of a second state of the present invention;
fig. 3 is a schematic structural view of the mobile phone support of the present invention;
FIG. 4 is a schematic structural view of the bedside plug lamp of the present invention;
fig. 5 is a schematic view of the three-dimensional structure of the bed tail plate of the present invention.
In the figure: 1 headboard, 2 footboard, 3 link, 4 cell phone stand, 5 head of a bed inserted lamps, 6 two side folding turn-over tables, 7 fluid infusion frame, 8 about band mount, 9 remove oxygen frame, 10 remove breathing machine turn-over tables, 11USB charging socket, 12 tailstock writing boards, 13 embedded whiteboards, 14 chest and shank about band, 15 three folding air cushion mattress, 16 four-piece bedrails, 17 bed dustcoats, 18 round of stopping, 19 universal wheels.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, an intelligent portable combined electric bed comprises a headboard 1, a footboard 2, a connecting frame 3, a mobile phone support 4, a headboard inserted lamp 5, a double-side folding turnover table 6, a liquid supplementing frame 7, a restraint band fixing frame 8, a movable oxygen frame 9, a movable respirator turnover table 10, a USB charging socket 11, a footboard writing board 12, an embedded white board 13, chest and leg restraint bands 14, a three-fold air cushion mattress 15, a four-piece bed rail 16, a bed outer cover 17, a wheel brake 18 and universal wheels 19, wherein the headboard 1 and the footboard 2 are connected through the two connecting frames 3, the headboard 1 is 90 × 60 × 8cm in size, the double-side folding turnover table 6 is arranged on the headboard 1, the double-side folding turnover table 6 is made of ABS material, the maximum bearing weight is 3kg, the length is 30cm, the width is 30-60cm, the headboard 1 is stored in the headboard 1 and is overturned and pulled out when in use, and an extension section can be unfolded from a folded state when in need of extension, the length of the table plate is increased, the placement of various objects is convenient for medical staff during clinical operation, the edge is provided with a bulge which can prevent the objects from falling off, the fluid infusion frame 7 is sleeved on the upright rod of the headboard 1, the fluid infusion frame 7 is specifically designed in a telescopic manner, four hooks for infusion bottles are arranged on the top end of the fluid infusion frame at equal intervals in a surrounding manner, the restraint belt fixing frame 8 is arranged on the outer side of the connecting frame 3, the restraint belt fixing frame 8 is 40cm in length and 2.5cm in width, the gap between the two restraint belt fixing frames is 2cm, the chest and leg restraint belts 14 are arranged on the restraint belt fixing frame 8, the chest and leg restraint belts 14 are 40cm in length and 30cm in width, the movable oxygen frame 9 and the bed tail writing board 12 are arranged on the outer side of the bed tail board 2, the diameter of the movable oxygen frame 9 is 15cm and the height is 25cm, hollow handrails are arranged on the inner side and the outer side of the bed tail board, the movable respirator overturning table 10 is arranged on the inner side of a tailstock plate 2, the tailstock plate 2 is 90X 50X 8cm in size, the movable respirator overturning table 10 is 35X 2cm in size, the movable respirator overturning table is supported by double-side hydraulic supporting frames, the maximum load is 8kg, the tailstock writing board 12 is 30X 40cm in size, and therefore placement and writing of various clinical patrol cards and recording cards are facilitated, the number of the USB charging sockets 11 is four, the USB charging sockets are symmetrically arranged on the two connecting frames 3, mobile phones, fans or plug lamps are conveniently charged, the embedded white board 13 is fixedly connected between the two vertical rods of the tailstock plate 1 and is 25X 90cm in size and used for clinical nursing work condition switching, special conditions, examinations and the like are written on the board, the three-fold air cushion mattress 15 is arranged on a bed board between the two connecting frames 3, the size is 80X 190 cm 5cm, the three-fold design can be used for lifting the tail, the four-piece type bedrails 16 are symmetrically arranged on the top of the connecting frames 3 in pairs, the size of the bed cover is 70 × 30 × 3cm, the number of the wheel brakes 18 and the number of the universal wheels 19 are four, the wheel brakes and the universal wheels are respectively arranged at the bottom ends of the vertical rods of the head plate 1 and the tail plate 2, the size of the bed cover 17 is 210 × 100 × 130cm, the bed cover can be used for outdoor examination under the condition of wind and rain, rain is avoided, cold wind can be shielded, and the heat retention property is good.
The mobile phone support 4 comprises a first sleeve 41, a first screw 42 is arranged on the side surface of the first sleeve 41, a mobile phone clip 44 is fixedly connected to the outer side of the first sleeve 41 through a first bendable rod 43, and the length of the first bendable rod 43 is 1.1 m.
The bedside plug lamp 5 comprises a second sleeve 51, a second screw 52 is arranged on the side surface of the second sleeve 51, an LED lamp 54 is fixedly connected to the outer side of the second sleeve 51 through a second bendable rod 53, and the length of the second bendable rod 53 is 1.5 m.
The beneficial effects of the utility model are specifically as follows:
1. the material used by the restriction part is a special customized material, so that restriction is performed on the restless patient, skin injury is effectively prevented, and the functions of the restraint part can be expanded in a modular manner according to different patient requirements.
2. When a patient goes out for examination, the instrument and equipment support, the turnover table and the like can conveniently carry various life support and monitoring systems, such as an oxygen supply device, a monitoring device and the like, can provide necessary life support (such as oxygen, auxiliary respiration and the like) for the patient during the whole examination outgoing period, and can observe the condition of the patient (such as the monitoring device) at any time and master the dynamic change of the state of illness of the patient.
3. The detachable infusion support is a handheld handle, so that the transfer safety is improved, and the bedstead is protected from being damaged.
4. The mobile phone support 4 which can be disassembled and replaced is convenient for the patient to listen to music, interact videos, learn related disease knowledge and the like, and a USB interface is provided for synchronous charging.
5. The outer cover can be used for outdoor examination under the condition of wind and rain, and the USB fan is applied, so that the patient feels more comfortable.
6. Detachable USB plug lamp can use when night, and the medical care operation of being convenient for and observation also can throw light on the effect when going out the inspection night.
7. The writing board 12 at the end of the bed can facilitate patient nursing and communication, record dynamic information of patients at any time, and facilitate nursing and shift.
8. The design of the convenient combination bed of intelligence has changed the traditional theory of nursing bed, has optimized each item auxiliary function, when having improved the patient environment of being in hospital, let the patient experience various convenient hommizations more, intelligent design, adapt bad mood and impression, the comfortable psychology of patient and convenient medical observation, favourable patient's recovery, the efficiency and the security that clinical care was improved greatly in the combination of multifunctional module, the service level of hospital's mechanism has been improved, promote patient's satisfaction.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
