CN212281641U - Anesthesia frame for surgical operation - Google Patents

Abstract

The utility model discloses a surgical operation anesthesia frame, including bottom plate, universal auto-lock wheel, outlet pipe and inlet tube, be provided with electric telescopic handle on the bottom plate and wash the cabinet, first drawer and second drawer setting are accomodate cashier's office in a shop, the sterilizer sets up the left side at first drawer, be provided with bilge tank and water purification tank in the washing cabinet, the outlet pipe both ends are connected with bilge tank and washing basin respectively, the inlet tube both ends are connected with tap and water purification tank respectively. This anesthesia frame of surgical operation is provided with the washing cabinet, can in time wash the surgical instruments after using in washing the pond, prevents that surgical instruments from leading to wasing unclean because of placing for a long time, is provided with the sewage case simultaneously, can collect sewage and prevent breeding the bacterium, is provided with the ultraviolet ray disinfection lamp, can put into the sterilizer with the surgical instruments after wasing in and disinfect through shining of ultraviolet ray disinfection lamp to ensure surgical instruments's sanitary quality.

Description

Anesthesia frame for surgical operation

Technical Field

The utility model relates to the technical field of surgery, in particular to a surgical anesthesia frame.

Background

The anesthesia frame is the must instrument of surgery operation room, is the instrument that is used for placing the narcotic drugs and surgical instruments when performing the operation, through the massive retrieval, finds among the prior art typically be CN204484320U as disclosing, the utility model discloses a multi-functional anesthesia frame, including anesthesia frame bottom plate, support column and lift post, anesthesia frame bottom plate upside right-hand member is equipped with the support column, and the support column upside is equipped with the lift post, and the lift post passes through adjusting bolt and is connected with the support column, and lift post upper end is equipped with the steering sleeve, and steering sleeve left end outer wall upper level is equipped with the connecting rod, the utility model discloses multi-functional anesthesia frame, degassing unit can disinfect to medical supplies, puts the thing drawer and can place medical supplies, conveniently takes and has practiced thrift the space, and when the supporting legs fell to ground, can support anesthesia frame, prolong its life. Because medical personnel's height is different, need frequently follow the anesthesia frame and take article when using the anesthesia frame to perform the operation, and its height can not be adjusted according to doctor's height demand to traditional anesthesia frame structure, adaptability is relatively poor, and traditional anesthesia frame is to collecting the rubbish that can not produce in the operation to the polluted environment, traditional anesthesia frame does not possess belt cleaning device simultaneously, can not clean the surgical instruments after using, consequently need use surgery anesthesia frame.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a surgical operation anesthesia frame, because medical personnel's height is different to propose in solving above-mentioned background art, need frequently follow the anesthesia frame and take article when using the anesthesia frame to perform the operation, and its height can not be adjusted according to doctor's height demand to traditional anesthesia frame structural fixation, adaptability is relatively poor, and traditional anesthesia frame is collected the rubbish that can not produce in the operation, thereby the polluted environment, traditional anesthesia frame does not possess belt cleaning device simultaneously, can not carry out abluent problem to the surgical instruments after using.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a surgical operation anesthesia frame, includes bottom plate, universal auto-lock wheel, outlet pipe and inlet tube, be provided with electric telescopic handle and washing cabinet on the bottom plate, and electric telescopic handle sets up the front side at washing cabinet, the electric telescopic handle top is provided with the diaphragm, and is provided with sterilizer and first drawer on the diaphragm, first drawer and second drawer set up at the storage cabinet, the sterilizer sets up in the left side of first drawer, and the top of first drawer is provided with the second drawer, be provided with bilge tank and clean water tank in the washing cabinet, and wash the cabinet top and be provided with tap and wash basin, the outlet pipe both ends are connected with bilge tank and wash basin respectively, the inlet tube both ends are connected with tap and clean water tank respectively, and the one end that the inlet tube is close to the clean water tank is provided with the liquid pump.

Preferably, universal auto-lock wheel symmetry sets up in the bottom of bottom plate, and is provided with the garbage bin on the bottom plate, and the garbage bin setting is on electric telescopic handle's right side simultaneously.

Preferably, the top of the inner side of the disinfection cabinet is provided with an ultraviolet disinfection lamp.

Preferably, a first tray and a second tray are respectively arranged above the disinfection cabinet and the second drawer.

Preferably, the ultraviolet disinfection lamp, the electric telescopic rod and the liquid pump are electrically connected.

Preferably, the first drawer and the second drawer respectively form a drawing structure with the storage cabinet.

Compared with the prior art, the beneficial effects of the utility model are that: the anesthesia frame for the surgical operation is provided with a plurality of anesthesia racks,

(1) the cleaning cabinet is arranged, used surgical instruments can be cleaned in time in the washing basin, the surgical instruments are prevented from being unclean due to long-time placement, the sewage tank is arranged, sewage can be collected, bacteria breeding is prevented, the ultraviolet disinfection lamp is arranged, the cleaned surgical instruments can be placed in the disinfection cabinet to be disinfected through irradiation of the ultraviolet disinfection lamp, and therefore the sanitary quality of the surgical instruments is guaranteed;

(2) be provided with electric telescopic handle, can adjust electric telescopic handle height according to medical personnel's needs to make things convenient for medical personnel to take narcotic drugs and apparatus from first drawer and second drawer, be provided with the medical waste that the garbage bin can produce the operation in-process and collect, thereby avoid medical waste polluted environment.

Drawings

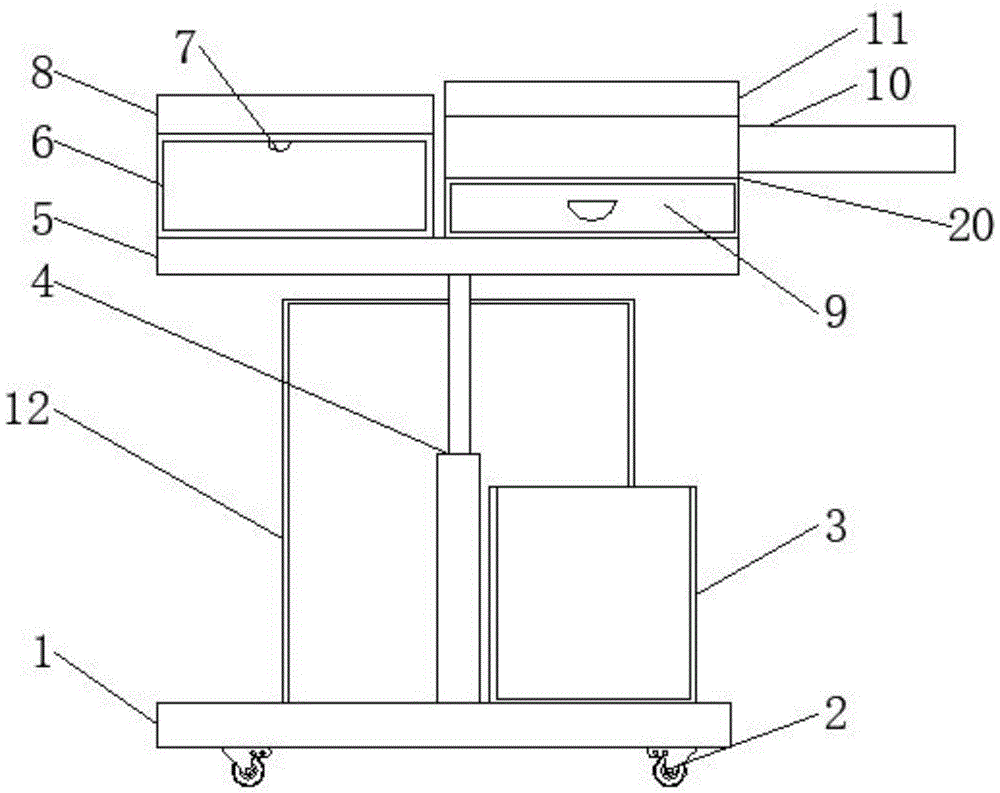

FIG. 1 is a schematic front view of the present invention;

fig. 2 is a schematic rear view of the present invention;

fig. 3 is a schematic view of the top view structure of the present invention.

In the figure: 1. the bottom plate, 2, universal auto-lock wheel, 3, garbage bin, 4, electric telescopic handle, 5, diaphragm, 6, sterilizer, 7, ultraviolet ray disinfection lamp, 8, first tray, 9, first drawer, 10, second drawer, 11, second tray, 12, wash the cabinet, 13, sewage case, 14, the water purification case, 15, outlet pipe, 16, the liquid pump, 17, the inlet tube, 18, tap, 19, wash-basin, 20, accomodate the cabinet.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a surgical anesthesia rack is disclosed, as shown in figures 1 and 3, an electric telescopic rod 4 and a cleaning cabinet 12 are arranged on a bottom plate 1, the electric telescopic rod 4 is arranged at the front side of the cleaning cabinet 12, universal auto-lock wheels 2 are symmetrically arranged at the bottom of the bottom plate 1, a garbage can 3 is arranged on the bottom plate 1, the garbage can 3 is arranged at the right side of the electric telescopic rod 4, the anesthesia rack can be freely moved according to the self-demand by utilizing the universal auto-lock wheels 2, the garbage can 3 is convenient for collecting garbage generated in the operation and preventing the environment from being polluted, a transverse plate 5 is arranged at the top of the electric telescopic rod 4, a disinfection cabinet 6 and a first drawer 9 are arranged on the transverse plate 5, an ultraviolet disinfection lamp 7 is arranged at the top of the inner side of the disinfection cabinet 6, the ultraviolet disinfection lamp 7 is convenient for disinfecting the instruments, thereby ensuring that the sanitary quality of the instruments meets the standard, the first drawer 9 and a second drawer 10, first drawer 9 and second drawer 10 constitute the pull structure with cabinet 20 respectively, the pull direction of first drawer 9 and second drawer 10 is different, thereby prevent that it from sheltering from each other, be convenient for medical personnel take the apparatus in first drawer 9 and the second drawer 10, sterilizer 6 sets up the left side at first drawer 9, and the top of first drawer 9 is provided with second drawer 10, sterilizer 6 and the top of second drawer 10 are provided with first tray 8 and second tray 11 respectively, first tray 8 and second tray 11 can deposit a large amount of instruments that have passed after using, be convenient for enlarge the storage space of anesthesia frame.

As shown in fig. 1 and 2, a sewage tank 13 and a clean water tank 14 are arranged in the cleaning cabinet 12, a water tap 18 and a wash basin 19 are arranged above the cleaning cabinet 12, two ends of a water outlet pipe 15 are respectively connected with the sewage tank 13 and the wash basin 19, two ends of a water inlet pipe 17 are respectively connected with the water tap 18 and the clean water tank 14, a liquid pump 16 is arranged at one end of the water inlet pipe 17 close to the clean water tank 14, the ultraviolet disinfection lamp 7, the electric telescopic rod 4 and the liquid pump 16 are electrically connected, the length of the electric telescopic rod 4 can be adjusted according to the self requirement, so that the height of the anesthesia rack is adjusted, and the use of the anesthesia rack by medical staff.

The working principle is as follows: when the anesthesia rack for surgical operation is used, firstly, the anesthesia rack is moved to a working area by using the universal self-locking wheel 2 and is connected with an external power supply, then medical staff can operate the electric telescopic rod 4 to adjust the height of the anesthesia rack according to the self requirement, thereby being convenient to take surgical instruments and anesthetic drugs stored in the first drawer 9 and the second drawer 10, meanwhile, the first tray 8 and the second tray 11 can store a large amount of used surgical instruments, the garbage can 3 is convenient to store medical garbage generated in the operation, after the operation is completed, the used instruments can be put into the wash basin 19 for cleaning, water in the clean water tank 14 flows out from the water tap 18 through the water inlet pipe 17 under the action of the liquid pump 16, thereby cleaning the instruments in the wash basin 19, sewage in the wash basin 19 flows into the tank 13 through the water outlet pipe 15, the instruments can be put into the disinfection cabinet 6 after cleaning, the ultraviolet sterilizing lamp 7 is activated to sterilize it, thus ensuring the hygienic quality of the instruments, and after sterilization is completed, it is put into the first drawer 9 and the second drawer 10, which completes the whole work, and the contents not described in detail in this specification are well known to those skilled in the art.

The terms "central," "longitudinal," "lateral," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings for ease of description, but are not intended to indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the scope of the invention.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims (6)

1. The utility model provides a surgical operation anesthesia frame, includes bottom plate (1), universal auto-lock wheel (2), outlet pipe (15) and inlet tube (17), its characterized in that: the cleaning device is characterized in that an electric telescopic rod (4) and a cleaning cabinet (12) are arranged on the bottom plate (1), the electric telescopic rod (4) is arranged on the front side of the cleaning cabinet (12), a transverse plate (5) is arranged at the top of the electric telescopic rod (4), a disinfection cabinet (6) and a first drawer (9) are arranged on the transverse plate (5), the first drawer (9) and a second drawer (10) are arranged on a storage cabinet (20), the disinfection cabinet (6) is arranged on the left side of the first drawer (9), the second drawer (10) is arranged above the first drawer (9), a sewage tank (13) and a water purifying tank (14) are arranged in the cleaning cabinet (12), a faucet (18) and a wash basin (19) are arranged above the cleaning cabinet (12), two ends of the water outlet pipe (15) are respectively connected with the sewage tank (13) and the wash basin (19), two ends of the faucet (17) are respectively connected with the water purifying tank (18) and the wash basin (14), and a liquid pump (16) is arranged at one end of the water inlet pipe (17) close to the water purifying tank (14).

2. A surgical anesthesia rack of claim 1, wherein: universal auto-lock wheel (2) symmetry sets up in the bottom of bottom plate (1), and is provided with garbage bin (3) on bottom plate (1), and garbage bin (3) set up the right side at electric telescopic handle (4) simultaneously.

3. A surgical anesthesia rack of claim 1, wherein: and an ultraviolet disinfection lamp (7) is arranged at the top of the inner side of the disinfection cabinet (6).

4. A surgical anesthesia rack of claim 1, wherein: a first tray (8) and a second tray (11) are respectively arranged above the disinfection cabinet (6) and the second drawer (10).

5. A surgical anesthesia rack of claim 3, wherein: the ultraviolet disinfection lamp (7), the electric telescopic rod (4) and the liquid pump (16) are electrically connected.

6. A surgical anesthesia rack of claim 1, wherein: the first drawer (9) and the second drawer (10) respectively form a drawing structure with the storage cabinet (20).
