CN212223227U - Tencel and cotton blended fabric - Google Patents
Tencel and cotton blended fabric Download PDFInfo
- Publication number
- CN212223227U CN212223227U CN202020473897.0U CN202020473897U CN212223227U CN 212223227 U CN212223227 U CN 212223227U CN 202020473897 U CN202020473897 U CN 202020473897U CN 212223227 U CN212223227 U CN 212223227U
- Authority
- CN
- China
- Prior art keywords
- warp
- tencel
- weft
- fabric
- latitude
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Woven Fabrics (AREA)
Abstract
The utility model provides a tencel cotton blending fabric, by warp and weft through double-warp beam loom weaving ups and downs interweave, warp and weft are interweaved into plain weave structure one on top of one, the warp adopts two kinds of tencel blended yarns, be first warp and second warp respectively, first warp has the slub, second warp does not have the slub, the weft has two kinds, be first latitude and second latitude respectively, first latitude adopts tencel blended slub yarn, second latitude adopts dacron composite elastic fiber silk, through adopting the warp and the first latitude of tencel blended yarn, make the fabric can overcome the shortcoming of all-cotton fabric and all-tencel fabric, through adopting dacron composite elastic fiber silk as second latitude, can make the elasticity of fabric better, the degree of comfort of dress is better, through adopting tencel cotton slub blended yarn as first warp and first latitude, combine the plain weave structure one on top of one, can make the texture of fabric unique, the feeling is abundant, the outward appearance is fashionable, the pursuit of people for individuation and differentiation is met.
Description
Technical Field
The utility model relates to a fabrics field, concretely relates to tencel blending fabric.
Background
Along with the improvement of living standard of people, the requirements on the texture and the wearing comfort of the fabric are higher and higher, the grade of the fabric is lower and the high-grade feeling is not strong due to the existence of cotton knots, cotton seed hulls and other sundries, the yarn levelness of the all-day-silk fabric is good, but the silk quality feeling is strong, the fabric is not full and thick enough, the color and luster are not soft and moist enough, the defects of the all-cotton fabric and the all-day-silk fabric are overcome by the tencel blended fabric, the grade of the fabric is high, the high-grade feeling is strong, but the elasticity of the existing tencel blended fabric is poor, the wearing comfort is not good, and the existing tencel blended fabric adopts the same tencel blended yarn in the warp direction and the weft direction, so that the difference and fashion of fabric products are limited.
SUMMERY OF THE UTILITY MODEL
The utility model aims at overcoming the defects of the prior art and providing the tencel blended fabric with good elasticity, good wearing comfort, high fabric grade and strong high-grade sense.
In order to realize the above object, the utility model provides a technical scheme is, a tencel cotton blending fabric weaves ups and downs through the double-beam loom by warp and weft and interweaves and forms, the warp includes first warp and second warp, first warp adopts tencel cotton blending slub yarn, second warp adopts tencel cotton blending yarn, the weft includes first weft and second weft, first weft adopts tencel cotton blending slub yarn, second weft adopts compound elastic fiber silk of dacron, the warp with the weft is interweaved one on the one and is made into plain weave.
Preferably, the first warp adopts 19S (55/45) tencel blended slub yarn, and the second warp adopts 19S (55/45) tencel blended yarn.
Preferably, the first weft adopts 19S (55/45) tencel blended yarn, and the second weft adopts P150D T400 polyester composite elastic fiber yarn.
Preferably, the tencel-cotton blended fabric comprises a plurality of tissue units, each tissue unit comprises 2 parallel warps and 2 parallel wefts, and the arrangement ratio of the warps is 1A warp: 1 second warp, and the arrangement proportion of the weft is 1 first weft: and (1) weft insertion.
Further preferably, the tissue points of the first meridian are sequentially one above the other and one above the other, and the tissue points of the second meridian are sequentially one above the other.
Further preferably, the warp A and the warp B are respectively dyed and finished into different colors.
Because of above-mentioned technical scheme's application, compared with the prior art, the utility model have the following advantage:
the utility model provides a tencel cotton blending fabric, by warp and weft through double-warp beam loom weaving ups and downs interweave, warp and weft are interweaved into plain weave structure one on top of one, the warp adopts two kinds of tencel cotton blended yarns, be first warp and second warp respectively, first warp has the slub, second warp does not have the slub, the weft has two kinds, be first latitude and second latitude respectively, first latitude adopts tencel cotton blended slub yarn, second latitude adopts dacron composite elastic fiber silk, through the warp and the first latitude that adopt tencel cotton blended yarn, make the fabric can overcome the shortcoming of cotton fabric and all-tencel fabric, through adopting dacron composite elastic fiber silk as second latitude, can make the elasticity of fabric better, the degree of comfort of dress is better, through adopting tencel cotton slub blended yarn as first warp and first latitude, combine the plain weave structure one on top of one, can make the texture of fabric unique, the feeling is abundant, the outward appearance is fashionable, the pursuit of people for individuation and differentiation is met.
Drawings

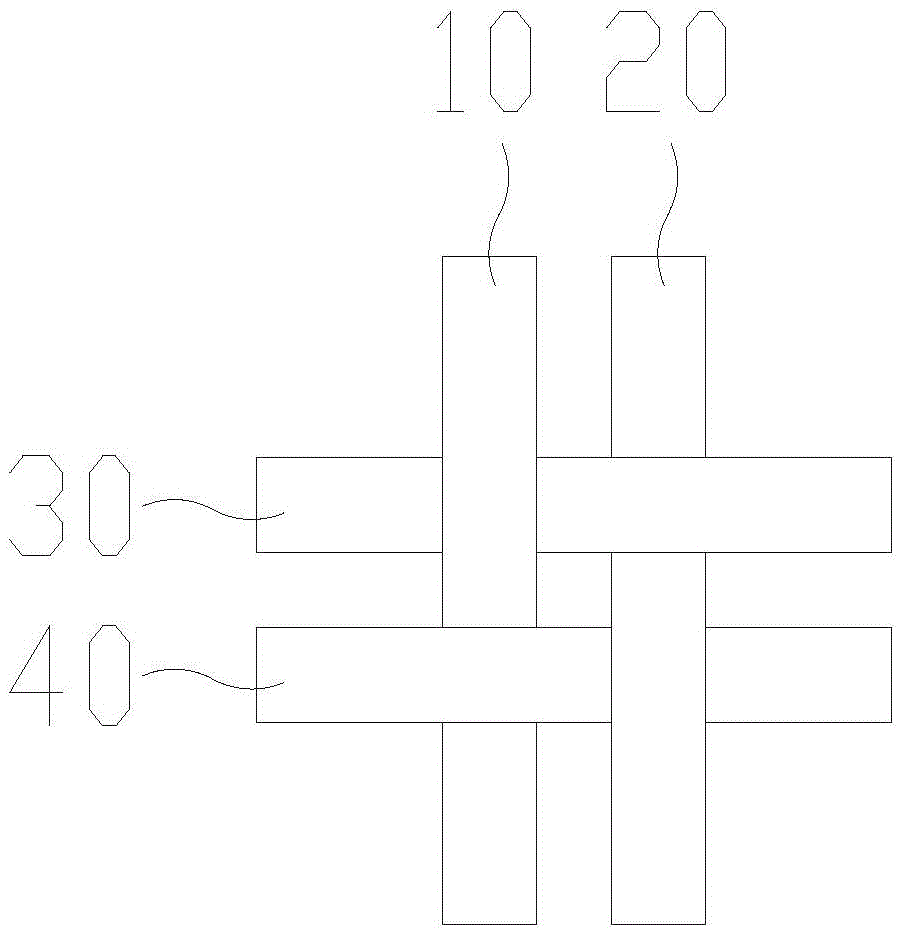

Fig. 1 is a schematic structural diagram of the present invention.
Wherein: 10. the first meridian; 20. the second warp; 30. carrying out weft knitting; 40. and B, weft insertion.
Detailed Description
The following detailed description of the preferred embodiments of the present invention is provided to enable those skilled in the art to more easily understand the advantages and features of the present invention, and to make clear and definite definitions of the protection scope of the present invention.
As shown in fig. 1, the utility model provides a tencel blended fabric, weaving ups and downs by warp and weft through the double-warp beam loom and interweaving and form, the warp includes first warp 10 and second warp 20, and first warp 10 adopts 19S (55/45) tencel blended slub yarn, and second warp 20 adopts 19S (55/45) tencel blended yarn, the weft includes first latitude 30 and second latitude 40, and first latitude 30 adopts 19S (55/45) tencel blended yarn, and second latitude 40 adopts P150D T400 dacron composite elastic fiber silk, the warp with the weft is one-on-one-off intertexture plain weave, specifically, the utility model provides a tencel blended fabric has a plurality of organizational unit, every have 2 in the organizational unit and organize side by side the warp and 2 weft that arrange side by side, the proportion of arranging of warp is 1 first warp: 1 second warp, and the arrangement proportion of the weft is 1 first weft: and 1B weft, in the weave unit, the weave points of the first warp 10 are sequentially one above the other one below the other one, the weave points of the second warp 20 are sequentially one below the other one above the other one, the upper indicates that the warp is positioned above the weft at the weave points, the lower indicates that the warp is positioned below the weft at the weave points, and the weave points indicate the interweaving points of the warp and the weft.
In order to further improve the difference feeling of the fabric, the first warp 10 and the second warp 20 are respectively dyed into different colors.
The utility model provides a tencel cotton blending fabric, by warp and weft through double-warp beam loom weaving ups and downs interweave, warp and weft are interweaved into plain weave structure one on top of one, the warp adopts two kinds of tencel cotton blended yarns, be first warp and second warp respectively, first warp has the slub, second warp does not have the slub, the weft has two kinds, be first latitude and second latitude respectively, first latitude adopts tencel cotton blended slub yarn, second latitude adopts dacron composite elastic fiber silk, through the warp and the first latitude that adopt tencel cotton blended yarn, make the fabric can overcome the shortcoming of cotton fabric and all-tencel fabric, through adopting dacron composite elastic fiber silk as second latitude, can make the elasticity of fabric better, the degree of comfort of dress is better, through adopting tencel cotton slub blended yarn as first warp and first latitude, combine the plain weave structure one on top of one, can make the texture of fabric unique, the feeling is abundant, the outward appearance is fashionable, the pursuit of people for individuation and differentiation is met.
The above embodiments are only for illustrating the technical concept and features of the present invention, and the purpose thereof is to enable those skilled in the art to understand the contents of the present invention and to implement the present invention, so as not to limit the protection scope of the present invention, and all equivalent changes or modifications made according to the spirit of the present invention should be covered by the protection scope of the present invention.
Claims (6)
1. The tencel-cotton blended fabric is formed by weaving warp yarns and weft yarns through a double-warp-beam loom in a sinking-floating mode, and is characterized in that: the warp yarns comprise a first warp and a second warp, the first warp adopts tencel and cotton blended slub yarns, the second warp adopts tencel and cotton blended yarns, the weft yarns comprise a first weft and a second weft, the first weft adopts tencel and cotton blended slub yarns, the second weft adopts polyester composite elastic fiber yarns, and the warp yarns and the weft yarns are interwoven into plain weave at one top and one bottom.
2. The tencel and cotton blended fabric according to claim 1, wherein the first warp is 19S 55/45 tencel and cotton blended slub yarn, and the second warp is 19S 55/45 tencel and cotton blended yarn.
3. The tencel and cotton blended fabric according to claim 1, wherein the first weft is 19S 55/45 tencel blended yarn, and the second weft is P150D T400 polyester composite elastic fiber yarn.
4. The tencel cotton blended fabric according to claim 1, wherein the tencel cotton blended fabric is provided with a plurality of tissue units, each tissue unit is provided with 2 warps arranged in parallel and 2 wefts arranged in parallel, and the arrangement ratio of the warps is 1A warp: 1 second warp, and the arrangement proportion of the weft is 1 first weft: and (1) weft insertion.
5. The tencel blended fabric according to claim 4, wherein the first warp stitch is arranged one above the other, and the second warp stitch is arranged one below the other.
6. The tencel blended fabric according to any one of claims 1-5, wherein the warps A and the warps B are dyed and finished to different colors respectively.
