Abstract

The utility model discloses a multifunctional earphone charging compartment capable of playing audio and answering calls, comprising an earphone compartment main body and an earphone upper compartment cover. The earphone upper compartment cover is rotatably connected to the rear side of the earphone compartment main body, and the earphone compartment The front side of the bin main body is provided with a power information display screen, the right side of the power information display screen is provided with a tweeter, the left side of the power information display screen is provided with a subwoofer, and the rear side of the headphone bin main body runs through A microphone hole, the upper side of the microphone hole is provided with a phone hands-free button. In the utility model, a tweeter and a subwoofer are provided, the sound effect is very good, and the function of a bluetooth speaker can be realized, and the mobile phone or other audio players can be connected through the bluetooth chip, and the audio can be played after the power switch is turned on. , When someone makes a call, press the hands-free button of the phone to connect the call. In addition, it can charge various electrical devices such as mobile phones.

Description

A multifunctional earphone charging case that can play audio and answer calls

technical field

The utility model relates to the technical field of charging equipment, in particular to a multifunctional earphone charging bin which can play audio and answer calls.

Background technique

With the popularity and popularity of bluetooth earphones, consumers' demand for charging bin products with bluetooth earphones is also increasing, because the current earphones are basically products with a single function, which is very inconvenient to use, such as playing audio , Now it is necessary to use a bluetooth speaker or a mobile phone to realize the audio output, especially when answering the phone, long-term use of the mobile phone to answer, there is radiation, too long answering time is not good for human health, when going out, such as traveling, going out to exercise When using the mobile phone to play audio, the battery of the mobile phone is not durable; carrying a Bluetooth speaker will increase the carrying weight, which is very inconvenient.

Utility model content

The purpose of the present utility model is to solve the shortcomings of the prior art, and proposes a multifunctional earphone charging compartment that can play audio and answer calls.

In order to achieve the above-mentioned purpose, the present invention adopts the following technical scheme: it comprises an earphone compartment main body and an earphone upper compartment cover, the earphone upper compartment cover is rotatably connected to the rear side of the earphone compartment main body, and the front side of the earphone compartment main body is provided with a Power information display screen, the right side of the power information display screen is provided with a tweeter, the left side of the power information display screen is provided with a subwoofer, the rear side of the main body of the headphone compartment penetrates the microphone head hole, the microphone The upper side of the head hole is provided with a phone hands-free button, the upper side of the phone hands-free button is provided with a power button, the lower bottom surface of the headset compartment body is provided with a charging interface, and the underside of the headset upper compartment cover is provided with a power button. The earphone upper compartment is provided with a lower earphone charging compartment inside the main body of the earphone compartment, and a circuit board is arranged inside the main body of the earphone compartment and located on the rear side of the microphone head, and the front surface of the circuit board is provided with a microphone head, so The microphone head is facing the hole of the microphone head, and a Bluetooth chip is arranged on the right side of the microphone head.

As a further description of the above technical solution:

The tweeter and the subwoofer are horizontally aligned, and a speaker net is arranged on the front side of the main body of the earphone compartment and located in front of the tweeter and the subwoofer.

As a further description of the above technical solution:

A lithium battery is arranged inside the main body of the earphone compartment and located on the lower side of the lower earphone charging compartment, and the lithium battery is located on the upper side of the charging interface.

As a further description of the above technical solution:

A bluetooth earphone is arranged inside the earphone charging lower compartment, and the rubber cap of the bluetooth earphone is outward.

As a further description of the above technical solution:

The microphone hole, the phone hands-free button, and the power button are located on the same straight line, and the microphone hole, the phone hands-free button, and the power button are located on the right back side of the power information display screen.

As a further description of the above technical solution:

The microphone hole, the phone hands-free button, and the power button are located on the same straight line, and the microphone hole, the phone hands-free button, and the power button are located on the right back side of the power information display screen.

The utility model has the following beneficial effects:

Compared with the traditional technology, the multi-functional earphone charging box that can play audio and answer calls is equipped with a tweeter and a subwoofer, and the sound effect is very good. It can realize the function of a Bluetooth speaker and connect a mobile phone or other audio player through a Bluetooth chip. , After turning on the power switch, the audio can be played, and there is a microphone head. When someone calls, press the hands-free button of the phone to connect the phone. In addition, it can charge various electrical devices such as mobile phones.

Description of drawings

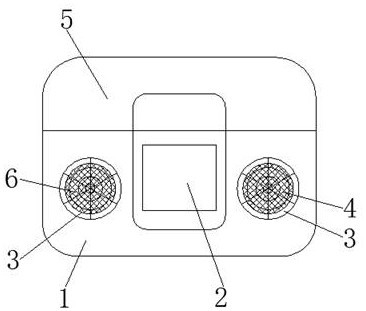

1 is a front view of a multifunctional earphone charging compartment that can play audio and answer calls proposed by the utility model;

FIG. 2 is a rear view of a multifunctional earphone charging compartment that can play audio and answer calls proposed by the utility model;

FIG. 3 is an open-top view of a multifunctional earphone charging compartment that can play audio and answer calls according to the present invention;

4 is a top view of a multifunctional earphone charging compartment that can play audio and can answer calls proposed by the utility model;

FIG. 5 is a bottom view of a charging compartment for a multi-functional earphone that can play audio and answer calls according to the present invention.

illustration:

1. Headphone compartment main body; 2. Power information display screen; 3. Speaker net; 4. Tweeter; 5. Headphone cover; 6. Subwoofer; 7. Microphone hole; 8. Hands-free button for telephone; 9. , power button; 10, headphone on the warehouse; 11, bluetooth headset; 12, headset charging under the warehouse; 13, circuit board; 14, microphone head; 15, Bluetooth chip; 16, charging interface; 17, lithium battery.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation to the present invention; the terms "first", "second" and "third" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance. In addition, Unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, an indirect connection through an intermediate medium, or an internal connection between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

1-5, the utility model provides a multi-functional earphone charging compartment that can play audio and answer calls: including an earphone compartment main body 1, an earphone upper compartment cover 5, and the earphone upper compartment cover 5 is rotatably connected to the earphone compartment main body 1, the front side of the main body 1 of the headphone compartment is provided with a power information display screen 2, which is used to display the remaining power of the lithium battery 17, and a tweeter 4 is set on the right side of the power information display screen 2, which is used for audio playback and has Treble sound effect, the left side of the battery information display screen 2 is provided with a subwoofer 6, which is used for audio playback and has a subwoofer sound effect. Phone hands-free button 8, when someone calls, press the phone hands-free button 8 to connect the call, the upper side of the phone hands-free button 8 is provided with a power button 9, which is used to turn on or off playback audio, and the headset compartment The bottom surface of the main body 1 is provided with a charging interface 16 for charging the lithium battery 17 or charging various electrical devices such as mobile phones. An earphone charging lower compartment 12 is provided for placing and charging the Bluetooth earphone 11. A circuit board 13 is provided inside the main body 1 of the earphone compartment and located on the rear side of the microphone 14, and the front surface of the circuit board 13 is provided with a microphone 14. For realizing a call, the microphone head 14 is facing the microphone head hole 7, and the right side of the microphone head 14 is provided with a Bluetooth chip 15 for connecting to a mobile phone or other audio players.

The tweeter 4 is horizontally aligned with the subwoofer 6, and the front side of the headphone compartment main body 1 is provided with a speaker net 3 on the front side of the tweeter 4 and the subwoofer 6, and the tweeter 4 and the subwoofer 6 are protected. A lithium battery 17 is arranged inside the bin body 1 and located on the lower side of the lower bin 12 for charging the earphone, and the lithium battery 17 is located on the upper side of the charging interface 16 . With the cap facing outwards, the microphone hole 7, the phone hands-free button 8, and the power button 9 are located on the same straight line, and the microphone hole 7, the phone hands-free button 8, and the power button 9 are located on the back side of the battery information display screen 2.

Working principle: Pair and connect a mobile phone or other audio player on the Bluetooth chip 15, press the power button 9 to start audio playback, the tweeter 4 and the subwoofer 6 can achieve different playback sound effects, when someone calls, press Press the phone hands-free button 8 to connect to the phone. When the Bluetooth headset 11 is out of power, it can be charged by placing the headset into the lower charging compartment 12. The charging interface 16 can be used to charge various electrical devices such as mobile phones.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model, All should be included within the protection scope of the present invention.

Claims (5)

1. A multifunctional earphone charging compartment capable of playing audio and answering calls, comprising an earphone compartment body (1) and an earphone upper compartment cover (5), characterized in that the earphone upper compartment cover (5) is rotatably connected to the earphone compartment cover (5). The rear side of the headphone compartment main body (1), the front side of the headphone compartment main body (1) is provided with a power information display screen (2), and the right side of the power information display screen (2) is provided with a tweeter (4) , a subwoofer (6) is arranged on the left side of the power information display screen (2), the rear side of the headphone compartment main body (1) penetrates the microphone hole (7), and the microphone hole (7) A phone hands-free button (8) is arranged on the upper side, a power button (9) is arranged on the upper side of the phone hands-free button (8), and a charging interface (16) is arranged on the lower bottom surface of the earphone compartment main body (1). , the lower side of the earphone upper compartment cover (5) is provided with an earphone upper compartment (10), the earphone compartment main body (1) is provided with an earphone charging lower compartment (12) inside, and the earphone compartment main body (1) A circuit board (13) is provided inside and on the rear side of the microphone head (14), the front surface of the circuit board (13) is provided with a microphone head (14), and the microphone head (14) is facing the microphone head At the hole (7), a Bluetooth chip (15) is provided on the right side of the microphone head (14). 2. A multifunctional earphone charging compartment capable of playing audio and answering calls according to claim 1, characterized in that: the tweeter (4) is horizontally aligned with the subwoofer (6), and the earphone compartment is A speaker net (3) is arranged on the front side of the main body (1) and located on the front side of the tweeter (4) and the subwoofer (6). 3. A multifunctional earphone charging compartment capable of playing audio and answering calls according to claim 1, characterized in that: the earphone compartment main body (1) is located inside and under the earphone charging lower compartment (12). A lithium battery (17) is provided on the side, and the lithium battery (17) is located on the upper side of the charging interface (16). 4. A multifunctional earphone charging compartment capable of playing audio and answering calls according to claim 1, characterized in that: a Bluetooth earphone (11) is provided inside the earphone charging lower compartment (12), and the The rubber cap of the Bluetooth headset (11) faces outwards. 5. The multifunctional earphone charging bin capable of playing audio and answering calls according to claim 1, characterized in that: the microphone hole (7), the phone hands-free button (8), the power button (9) ) are located on the same straight line, and the microphone hole (7), the phone hands-free button (8), and the power button (9) are located on the right rear side of the power information display screen (2).
