Abstract

The utility model discloses a spraying device for processing automobile parts, which comprises a spraying box; a pretreatment chamber, a spraying chamber and a drying chamber are arranged on one side inside the spraying box; the bottom of the spraying box is provided with a spraying table, a sliding rail is arranged on the spraying table, a sliding block is arranged on the sliding rail, a rotating motor is arranged on the sliding block, the output end of the rotating motor is provided with a rotating disc, and a part clamping structure is arranged on the rotating disc; an electric heater is arranged in the pretreatment chamber; a spraying machine is arranged in the spraying chamber, and the output end of the spraying machine is communicated with a spraying structure; and a hot air unit is arranged in the drying chamber. The utility model discloses a pretreatment room, spray booth and the drying chamber of setting in the spraying incasement preheat, spraying and drying work in proper order waiting to spray automobile parts, and the ring is detained mutually, the effectual spraying efficiency and the quality that improves automobile parts.

Description

Spraying device is used in automobile parts processing
Technical Field
The utility model relates to an automobile parts processing equipment field specifically is a spraying device is used in automobile parts processing.
Background
With the application of high-tech science and technology, the technical level of industrial production is continuously improved, the requirements on the comprehensive performance of mechanical parts are higher and higher, and the improvement of the surface performance of the parts becomes a research hotspot. The spraying technology is one of the most effective technologies for endowing new functions on the surface of a material in the field of surface engineering, and is widely applied to the technical fields of automobiles, instruments, enamel and the like. The spray coating is a coating method in which a spray liquid is dispersed into uniform and fine droplets by pressure by a spray gun and applied to the surface of an object to be coated. However, the existing spraying process is simple, the coated object enters a spraying chamber for spraying without any treatment, so that the spraying quality is poor, the sprayed product is not subjected to subsequent treatment, unqualified products cannot be directly sorted, and the unqualified products are increased.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a spraying device is used in automobile parts processing to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a spraying device for processing automobile parts comprises a spraying box; a pretreatment chamber, a spraying chamber and a drying chamber are arranged on one side inside the spraying box; the bottom of the spraying box is provided with a spraying table, a sliding rail is arranged on the spraying table, a sliding block is arranged on the sliding rail, a rotating motor is arranged on the sliding block, the output end of the rotating motor is provided with a rotating disc, and a part clamping structure is arranged on the rotating disc; an electric heater is arranged in the pretreatment chamber, and the electric heater is electrically connected with a temperature control switch; a spraying machine is arranged in the spraying chamber, and the output end of the spraying machine is communicated with a spraying structure; the input end of the coating machine is communicated with a coating box through a conveying pipe, and a conveying pump is arranged between the coating machine and the coating box; and a hot air unit is arranged in the drying chamber.
Preferably, the turntable takes the part clamping structure as a center, is of an arc-shaped groove structure at the periphery, and plays a role in collecting waste materials, excess materials and dust generated on the sprayed parts in the working process of the turntable.
Preferably, a cleaning rotating motor is arranged inside the pretreatment chamber, the cleaning rotating motor is movably connected with a cleaning rod, and one end of the cleaning rod, which is far away from the cleaning rotating motor, is connected with a dust removal brush; install dust collection structure on the inner wall of preliminary treatment room, dust collection structure intercommunication has the dust removal case, and through cleaning the rotating electrical machines and cleaning the cooperation between the pole, the spraying face of utilizing the dust removal brush on to the spraying part carries out the surface cleaning work, and the dust that produces when clearing up passes through dust collection structure and sucks it to the dust removal case, carries out dust removal work.
Preferably, be provided with the waste material screen cloth on the upper surface of carousel, the bottom of waste material screen cloth is provided with the waste material chamber, and one side in waste material chamber is provided with the bin outlet, installs the relief valve on the bin outlet, and at the in-process of carousel work, waste material, clout and the dust that produce on the spraying part get into the waste material chamber via the waste material screen cloth to discharge through the bin outlet.
Preferably, scribble the top of paint box and install agitator motor, agitator motor is connected with the (mixing) shaft, install the puddler of a plurality of slope structure on the (mixing) shaft, the puddler is kept away from one of (mixing) shaft and is served and install solid material strainer bag, cooperation through agitator motor and (mixing) shaft, between the puddler is to scribbling the coating of incasement and lasting, abundant stirring, mixing work, solid material strainer bag on the puddler is salvaged and filtering work to the solid state coating that the initial stage has not fully mixed yet, and at the stirring in-process that the puddler lasts, solid state coating mixes gradually, dissolves to in the coating.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a pretreatment room, spray booth and the drying chamber of setting in the spraying incasement preheat, spraying and drying work in proper order waiting to spray automobile parts, and the ring is detained mutually, the effectual spraying efficiency and the quality that improves automobile parts.
2. The utility model discloses a cooperation of rotating electrical machines and carousel is realized having improved the homogeneity of automobile parts spraying to the rotatory work of part clamping structure on the carousel, and the waste material screen cloth that sets up on the carousel and waste material chamber play the effect of collecting to waste material, clout and the dust that produces on the spraying part, reduce secondary pollution, and be convenient for clear up.
Drawings

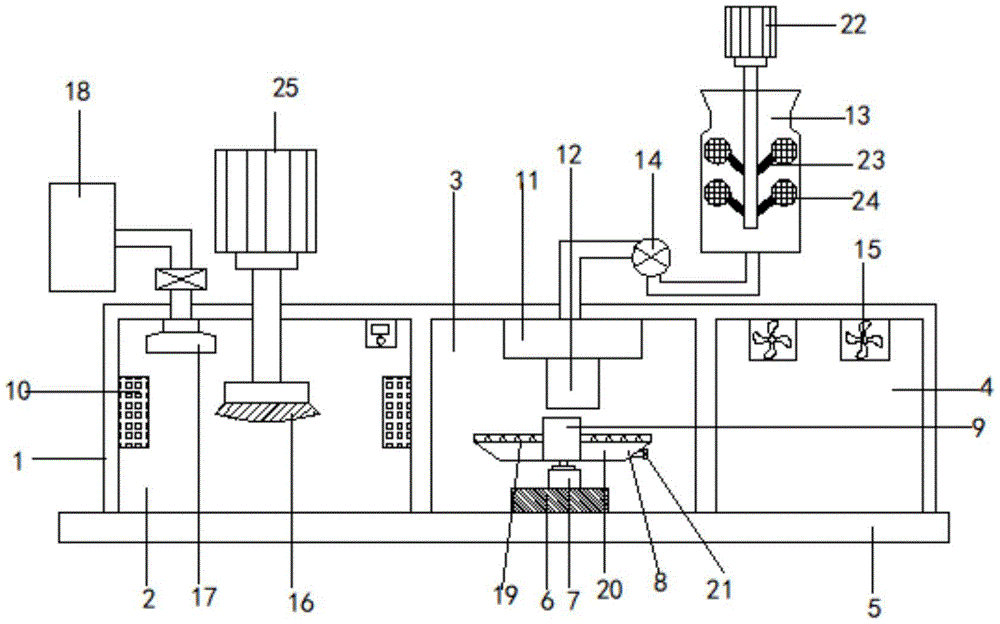

Fig. 1 is a schematic view of the overall structure of the present invention.
In the figure: 1. a spraying box; 2. a pretreatment chamber; 3. a spray chamber; 4. a drying chamber; 5. a spraying table; 6. a slider; 7. a rotating electric machine; 8. a turntable; 9. a part clamping structure; 10. an electric heater; 11. a spray coater; 12. spraying a structure; 13. a paint tank; 14. a delivery pump; 15. a hot air unit; 16. a dust removal brush; 17. a dust collection structure; 18. a dust removal box; 19. a waste screen; 20. a waste chamber; 21. a discharge valve; 22. a stirring motor; 23. a stirring rod; 24. a solid material filter screen bag; 25. cleaning the rotating motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Referring to fig. 1, the present invention provides a technical solution: a spraying device for processing automobile parts comprises a spraying box 1; a pretreatment chamber 2, a spraying chamber 3 and a drying chamber 4 are arranged on one side inside the spraying box 1; the bottom of the spraying box 1 is provided with a spraying table 5, a sliding rail is arranged on the spraying table 5, a sliding block 6 is arranged on the sliding rail, a rotating motor 7 is arranged on the sliding block 6, the output end of the rotating motor 7 is provided with a rotating disc 8, and a part clamping structure 9 is arranged on the rotating disc 8; an electric heater 10 is arranged in the pretreatment chamber 2, and the electric heater 10 is electrically connected with a temperature control switch; a spraying machine 11 is arranged in the spraying chamber 3, and the output end of the spraying machine 11 is communicated with a spraying structure 12; the input end of the coating machine 11 is communicated with a coating tank 13 through a conveying pipe, and a conveying pump 14 is arranged between the coating machine 11 and the coating tank 13; the drying chamber 4 is internally provided with a hot air blower unit 15.
Further, the turntable 8 takes the part clamping structure 9 as a center and is provided with an arc-shaped groove structure at the periphery.
Further, a cleaning rotating motor 25 is arranged in the pretreatment chamber 2, the cleaning rotating motor 25 is movably connected with a cleaning rod, and one end of the cleaning rod, which is far away from the cleaning rotating motor 25, is connected with a dust removal brush 16; the inner wall of the pretreatment chamber 2 is provided with a dust collection structure 17, and the dust collection structure 17 is communicated with a dust removal box 18.
Further, a waste screen 19 is arranged on the upper surface of the rotating disc 8, a waste cavity 20 is arranged at the bottom of the waste screen 19, a discharge opening is arranged on one side of the waste cavity 20, and a discharge valve 21 is arranged on the discharge opening.
Further, a stirring motor 22 is installed at the top end of the coating box 13, the stirring motor 22 is connected with a stirring shaft, a plurality of stirring rods 23 with inclined structures are installed on the stirring shaft, and a solid material filter screen bag 24 is installed at one end, far away from the stirring shaft, of each stirring rod 23.
The working principle is as follows: before the coating spraying work is carried out on the automobile parts, an operator firstly places the automobile parts on the part clamping structure 9, clamps and fixes the automobile parts, then switches on an external power supply, starts the rotating motor 7 and drives the spraying surfaces of the parts to rotate through the turntable 8; meanwhile, the stirring motor 22 on the paint tank 13 is started, the paint in the paint tank 13 is continuously and fully stirred and mixed through the matching between the stirring shaft and the stirring rod 23, the solid material filter bag 24 on the stirring rod 23 is used for fishing and filtering the solid paint which is not fully mixed in the initial stage, and the solid paint is gradually mixed and dissolved into the paint in the continuous stirring process of the stirring rod 23.
Then through the cooperation between slide rail and the slider 6, with spare part displacement to in the preliminary treatment room 2, then through the temperature detect switch control electric heater 10 the temperature to carry out preheating work to the spraying face of spare part, start simultaneously and clean rotating electrical machines 25, carry out the surface cleaning work to the spraying face on the spare part through cleaning rod and dust removal brush 16, and the dust that produces during the clearance is through dust collection structure 17 with its suction to dust removal case 18, carry out dust removal work.
The preheated parts are moved into the spraying chamber 3 by the slide block, the paint fully stirred in the paint tank 13 is conveyed into the spraying machine 11 by the material conveying pump 14 through the material conveying pipe, and the spraying surface of the parts is sprayed by the spraying structure 12. The parts after being sprayed are dried by the hot air unit 15 in the drying chamber 4, and all the processes are circularly buckled, so that the spraying efficiency and quality of the automobile parts are effectively improved.
It is worth noting that: the whole device realizes control over the device through the switch, and the device matched with the switch is a common device, belongs to the existing mature technology, and the electrical connection relation and the specific circuit structure of the device are not repeated.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (5)

1. The utility model provides a spraying device is used in automobile parts processing which characterized in that: comprises a spraying box (1); a pretreatment chamber (2), a spraying chamber (3) and a drying chamber (4) are arranged on one side in the spraying box (1); the bottom of the spraying box (1) is provided with a spraying table (5), a sliding rail is arranged on the spraying table (5), a sliding block (6) is arranged on the sliding rail, a rotating motor (7) is arranged on the sliding block (6), the output end of the rotating motor (7) is provided with a rotating disc (8), and a part clamping structure (9) is arranged on the rotating disc (8); an electric heater (10) is arranged in the pretreatment chamber (2), and the electric heater (10) is electrically connected with a temperature control switch; a spraying machine (11) is arranged in the spraying chamber (3), and the output end of the spraying machine (11) is communicated with a spraying structure (12); the input end of the coating machine (11) is communicated with a coating box (13) through a delivery pipe, and a delivery pump (14) is arranged between the coating machine (11) and the coating box (13); and a hot air unit (15) is arranged in the drying chamber (4).
2. The spray coating device for processing the automobile parts according to claim 1, wherein: the turntable (8) takes the part clamping structure (9) as a center and is provided with an arc-shaped groove structure at the periphery.
3. The spray coating device for processing the automobile parts according to claim 1, wherein: a cleaning rotating motor (25) is arranged in the pretreatment chamber (2), a cleaning rod is movably connected with the cleaning rotating motor (25), and one end of the cleaning rod, which is far away from the cleaning rotating motor (25), is connected with a dust removal brush (16); and a dust collection structure (17) is arranged on the inner wall of the pretreatment chamber (2), and the dust collection structure (17) is communicated with a dust removal box (18).
4. The spray coating device for processing the automobile parts according to claim 1, wherein: be provided with waste material screen cloth (19) on the upper surface of carousel (8), the bottom of waste material screen cloth (19) is provided with waste material chamber (20), and one side of waste material chamber (20) is provided with the bin outlet, installs relief valve (21) on the bin outlet.
5. The spray coating device for processing the automobile parts according to claim 1, wherein: coating tank (13)'s top is installed agitator motor (22), and agitator motor (22) are connected with the (mixing) shaft, install puddler (23) of a plurality of slope structure on the (mixing) shaft, and puddler (23) are kept away from one of (mixing) shaft and are served and install solid material filter screen bag (24).
