Abstract

The utility model discloses an aluminum plate rapid cutting machine, which comprises a cutting table, two fixing plates are fixedly arranged on one side of the top of the cutting table, two fixing rods are fixedly arranged on the top of one side of the fixing plate, and the outer walls of the two fixing rods are A slider is slidably connected, a push plate is fixed in the middle of the bottom end of the slider, a bracket plate is fixed on one side of both ends of the cutting table, two cylinders are fixedly installed at the bottom end of the bracket plate, and the telescopic ends of the two cylinders are fixedly installed. There is a pressure plate, and two vertical plates are fixed on the other side of the top of the cutting table. The top of the two vertical plates is rotatably connected with a rotating rod. One side of the outer wall of the rotating rod is fixed with two long rods, and the bottom of the outer wall of the two long rods is fixed. One side of the end is fixedly provided with a U-shaped frame, and the middle part of the outer wall of the U-shaped frame is rotatably connected with a pressing roller. The other side is fixed. When the cutting machine is cutting, the aluminum plates on both sides of the slot are fixed.

Description

A kind of aluminum plate fast cutting machine

technical field

The utility model relates to a cutting machine, in particular to a rapid cutting machine for aluminum plates.

Background technique

Aluminum plate refers to aluminum materials with a thickness of more than 0.2mm to less than 500mm, a width of more than 200mm, and a length of less than 16m called aluminum plates or aluminum sheets, aluminum materials less than 0.2mm, and rows or strips within 200mm width (of course. With the progress of large equipment, there are many aluminum plates with a maximum width of 600mm). Aluminum plate refers to a rectangular plate rolled and processed from aluminum ingots. It is divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium and thick aluminum plate, and patterned aluminum plate. When the aluminum plate is processed, it usually needs to carry out several processes of water washing, degreasing, acid washing, alkali washing, water washing, drying, cutting, film coating and collection.

For cutting aluminum plates, the existing processing methods often use cutting machines to cut, but there are still some shortcomings. The existing cutting machines have a relatively simple fixed limit structure for cutting aluminum plates, and the fixing effect of cutting aluminum plates is general. , and only one side of the aluminum plate to be cut is fixed and limited, so when the aluminum plate is cut, the aluminum plate will shake greatly, affecting the cutting effect, and the yield is low. At the same time, it will cause the aluminum plate and the cutting machine. The angle between the blades is shifted, and the blade may even be stuck, and there is a certain safety hazard. Based on this, a rapid cutting machine for aluminum plates and a method for using the same are provided.

Utility model content

The purpose of the present utility model is to provide a fast cutting machine for aluminum plates, so as to solve the problem that the existing cutting machine proposed in the above-mentioned background technology has a relatively simple fixing and limiting structure of the aluminum plate to be cut, the fixing effect of the aluminum plate to be cut is general, and only the aluminum plate to be cut is to be cut. The problem of fixing the limit on one side.

In order to achieve the above purpose, the present utility model provides the following technical solutions: an aluminum plate rapid cutting machine, comprising a cutting table, one side of the top of the cutting table is fixedly provided with two fixing plates, and the top of one side of the fixing plate is fixedly provided with two fixing plates. There are two fixed rods, the outer walls of the two fixed rods are slidably connected with sliders, the middle of the bottom end of the slider is fixed with a push plate, and one side of the two ends of the cutting table is fixed with a bracket plate, the bracket The bottom end of the plate is fixedly installed with two cylinders, the telescopic ends of the two cylinders are fixedly provided with pressure plates, the tops of the two pressure plates are provided with anti-skid lines, and the middle of the top of the cutting table is provided with a knife slot. , the other side of the top of the cutting table is fixed with two vertical plates, the top of the two vertical plates is rotatably connected with a rotating rod, and one side of the outer wall of the rotating rod is fixed with two long rods, two A U-shaped frame is fixed on one side of the bottom end of the outer wall of the long rod, a pressing roller is rotatably connected to the middle of the outer wall of the U-shaped frame, and a support cabinet is fixed at the bottom end of the cutting table.

As a preferred technical solution of the present invention, a base is fixed inside the support cabinet, two hydraulic cylinders are fixedly installed on one side of the top of the base, and a lift table is fixed at the telescopic end of the hydraulic cylinder. A cutting machine is fixedly installed on the top of the lifting platform, and the position of the blade of the cutting machine matches the position of the knife slot.

As a preferred technical solution of the present invention, a slot is opened on one side of the top of the two sliders, and a wedge-shaped block is connected to the inside of the two slots. One side is respectively contacted and connected with the outer wall of the corresponding fixing rod.

As a preferred technical solution of the present invention, tension springs are fixed at the middle of the bottom ends of the outer walls of the two long rods, and two hooks are fixed at the other side of the top of the cutting table. The hooks are respectively connected with the rings at the bottom of the corresponding extension springs.

As a preferred technical solution of the present invention, two sides of the fixing plates close to each other are fitted with water-absorbing sponges, and the tops of the two fixing plates are fixedly provided with water bladders, and the two water One side of the outer wall of the bag is provided with a plurality of water outlet micro-holes, the positions of the water outlet micro-holes match the position of the water-absorbing sponge, the tops of the outer walls of the two water bags are provided with water inlets, and the two water inlets are provided with water inlets. There are sealing plugs inside.

As a preferred technical solution of the present invention, the middle part of one end of the support cabinet is fixed with a side plate, the top of the side plate is placed with a collection box, and the tops of both ends of the collection box are slidably connected with L-shaped clamping blocks , the other sides of the two ends of the cutting table are fixedly provided with clamping columns, and the two clamping columns are respectively connected with the corresponding L-shaped clamping blocks.

As a preferred technical solution of the present invention, the two air cylinders, the two hydraulic oil cylinders and the cutting machine are respectively electrically connected to an external power source through the air cylinder switch, the hydraulic oil cylinder switch and the cutting machine switch.

A method of using an aluminum plate fast cutting machine. When cutting an aluminum plate to be cut, sliding the slider drives a push plate to push the to-be-cut aluminum plate to move in a direction close to a fixed plate. The two sides are limited. After the limit is completed, the two wedge-shaped blocks are inserted into the corresponding slots, and the two wedge-shaped blocks clamp the corresponding fixing rods, so that the two sliding blocks remain fixed, and the two wedge-shaped blocks remain fixed. The telescopic end of the cylinder moves downward, driving the pressure plate to fix the top of the aluminum plate to be cut, the two hydraulic cylinders push the lifting platform to move upward, and the blade of the cutting machine protrudes from the knife slot to cut the aluminum plate to be cut.

Preferably, when the aluminum plate to be cut is being cut, the pressing roller will be fixed on one side of the cut aluminum plate, the collection box is used to receive the cut aluminum plate, and the two L-shaped blocks are clamped on the corresponding clamping posts. , so that the collection box remains stable.

Preferably, the water inside the two water bladders flows out through the water outlet micropores to wet the water-absorbing sponge. When the cutting machine is cutting, there will be small splashes of aluminum powder, and the wetted water-absorbing sponge will absorb the splashed aluminum powder. Lose.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The utility model is a rapid cutting machine for aluminum plates and a method of using the same. The cooperation of the push plate and a fixed plate completes the limit on the left and right sides of the aluminum plate to be cut, and reduces the displacement of the left and right sides when the aluminum plate to be cut is cut. The falling of the pressure plate will fix the aluminum plate to be cut, the push plate and a fixing plate, the cylinder and the pressure plate will limit and fix one side of the aluminum plate to be cut, and the pressure roller will be fixed by the other side of the aluminum plate to be cut under the action of the tension spring. , When the cutting machine cuts the aluminum plate to be cut, the aluminum plates on both sides of the slot are fixed, the fixing effect of the aluminum plate to be cut is good, and the vibration during the cutting process of the aluminum plate to be cut is small, which is conducive to improving the quality of the finished product, and the cutting machine The wear of the blade is small, which is beneficial to improve the service life of the blade;

2. The utility model is a rapid cutting machine for aluminum plates. The water inside the two water bladders flows out through the water outlet micropores to wet the water-absorbing sponge, and the wet water-absorbing sponge absorbs the splashed aluminum powder, which is beneficial to reduce dust pollution.

Description of drawings

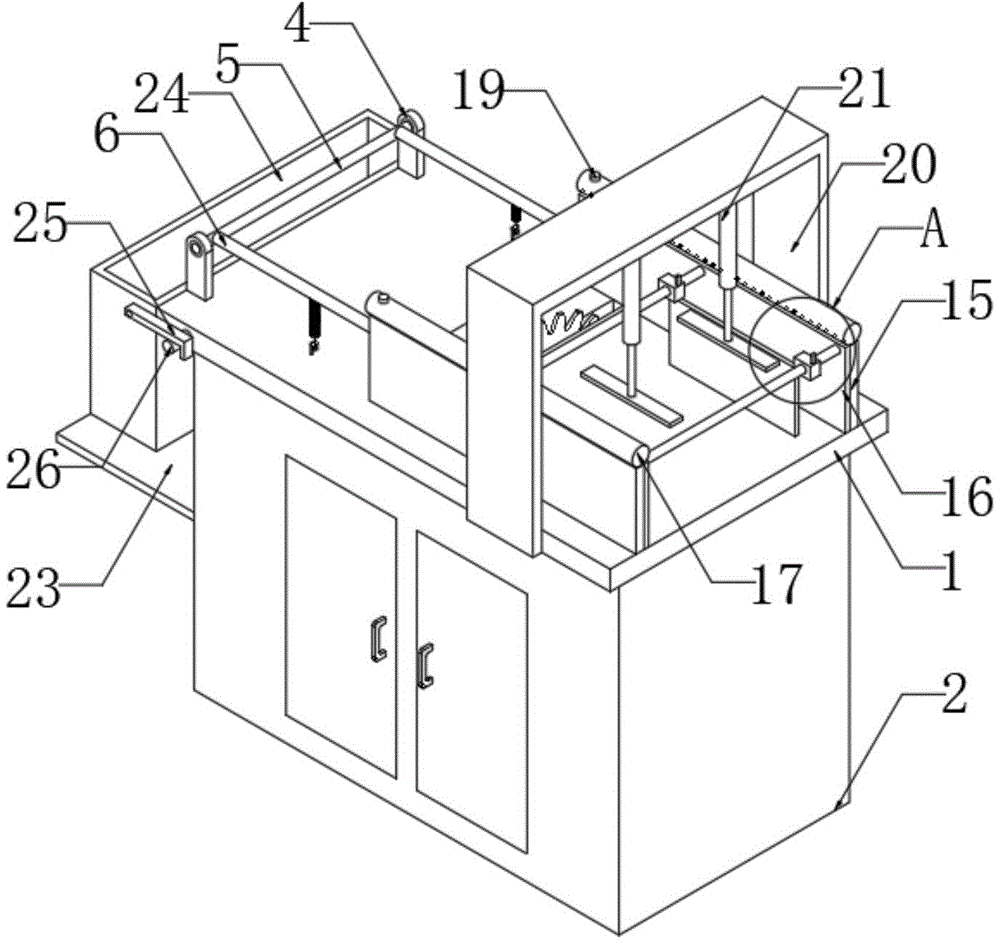

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation inside the support cabinet in the utility model;

Fig. 3 is a partial enlarged view at A in Fig. 1 of the utility model;

4 is a cross-sectional view of a slider in the utility model;

5 is a schematic structural diagram of the other side and the middle of the top of the cutting table in the present invention.

In the picture: 1. Cutting table; 2. Support cabinet; 3. Knife slot; 4. Vertical plate; 5. Rod; 6. Long rod; 7. U-shaped frame; 8. Press roller; 9. Tension spring ; 10, hook; 11, base; 12, hydraulic cylinder; 13, lift table; 14, cutting machine; 15, fixed plate; 16, water absorbing sponge; 17, water bladder; 18, water outlet hole; 19, sealing plug ;20, bracket plate; 21, cylinder; 22, pressure plate; 23, side plate; 24, collection box; 25, L-shaped clip; 26, clip column; 27, fixed rod; 28, slider; 29, slot ; 30, wedge block; 31, push plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-5, the present utility model provides a technical scheme of an aluminum plate rapid cutting machine:

As shown in FIGS. 1-5 , it includes a cutting table 1 , two fixing plates 15 are fixed on one side of the top of the cutting table 1 , two fixing rods 27 are fixed on the top of one side of the fixing plate 15 , and the two fixing rods 27 A sliding block 28 is slidably connected to the outer wall of the sliding block 28, a slot 29 is opened on one side of the top of the two sliding blocks 28, and a wedge-shaped block 30 is connected to the inside of the two slots 29. One side of the two wedge-shaped blocks 30 is respectively Contact with the outer wall of the corresponding fixed rod 27, the middle of the bottom end of the slider 28 is fixed with a push plate 31, the sliding slider 28 drives the push plate 31 to move, and pushes the aluminum plate to be cut to move in a direction close to a fixed plate 15, through the push plate The cooperation of 31 and a fixing plate 15 completes the limit on the left and right sides of the aluminum plate to be cut, and reduces the displacement of the left and right sides when the aluminum plate to be cut is cut. Two air cylinders 21 are fixedly installed at the bottom end, the telescopic ends of the two air cylinders 21 are fixedly provided with pressure plates 22, and the tops of the two pressure plates 22 are provided with anti-skid lines. The plate 31 and a fixing plate 15 as well as the cylinder 21 and the pressing plate 22 are used to limit and fix one side of the aluminum plate to be cut.

The middle of the top of the cutting table 1 is provided with a knife slot 3, and the other side of the top of the cutting table 1 is fixedly provided with two vertical plates 4. The tops of the two vertical plates 4 are rotatably connected with a rotating rod 5. Two long rods 6 are fixed on the side, and a U-shaped frame 7 is fixed on one side of the bottom end of the outer wall of the two long rods 6. The middle part of the outer wall of the U-shaped frame 7 is rotatably connected with a pressing roller 8. A tension spring 9 is fixed in the middle, and two hooks 10 are also fixed on the other side of the top of the cutting table 1. The two hooks 10 are respectively connected with the ring at the bottom of the corresponding tension spring Under the action of the tension spring 9, the other side of the aluminum plate to be cut is fixed, the bottom end of the cutting table 1 is fixed with a support cabinet 2, the interior of the support cabinet 2 is fixed with a base 11, and one side of the top of the base 11 is fixed Two hydraulic cylinders 12 are installed, the telescopic end of the hydraulic cylinder 12 is fixedly provided with a lifting table 13, and the top of the lifting table 13 is fixedly installed with a cutting machine 14, the position of the blade of the cutting machine 14 matches the position of the knife slot 3, and the two The two hydraulic cylinders 12 push the lifting platform 13 to move upward, and the blade of the cutting machine 14 protrudes from the cutting groove 3 to cut off the aluminum plate to be cut. The hydraulic cylinder switch and the cutting machine switch are electrically connected with the external power supply.

Then, the sides of the two fixing plates 15 that are close to each other are fitted with water-absorbing sponges 16, the tops of the two fixing plates 15 are fixedly provided with water bladders 17, and one side of the outer walls of the two water bladders 17 is provided with a plurality of water outlets Micro-hole 18, the position of the water outlet micro-hole 18 matches the position of the water-absorbing sponge 16, the water outlet micro-hole 18 has a very small aperture, and the water flows out slowly, but when there is water in the water bag 17, it will keep leaking and leaking out. The water in the water is absorbed by the water-absorbing sponge 16, so that the water-absorbing sponge 16 is kept moist. The tops of the outer walls of the two water bladders 17 are provided with water inlets, and the interiors of the two water inlets are provided with sealing plugs 19.

Finally, the middle part of one end of the support cabinet 2 is fixedly provided with a side plate 23, the top of the side plate 23 is placed with a collection box 24, the cut aluminum plate will be slowly pushed to the collection box 24, and finally fall to the inside of the collection box 24, After the collection is completed, the tops of both ends of the collection box 24 are slidably connected with L-shaped clamping blocks 25, and the other sides of the two ends of the cutting table 1 are fixedly provided with clamping posts 26, and the two clamping posts 26 are respectively connected with the corresponding L-shaped clamping blocks 25. , when the cut aluminum plate falls to the inside of the collection box 24, the collection box 24 will shake, and the L-shaped block 25 and the clamping column 26 are provided to fix the collection box 24, so that the collection box 24 remains stable.

When specifically used, the utility model is a rapid cutting machine for aluminum plates and a method of using the same. First, the aluminum plate to be cut is placed on the top of the cutting table 1. When the aluminum plate to be cut is cut, the wedge block 30 is first pulled out, and the slider is slid. 28 Drive the push plate 31 to push the aluminum plate to be cut to move in a direction close to a fixed plate 15. The push plate 31 and a fixed plate 15 limit both sides of the aluminum plate to be cut. After the limit is completed, insert the two wedge blocks 30 into Corresponding to the slot 29, the two wedge-shaped blocks 30 clamp the corresponding fixing rods 27, so that the two sliders 28 remain fixed, and push the aluminum plate to be cut to move in the direction close to the knife slot 3, and the pressing roller 8 is in the tension spring 9. The other side of the aluminum plate to be cut will be fixed under the action of the machine. After the aluminum plate to be cut is pushed to a suitable distance, the cylinder switch is turned on, and the telescopic ends of the two air cylinders 21 will move downward, driving the pressure plate 22 to fix the top of the aluminum plate to be cut. Then turn on the switch of the hydraulic cylinder and the switch of the cutting machine, the two hydraulic cylinders 12 push the lift table 13 to move upward, the blade of the cutting machine 14 protrudes from the cutting slot 3, and cuts off the aluminum plate to be cut. After the cutting is completed, the hydraulic cylinder 12 drives the cutting machine. 14 retract, then control the cylinder 21 to rise, continue to push the aluminum plate to be cut for cutting, the cut aluminum plate will be slowly pushed to the inside of the collection box 24 to be collected, the collection box 24 is used to receive the cut aluminum plate, the collection box After 24 is full, turn the L-shaped block 25 so that the L-shaped block 25 is separated from the clamping column 26, replace it with a new collection box 24, and turn the L-shaped block 25, so that the two L-shaped blocks 25 are stuck in the corresponding On the clamping column 26, the collection box 24 is kept stable, the sealing plug 19 is opened, water is added to the inside of the water bladder 17, the water in the two water bladders 17 flows out through the water outlet micro-holes 18, and the water-absorbing sponge 16 is wetted. When cutting, there will be small splashes of aluminum powder, and the wet absorbent sponge 16 will absorb the splashed aluminum powder.

In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying the indicated The device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

In the present utility model, unless otherwise expressly specified and limited, for example, it may be a fixed connection, a detachable connection, or an integrated; it may be a mechanical connection or an electrical connection; it may be a direct connection, or a It can be indirectly connected through an intermediate medium, it can be the internal communication between two elements or the interaction relationship between the two elements, unless otherwise clearly defined, for those of ordinary skill in the art, the above terms can be understood according to specific situations in this document. The specific meaning in the utility model.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides an aluminum plate quick cutter, includes tailoring table (1), its characterized in that: two fixing plates (15) are fixedly arranged on one side of the top end of the cutting table (1), two fixing rods (27) are fixedly arranged on the top of one side of each fixing plate (15), sliding blocks (28) are connected to the outer walls of the two fixing rods (27) in a sliding mode, a push plate (31) is fixedly arranged in the middle of the bottom end of each sliding block (28), a support plate (20) is fixedly arranged on one side of each of the two ends of the cutting table (1), two air cylinders (21) are fixedly arranged at the bottom end of each support plate (20), pressing plates (22) are fixedly arranged at the telescopic ends of the two air cylinders (21), anti-skidding patterns are arranged at the top ends of the two pressing plates (22), a cutter outlet groove (3) is formed in the middle of the top end of the cutting table (1), two vertical plates (4) are fixedly arranged on the other side of the top end of the, one side of bull stick (5) outer wall is fixed and is equipped with two stock (6), two one side of stock (6) outer wall bottom is fixed and is equipped with U type frame (7), the middle part of U type frame (7) outer wall is rotated and is connected with compression roller (8), the bottom mounting of tailoring table (1) is equipped with supporting cabinet (2).

2. The aluminum plate rapid cutting machine according to claim 1, characterized in that: the utility model discloses a supporting cabinet, including supporting cabinet (2), one side fixed mounting on base (11) top has two hydraulic cylinder (12), the flexible end of hydraulic cylinder (12) is fixed and is equipped with elevating platform (13), the top fixed mounting of elevating platform (13) has cutting machine (14), the position of cutting machine (14) blade and the position phase-match of going out sword groove (3).

3. The aluminum plate rapid cutting machine according to claim 1, characterized in that: two slot (29) have all been seted up to one side on slider (28) top, two the inside equal block of slot (29) is connected with wedge (30), two one side of wedge (30) is connected with the outer wall contact that corresponds dead lever (27) respectively.

4. The aluminum plate rapid cutting machine according to claim 1, characterized in that: two extension spring (9) are all fixed to be equipped with in the middle part of stock (6) outer wall bottom, the opposite side on tailoring platform (1) top still is fixed to be equipped with two pothooks (10), two pothook (10) articulate with the ring that corresponds extension spring (9) bottom respectively.

5. The aluminum plate rapid cutting machine according to claim 1, characterized in that: two one side that fixed plate (15) are close to each other all laminates and is equipped with sponge (16) that absorb water, two the top of fixed plate (15) is all fixed and is equipped with water pocket (17), two a plurality of play water micropores (18) have been seted up to one side of water pocket (17) outer wall, the position phase-match of the position of play water micropore (18) and sponge (16) that absorbs water, two the water inlet has all been seted up at the top of water pocket (17) outer wall, two the inside of water inlet all is equipped with sealing plug (19).

6. The aluminum plate rapid cutting machine according to claim 1, characterized in that: the middle part of one end of the supporting cabinet (2) is fixedly provided with a side plate (23), the top end of the side plate (23) is provided with a collecting box (24), the tops of the two ends of the collecting box (24) are connected with L-shaped clamping blocks (25) in a sliding mode, the other sides of the two ends of the cutting table (1) are fixedly provided with clamping columns (26), and the two clamping columns (26) are respectively connected with the corresponding L-shaped clamping blocks (25) in a hanging mode.

7. The aluminum plate rapid cutting machine according to claim 2, characterized in that: the two cylinders (21), the two hydraulic oil cylinders (12) and the cutting machine (14) are respectively electrically connected with an external power supply through a cylinder switch, a hydraulic oil cylinder switch and a cutting machine switch.
