Abstract
The utility model discloses a building engineering detects with subsiding detection device relates to building engineering technical field, which comprises a housin, the through-hole has been seted up to the upper surface of casing, and the inside of through-hole is equipped with the connecting plate, and tooth is installed to the right flank of connecting plate, and the last fixed surface of connecting plate even has the connecting pipe, and the inside sliding connection of connecting pipe has the bolt, and the inside rotation of casing is connected with the axis of rotation, and the mid-mounting of axis of rotation surface has the gear with tooth engaged with, and the runner is installed to the one end of axis of rotation surface, and the internally mounted of runner has wire rope, and the. The utility model relates to a rational in infrastructure, it can be measured connecting plate descending distance, has realized the detection to building settlement distance, and the surveyor of being convenient for acquires accurate settlement data, and it is more convenient to make the surveyor calculate when copying data to as for more audio-visual acquisition data.
Description
Technical Field
The utility model relates to a building engineering technical field, concretely relates to building engineering detects with subsiding detection device.
Background
The building engineering refers to an engineering entity formed by the construction of various building buildings and their auxiliary facilities and the installation of lines, pipes and equipment matched with them, wherein the building buildings refer to the engineering which has top covers, beams, columns, walls, foundations and can form internal spaces and meet the requirements of people for production, living, study and public activities.
In order to guarantee engineering quality in the building engineering work progress, need subside the detection to the building that the building was accomplished, and traditional subside detection device uses the level pipe mostly and hangs down the alignment pipe and subsides to the building and detect, can not more audio-visually acquire enough accurate settlement data. Therefore, the settlement detection device for the building engineering detection is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
One) technical problem to be solved
The utility model aims at providing a building engineering detects with subsiding detection device in order to compensate prior art not enough.
II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a settlement detection device for building engineering detection comprises a shell, wherein a through hole is formed in the upper surface of the shell, a connecting plate is arranged inside the through hole, teeth are mounted on the right side surface of the connecting plate, a connecting pipe is fixedly connected to the upper surface of the connecting plate, a bolt is slidably connected inside the connecting pipe, a rotating shaft is rotatably connected inside the shell, a gear meshed with the teeth is mounted in the middle of the outer surface of the rotating shaft, a rotating wheel is mounted at one end of the outer surface of the rotating shaft, a steel wire rope is mounted inside the rotating wheel, a pulley is mounted on the inner top wall of the shell, a guide rod is arranged inside the shell, the upper surface and the bottom surface of the guide rod are fixedly connected with the inner bottom wall of the shell and the inner top wall of the shell respectively, a guide block is slidably connected to the outer surface of the guide rod, and one end, away from the rotating wheel, the inside of casing is equipped with the scale plate, the front of casing is fixed to be inlayed and is had the observation window.
Furthermore, a first sliding groove is formed in the left side of the inner wall of the shell, a first sliding block is connected to the inside of the first sliding groove in a sliding mode, and one side face, far away from the first sliding groove, of the first sliding block is fixedly connected with the bottom of the left side face of the connecting plate.
Furthermore, the upper surface of casing is fixed and is inlayed and have the nut, the internal thread of nut is connected with the screw rod, the bottom surface of screw rod is connected with the upper surface rotation of scale plate.
Furthermore, a second sliding groove is formed in the right side of the inner wall of the shell, a second sliding block is connected to the inner portion of the second sliding groove in a sliding mode, and one side face, far away from the second sliding groove, of the second sliding block is fixedly connected with the middle of the right side face of the scale plate.
Furthermore, the bottom surface of casing is installed the bearing plate, the front spraying of scale plate has the scale mark.
Furthermore, a pointer is installed on the right side face of the guide block, and the cross section of the pointer is triangular.
Thirdly), the beneficial effects are as follows:
compared with the prior art, the settlement detection device for building engineering detection has the following beneficial effects:
one, the utility model discloses a fix the bolt on the building to make the bolt follow the building and subside the back and promote the connecting pipe and descend, thereby make the connecting pipe drive the connecting plate and move in to the casing, utilize the meshing of tooth and gear, make the axis of rotation drive the runner and rotate, and then make wire rope pulling guide block move on the guide bar, through the scale plate that sets up, can measure connecting plate descending distance, realized the detection to building settlement distance, be convenient for the surveyor to acquire accurate settlement data.
Two, the utility model discloses a set up nut, screw rod and observation window, make the screw rod go up and down at the internal rotation of nut to drive the scale plate and go up and down to remove in the casing, can make the surveyor calculate more conveniently when copying data through numerical value on the pointer indication scale plate after the plug pin is fixed, so that more audio-visual acquisition data.
Drawings

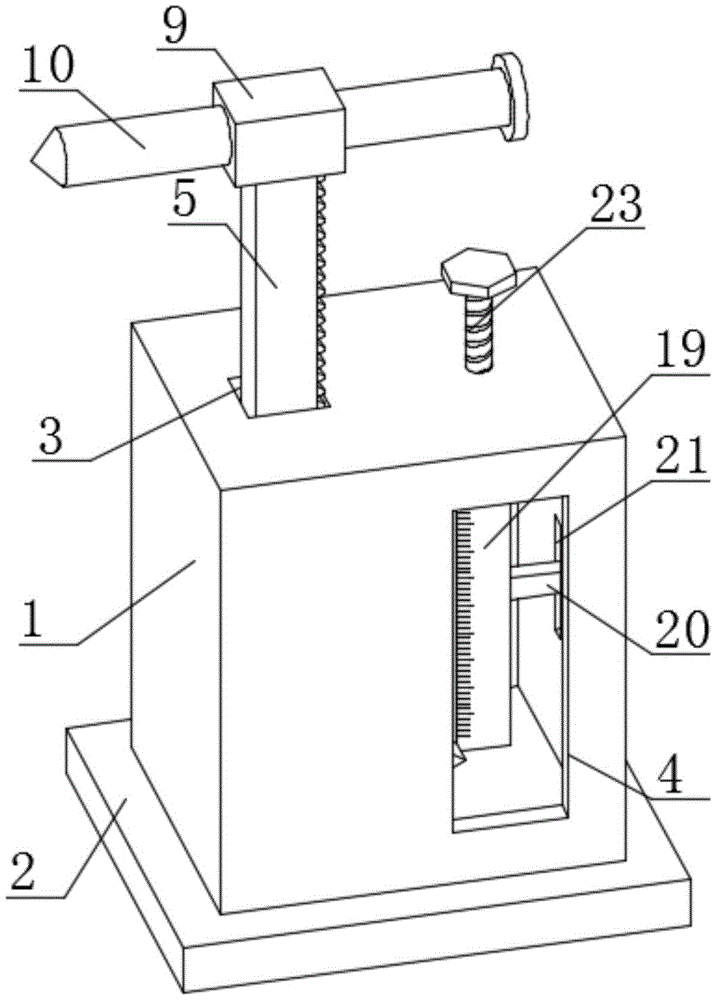

Fig. 1 is a side perspective view of the housing of the present invention;
fig. 2 is a cross-sectional view of the housing of the present invention;
fig. 3 is an enlarged view of a portion a in fig. 2.
In the figure: 1. a housing; 2. a bearing plate; 3. a through hole; 4. an observation window; 5. a connecting plate; 6. teeth; 7. a first chute; 8. a first slider; 9. a connecting pipe; 10. a bolt; 11. a rotating shaft; 12. a rotating wheel; 13. a gear; 14. a wire rope; 15. a pulley; 16. a guide bar; 17. a guide block; 18. a pointer; 19. a scale plate; 20. a second slider; 21. a second chute; 22. a nut; 23. a screw.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-3, the utility model provides a technical solution: a settlement detection device for building engineering detection comprises a shell 1, a through hole 3 is formed in the upper surface of the shell 1, a connecting plate 5 is arranged inside the through hole 3, teeth 6 are mounted on the right side surface of the connecting plate 5, a connecting pipe 9 is fixedly connected to the upper surface of the connecting plate 5, a bolt 10 is slidably connected inside the connecting pipe 9, a rotating shaft 11 is rotatably connected inside the shell 1, a gear 13 meshed with the teeth 6 is mounted in the middle of the outer surface of the rotating shaft 11, a rotating wheel 12 is mounted at one end of the outer surface of the rotating shaft 11, a steel wire rope 14 is mounted inside the rotating wheel 12, a pulley 15 is mounted on the inner top wall of the shell 1, a guide rod 16 is arranged inside the shell 1, the upper surface and the bottom surface of the guide rod 16 are respectively and fixedly connected with the inner bottom wall of the shell 1 and the inner top wall of the shell 1, a guide block 17 is slidably connected to the outer surface of the guide rod 16, the inside of casing 1 is equipped with scale plate 19, and the front of casing 1 is fixed to inlay has observation window 4.
Further, first spout 7 has been seted up on the left side of casing 1 inner wall, and the inside sliding connection of first spout 7 has first slider 8, and first slider 8 keeps away from the side of first spout 7 and the bottom fixed connection of connecting plate 5 left surface. Through setting up first spout 7 and first slider 8, slide connecting plate 5 drive first slider 8 in first spout 7, promote connecting plate 5 lift movement's stability.
Further, a nut 22 is fixedly embedded on the upper surface of the shell 1, a screw 23 is connected to the inner thread of the nut 22, and the bottom surface of the screw 23 is rotatably connected with the upper surface of the scale plate 19. The height of the scale plate 19 in the housing 1 can be adjusted by providing the screw 23 and the nut 22 and by rotating and moving the screw 23 in the nut 22.
Further, a second sliding groove 21 is formed in the right side of the inner wall of the shell 1, a second sliding block 20 is connected to the inside of the second sliding groove 21 in a sliding mode, and one side face, far away from the second sliding groove 21, of the second sliding block 20 is fixedly connected with the middle of the right side face of the scale plate 19. Through setting up second spout 21 and second slider 20, slide scale plate 19 drive second slider 20 in second spout 21, promote scale plate 19 lift movement's stability.
Furthermore, the bottom surface of the shell 1 is provided with a bearing plate 2, and the front surface of the scale plate 19 is sprayed with scale marks. Through setting up bearing plate 2, the area of contact of increase casing 1 and ground promotes the bearing effect of casing 1.
Further, a pointer 18 is installed on the right side of the guide block 17, and the cross section of the pointer 18 is triangular. By providing the pointer 18, the guide block 17 detects the settling distance via the pointer 18 and the scale plate 19.
The working principle is as follows: firstly, a shell 1 is placed on the ground through a bearing plate 2, then a bolt 10 is knocked into a building, then a screw rod 23 is rotated, the screw rod 23 rotates in a nut 22 and moves, a scale plate 19 with a second sliding block 20 slides in a second sliding groove 21, the tip of a pointer 18 can be aligned with zero of a scale value on the scale plate 19, a measurer can conveniently take data, the data can be more intuitively obtained, finally, after the building begins to settle, a connecting pipe 9 is pushed by the bolt 10 to move downwards, the connecting pipe 9 pushes the connecting plate 5 to move towards the shell 1, the gear 13 drives a rotary wheel 12 on a rotary shaft 11 to rotate by utilizing the meshing of teeth 6 and the gear 13, a steel wire rope 14 pulls a guide block 17 to move on a guide rod 16 through a pulley 15, the settlement distance of the building can be detected according to the scale line position of the tip of the pointer 18 on the scale plate 19, the purpose of detecting the settlement distance of the building is achieved, and a measurer can conveniently obtain accurate settlement data.
It should be noted that, in this document, the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "fixedly," "mounted," "connected," and "connected" are to be construed broadly, e.g., "mounted" may be fixedly connected, or detachably connected, or integrally connected; "connected" may be mechanically or electrically connected; "connected" may be directly connected or indirectly connected through an intermediate member, or may be internal or external to two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a building engineering detects with subsiding detection device, includes casing (1), its characterized in that: through-hole (3) has been seted up to the upper surface of casing (1), the inside of through-hole (3) is equipped with connecting plate (5), tooth (6) are installed to the right flank of connecting plate (5), the last fixed surface of connecting plate (5) even has connecting pipe (9), the inside sliding connection of connecting pipe (9) has bolt (10), the internal rotation of casing (1) is connected with axis of rotation (11), the mid-mounting of axis of rotation (11) surface has gear (13) with tooth (6) engaged with, runner (12) are installed to the one end of axis of rotation (11) surface, the internally mounted of runner (12) has wire rope (14), pulley (15) are installed to the interior roof of casing (1), the inside of casing (1) is equipped with guide bar (16), the upper surface and the bottom surface of guide bar (16) respectively with the interior roof fixed connection of the interior wall of casing (1) and casing (1), the surface sliding connection of guide bar (16) has guide block (17), the one end that runner (12) was kept away from in wire rope (14) runs through the inside of pulley (15) and is connected with the last fixed surface of guide block (17), the inside of casing (1) is equipped with scale plate (19), the front of casing (1) is fixed inlays and has observation window (4).
2. The settlement detecting device for building engineering detection as claimed in claim 1, wherein: first spout (7) have been seted up on the left side of casing (1) inner wall, the inside sliding connection of first spout (7) has first slider (8), a side of first spout (7) and the bottom fixed connection of connecting plate (5) left surface are kept away from in first slider (8).
3. The settlement detecting device for building engineering detection as claimed in claim 1, wherein: the upper surface of casing (1) is fixed inlays and is had nut (22), the inside threaded connection of nut (22) has screw rod (23), the bottom surface of screw rod (23) is connected with the upper surface rotation of scale plate (19).
4. The settlement detecting device for building engineering detection as claimed in claim 1, wherein: second spout (21) have been seted up on the right side of casing (1) inner wall, the inside sliding connection of second spout (21) has second slider (20), a side of second spout (21) is kept away from in second slider (20) and the middle part fixed connection of scale plate (19) right flank.
5. The settlement detecting device for building engineering detection as claimed in claim 1, wherein: bearing plate (2) are installed to the bottom surface of casing (1), the front spraying of scale plate (19) has the scale mark.
6. The settlement detecting device for building engineering detection as claimed in claim 1, wherein: the right side surface of the guide block (17) is provided with a pointer (18), and the cross section of the pointer (18) is triangular.
