Abstract
The utility model discloses a conduction drying device for spandex yarn, including the stoving case, the fixed plate has all been welded to the left front and back position of stoving bottom of the case portion, and two fixed plates rotate through the bearing in the one side that looks mutually and are connected with the threaded roller. The utility model discloses a set up the threaded roll, make the yarn encircle in the recess of threaded roll, through setting up the guide block, make the guide block carry out the circular telegram to the heating resistor silk, make the heating resistor silk heating, through setting up the air-blower, make wind blow the inner chamber of heating cabinet through the exhaust pipe, then wind carries the gas tank with the heat through the blast pipe, the air jet head of rethread, will have thermal wind to blow to the yarn, thereby dry to the yarn, through setting up above structure, when possessing and drying to the spandex yarn, improve the advantage of stoving effect, when having solved original device and drying to the spandex yarn, the poor problem of stoving effect, thereby avoided because the stoving effect is poor, influence the quality of follow-up product.
Description
Technical Field
The utility model relates to a spandex yarn production technical field specifically is a conduction drying device for spandex yarn.
Background
The spandex yarn is a sample red elastic fiber, and also belongs to synthetic fibers, middle polyuria fibers and middle nodular polyuria fibers. It has wide application, and can be used as swimsuit and diaper due to strong elasticity; because of its strong restoring force, it can be used as inner lining of underwear and outerwear; because of its strong holding power, it can be used as tights and panty hose; because of its formability is strong, can be used as coat etc. in spandex yarn course of working, in order to clear away the dust that is infected with on the yarn, can carry out abluent processing to the yarn, wash the back, it can influence the processing of epilogue to have adhered to too much moisture on the yarn, natural drying is very slow again, under this kind of condition, can use drying device to dry the yarn usually, and traditional conduction drying device is mainly to bake the lamp and directly shine the stoving, and this kind of stoving mode has the poor problem of stoving effect, thereby influence the quality of product, for this reason we provide a conduction drying device for the spandex yarn, solve the problem that proposes above.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a conduction drying device for spandex yarn possesses when drying to the spandex yarn, improves the advantage of stoving effect, when having solved original device and drying to the spandex yarn, the poor problem of stoving effect.
In order to achieve the above object, the utility model provides a following technical scheme: a conduction drying device for spandex yarns comprises a drying box, wherein fixing plates are welded at the front position and the rear position on the left side of the bottom of the drying box, one sides, which are opposite to each other, of the two fixing plates are rotatably connected with threaded rollers through bearings, the left side of the top of the drying box is fixedly connected with an air blower, the top of the air blower is communicated with an air inlet pipe, the right side of the air blower is communicated with an exhaust pipe, the top of the drying box is fixedly connected with a heating box which is positioned on the right side of the air blower, guide blocks are uniformly arranged at the top and the bottom of an inner cavity of the heating box, a heating resistance wire is fixedly connected between the two guide blocks, the right side of the heating box is communicated with an air supply pipe, an air box is fixedly connected at the center of the top of the inner cavity of the drying box and at the same level with the threaded rollers through a support, the through-hole has been seted up in the left side of stoving case, the right side of stoving incasement chamber bottom is fixed and is provided with rolling subassembly.
Preferably, the winding assembly comprises a concave frame, the bottom of the concave frame is welded with the bottom of the inner cavity of the drying box, the inner cavity of the concave frame is rotatably connected with a rotating shaft through a bearing, the front surface of the rotating shaft penetrates through the concave frame and extends to the outer side of the concave frame, the front surface of the concave frame is fixedly connected with a rotating motor through a supporting plate, the output end of the rotating motor is fixedly connected with the front surface of the rotating shaft, and the outer surface of the rotating shaft and the inner cavity of the concave frame are sleeved with a cable collecting frame.
Preferably, the left side of the concave frame is fixedly connected with a sliding rod through a support, and the outer surface of the sliding rod is slidably sleeved with a guide roller.
Preferably, the left side of the fixing plate on the back side and the position corresponding to the thread inlet of the thread roller are fixedly connected with a first guide pipe through a bracket, and the right side of the fixing plate on the front side and the position corresponding to the thread outlet of the thread roller are fixedly connected with a second guide pipe through a bracket.
Preferably, a water storage box is arranged at the bottom of the inner cavity of the drying box and below the threaded roller.
Preferably, the front of the heating box is movably connected with a box door through a hinge, and the front of the drying box is movably connected with a movable door through a hinge.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model has the advantages that the threaded roller is arranged, the problem of poor drying effect when the spandex yarn is dried by the original device is solved, thereby avoiding the poor drying effect because of the poor drying effect, affecting the quality of subsequent products.
2. The utility model can conveniently gather the dried yarn by arranging the concave frame, the rotating shaft, the rotating motor and the gathering frame;
the sliding rods and the guide rollers are arranged, so that yarns can be conveniently and uniformly wound on the inner surface of the cable collecting frame;
the first guide pipe and the second guide pipe are arranged, so that the yarn can be conveniently limited and guided;
the water storage box is arranged, so that water dropping from the yarns can be conveniently collected;
through setting up the chamber door, can make things convenient for the staff regularly to carry out periodic replacement and maintenance to the part of heating cabinet inner chamber, through setting up the dodge gate, can make things convenient for the staff to collect the yarn of stoving completion to and regularly change and maintain the part of stoving incasement chamber.
Drawings
FIG. 1 is a schematic structural view of the present invention;

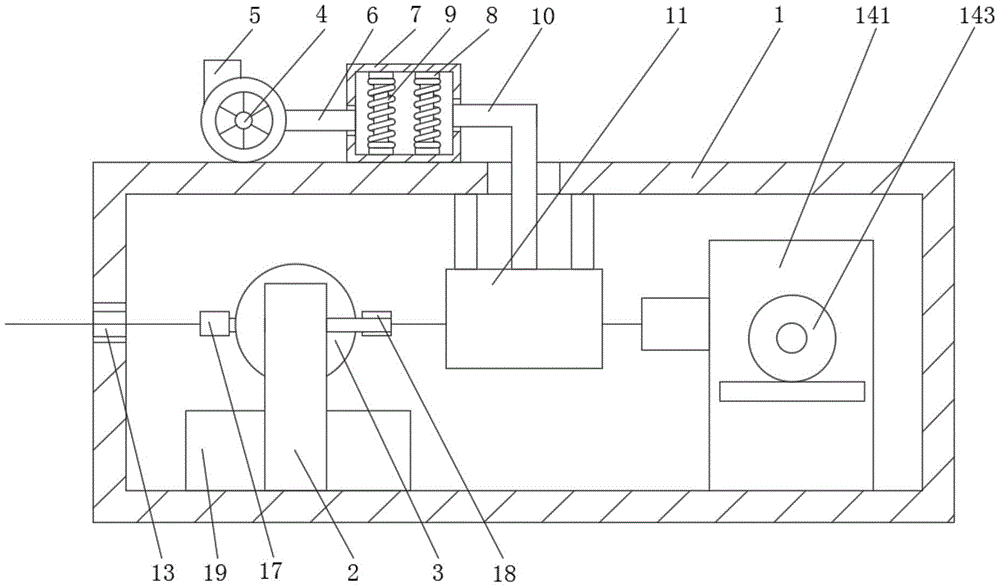

fig. 2 is a top cross-sectional view of the drying box structure of the present invention;
FIG. 3 is a perspective view of the connection between the air box and the showerhead structure of the present invention;
fig. 4 is a front view of the drying box structure of the present invention.
In the figure: 1. a drying box; 2. a fixing plate; 3. a threaded roller; 4. a blower; 5. an air inlet pipe; 6. an exhaust duct; 7. a heating box; 8. a guide block; 9. heating resistance wires; 10. an air supply pipe; 11. a gas tank; 12. a gas showerhead; 13. a through hole; 14. a winding component; 141. a female frame; 142. a rotating shaft; 143. a rotating electric machine; 144. collecting a cable frame; 15. a slide bar; 16. a guide roller; 17. a first guide tube; 18. a second guide tube; 19. a water storage box.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
Referring to fig. 1-4, a conduction drying device for spandex yarns comprises a drying box 1, wherein fixing plates 2 are welded at the front and rear positions of the left side of the bottom of the drying box 1, one side of the two fixing plates 2, which are opposite to each other, is rotatably connected with a threaded roller 3 through a bearing, the left side of the top of the drying box 1 is fixedly connected with an air blower 4, the top of the air blower 4 is communicated with an air inlet pipe 5, the right side of the air blower 4 is communicated with an exhaust pipe 6, the top of the drying box 1 is fixedly connected with a heating box 7 on the right side of the air blower 4, guide blocks 8 are uniformly arranged at the top and the bottom of the inner cavity of the heating box 7, a plurality of heating resistance wires 9 are fixedly connected between the two guide blocks 8, the heating resistance wires 9 are communicated with an air supply pipe 10, and an air box 11 is fixedly connected at the center of, the top of the air box 11 is communicated with the bottom of the air supply pipe 10, the air box 11 is of an arc structure, the inner surface of the air box 11 is uniformly communicated with air nozzles 12, the left side of the drying box 1 is provided with a through hole 13, the right side of the bottom of the inner cavity of the drying box 1 is fixedly provided with a winding component 14, the thread roller 3 is arranged to enable the yarn to be spirally wound in a groove of the thread roller 3, so that the thread roller 3 tensions the yarn, most of moisture in the yarn is extruded simultaneously, the guide block 8 is arranged to enable the guide block 8 to electrify the heating resistance wire 9 to enable the heating resistance wire 9 to be heated, the air blower 4 is arranged to enable the air to be blown to the inner cavity of the heating box 7 through the exhaust pipe 6, then the air conveys the heat to the air box 11 through the air supply pipe 10 and then passes through the air nozzles 12 to blow the air with the heat to the yarn, so as to dry the yarn, and the winding component, through setting up above structure, when possessing and drying to the spandex yarn, improve the advantage of stoving effect, when having solved original device and drying to the spandex yarn, the poor problem of stoving effect to avoided because the stoving effect is poor, influenced the quality of follow-up product.
Referring to fig. 1 and 2, the winding assembly 14 includes a concave frame 141, the bottom of the concave frame 141 is welded to the bottom of the inner cavity of the drying box 1, the inner cavity of the concave frame 141 is rotatably connected to a rotating shaft 142 through a bearing, the front surface of the rotating shaft 142 penetrates through the concave frame 141 and extends to the outside of the concave frame 141, the front surface of the concave frame 141 is fixedly connected to a rotating motor 143 through a supporting plate, the output end of the rotating motor 143 is fixedly connected to the front surface of the rotating shaft 142, a cable collecting frame 144 is sleeved on the outer surface of the rotating shaft 142 and located in the inner cavity of the concave frame 141, and the dried yarn can be collected conveniently by arranging the concave frame 141, the rotating shaft 142, the rotating motor 143, and the cable collecting frame 144.
Referring to fig. 2, a sliding rod 15 is fixedly connected to the left side of the concave frame 141 through a bracket, a guide roller 16 is slidably sleeved on the outer surface of the sliding rod 15, and the sliding rod 15 and the guide roller 16 are arranged to facilitate the yarn to uniformly surround the inner surface of the cable collecting frame 144.
Referring to fig. 1 and 2, a first guide pipe 17 is fixedly connected to the left side of the back fixing plate 2 at a position corresponding to the inlet of the threaded roller 3 through a bracket, a second guide pipe 18 is fixedly connected to the right side of the front fixing plate 2 at a position corresponding to the outlet of the threaded roller 3 through a bracket, and the yarn can be conveniently limited and guided by the first guide pipe 17 and the second guide pipe 18.
Referring to fig. 1 and 2, a water storage box 19 is disposed at the bottom of the inner cavity of the drying box 1 and below the threaded roller 3, the top of the water storage box 19 is of a hollow structure, and water dripping from the yarns can be collected conveniently by arranging the water storage box 19.
Please refer to fig. 4, the front of the heating box 7 is movably connected with a box door through a hinge, the front of the drying box 1 is movably connected with a movable door through a hinge, and the box door can facilitate the regular replacement and maintenance of the parts in the inner cavity of the heating box 7 by the working personnel, and the movable door can facilitate the collection of the dried yarns by the working personnel and the regular replacement and maintenance of the parts in the inner cavity of the drying box 1.
When the device is used, firstly, the plug of the heating box 7 is electrified, the external controller of the heating box 7 is started, the guide block 8 is used for electrifying the heating resistance wire 9, so that the heating resistance wire 9 is heated in advance, the right end of the yarn enters the drying box 1 through the through hole 13, then the yarn passes through the inner cavity of the first guide pipe 17, then the yarn is wound in the groove of the threaded roller 3 in a threaded manner, then the yarn passes through the inner cavity of the second guide pipe 18, then the yarn passes through the inner surface of the air box 11 and the outer surface of the guide roller 16, then the right end of the yarn is fixed on the outer surface of the cable-collecting frame 144, then the plug of the air blower 4 is electrified, the external controller of the air blower 4 is started, the air blower 4 blows air to the inner cavity of the heating box 7 through the exhaust pipe 6, the air conveys the heat generated by the heating resistance wire 9 to the air box 11 through the air supply pipe 10, meanwhile, an external controller of the rotating motor 143 is started, so that the output end of the rotating motor 143 drives the rotating shaft 142 to rotate, the rotating shaft 142 drives the cable collecting frame 144 to rotate, the cable collecting frame 144 collects the dried yarns, the yarns drive the threaded roller 3 to rotate when moving rightwards, the yarns are straightened, the threaded roller 3 is extruded by the yarns around the threaded roller 3, moisture in the yarns is extruded and drops in the water storage box 19, and when the device dries the spandex yarns, the drying effect is improved, so that the problem that the quality of subsequent products is influenced due to poor drying effect is avoided.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a conduction drying device for spandex yarn, includes stoving case (1), its characterized in that: the drying box is characterized in that fixing plates (2) are welded at the front position and the rear position of the left side of the bottom of the drying box (1), one side, opposite to each other, of each of the two fixing plates (2) is rotatably connected with a threaded roller (3) through a bearing, an air blower (4) is fixedly connected to the left side of the top of the drying box (1), the top of the air blower (4) is communicated with an air inlet pipe (5), the right side of the air blower (4) is communicated with an exhaust pipe (6), the top of the drying box (1) is fixedly connected with a heating box (7) on the right side of the air blower (4), guide blocks (8) are uniformly arranged at the top and the bottom of an inner cavity of the heating box (7), a heating resistance wire (9) is fixedly connected between the two guide blocks (8), the right side of the heating box (7) is communicated with an air supply pipe (10), the center of the top of the inner cavity, the top of the air box (11) is communicated with the bottom of the air supply pipe (10), the inner surface of the air box (11) is uniformly communicated with air nozzles (12), a through hole (13) is formed in the left side of the drying box (1), and a winding component (14) is fixedly arranged on the right side of the bottom of the inner cavity of the drying box (1).
2. A conduction drying device for spandex yarn according to claim 1, characterized in that: the winding assembly (14) comprises a concave frame (141), the bottom of the concave frame (141) is welded with the bottom of the inner cavity of the drying box (1), the inner cavity of the concave frame (141) is connected with a rotating shaft (142) in a rotating mode through a bearing, the front face of the rotating shaft (142) penetrates through the concave frame (141) and extends to the outer side of the concave frame (141), the front face of the concave frame (141) is fixedly connected with a rotating motor (143) through a supporting plate, the output end of the rotating motor (143) is fixedly connected with the front face of the rotating shaft (142), and a cable collecting frame (144) is sleeved on the outer surface of the rotating shaft (142) and the inner cavity of the concave frame (141).
3. A conduction drying device for spandex yarn according to claim 2, characterized in that: the left side of concave frame (141) is through support fixedly connected with slide bar (15), the surface slip cover of slide bar (15) is equipped with guide roll (16).
4. A conduction drying device for spandex yarn according to claim 1, characterized in that: the back the left side of fixed plate (2) and pass through first stand fixedly connected with guide tube (17) in the position that screw roll (3) inlet corresponds, openly the right side of fixed plate (2) and pass through stand fixedly connected with second guide tube (18) in the position that screw roll (3) outlet corresponds.
5. A conduction drying device for spandex yarn according to claim 1, characterized in that: and a water storage box (19) is arranged at the bottom of the inner cavity of the drying box (1) and below the threaded roller (3).
6. A conduction drying device for spandex yarn according to claim 1, characterized in that: the front side of the heating box (7) is movably connected with a box door through a hinge, and the front side of the drying box (1) is movably connected with a movable door through a hinge.
