CN212151051U

CN212151051U - Corrugated container board production transportation finishing device

Info

Publication number: CN212151051U
Application number: CN202020596910.1U
Authority: CN
Inventors: 肖志刚; 许全奇; 王文杰; 赵勇杰
Original assignee: Hualong Riqing Paper Products Xuchang Co Ltd
Current assignee: Xuchang Hualong Riqing paper products Co.,Ltd.
Priority date: 2020-04-20
Filing date: 2020-04-20
Publication date: 2020-12-15
Anticipated expiration: 2030-04-20

Abstract

The utility model relates to a corrugated container board production transportation finishing device, including frame and the stack frame of setting in the frame, be provided with transport mechanism and elevating system in the frame, elevating system sets up between transport mechanism and stack frame, elevating system includes the rack, lift post and rotation motor, the terminal surface setting of lift post perpendicular to rack, the rack sets up the one side that is close to the stack frame on the lift post, the rotation motor is fixed to be set up in the frame, the one end that the motor setting deviates from the rack on the lift post rotates, be provided with the rack on the lift post, the rack is fixed to be set up the side at the lift post, the output that rotates the motor is provided with the gear, gear and rack toothing are connected, be provided with infrared sensor on the stack frame, infrared sensor sets up the one end that deviates from the frame on the stack frame. The utility model discloses a set up elevating system and stacker and have the effect that promotes pile efficiency in the frame.

Description

Corrugated container board production transportation finishing device

Technical Field

The utility model belongs to the technical field of the technique of corrugated paper production and specifically relates to a corrugated container board production transportation finishing device is related to.

Background

The corrugated board is a multi-layer adhesive body, which is composed of at least one wave-shaped core paper interlayer and one layer of paper board. Along with the increasing demand of corrugated boards, corrugated board production equipment also needs to be improved and upgraded constantly, and corrugated boards need to be sorted during production of a production line so as to be transported.

The traditional Chinese patent with publication number CN109928255A discloses a stacking machine for corrugated board production, which comprises a supporting plate, wherein four corners of the bottom of the supporting plate are fixedly connected with anti-skidding supporting legs, and a conveying belt and a driving device thereof are arranged at the top of the supporting plate. Convey cardboard to liftable adsorption equipment under and closely adsorb the cardboard through the conveyer belt, drive first threaded rod through circular telegram with a driving motor and rotate after that, through lift adsorption equipment and with the cardboard pile on L shape transport plate, carry out automatic pile work.

The stack principle of prior art scheme to the cardboard among the above-mentioned is behind lift adsorption equipment adsorbs the cardboard, and rethread lift adsorption equipment transmits on the cardboard to L shape transportation board and carries out the pile, but because lift adsorption equipment need carry out reciprocating motion when the pile, reciprocating motion can only pile up a cardboard once, and the efficiency of cardboard stack is lower, consequently needs to improve.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a corrugated container board production transportation finishing device, through set up elevating system and stacker in the frame, put the cardboard in good order on elevating system to through the position of adjustment elevating system with cardboard yard pile on the stacker, reach the effect of lifting efficiency.

The above utility model discloses an above-mentioned utility model purpose can realize through following technical scheme:

a corrugated board production, transportation and arrangement device, which comprises a frame and a stacking frame arranged on the frame, the frame is provided with a conveying mechanism and a lifting mechanism, the lifting mechanism is arranged between the conveying mechanism and the stacking rack, the lifting mechanism comprises a placing frame, a lifting column and a rotating motor, the lifting column is arranged perpendicular to the end face of the placing frame, the placing frame is arranged on one side of the lifting column close to the stacking frame, the rotating motor is fixedly arranged on the frame, the rotating motor is arranged at one end of the lifting column, which is far away from the placing rack, the lifting column is provided with a rack, the rack is fixedly arranged on the side surface of the lifting column, the output end of the rotating motor is provided with a gear, the stacking rack is characterized in that the gear is meshed with the rack and connected with the rack, an infrared sensor is arranged on the stacking rack and arranged at one end, deviating from the rack, of the stacking rack.

Through adopting above-mentioned technical scheme, set up transport mechanism, elevating system and stacker in the frame, the cardboard passes through transport mechanism and carries to elevating system on, puts things in good order the cardboard on the stacker through elevating system to set up infrared sensor on the stacker for detect the cardboard on the elevating system, make elevating system adjust along with the height of putting things in good order the cardboard, thereby put things in good order the cardboard, promote the efficiency of stacking the cardboard, transport the arrangement to the cardboard.

The present invention may be further configured in a preferred embodiment as: the stacking rack is provided with a plurality of through grooves, the through grooves are arranged at the side intervals of the stacking rack, the placing frame comprises a mounting plate and a plurality of supporting plates, the supporting plates are arranged at the intervals on the mounting plate, one ends of the supporting plates, which deviate from the mounting plate, extend into the stacking rack in the through grooves, and the supporting plates are arranged in the through grooves in a sliding mode.

Through adopting above-mentioned technical scheme, set up logical groove on the stacker, set up the backup pad on the rack, when piling up the cardboard, the cardboard enters into the backup pad through the deflector on, the cardboard stacks in the backup pad, rotates the motor and drives the lift post and move down, puts up the cardboard in the stacker.

The present invention may be further configured in a preferred embodiment as: the stacking rack is characterized in that a plurality of convex strips are arranged in the stacking rack, the convex strips are arranged at the bottom of the stacking rack at intervals, and gaps among the convex strips and the through grooves are correspondingly arranged.

By adopting the technical scheme, after the stacking frame is filled with the paper boards stacked on the supporting plate, the supporting plate is moved to the bottom of the stacking frame, the part of the supporting plate in the stacking frame enters the clearance of the convex strips, the supporting plate is separated from the paper boards, and the paper boards are supported by the convex strips. The stacker frame is moved in a direction away from the lifting columns to separate the support plate from the stacker frame.

The present invention may be further configured in a preferred embodiment as: the rack is provided with a sliding groove along the moving direction of the lifting column, and one end of the lifting column, which deviates from the placing rack, is arranged in the sliding groove in a sliding manner.

Through adopting above-mentioned technical scheme, set up the spout in the frame to set up the lift post and slide in the spout and set up, strengthen the stability of lift post when removing.

The present invention may be further configured in a preferred embodiment as: conveying mechanism includes conveyer belt and transfer roller, the transfer roller sets up between stacker and conveyer belt, the transfer roller has two and interval setting, the terminal correspondence setting of transfer roller spaced position and conveyer belt.

Through adopting above-mentioned technical scheme, the conveyer belt conveys the cardboard to the direction of conveyer roller, and when the cardboard conveyed between the conveyer roller, the side of conveyer roller and the both ends butt of cardboard, the conveyer roller rotated and carried the cardboard on elevating system.

The present invention may be further configured in a preferred embodiment as: be provided with the deflector in the frame, the deflector has two horizontal interval settings in the frame, the interval position of deflector and the interval position correspondence setting of transfer roller.

Through adopting above-mentioned technical scheme, the cardboard passes through the transfer roller and enters into between two deflectors, makes the cardboard smooth entering into elevating system through the deflector on.

The present invention may be further configured in a preferred embodiment as: the guide plate is provided with a guide inclined plane, and the guide inclined plane is arranged on one side, close to the conveying roller, of the guide plate.

Through adopting above-mentioned technical scheme, set up the guide inclined plane on the deflector, avoid the cardboard to get into from the transfer roller and take place the skew when conveying the cardboard, influence the pile-up of cardboard.

The present invention may be further configured in a preferred embodiment as: the fixed guide board that is provided with in frame, the guide board is the splayed setting on the conveyer belt, the direction setting along the conveyer belt conveying is followed to the little one end in opening that the guide board formed.

By adopting the technical scheme, the guide plate and the return spring are arranged on the transmission belt, and the position of the paper plate is adjusted by the guide plate so that the paper plate is neatly stacked on the stacking frame.

To sum up, the utility model discloses a following at least one useful technological effect:

1. the paper boards are stacked on the lifting mechanism by arranging the lifting mechanism and the stacking frame, the lifting mechanism adjusts along with the height of the paper boards, the paper boards are placed on the stacking frame, the stacking efficiency of the paper boards is improved, and the paper boards are transported and sorted;

2. set up elevating system and include the backup pad, seted up logical groove at the stacker, the backup pad slides in logical inslot and sets up, through the position of adjustment backup pad in logical inslot to place the cardboard in the backup pad on the stacker.

Drawings

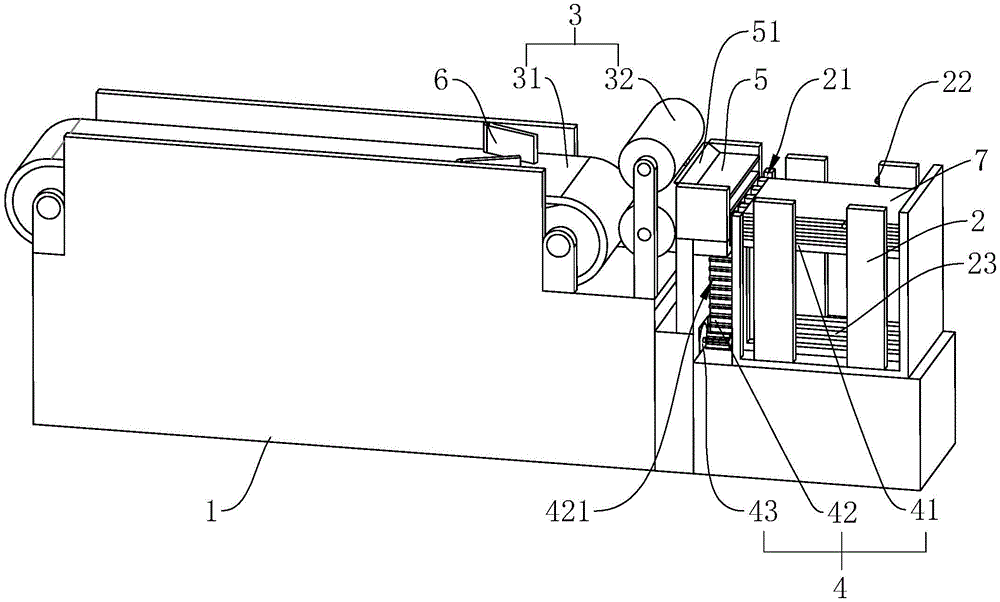

FIG. 1 is a schematic structural view of the present embodiment;

FIG. 2 is a schematic view of the connection between the lifting mechanism and the stacker frame in this embodiment;

fig. 3 is a sectional view of the present embodiment.

Reference numerals: 1. a frame; 11. a chute; 2. a stacking rack; 21. a through groove; 22. an infrared sensor; 23. a convex strip; 3. a transport mechanism; 31. a conveyor belt; 32. a conveying roller; 4. a lifting mechanism; 41. placing a rack; 411. mounting a plate; 412. a support plate; 42. a lifting column; 421. a rack; 43. rotating the motor; 431. a gear; 5. a guide plate; 51. a guide ramp; 6. a guide plate; 7. a paperboard.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings.

Referring to fig. 1, for the utility model discloses a corrugated container board production transportation finishing device, including frame 1 and the stack frame 2 of setting in frame 1, stack frame 2 is used for stacking paper board 7, and frame 1 places subaerial, is provided with transport mechanism 3 in frame 1, and stack frame 2 places the output at transport mechanism 3, and transport mechanism 3 is used for conveying paper board 7, and paper board 7 conveys on stack frame 2 through transport mechanism 3. The frame 1 is provided with a lifting mechanism 4, the lifting mechanism 4 is arranged between the conveying mechanism 3 and the stacking frame 2, and the lifting mechanism 4 is used for placing the paper boards 7 conveyed by the conveying mechanism 3. When the paper boards 7 are arranged, the paper boards 7 are conveyed to the lifting mechanism 4 through the conveying mechanism 3, the lifting mechanism 4 places the paper boards 7 in the stacking frame 2, and the paper boards 7 are stacked and arranged for transportation.

Referring to fig. 1, the conveying mechanism 3 includes a conveying belt 31 and conveying rollers 32, the conveying rollers 32 are disposed between the stacker frame 2 and the conveying belt 31, the conveying belt 31 is horizontally disposed on the frame 1, the conveying rollers 32 are disposed up and down, and the two conveying rollers 32 are disposed at intervals and the spaced positions correspond to the end of the conveying belt 31. The conveyor belt 31 conveys the sheet 7 in the direction of the conveyor rollers 32, and when the sheet 7 is conveyed between the conveyor rollers 32, the sheet 7 is sandwiched between the conveyor rollers 32, and the conveyor rollers 32 rotate to convey the sheet 7 to the lifting mechanism 4. In order to improve the stability of the paper board 7 conveyed in the conveying rollers 32, the guide plates 5 are arranged on the rack 1, the guide plates 5 are arranged between the conveying rollers 32 and the stacking rack 2, the guide plates 5 are arranged up and down, the horizontal intervals between the two guide plates 5 are arranged and the intervals correspond to the intervals between the two conveying rollers 32, the paper board 7 enters the space between the two guide plates 5 through the conveying rollers 32, and the paper board 7 is enabled to enter the lifting mechanism 4 smoothly through the guide plates 5. The guide inclined plane 51 is arranged on one side, close to the conveying roller 32, of the guide plate 5, the guide inclined plane 51 is fixedly arranged on the two guide plates 5 in a splayed mode, one end, with a small opening, of the guide inclined plane 51 is fixedly arranged on the two guide plates 5, and when the paper plates 7 enter the interval between the two guide plates 5 through the guide inclined plane 51, the paper plates 7 are prevented from being deviated and the stacking of the paper plates 7 is prevented from being influenced.

Referring to fig. 1 and 3, in order to stack the paper boards 7 neatly on the stacking rack 2, the guide plates 6 are arranged on the rack 1, the guide plates 6 are arranged on the upper surface of the conveyor belt 31, the two guide plates 6 are arranged on the conveyor belt 31 in a splayed shape, the small openings of the two guide plates 6 are arranged along the conveying direction of the conveyor belt 31, and the positions of the paper boards 7 are adjusted by the guide plates 6 so that the paper boards 7 are neatly stacked on the stacking rack 2.

Referring to fig. 1 and 2, the lifting mechanism 4 includes a lifting column 42, a rotating motor 43 and a placing frame 41 for placing the paper board 7, the lifting column 42 is vertically disposed on the rack 1, the placing frame 41 is horizontally disposed above the lifting column 42, the lifting column 42 is fixedly connected with the lower surface of the placing frame 41, and the rotating motor 43 is fixedly disposed on the rack 1. The lifting column 42 is provided with a rack 421, the rack 421 is fixedly arranged on the side surface of the lifting column 42, the output end of the rotating motor 43 is provided with a gear 431, the gear 431 is meshed and connected with the rack 421, the rotating motor 43 drives the lifting column 42 to move up and down through the gear 431, and the lifting column 42 moves up and down to adjust the position of the placing frame 41. Referring to fig. 3, in order to enhance the stability of the lifting column 42, a sliding slot 11 is provided in the frame 1, the sliding slot 11 is disposed along the moving direction of the lifting column 42, and one end of the lifting column 42 away from the placing frame 41 is slidably disposed in the sliding slot 11.

Referring to fig. 2, a plurality of through grooves 21 have been seted up to one side of stacker frame 2 near lift column 42, through groove 21 is seted up on stacker frame 2 near lift column 42's one side, through groove 21 sets up at the side interval of stacker frame 2, rack 41 includes mounting panel 411 and a plurality of backup pad 412, mounting panel 411 connects support panel 412 and lift column 42 respectively, backup pad 412 sets up at the interval on mounting panel 411, the one end of backup pad 412 is fixed to be set up on mounting panel 411, the other end extends to in stacker frame 2 to leading to groove 21, backup pad 412 slides in leading to groove 21 and sets up. When the paper boards 7 are stacked, the paper boards 7 enter the supporting plate 412 through the guide plate 5, the paper boards 7 are stacked on the supporting plate 412, and the rotating motor 43 drives the lifting column 42 to move downwards, so that the paper boards 7 are stacked in the stacking rack 2. In order to stack the paper sheets 7 on the support plate 412, an infrared sensor 22 is disposed at a side of the stacker 2, the infrared sensor 22 is used for detecting the paper sheets 7 on the support plate 412, and when the paper sheets 7 are detected, the infrared sensor 22 controls the rotating motor 43 to drive the lifting column 42 to move downwards.

Referring to fig. 1 and 2, in order to place the paper sheets 7 on the support plate 412 on the stacker 2, a plurality of convex strips 23 are provided inside the stacker 2, the convex strips 23 are provided at the bottom of the stacker 2, the convex strips 23 are provided at intervals on the stacker 2, gaps of the convex strips 23 are provided corresponding to the through grooves 21, after the stacker 2 is filled with the paper sheets 7 stacked on the support plate 412, the support plate 412 is moved to the bottom of the stacker 2, a part of the support plate 412 in the stacker 2 enters the gaps of the convex strips 23, the support plate 412 is separated from the paper sheets 7, and the convex strips 23 support the paper sheets 7. The stillage 2 is moved in a direction away from the lifting columns 42 to separate the support plates 412 from the stillage 2.

The implementation principle of the embodiment is as follows: cardboard 7 conveys to transfer roller 32 on conveyer belt 31, transfer roller 32 spreads into cardboard 7 into deflector 5 into, cardboard 7 passes through on deflector 5 gets into backup pad 412, infrared sensor 22 on the stack frame 2 detects cardboard 7, it drives backup pad 412 and moves down to rotate motor 43, when piling up cardboard 7 in the stack frame 2, backup pad 412 enters into the clearance between sand grip 23, sand grip 23 supports cardboard 7, to moving stack frame 2 in the direction of back from lift post 42, take out the cardboard 7 of piling.

The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims

1. The utility model provides a corrugated container board production transportation finishing device, includes frame (1) and stack (2) of setting on frame (1), its characterized in that: the automatic stacking machine is characterized in that a conveying mechanism (3) and a lifting mechanism (4) are arranged on the rack (1), the lifting mechanism (4) is arranged between the conveying mechanism (3) and the stacking frame (2), the lifting mechanism (4) comprises a placing frame (41), a lifting column (42) and a rotating motor (43), the lifting column (42) is perpendicular to the end face of the placing frame (41), the placing frame (41) is arranged on one side, close to the stacking frame (2), of the lifting column (42), the rotating motor (43) is fixedly arranged on the rack (1), the rotating motor (43) is arranged at one end, deviating from the placing frame (41), of the lifting column (42), a rack (421) is arranged on the lifting column (42), the rack (421) is fixedly arranged on the side face of the lifting column (42), the output end of the rotating motor (43) is provided with a gear (431), and the gear (431) is meshed with the rack (421), the stacking frame (2) is provided with an infrared sensor (22), and the infrared sensor (22) is arranged at one end, deviating from the rack (1), of the stacking frame (2).

2. A corrugated board production, transport and collating device as claimed in claim 1, wherein: a plurality of logical grooves (21) have been seted up on buck (2), lead to groove (21) and set up at the side interval of buck (2), rack (41) are including mounting panel (411) and a plurality of backup pad (412), backup pad (412) interval setting on mounting panel (411), backup pad (412) deviate from the one end of mounting panel (411) to leading to extend to in buck (2) in groove (21), backup pad (412) slide in leading to groove (21) and set up.

3. A corrugated board production, transport and collating device according to claim 2, characterised in that: the inside of buck (2) is provided with a plurality of sand grips (23), sand grip (23) interval sets up the bottom at buck (2), clearance and logical groove (21) between sand grip (23) correspond the setting.

4. A corrugated board production, transport and collating device as claimed in claim 1, wherein: the direction that goes up along lift post (42) on frame (1) has seted up spout (11), the one end that lift post (42) deviates from rack (41) slides in spout (11) and sets up.

5. A corrugated board production, transport and collating device as claimed in claim 1, wherein: conveying mechanism (3) are including conveyer belt (31) and transfer roller (32), transfer roller (32) set up between stacker (2) and conveyer belt (31), transfer roller (32) have two and interval to set up, the terminal correspondence setting of transfer roller (32) spaced position and conveyer belt (31).

6. Corrugated board production transport collating apparatus according to claim 5, characterized in that: be provided with deflector (5) on frame (1), deflector (5) have two to set up at frame (1) upper level interval, the interval position of deflector (5) and transfer roller (32) spaced position correspond the setting.

7. Corrugated board production transport collating apparatus according to claim 6, characterized in that: the conveying roller is characterized in that a guide inclined plane (51) is arranged on the guide plate (5), and the guide inclined plane (51) is arranged on one side, close to the conveying roller (32), of the guide plate (5).

8. A corrugated board production, transport and collating device as claimed in claim 1, wherein: the fixed guide board (6) that is provided with on frame (1), guide board (6) are the splayed setting on conveyer belt (31), the direction setting of conveyer belt (31) conveying is followed to the little one end in opening that guide board (6) formed.
