CN212103299U - Integrated equipment for padding and drying finishing liquid of ice-refreshing quick-drying fabric - Google Patents
Integrated equipment for padding and drying finishing liquid of ice-refreshing quick-drying fabric Download PDFInfo
- Publication number
- CN212103299U CN212103299U CN202020431624.XU CN202020431624U CN212103299U CN 212103299 U CN212103299 U CN 212103299U CN 202020431624 U CN202020431624 U CN 202020431624U CN 212103299 U CN212103299 U CN 212103299U
- Authority
- CN
- China
- Prior art keywords
- scraper
- drying
- padding
- cross rod
- finishing liquid
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Drying Of Solid Materials (AREA)
- Treatment Of Fiber Materials (AREA)
Abstract
The utility model discloses a type surface fabric finishing liquid padding and stoving integral type equipment are done soon to ice, including shell, first scraper blade, second scraper blade, heater strip and CD-ROM drive motor, the internally mounted of shell has the roller bearing, the top of head rod is connected with first scraper blade, the left side of second scraper blade is connected with first fabric guide roll, the chain is installed to CD-ROM drive motor's front end, the right-hand member of second scraper blade is connected with first horizontal pole, the upper surface of second horizontal pole is provided with the gear, the right-hand member of first horizontal pole is provided with first stripper plate, the pivot is installed on the right side of second stripper plate, the right side of fan is fixed with the connecting axle, the right side of cylinder is connected with second fabric guide roll. This icy and comfortable quick dry type surface fabric finishing liquid padding and stoving integral type equipment, degree of automation is high, can get rid of the end of a thread and comprehensive padding to the cloth, can all-round dry the cloth simultaneously.
Description
Technical Field
The utility model relates to a surface fabric processing technology field specifically is a type surface fabric finishing liquid padding and stoving integral type equipment are done soon to ice and smooth.
Background
Padding is a biological enzyme continuous padding-steaming pretreatment process for all-cotton or polyester-cotton knitted fabrics, belongs to a knitted fabric pretreatment process in the printing and dyeing industry, and needs to use a padding device in order to obtain better-quality cloth.
However, when the existing padding device is used, padding is not thorough, the quality of final cloth is uneven, and the cloth can not be completely dried during drying, so that an integrated device for padding and drying the icy and quick-drying fabric finishing liquid is developed at present to solve the problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a icy and cool quick dry type surface fabric finishing liquid padding and stoving integral type equipment to solve the padding device that has now on the market that proposes in the above-mentioned background art when using, the padding is not thorough, causes the quality of final cloth uneven, and the problem of the cloth of can not drying comprehensively when drying.
In order to achieve the above object, the utility model provides a following technical scheme: a cold and dry type fabric finishing liquid padding and drying integrated device comprises a shell, a first scraper plate, a second scraper plate, a heating wire and a driving motor, wherein a roller is arranged inside the shell, a first connecting rod is fixed above the roller, the first scraper plate is connected above the first connecting rod, the second scraper plate is arranged on the left side of the first scraper plate, the left side of the second scraper plate is connected with a first cloth guide roller, the driving motor is welded behind the first cloth guide roller, a chain is installed at the front end of the driving motor, a padding chamber is arranged below the chain, the right end of the second scraper plate is connected with a first cross rod, a second cross rod is arranged below the first cross rod, a gear is arranged on the upper surface of the second cross rod, a second connecting rod is installed on the inner surface of the gear, the driving motor is welded at the rear end of the second connecting rod, a first extrusion plate is arranged at the right end of the first cross rod, and the below of first stripper plate is fixed with the second stripper plate, the pivot is installed on the right side of second stripper plate, and the below of pivot is provided with the fan, the right side of fan is fixed with the connecting axle, and the right side of connecting rod is provided with the cylinder, the right side of cylinder is connected with the second fabric guide roller, and the surface of cylinder is provided with the drying chamber, the rear of cylinder is provided with the shunt tubes, and the rear electric connection of shunt tubes has the heater strip to the rear end welding of heater strip has the fan.
Preferably, the first scraper blade and the second scraper blade form a sliding structure on the first connecting rod, and the sliding directions of the first scraper blade and the second scraper blade are opposite.
Preferably, the lower surface of the first cross rod and the upper surface of the second cross rod are both in a convex structure, and the gear, the first cross rod and the second cross rod are combined to form a linkage structure.
Preferably, the first pressing plate and the second pressing plate form a detachable structure on the housing, and the upper surface of the housing is in a groove-shaped structure.
Preferably, the outer surface of the roller is in a hole-shaped structure, and the structure is uniformly distributed on the roller.
Preferably, the cross section of the shunt pipe is in a fork-shaped structure, and the position of the bottom end of the structure corresponds to the position of the roller one by one.
Compared with the prior art, the utility model discloses beneficial effect is: the ice-cool quick-drying type fabric finishing liquid padding and drying integrated equipment is high in automation degree, can remove thread ends and perform overall padding on fabrics, and can perform drying on the fabrics in all directions;
1. the driving motor is started, the first cloth guide roller and the second cloth guide roller are linked under the action of the chain, so that the cloth can automatically finish two working procedures of padding and drying, and meanwhile, the cloth is kept in a flat state in the device all the time through the rolling shaft and the rotating shaft, and the phenomenon of wrinkling is avoided;
2. the driving motor is started, the second connecting rod drives the gear to rotate, so that the first cross rod and the second cross rod slide, the first scraping plate and the second scraping plate slide in the opposite direction to the first extruding plate and the second extruding plate, the first scraping plate and the second scraping plate clean thread ends on the surface of the cloth, and the first extruding plate and the second extruding plate dewater the cloth;
3 start the fan, under the effect of heater strip, during wind was evenly carried the cylinder from the shunt tubes, hot-blast even blowing to the cloth in the poroid structure of cylinder surface was realized comprehensive air-drying to the cloth, simultaneously under the effect of fan, has accelerated the circulation of air in the drying chamber to drying efficiency has been accelerated.
Drawings

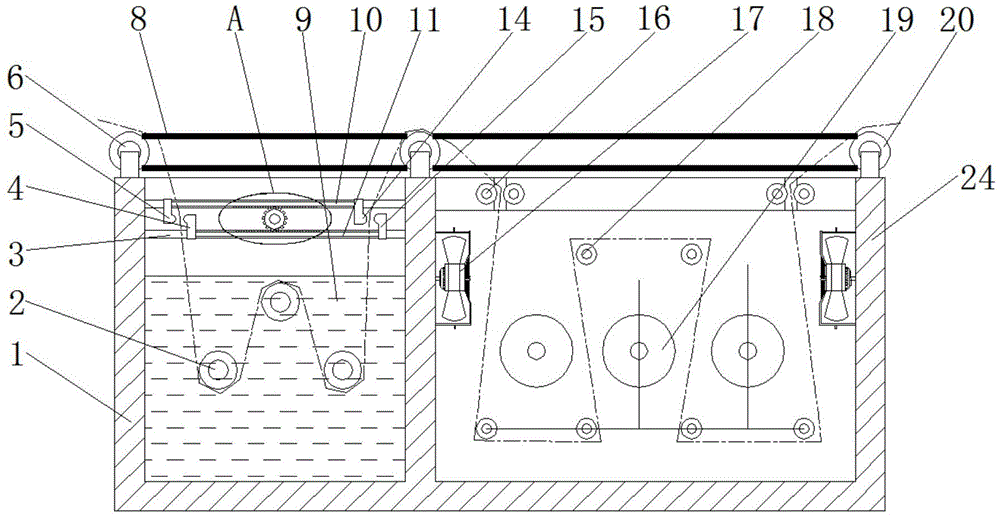

FIG. 1 is a front view of the cross-sectional structure of the present invention;
FIG. 2 is a schematic view of the connection structure of the first scraper and the second scraper according to the present invention;
FIG. 3 is a schematic view of the structure of the blower and heater strip according to the present invention;
fig. 4 is an enlarged schematic structural view of a portion a in fig. 1 according to the present invention.
In the figure: 1. a housing; 2. a roller; 3. a first connecting rod; 4. a first squeegee; 5. a second squeegee; 6. a first cloth guide roller; 7. a drive motor; 8. a chain; 9. a dipping chamber; 10. a first cross bar; 11. a second cross bar; 12. a second connecting rod; 13. a gear; 14. a first squeeze plate; 15. a second compression plate; 16. a rotating shaft; 17. a fan; 18. a connecting shaft; 19. a drum; 20. a second cloth guide roller; 21. a fan; 22. heating wires; 23. a shunt tube; 24. a drying chamber; 25. the motor is driven.
Detailed Description
In the following, reference will be made to the accompanying drawings in the embodiments of the present invention for clearly and completely describing the technical solutions in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a cold and dry type fabric finishing liquid padding and drying integrated device comprises a shell 1, a rolling shaft 2, a first connecting rod 3, a first scraping plate 4, a second scraping plate 5, a first fabric guide roller 6, a driving motor 7, a chain 8, a padding chamber 9, a first cross rod 10, a second cross rod 11, a second connecting rod 12, a gear 13, a first extrusion plate 14, a second extrusion plate 15, a rotating shaft 16, a fan 17, a connecting shaft 18, a roller 19, a second fabric guide roller 20, a fan 21, a heating wire 22, a shunt tube 23, a drying chamber 24 and a driving motor 25, wherein the rolling shaft 2 is installed inside the shell 1, the first connecting rod 3 is fixed above the rolling shaft 2, the first scraping plate 4 is connected above the first connecting rod 3, the second scraping plate 5 is arranged on the left side of the first scraping plate 4, the first fabric guide roller 6 is connected on the left side of the second scraping plate 5, the driving motor 7 is welded behind the first fabric guide roller 6, a chain 8 is installed at the front end of a driving motor 7, a dipping chamber 9 is arranged below the chain 8, a first cross rod 10 is connected to the right end of a second scraper 5, a second cross rod 11 is arranged below the first cross rod 10, a gear 13 is arranged on the upper surface of the second cross rod 11, a second connecting rod 12 is installed on the inner surface of the gear 13, a driving motor 25 is welded at the rear end of the second connecting rod 12, a first extrusion plate 14 is arranged at the right end of the first cross rod 10, a second extrusion plate 15 is fixed below the first extrusion plate 14, a rotating shaft 16 is installed on the right side of the second extrusion plate 15, a fan 17 is arranged below the rotating shaft 16, a connecting shaft 18 is fixed on the right side of the fan 17, a roller 19 is arranged on the right side of the connecting shaft 18, a second cloth guide roller 20 is connected on the right side of the roller 19, a drying chamber 24 is arranged on the outer surface of the roller 19, a shunt tube 23 is, and the rear part of the shunt tube 23 is electrically connected with a heating wire 22, and the rear end of the heating wire 22 is welded with a fan 21.
As in fig. 1, 2 and 4, the first scraper 4 and the second scraper 5 both form a sliding structure on the first connecting rod 3, and the sliding directions of the first scraper 4 and the second scraper 5 are opposite, the mutual movement of the first scraper 4 and the second scraper 5 can clean the thread end on the surface of the cloth, the lower surface of the first cross bar 10 and the upper surface of the second cross bar 11 both form a protrusion-shaped structure, and the gear 13, the first cross bar 10 and the second cross bar 11 are combined to form a linkage structure, and the protrusion-shaped structure is favorable for the mutual movement between the first pressing plate 14 and the second pressing plate 15.
As shown in fig. 1, fig. 2, fig. 3 and fig. 4, the first pressing plate 14 and the second pressing plate 15 both form a detachable structure on the housing 1, and the upper surface of the housing 1 is in a groove-shaped structure, which is beneficial to guiding the fabric into the drying chamber 24, and reduces the circulation of the drying chamber 24 and the outside air, thereby reducing the loss of heat, thereby saving energy, the outer surface of the drum 19 is in a hole-shaped structure, and the structure is uniformly distributed on the drum 19, the hole-shaped structure is beneficial to uniformly blowing the hot air to each angle of the drying chamber 24, thereby the fabric is more uniform in the drying process, the cross section of the shunt pipe 23 is in a bifurcate structure, the position of the bottom end of the structure corresponds to the position of the drum 19 one-to one, and the bifurcate structure is beneficial to dispersing the hot air, so that the hot air is uniformly conveyed.
The working principle is as follows: when the ice-refreshing quick-drying fabric finishing liquid padding and drying integrated equipment is used, firstly, a worker leads the fabric into the equipment from the upper part of a first fabric guide roller 6 according to the installation mode shown in figure 1, penetrates through a roller shaft 2, a rotating shaft 16 and a connecting shaft 18, passes through a padding chamber 9 and a drying chamber 24, and is finally led out from the right side, a driving motor 7 shown in figure 2 is started, the first fabric guide roller 6 and a second fabric guide roller 20 are interlocked under the transmission of a chain 8 to realize the sliding of the fabric, a driving motor 25 is started, a second connecting rod 12 shown in figure 4 drives a gear 13 to rotate, so that a first cross rod 10 is interlocked with a second cross rod 11, the first cross rod 10 slides rightwards, the second cross rod 11 slides leftwards, a first scraper 4 and a second scraper 5 move mutually, and when the first cross rod and the second cross rod are in contact with the fabric, the first scraper and the second scraper clean the thread ends on the surface of the fabric, meanwhile, the first extrusion plate 14 and the second extrusion plate 15 dehydrate the cloth after being soaked and pricked;
the fan 21 shown in fig. 3 is started, under the action of the heating wire 22, the air blown into the drum 19 is heated, meanwhile, the shunt pipe 23 shunts the hot air, so that the hot air is uniformly conveyed into the drum 19, and the hot air is uniformly blown to the outer surface of the fabric through the porous structure on the surface of the drum 19, so that the effect of drying the fabric is achieved, meanwhile, the fan 17 is started, the air circulation inside the drying chamber 24 is increased, the drying efficiency is increased, namely, the whole process of using the ice-refreshing quick-drying fabric finishing liquid padding and drying integrated equipment is the whole process, and the content which is not described in detail in the specification belongs to the prior art known by technical personnel in the field.
The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt prior art, and conventional model, including circuit connection adopts conventional connection mode among the prior art, does not detailed here again.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a type surface fabric finishing liquor padding and stoving integral type equipment is done soon to ice, includes shell (1), first scraper blade (4), second scraper blade (5), heater strip (22) and driving motor (25), its characterized in that: the cloth guide device is characterized in that a roller (2) is mounted inside the shell (1), a first connecting rod (3) is fixed above the roller (2), a first scraper (4) is connected above the first connecting rod (3), a second scraper (5) is arranged on the left side of the first scraper (4), a first cloth guide roller (6) is connected on the left side of the second scraper (5), a driving motor (7) is welded behind the first cloth guide roller (6), a chain (8) is mounted at the front end of the driving motor (7), a dipping chamber (9) is arranged below the chain (8), a first cross rod (10) is connected at the right end of the second scraper (5), a second cross rod (11) is arranged below the first cross rod (10), a gear (13) is arranged on the upper surface of the second cross rod (11), and a second connecting rod (12) is mounted on the inner surface of the gear (13), and the rear end welding of second connecting rod (12) has drive motor (25), the right-hand member of first horizontal pole (10) is provided with first stripper plate (14), and the below of first stripper plate (14) is fixed with second stripper plate (15), pivot (16) are installed on the right side of second stripper plate (15), and the below of pivot (16) is provided with fan (17), the right side of fan (17) is fixed with connecting axle (18), and the right side of connecting axle (18) is provided with cylinder (19), the right side of cylinder (19) is connected with second fabric guide roller (20), and the surface of cylinder (19) is provided with drying chamber (24), the rear of cylinder (19) is provided with shunt tubes (23), and the rear electric connection of shunt tubes (23) has heater strip (22) to the rear end welding of heater strip (22) has fan (21).
2. The padding and drying integrated equipment for the icy and fast-drying fabric finishing liquid according to claim 1 is characterized in that: the first scraper (4) and the second scraper (5) both form a sliding structure on the first connecting rod (3), and the sliding directions of the first scraper (4) and the second scraper (5) are opposite.
3. The padding and drying integrated equipment for the icy and fast-drying fabric finishing liquid according to claim 1 is characterized in that: the lower surface of the first cross rod (10) and the upper surface of the second cross rod (11) are both in a convex structure, and the gear (13), the first cross rod (10) and the second cross rod (11) are combined to form a linkage structure.
4. The padding and drying integrated equipment for the icy and fast-drying fabric finishing liquid according to claim 1 is characterized in that: the first extrusion plate (14) and the second extrusion plate (15) form a disassembly structure on the shell (1), and the upper surface of the shell (1) is of a groove-shaped structure.
5. The padding and drying integrated equipment for the icy and fast-drying fabric finishing liquid according to claim 1 is characterized in that: the outer surface of the roller (19) is in a hole-shaped structure, and the structure is uniformly distributed on the roller (19).
6. The padding and drying integrated equipment for the icy and fast-drying fabric finishing liquid according to claim 1 is characterized in that: the cross section of the shunt pipe (23) is of a fork-shaped structure, and the positions of the bottom ends of the structure correspond to the positions of the rollers (19) one by one.
