Abstract
The utility model discloses a dragon fruit planting insect killer, which comprises an insect storage cylinder, a support rod, a lamp shade, a trap lamp and a hook, wherein the top of the insect storage cylinder is connected with the lamp shade through the support rod, the trap lamp is arranged at the bottom of the lamp shade, and the hook is arranged at the top of the lamp shade; the insect storage cylinder comprises a base, a cylinder body, a funnel opening, a connecting rod, a baffle and an insect trapping rod, wherein the base is movably arranged at the bottom of the cylinder body, the funnel opening is formed in the top of the cylinder body, the baffle is fixedly arranged in the funnel opening through the connecting rod, and the baffle is suspended in the center of the funnel opening; the insect trapping stick is fixed on the base. The insect killer of the utility model combines the insect attractant and the insect attracting lamp, and makes full use of the phototaxis characteristic of the pests to carry out the targeted design on the insect storage cylinder, thereby realizing the effect of facilitating the pests to enter the insect storage cylinder and avoiding the pests in the cylinder to run out; the whole structure is simple, the manufacture is easy, and the method can be widely popularized and used in the dragon fruit planting.
Description
Technical Field
The utility model belongs to the technical field of the dragon fruit is planted, especially, relate to a dragon fruit is planted and is disinfestated ware.
Background
At present, common pests in the dragon fruit planting process include thrips, noctuids and the like, and most of the pests are flying pests. Especially, the larvae of noctuids such as prodenia litura, ice tea looper and the like specially gnaw the tender stems of dragon fruit seedlings, so that the growth of plants is stopped, even the whole plant is infected, and the harm is serious. The root of the insect pest is to eliminate the imago of the noctuid, prevent the imago from laying eggs in the orchard and block the breeding way of the noctuid, thereby achieving the purpose of eliminating the insect pest. At present, fly sticking, insect luring agents, pesticides and other methods are mainly adopted to kill flying insects such as noctuids and the like, but the methods have poor insect killing effect, cannot kill the insects in a large range and are not thorough enough, and the drugs have certain toxicity and cannot be used for a long time. The fly sticker and the insect attractant have certain limitations, and have an ideal disinsection effect of 'house keeping rabbit' by using idiom and cause metaphor.
SUMMERY OF THE UTILITY MODEL
The utility model discloses to the not enough of above-mentioned prior art, invent a dragon fruit and plant disinsection ware.
In order to achieve the above object, the utility model adopts the following technical scheme:
a dragon fruit planting insect killer comprises an insect storage cylinder, a support rod, a lampshade, a trap lamp and a hook, wherein the top of the insect storage cylinder is connected with the lampshade through the support rod, the trap lamp is arranged at the bottom of the lampshade, and the hook is arranged at the top of the lampshade; the insect storage cylinder comprises a base, a cylinder body, a funnel opening, a connecting rod, a blocking piece and an insect attracting rod, wherein the base is movably arranged at the bottom of the cylinder body, the funnel opening is formed in the top of the cylinder body, the blocking piece is fixedly arranged in the funnel opening through the connecting rod, and the blocking piece is suspended in the center of the funnel opening; the insect trapping stick is fixed on the base.
The utility model discloses a mode that moth-killing lamp and attractant combined together designs the insect killer, stores up the combination design that an insect section of thick bamboo adopted flare opening and separation blade, can prevent that the worm from running out when making things convenient for the worm to enter, has utilized the phototaxis principle of worm.
Furthermore, the separation blade be circular, the diameter ratio of separation blade is 10 ~ 20mm more than the minimum bore of flare opening, the effect of separation blade is in guaranteeing that the light of moth-killing lamp can not shine in storing up the worm section of thick bamboo, also can not see the light when upwards seeing from the flare opening in storing up the worm section of thick bamboo.
Furthermore, the funnel opening is provided with through holes which are distributed at the upper half part of the funnel opening, the through holes are used for adding light rays into the insect storage cylinder, and insects in the insect storage cylinder can crawl towards the inner wall of the cylinder body or the funnel opening under the guidance of the light when the insects want to crawl out or fly out at night, so that the insects can be prevented from crawling out or flying out of the funnel opening; meanwhile, the fragrance of the insect attractant on the insect attracting rod is convenient to disperse.
Furthermore, the lower half part of the insect storage cylinder is made of transparent plastics, so that the number of stored insects in the insect storage cylinder can be conveniently observed; insects in the insect storage cylinder can also gather at the bottom of the insect storage cylinder under the irradiation of light at night.
Further, still include the photo resistance, the top of lamp shade be provided with the photo resistance, the photo resistance is connected with the moth-killing lamp, has realized automatic moth-killing lamp according to light intensity switch.
The utility model has the advantages that: the insect killer of the utility model combines the insect attractant and the insect attracting lamp, and makes full use of the phototaxis characteristic of the pests to carry out the targeted design on the insect storage cylinder, thereby realizing the effect of facilitating the pests to enter the insect storage cylinder and avoiding the pests in the cylinder to run out; the whole structure is simple, the manufacture is easy, and the method can be widely popularized and used in the dragon fruit planting.
Drawings

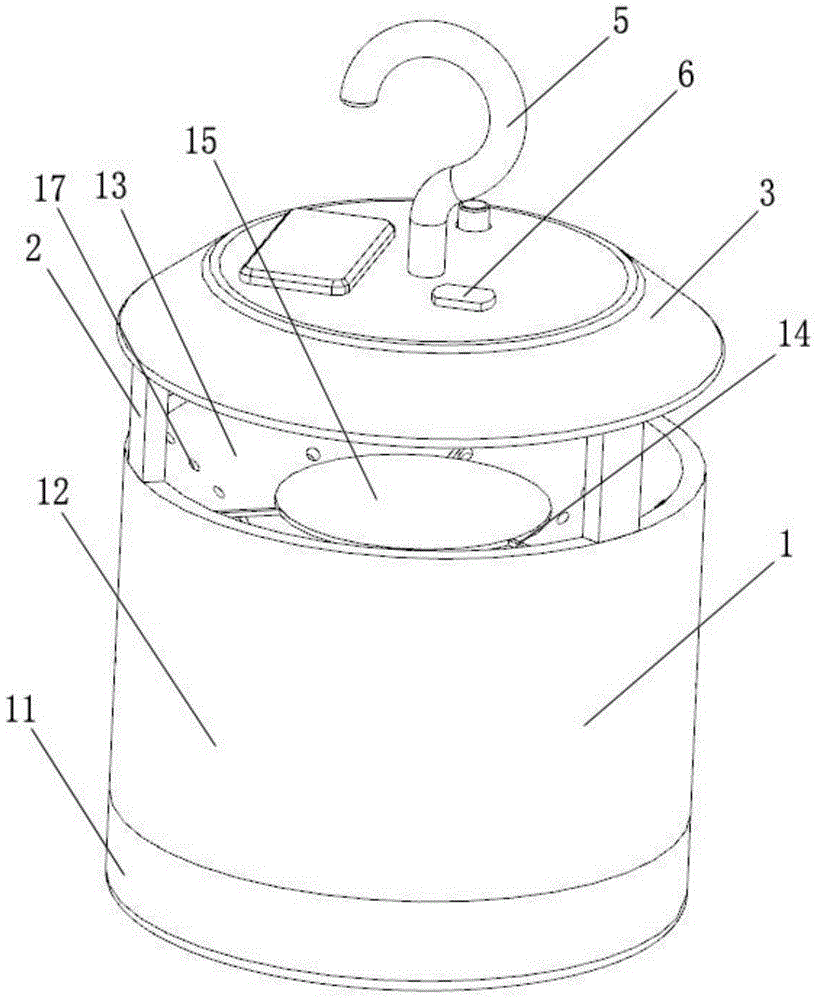

FIG. 1 is a perspective view of the dragon fruit planting insect killer of the present invention;
FIG. 2 is a front view of the dragon fruit planting insect killer of the present invention;
fig. 3 is a perspective view of a funnel mouth structure in a lamp holder of the dragon fruit planting insect killer of the utility model.
Detailed Description
The present invention is described in detail below with reference to the accompanying drawings:
in the description of the present invention, it should be noted that the directions or positional relationships indicated by "top", "bottom", etc. are based on the directions or positional relationships shown in the drawings, or the directions or positional relationships that the products of the present invention are conventionally placed when used, and are only for convenience of description and simplification of the description, but do not indicate or imply that the device or element to be referred must have a specific direction, be constructed and operated in a specific direction, and thus, should not be construed as limiting the present invention.
As shown in fig. 1-3, a dragon fruit planting insect killer comprises an insect storage cylinder 1, a support rod 2, a lampshade 3, a trap lamp 4, a hook 5 and a photosensitive resistor 6, wherein the lampshade 3 is connected to the top of the insect storage cylinder 1 through the support rods 2 arranged in 3 arrays, and the distance between the lampshade 3 and the insect storage cylinder 1 is 6 cm. The bottom of the lampshade 3 is provided with a trap lamp 4, and the hook 5 is arranged at the top of the lampshade 3. Still be provided with battery, switch and photo resistance 6 at the top of lamp shade 3, moth-killing lamp 4, battery, photo resistance 6 and switch electric connection become the return circuit, realize that moth-killing lamp 4 can be according to the automatic opening or closing of the power of light. The insect storage cylinder 1 of the embodiment comprises a base 11, a cylinder body 12, a funnel opening 13, a connecting rod 14, a blocking piece 15 and an insect trapping rod 16, wherein the base 11 is movably arranged at the bottom of the cylinder body 12 through threads, the insect trapping rod 16 is fixed on the base 11, and an insect attractant is coated on the insect trapping rod 16. A funnel opening 13 is arranged at the top of the barrel body 12, round blocking pieces 15 are fixedly arranged in the funnel opening 13 through 3 connecting rods 14 arranged in an array mode, the blocking pieces 15 are suspended in the central position of the funnel opening 13, namely are suspended in the funnel opening 13, the blocking pieces 15 are located in the central position of the funnel opening 13 when viewed from top to bottom, and the diameter of each blocking piece 15 is 15mm larger than the caliber of the bottom of the funnel opening 13. When the trap lamp is arranged, the projection of the trap lamp 4 at the bottom of the lampshade 3 falls within the area range of the baffle 15. In order to avoid pests from climbing out or flying out of the funnel opening 13, the funnel opening 13 is provided with the through holes 17, and the through holes 17 are distributed on the upper half part of the funnel opening 13, so that light irradiated by the trap lamp 4 can only be emitted into the pest storage barrel 1 from the through holes 17, and the pests can move upwards along the inner wall of the barrel body 12 under the influence of the phototropism of the pests and cannot climb out or fly out of the funnel opening 13.
In order to better utilize the phototaxis effect of pests, the lower half part of the pest storage cylinder 1 and the lampshade 3 are made of transparent plastics. The transparent setting of lamp shade 3 can let the illumination scope of moth-killing lamp 4 wider, and the transparent setting of the latter half of storing up a worm section of thick bamboo 1 can let the pest that stores up in a worm section of thick bamboo 1 all gather in the bottom, because outside light can shine from the bottom that stores up a worm section of thick bamboo 1 when night, and the pest will gather in the bottom.
The utility model relates to an adopt two kinds of methods of luring insects to combine together, utilize the characteristic of noctuid phototaxis, make its directional towards the insect killer come, the target of having, and the rabbit is waited for to the not plant-conserving insect attractant of insect trap inside lures the insect trap that makes the insect climb into or fly into again, reaches the pest effect of killing when scientific environmental protection.
Although particular embodiments of the present invention have been described and illustrated in detail, it should be noted that various changes and modifications could be made to the above-described embodiments without departing from the spirit of the invention and the scope of the appended claims.
Claims (5)
1. A dragon fruit planting insect killer comprises an insect storage cylinder (1), a support rod (2), a lampshade (3), a trap lamp (4) and a hook (5), wherein the top of the insect storage cylinder (1) is connected with the lampshade (3) through the support rod (2), the trap lamp (4) is arranged at the bottom of the lampshade (3), and the hook (5) is arranged at the top of the lampshade (3);
the insect storage cylinder (1) is characterized by comprising a base (11), a cylinder body (12), a funnel opening (13), a connecting rod (14), a blocking piece (15) and an insect attracting rod (16), wherein the base (11) is movably arranged at the bottom of the cylinder body (12), the funnel opening (13) is arranged at the top of the cylinder body (12), the blocking piece (15) is fixedly arranged in the funnel opening (13) through the connecting rod (14), and the blocking piece (15) is suspended at the central position of the funnel opening (13); the insect trapping stick (16) is fixed on the base (11).
2. The dragon fruit planting insect killer as claimed in claim 1, wherein the baffle plate (15) is circular, and the diameter of the baffle plate (15) is 10-20 mm larger than the minimum caliber of the funnel opening (13).
3. The dragon fruit planting insect killer as claimed in claim 1, wherein the funnel opening (13) is provided with through holes (17) and the through holes (17) are distributed on the upper half part of the funnel opening (13).
4. A dragon fruit planting insect killer as claimed in any one of claims 1-3, wherein the lower half of the insect storage cylinder (1) is made of transparent plastic.
5. A dragon fruit planting insect killer as claimed in claim 1, further comprising a light sensitive resistor (6), wherein the light sensitive resistor (6) is arranged on the top of the lampshade (3).
