Abstract
The utility model discloses a hot-water heating is shearing mechanism for tubular product processing, including cutting frame, alignment jig, install bin and holding frame, the mounting bracket is installed through the mount table in the top of install bin, the welding of that of mounting bracket has the mount, the alignment jig is installed through the pintle in the inside of mount. The utility model discloses an install the alignment jig in bottom one side of adjusting the seat, when carrying out altitude mixture control, bottom one side of adjusting the seat is with cross axle bolt and mounting bracket swing joint, be convenient for adjust the seat and carry out the regulation of angle, can drive through the hydraulic stem and adjust the seat and carry out fore-and-aft pitch arc removal, thereby adjust the angle of adjusting the seat, through the angle of adjusting seat adjustable motor and motor output cutting frame, thereby because of adjusting the seat and become the vertical distance of pitch arc removal adjustable motor output cutting frame, make the cutting frame of its motor output can adjust according to the height of hot-water heating tubular product, the adjustability of device has been increased, the application range of device has been enlarged.
Description
Technical Field
The utility model relates to a tubular product processing technology field specifically is a shearing mechanism is used in hot-water heating tubular product processing.
Background
The water heating pipe has the advantages of light weight, corrosion resistance, small water flow resistance, energy conservation, quick installation, low manufacturing cost and the like, is widely popularized and applied, has obvious benefits, is widely applied to city tap water delivery and water supply engineering, water supply engineering inside and outside buildings, water supply engineering of industrial and mining enterprises, underground fire control water supply engineering, water supply and drainage engineering of aquaculture industry and the like, obtains good economic benefits and social benefits, needs to cut the water heating pipe when the water heating pipe is put into use, needs a shearing device for machining the water heating pipe at the moment, but the existing shearing device for machining the water heating pipe has many problems or defects:
when the existing shearing device for machining the water heating pipe is in actual use, the device cannot be adjusted according to the height of the water heating pipe, so that the device is small in application range when in use.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a shearing mechanism is used in hot-water heating tubular product processing to solve the little problem of application range who provides among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a shearing mechanism is used in hot-water heating tubular product processing, includes cutting frame, alignment jig, install bin and holding frame, the mounting bracket is installed through the mount table in the top of install bin, that welding of mounting bracket has the mount, the regulation seat is installed through the pintle in the inside of mounting bracket, the motor is installed through the bolt in the top of adjusting the seat, the cutting frame is installed through the bolt to the output of motor, the alignment jig is installed through the pintle in the inside of mount, the top of alignment jig is passed through the pintle and is connected with bottom one side of adjusting the seat, the holding frame is installed through the knob in the top of install bin through mount table one side.
Preferably, a protective cover is installed in the cutting frame, a cutting disc is installed in the protective cover through a shaft rod, a polishing disc is installed on one side of the cutting disc through a bolt, and a commutator is installed on the other side of the cutting disc through a bolt.
Preferably, a mounting seat is installed in the clamping frame, a through bidirectional screw rod is installed inside the mounting seat in a rotating mode, a clamp is installed on the outer side of the bidirectional screw rod through a shaft sleeve, and a rotary table is fixedly installed at one end of the bidirectional screw rod.
Preferably, the front of the installation box is provided with a box door through a hinge, a controller is arranged above the box door through a bolt, and two sides of the bottom of the installation box are provided with fixing foot pads.
Preferably, a hydraulic rod is installed in the adjusting frame, a shaft frame is installed at the top of the hydraulic rod through a threaded structure, and a shaft piece is fixedly installed at the bottom of the adjusting frame.
Preferably, the two sides of the mounting rack are welded with the baffle plates, and the inside of the fixing rack is provided with threaded holes.
Compared with the prior art, the beneficial effects of the utility model are that: this shearing mechanism for hot-water heating tubular product processing is rational in infrastructure, has following advantage:
(1) the adjusting frame is arranged on one side of the bottom of the adjusting seat, when the height is adjusted, one side of the bottom of the adjusting seat is movably connected with the mounting frame through the shaft bolt, the adjusting seat is convenient to adjust the angle, the adjusting seat can be driven by the hydraulic rod to longitudinally move in an arc manner, so that the angle of the adjusting seat is adjusted, the angle between the motor and the cutting frame at the output end of the motor can be adjusted through the adjusting seat, the vertical distance between the cutting frame at the output end of the motor can be adjusted due to the fact that the adjusting seat moves in the arc manner, the cutting frame at the output end of the motor can be adjusted according to the height of the water heating pipe, the adjustability of the device is increased, and the application;
(2) the clamping frame is arranged at the top of the mounting table at the top of the mounting box, when a pipe is clamped and fixed, the rotary turntable can drive the two-way screw rod to rotate, and the two groups of clamps at the outer side can be driven to move horizontally relatively through the rotating two-way screw rod, so that the clamping distance between the two groups of clamps can be adjusted according to the specification of the pipe, the device can conveniently adjust and clamp, the stability of the pipe during cutting is ensured, the precision of the pipe during cutting is ensured, the processing quality of the device is improved, meanwhile, the device can process pipes with different specifications, the adjustability of the device is increased, and the flexibility of the device is improved;
(3) install the dish of polishing through one side at the cutting dish, when the tubular product cutting opening is polished, rotate through the cutting dish and can drive the dish of polishing of cutting dish one side and rotate at a high speed, accomplish the cutting back to the tubular product at the cutting dish, polish to the tubular product cutting opening through high-speed pivoted dish of polishing for cutting and grinding the tangent plane and go on in succession, make the cutting opening cutting plane of tubular product one side level, sparingly polish the step, improved the machining efficiency of device.
Drawings

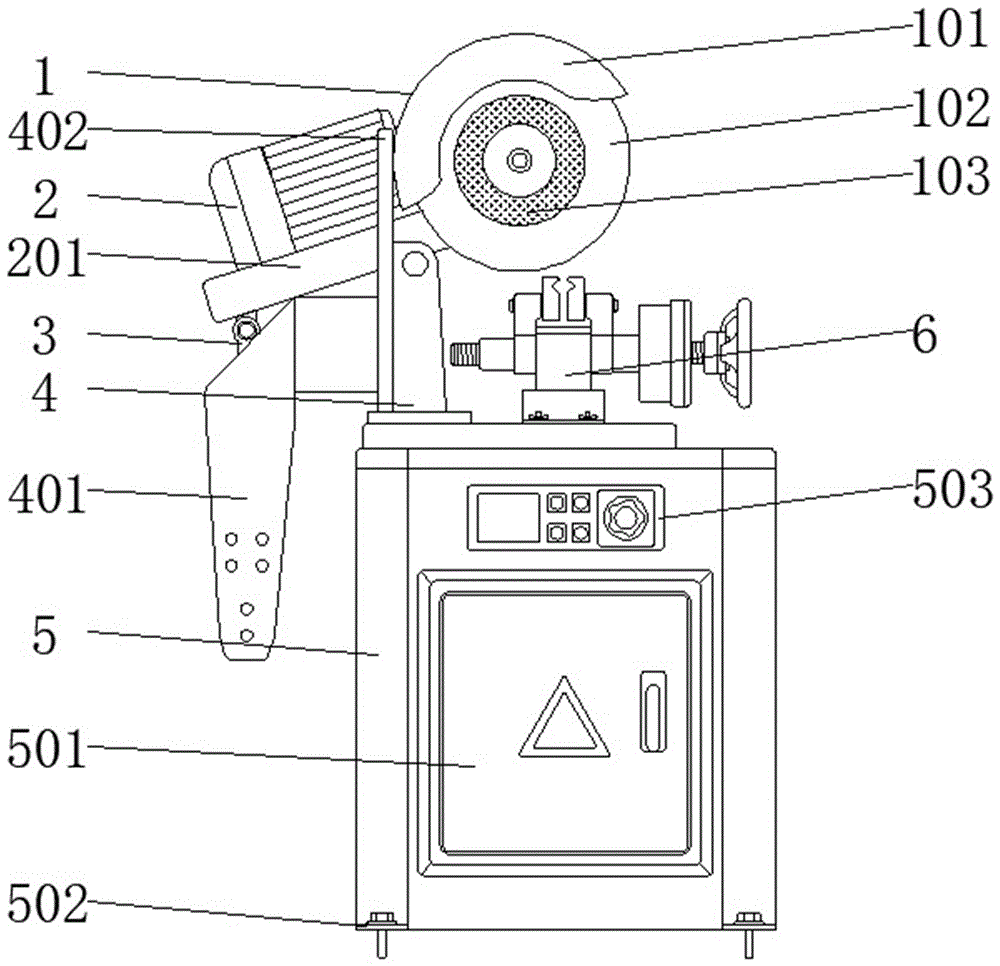

Fig. 1 is a schematic front view of the present invention;
fig. 2 is a schematic view of the back structure of the present invention;
FIG. 3 is a schematic view of the structure of the adjusting bracket of the present invention;
fig. 4 is a schematic structural view of the holding frame of the present invention.
In the figure: 1. a cutting frame; 101. a protective cover; 102. cutting the disc; 103. grinding disc; 104. a commutator; 2. a motor; 201. an adjusting seat; 3. an adjusting bracket; 301. a hydraulic lever; 302. a pedestal; 303. a shaft member; 4. a mounting frame; 401. a fixed mount; 402. a baffle plate; 5. installing a box; 501. a box door; 502. fixing the foot pad; 503. a controller; 6. a clamping frame; 601. a mounting seat; 602. a bidirectional screw rod; 603. a clamp; 604. a turntable.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides an embodiment: a shearing device for machining a water heating pipe comprises a cutting frame 1, an adjusting frame 3, an installation box 5 and a clamping frame 6, wherein a box door 501 is installed on the front side of the installation box 5 through a hinge, a lock catch is arranged on the front side of the box door 501, a controller 503 is installed above the box door 501 through a bolt, the controller 503 can adopt a PLC (programmable logic controller), fixing foot pads 502 are arranged on two sides of the bottom of the installation box 5, a penetrating bolt is installed at the top of the fixing foot pad 502, an installation frame 4 is installed at the top of the installation box 5 through an installation platform, a fixing frame 401 is welded on the installation frame 4 at the time, a threaded hole is formed in the fixing frame 401, baffles 402 are welded on two sides of the installation frame 4 and can avoid the diffusion of sheared dust, an adjusting seat 201 is installed in the installation frame 4 through a shaft bolt, a motor 2 is installed at the top of the adjusting seat 201, a hydraulic rod 301 is installed in the adjusting frame 3, a shaft frame 302 is installed at the top of the hydraulic rod 301 through a threaded structure, a shaft piece 303 is fixedly installed at the bottom of the adjusting frame 3, and the top of the hydraulic rod 301 can be connected with one side of the bottom of the adjusting seat 201 through the matching of the shaft frame 302 and a shaft bolt;
specifically, during height adjustment, one side of the bottom of the adjusting seat 201 is movably connected with the mounting frame 4 through a shaft bolt, so that the angle of the adjusting seat 201 can be adjusted conveniently, the adjusting seat 201 can be driven by the hydraulic rod 301 to move in a longitudinal arc manner, the angle of the adjusting seat 201 can be adjusted, the angle of the motor 2 and the angle of the cutting frame 1 mounted at the output end of the motor 2 can be adjusted through the angle of the adjusting seat 201, and the vertical distance of the cutting frame 1 at the output end of the motor 2 can be adjusted due to arc movement of the adjusting seat 201, so that the cutting frame 1 at the output end of the motor 2 can be adjusted according to the height of the water heating pipe, the adjustability of the device is increased, and the application range of the device is expanded;
the output end of the motor 2 is provided with a cutting frame 1 through a bolt, a protective cover 101 is arranged in the cutting frame 1, a cutting disc 102 is arranged in the protective cover 101 through a shaft rod, one side of the cutting disc 102 is provided with a polishing disc 103 through a bolt, and the other side of the cutting disc 102 is provided with a commutator 104 through a bolt;
specifically, when the pipe cutting opening is polished, the motor 2 can drive the cutting disc 102 to rotate at a high speed, the cutting disc 102 can drive the polishing disc 103 on one side of the cutting disc 102 to rotate at a high speed, and after the pipe is cut by the cutting disc 102, the pipe cutting opening is polished by the polishing disc 103 rotating at a high speed, so that cutting and polishing of a cut surface are continuously performed, the cut surface of the cut opening on one side of the pipe is smooth, polishing steps are saved, and the processing efficiency of the device is improved;
the top of the installation box 5 is provided with a clamping frame 6 through a knob at one side of an installation platform, an installation seat 601 is installed in the clamping frame 6, a penetrating bidirectional screw 602 is rotatably installed in the installation seat 601, a clamp 603 is installed on the outer side of the bidirectional screw 602 through a shaft sleeve, and a turntable 604 is fixedly installed at one end of the bidirectional screw 602;
specifically, when carrying out the centre gripping fixed, can drive two-way lead screw 602 through rotary table 604 and rotate, can drive two sets of anchor clamps 603 in the outside through two-way lead screw 602 of pivoted and carry out relative horizontal migration, thereby can adjust the centre gripping distance between two sets of anchor clamps 603 according to the specification of tubular product, the centre gripping is adjusted to the device of being convenient for, thereby guarantee the stability of tubular product when the cutting, precision when having guaranteed the tubular product cutting, the processing quality of device has been improved, also can make the tubular product of the different specifications of processing of device simultaneously, the adjustability of device has been increased, the flexibility of device has been improved.
The working principle is as follows: when in use, firstly, the pipe is placed at the top of the mounting seat 601, the rotary turntable 604 can drive the two-way screw 602 to rotate, the two groups of clamps 603 on the outer side can be driven to perform relative horizontal movement through the rotating two-way screw 602, so that the clamping distance between the two groups of clamps 603 can be adjusted according to the specification of the pipe so as to clamp the pipe, meanwhile, the hydraulic rod 301 can drive the adjusting seat 201 to perform longitudinal arc movement so as to adjust the angle of the adjusting seat 201, the angle of the motor 2 and the cutting frame 1 arranged at the output end of the motor 2 can be adjusted through the angle adjustment of the adjusting seat 201, the vertical distance of the cutting frame 1 at the output end of the motor 2 can be adjusted due to the arc movement of the adjusting seat 201, the cutting frame 1 at the output end of the motor 2 can be adjusted according to the height of the water heating pipe, and the cutting disc 102 can be driven to, the cutting disc 102 rotates to drive the polishing disc 103 on one side of the cutting disc 102 to rotate at a high speed, after the cutting disc 102 finishes cutting the pipe, the pipe cutting opening is polished through the polishing disc 103 rotating at a high speed, so that cutting and polishing of the flat cutting surface are continuously performed, the cutting surface of the cutting opening on one side of the pipe is flat, the polishing step is saved, and the machining efficiency of the device is improved.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a hot-water heating is shearing mechanism for tubular product processing, includes cutting frame (1), alignment jig (3), install bin (5) and holding frame (6), its characterized in that: mounting bracket (4) are installed through the mount table in the top of install bin (5), that welding of mounting bracket (4) has mount (401), regulation seat (201) is installed through the pintle in the inside of mounting bracket (4), motor (2) are installed through the bolt in the top of adjusting seat (201), cutting frame (1) is installed through the bolt to the output of motor (2), alignment jig (3) is installed through the pintle in the inside of mount (401), the top of alignment jig (3) is passed through the pintle and is connected with bottom one side of adjusting seat (201), supporting frame (6) are installed through the knob in the top of install bin (5) through mount table one side.
2. The shearing device for the water heating pipe processing according to claim 1, wherein: the cutting frame (1) is internally provided with a protective cover (101), the interior of the protective cover (101) is provided with a cutting disc (102) through a shaft rod, one side of the cutting disc (102) is provided with a polishing disc (103) through a bolt, and the other side of the cutting disc (102) is provided with a commutator (104) through a bolt.
3. The shearing device for the water heating pipe processing according to claim 1, wherein: install mount pad (601) in clamping frame (6), the inside rotation of mount pad (601) is installed and is run through two-way lead screw (602), and anchor clamps (603) are installed through the axle sleeve in the outside of two-way lead screw (602), and the one end fixed mounting of two-way lead screw (602) has carousel (604).
4. The shearing device for the water heating pipe processing according to claim 1, wherein: the front of the installation box (5) is provided with a box door (501) through a hinge, a controller (503) is arranged above the box door (501) through a bolt, and two sides of the bottom of the installation box (5) are provided with fixing foot pads (502).
5. The shearing device for the water heating pipe processing according to claim 1, wherein: install hydraulic stem (301) in alignment jig (3), pedestal (302) are installed through helicitic texture in the top of hydraulic stem (301), and the bottom fixed mounting of alignment jig (3) has axle piece (303).
6. The shearing device for the water heating pipe processing according to claim 1, wherein: the baffle plates (402) are welded on two sides of the mounting frame (4), and threaded holes are formed in the fixing frame (401).
