Abstract
The utility model discloses a bathroom of adjustable size hangs mould, including the right angle connecting piece, the template adjustable part of triangle mounting and different specifications, the right angle frame is made by the zinc-plated square steel to the right angle connecting piece, inboard welding length is the same steel sheet with this zinc-plated square steel, the triangle mounting is made by the zinc-plated square steel, fix through the screw rod of screw and right angle department in the right angle connecting piece on the triangle mounting, the template adjustable part is by the zinc-plated square steel and weld in zinc-plated square steel one side and length and this steel sheet connecting portion that the zinc-plated square steel is the same make, zinc-plated square steel both ends in the template adjustable part form can inlay the portion of cup jointing in right angle connecting piece zinc-plated square steel tip, through steel sheet connecting piece fixed connection template adjustable part between the adjacent right angle connecting piece. The utility model discloses can put together wholly and tear open, both guarantee the clean size in the bathroom, guarantee the rigidity of template system again, can repetitious usage, no running mould, the mould phenomenon that rises, the concrete shaping impression is of high quality.
Description
Technical Field
The utility model belongs to the technical field of the bathroom hangs the mould template, especially, relate to a bathroom of adjustable size hangs mould.
Background
In recent years, the building industry of China is rapidly developed, in the building construction, a toilet hanging mold penetrates through the construction stage of the whole main body structure, and the appearance quality of the hanging mold directly influences the quality development of the whole project. Along with the improvement of the one-time formwork supporting and pouring process of the woodwork, the quality of the whole engineering main body structure is obviously improved, a good foundation is laid for creating excellent quality of the engineering structure, but the quality of the hanging formwork forming in the toilet is difficult to control, and the hanging formwork forming process becomes a weak link for creating excellent quality.
At present, a common batten hanging die is easy to bond with concrete in the construction process, and the whole and local bending rigidity of wood is low, so that the concrete in the batten hanging die is poor in forming appearance, large in size deviation and easy to generate die running and die expansion phenomena, a template needs to be chiseled after being removed, even quality defects occur in local concrete forming, secondary pouring is needed after chiseling, and the construction process is affected. In addition, when hanging moulds for toilets with different sizes, the batten hanging mould dies with different sizes need to be manufactured, and the material consumption is high.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a bathroom of adjustable size hangs mould, aim at solving the problem that current bathroom flitch hangs mould existence among the above-mentioned background art.
In order to achieve the above object, the utility model adopts the following technical scheme:
a bathroom die hanging mould with adjustable size comprises a right-angle connecting piece, a triangular fixing piece and template adjusting pieces with different specifications, wherein a right-angle frame of the right-angle connecting piece is made of galvanized square steel, steel plates with the same length as the galvanized square steel are welded on the inner side of the right-angle frame, screw rods are vertically welded on the galvanized square steel at the right-angle position and the two free ends of the right-angle frame, and the screw rods are vertically welded at the two free ends of the steel plates fixed on the right-angle frame; the triangular fixing piece is a right-angled triangular frame made of galvanized square steel, screw holes are formed in the galvanized square steel on two right-angled sides of the triangular fixing piece, and the triangular fixing piece can be fixed on the right-angled connecting piece through the screw holes and a screw rod at the right-angled position in the right-angled connecting piece; the adjustable template part is made of galvanized square steel and a steel plate connecting part welded on one side of the galvanized square steel and the length of the steel plate connecting part is the same as that of the galvanized square steel, two ends of the galvanized square steel in the adjustable template part form sleeve joint parts with the cross section size smaller than that of the galvanized square steel, and a plurality of specifications of adjustable template parts are arranged according to the length of the galvanized square steel of the adjustable template part; four right angles of the mould hanging mould are respectively provided with a right angle connecting piece, adjacent right angle connecting pieces are fixedly connected with each other through a steel plate connecting piece, and the sleeving part of the adjustable template piece can be embedded in the galvanized square steel of the right angle connecting pieces.
Preferably, the adjustable part of template and the right angle connecting piece of template pass through screw rod, nut and the screw fixed connection on the steel sheet connecting piece.
Preferably, U-shaped open clamping grooves are formed in two ends of the steel plate connecting piece, and the template adjustable piece and the right-angle connecting piece are fixedly connected through the screw, the nut and the U-shaped open clamping grooves in the steel plate connecting piece.
Preferably, the width of the steel plate connector is the same as the width of the galvanized square steel.
Preferably, the triangular fixing part is an isosceles right triangle frame.
Preferably, the steel plate and the steel plate connecting piece are both made of galvanized steel.
Compare in prior art's shortcoming and not enough, the utility model discloses following beneficial effect has:
(1) the utility model discloses a bathroom hangs mould and pieces together the combination in advance through the template adjustable part of steel right angle connecting piece, triangle mounting and different specifications and form, can put together wholly and tear open, has both guaranteed the interior net size of bathroom, has guaranteed the rigidity of template system again.
(2) The utility model overcomes the mould that runs, the mould phenomenon that rises when traditional flitch hangs the mould construction, the concrete shaping impression is of high quality.
(3) The utility model discloses during the die holding construction, reduced artifical repair process, alleviateed intensity of labour, saved the manual work for the construction progress improves work efficiency, and mould processing simple manufacture can have enough to meet the need the use many times, and the extravagant phenomenon of no material has higher use value and social.
Drawings

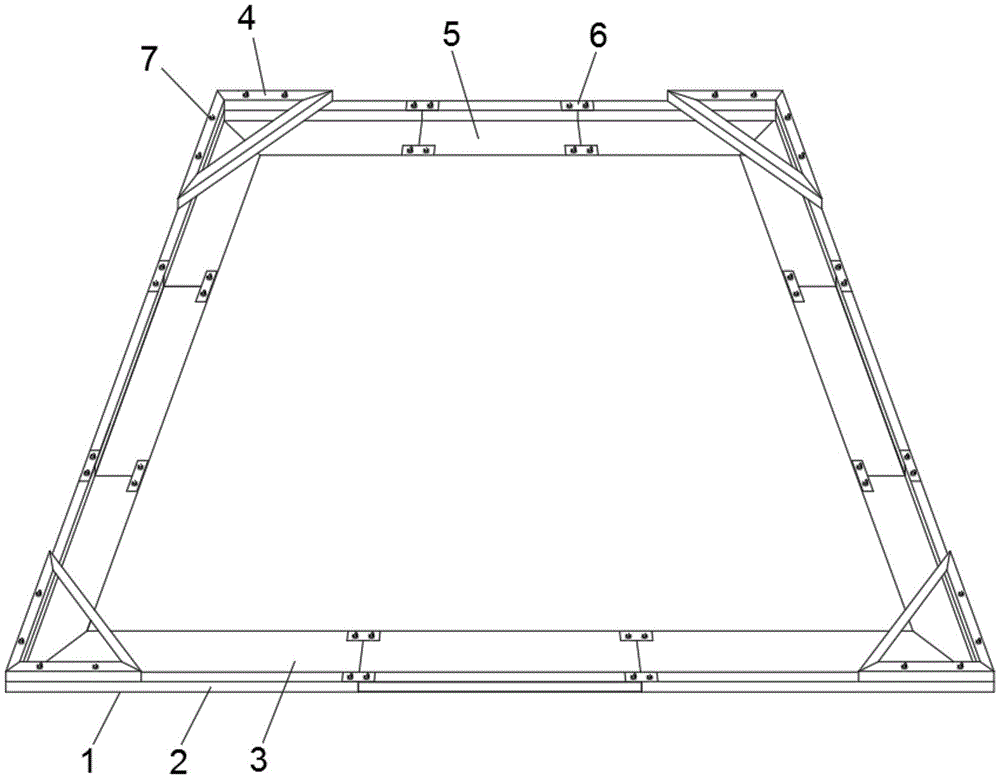

Fig. 1 is a schematic structural view of a size-adjustable toilet hanging mold provided by an embodiment of the present invention.
Fig. 2 is a schematic structural view of another size-adjustable toilet hanging mold provided by the embodiment of the present invention.
Fig. 3 is a schematic structural diagram of the connection of the galvanized square steel and the steel plate provided by the embodiment of the invention.
Fig. 4 is a schematic structural diagram of a triangular fixing member according to an embodiment of the present invention.
Fig. 5 is a schematic structural diagram of a template adjustable member according to an embodiment of the present invention.
Fig. 6 is a schematic structural view of another adjustable template according to an embodiment of the present invention.
Fig. 7 is a schematic structural diagram of a connecting member according to an embodiment of the present invention.
Fig. 8 is a schematic structural diagram of another connecting member according to an embodiment of the present invention.
In the figure: 1-right angle connecting piece, 2-galvanized square steel, 3-steel plate, 4-triangular fixing piece, 5-template adjustable piece, 501-sleeving part, 502-steel plate connecting part, 6-steel plate connecting piece, 7-nut, 8-screw, 9-screw hole and 10-opening clamping groove.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Referring to fig. 1 and 2, a size-adjustable toilet hanging die comprises right-angle connecting pieces 1, triangular fixing pieces 4 and die plate adjusting pieces 5, wherein the four right-angle connecting pieces 1 are sequentially connected to form a square frame of the hanging die, the die plate adjusting pieces 5 are fixedly connected between the adjacent right-angle connecting pieces 1, the size of the hanging die is adjusted by connecting the die plate adjusting pieces 5 with different specifications, the structure when the small-specification die plate adjusting pieces 5 are connected is shown in fig. 1, and the structure when the large-specification die plate adjusting pieces 5 are connected is shown in fig. 2. The triangular fixing part 4 is arranged on the right angle of the right-angle connecting part 1 and used for further reinforcing the die and ensuring the rigidity of the die plate system.
The structure of right angle connecting piece 1 is as shown in fig. 3, its right angle frame is made by zinc-plated square steel 2, the tip of two zinc-plated square steel 2 junctions is turned 45 oblique angles, zinc-plated square steel 2 of right angle both sides is going up and is being kept away from right angle 15, the vertical welding phi 12 screw rod 8 of 25cm department, keeping away from the vertical welding phi 12 screw rod 8 of right angle zinc-plated square steel 2 tip, the inboard welding width 30mm of right angle frame, length and the same steel sheet 3 of zinc-plated square steel 2 length, in order to guarantee bathroom ground height, keeping away from the vertical welding phi 12 screw rod 8 of right angle steel sheet 3 tip.
The structure of triangle mounting 4 is as shown in fig. 4, it is the right angled triangle frame of making by zinc-plated square steel 2, can make the isosceles right triangle that the right angle length of side is 30cm generally, the zinc-plated square steel 2 link on two right-angle sides is 45 oblique angles down, the zinc-plated square steel 2 end that the right-angle side is connected with the hypotenuse is 22.5 oblique angles down, correspond on two right-angle sides zinc-plated square steel 2 of triangle mounting 4 with right angle connecting piece 1 in the position department of right angle department clamping screw 8 and be equipped with screw 9, screw 9 is used for cross-under screw 8.
The structure of the template adjustable part 5 is shown in fig. 5-6, fig. 5 shows a small-sized template adjustable part 5, fig. 6 shows a large-sized template adjustable part 5, which is made of a galvanized square steel 2 and a steel plate connecting part 502 welded on one side of the galvanized square steel 2 and having the same length as the galvanized square steel 2, and two ends of the galvanized square steel 2 in the template adjustable part 5 form a sleeved part 501 with a cross section size smaller than that of the galvanized square steel 2. The specification of the template adjustable part 5 is set according to the length of the square steel 2 of the template adjustable part, the galvanized square steel 2 with different lengths is made into different specifications, and for the template adjustable part 5 with small specification, the weight is light, and the right-angle connecting parts 1 connected with two sides of the template adjustable part 5 can be directly connected and fixed through the steel plate connecting parts 6. For the large-size template adjustable part 5, phi 12 screw rods 8 need to be vertically welded at two ends of the galvanized square steel 2 of the template adjustable part 5 in the middle quality, the screw rods 8 need to be vertically welded at two ends of the steel plate connecting part 502, the template adjustable part 5 is respectively connected and fixed with the right-angle connecting parts 1 at two sides through the steel plate connecting part 6, and the firmness of the connection of the template adjustable part 5 in the template hanging process is ensured.
The steel plate connecting piece 6 is structured as shown in fig. 7-8, the steel plate connecting piece 6 shown in fig. 7 is provided with screw holes 9 near two end portions, and the steel plate connecting piece 6 shown in fig. 8 is provided with U-shaped open clamping grooves 10 at two end portions.
The die assembling process comprises: the method comprises the steps of selecting a template adjustable part 5 with a specific specification according to the size of a toilet, embedding the sleeving part 501 of the template adjustable part 5 into the ends of the galvanized square steels 2 of the two right-angle connecting pieces 1, respectively sleeving the screw rods 8 on the galvanized square steels 2 at the two sides of the connecting part into the screw holes 9 or the open clamping grooves 10 at the two ends of the steel plate connecting piece 6, and sleeving the screw rods 8 with nuts 7 for fixing. The adjustable 5 of template between four right angle connecting pieces 1 forms the mould frame after fixing, and the right angle side of triangle mounting 4 corresponds the right angle side of right angle connecting piece 1, makes during screw 8 on the right angle side of right angle connecting piece 1 penetrates screw 9 on the triangle mounting 4, and it is fixed with it through nut 7 again.
The utility model discloses well zinc-plated square steel 2 all can adopt 4 x 4's zinc-plated square pipe, and steel sheet 3 and steel sheet connecting piece 6 all adopt zinc-plated steel to make, improve the shaping quality of concrete. For the convenience of manufacture, the width of the steel plate connecting piece 6 is processed into a steel plate with the same width as the galvanized square steel 2.
The template adjustable pieces 5 with different specifications can be numbered according to the size of a toilet, so that the mold can be conveniently detached and can be correctly and correspondingly recycled.
The utility model discloses a construction method as follows: in order to prevent the whole displacement of the shaped galvanized square steel hanging die, positioning steel bars are arranged at the outer side control lines around the hanging die, the beam stirrups around the toilet are welded with phi 12@600 horizontal steel bars (the horizontal steel bars are required to exceed the control lines on two sides by at least 100mm) to serve as the bottom support of the hanging die, 20-length phi 20 steel bar heads are welded on the upper portion of the horizontal supporting steel bars to serve as vertical limiting steel bars of the galvanized square steel hanging die, and the vertical limiting steel bars are hidden in the floor construction stage of the toilet. Hang the mould when installation in the bathroom, directly will the utility model discloses a design is hung the mould and is installed on vertical spacing reinforcing bar in the horizontal support bar can. After the concrete is formed, the hanging mould is dismantled, the hanging mould can be used repeatedly, and the phenomenon of material waste is avoided.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (6)
1. The size-adjustable toilet hanging die is characterized by comprising a right-angle connecting piece, a triangular fixing piece and template adjusting pieces of different specifications, wherein a right-angle frame of the right-angle connecting piece is made of galvanized square steel, steel plates with the same length as the galvanized square steel are welded on the inner side of the right-angle frame, screw rods are vertically welded on the galvanized square steel at the right-angle position and the two free ends of the right-angle frame, and the screw rods are vertically welded at the two free ends of the steel plates fixed on the right-angle frame; the triangular fixing piece is a right-angled triangular frame made of galvanized square steel, screw holes are formed in the galvanized square steel on two right-angled sides of the triangular fixing piece, and the triangular fixing piece can be fixed on the right-angled connecting piece through the screw holes and a screw rod at the right-angled position in the right-angled connecting piece; the adjustable template part is made of galvanized square steel and a steel plate connecting part welded on one side of the galvanized square steel and the length of the steel plate connecting part is the same as that of the galvanized square steel, two ends of the galvanized square steel in the adjustable template part form sleeve joint parts with the cross section size smaller than that of the galvanized square steel, and a plurality of specifications of adjustable template parts are arranged according to the length of the galvanized square steel of the adjustable template part; four right angles of the mould hanging mould are respectively provided with a right angle connecting piece, adjacent right angle connecting pieces are fixedly connected with each other through a steel plate connecting piece, and the sleeving part of the adjustable template piece can be embedded in the galvanized square steel of the right angle connecting pieces.
2. The adjustable dimension toilet suspended die mold of claim 1, wherein the adjustable template member has screw rods vertically welded at both ends of the connecting portion between the galvanized square steel and the steel plate, the steel plate connecting member has screw holes, and the adjustable template member and the right angle connecting member are fixedly connected by the screw rods, nuts and the screw holes of the steel plate connecting member.
3. The adjustable dimension bathroom die hanging mould as claimed in claim 1, wherein the two ends of the steel plate connecting piece are provided with U-shaped open slots, and the adjustable template piece and the right angle connecting piece are fixedly connected through a screw, a nut and the U-shaped open slots on the steel plate connecting piece.
4. The adjustable size bathroom die hanging mould as claimed in claim 2 or 3, wherein the width of the steel plate connecting piece is the same as the width of the galvanized square steel.
5. The adjustable size bathroom die sinking apparatus of claim 1, wherein said triangular fixture is an isosceles right triangle frame.
6. The adjustable size bathroom die set of claim 1, wherein the steel plate and the steel plate connector are made of galvanized steel.
