Abstract
The utility model discloses a chocolate nut mixing and pouring device, which comprises a pouring machine with a plunger mechanism and a pouring feed hopper, and is characterized by also comprising a mixing and feeding mechanism arranged above one side of the pouring machine through a bracket, wherein the mixing and feeding mechanism comprises a nut single-screw conveying mechanism and a chocolate nut mixing and double-screw conveying mechanism which are distributed up and down, the mixing and feeding mechanism comprises a horizontally arranged nut feeding cylinder, a first nut feeding hole arranged at the upper part of the feeding cylinder and a nut discharging hole arranged at the lower part of the feeding cylinder and staggered with the first nut feeding hole in the horizontal direction; the chocolate feeding device comprises a horizontally arranged mixing feeding barrel, a second nut feeding hole connected with the nut discharging hole through a pipeline is arranged at the upper part of the mixing feeding barrel, a mixing discharging hole which is distributed in a staggered way with the second nut feeding hole in the horizontal direction is arranged at the lower part of the mixing feeding barrel, and a chocolate feeding hole positioned between the second nut feeding hole and the mixing discharging hole. The device can fully mix the broken fruit kernels and the chocolate slurry and pour the mixture, so that the quality and the taste of the final product are enhanced.
Description
Technical Field
The utility model relates to a chocolate kernel mixing and pouring device.
Background
At present, pure chocolate foods often cannot meet the taste pursuit of people, and chocolate and kernel mixed foods prepared by adding kernel pieces into pure chocolate are produced for this reason.
The original production method of chocolate and kernel food in the industry usually comprises scattering kernels on the surface of chocolate, namely, firstly, molding the chocolate by using a pouring device and a template and conveying the chocolate along with a belt, and meanwhile, scattering the kernels on the surface of the chocolate by using a kernel scattering plate device arranged above the belt. Obviously, the mechanism and the mode cannot be used for preparing the chocolate nut mixed food. The real chocolate nut mixed food is prepared by crushing nuts, adding the crushed nuts into chocolate slurry, fully and uniformly mixing the crushed nuts and the chocolate slurry, and finally pouring the mixture to form the food.
In order to produce the chocolate nut food, some manufacturers directly add the chocolate slurry and the nuts into a hopper above a pouring device, mix the chocolate slurry and the nuts, and extrude the chocolate slurry and the nuts together from a pouring hole below the pouring device. But is less effective in practice because some of the large kernel particles do not break up and form larger lumps after the chocolate mass adheres and agglomerates, often causing clogging of the pour hole.
Certainly, some existing pouring equipment is often provided with a stirring mechanism in a hopper, which can stir the added chocolate and nuts, but still cannot crush the large-particle nuts, and the situation of agglomeration still exists, so that the dispersion uniformity of the nuts in the chocolate is poor, and the quality and the taste of the chocolate nut mixed food are finally affected.
Disclosure of Invention
The utility model discloses the purpose is: the chocolate nut mixing and pouring device can enable broken nuts to be fully mixed with chocolate slurry and then poured, effectively improves the dispersion uniformity of the broken nuts in the chocolate slurry, and accordingly enhances the quality and the taste of a final product.
The technical scheme of the utility model is that: a chocolate nut mixing and pouring device comprises a pouring machine, wherein the pouring machine comprises a plunger mechanism and a pouring feed hopper arranged on the plunger mechanism, and is characterized by further comprising a mixing and feeding mechanism arranged above one side of the pouring machine through a support, the mixing and feeding mechanism comprises a nut single-screw conveying mechanism arranged at the upper part and a chocolate nut mixing and double-screw conveying mechanism arranged at the lower part, the mixing and feeding mechanism comprises a horizontally arranged nut feeding cylinder, a first nut feeding hole arranged at the upper part of the nut feeding cylinder and a nut discharging hole arranged at the lower part of the nut feeding cylinder and distributed with the first nut feeding hole in a staggered manner in the horizontal direction; the chocolate nut mixing double-screw conveying mechanism comprises a horizontally arranged mixing feeding barrel, a second nut feeding hole connected with a nut discharging hole through a pipeline is arranged at the upper part of the mixing feeding barrel, a mixing discharging hole which is distributed in a staggered mode with the second nut feeding hole in the horizontal direction and is positioned above the pouring feeding hopper is arranged at the lower part of the mixing feeding barrel, and a chocolate feeding hole is also arranged at the upper part of the mixing feeding barrel and is positioned between the second nut feeding hole and the mixing discharging hole.
Furthermore, in the utility model, a nut feeding hopper is fixed on the first nut feeding port.
Further, the utility model discloses in the casting machine is still including locating the pouring rabbling mechanism in the pouring feeder hopper.
Further, in the utility model, the pouring rabbling mechanism is including fixing in the outside stirring gear motor of pouring feeder hopper, rotatory locating pouring feeder hopper and one end and the horizontal (mixing) shaft that stirring gear motor's output shaft links to each other and fix a plurality of radial stirring wings that angular interval distributes such as circumference on horizontal (mixing) shaft to this horizontal (mixing) shaft set up the direction perpendicular with the mixing feed cylinder, and the mutual parallel arrangement of mixing feed cylinder and kernel feed cylinder.
Furthermore, the nut single-screw conveying mechanism of the utility model also comprises a nut feeding screw rod arranged in the nut feeding cylinder, and the screw pitch d1= 80-100 mm of the nut feeding screw rod; the chocolate nut mixing double-screw conveying mechanism further comprises two mixing feeding screws which are arranged in the mixing feeding barrel in parallel, the screw pitches of the two mixing feeding screws are d2, d2= 40-60 mm, the two mixing feeding screws are arranged in a staggered mode front and back, the staggered distance is s, and s = 20-30 mm.
Preferably, in the present invention, d1=90mm, d2=50mm, and s =25 mm. In the design scheme of the utility model, the nutlet single screw rod conveying mechanism mainly undertakes the conveying of nutlet and tentatively rubs the function, and the optimal balance between efficiency and the conveying efficiency is guaranteed to the optimal limit value of above-mentioned pitch d 1. The chocolate nut mixing double-screw conveying mechanism has the conveying function, and also plays an important role in crushing the nuts and fully mixing the crushed nuts and the chocolate slurry. The optimal limits of the pitch d2 and the spacing s ensure optimal efficiency in the transport of the mixed slurry, in the further comminution of the kernels and in the mixing with the chocolate mass.
Furthermore, in the present invention, the nut single screw conveying mechanism further comprises a nut feeding cylinder front end cover, a nut feeding cylinder rear end cover, a sealing bearing sleeve and a nut feeding speed reduction motor, wherein the nut feeding cylinder front end cover is fixed at one end of the nut feeding cylinder, the sealing bearing sleeve is fixed at the other end of the nut feeding cylinder, the nut feeding cylinder rear end cover is fixed at the outer side of the sealing bearing sleeve, the nut feeding screw is arranged in the nut feeding cylinder and supported by bearings respectively arranged in the nut feeding cylinder front end cover and the sealing bearing sleeve, the nut feeding speed reduction motor is fixed with the nut feeding cylinder rear end cover, and an output shaft of the nut feeding speed reduction motor passes through a hole arranged on the nut feeding cylinder rear end cover and is connected with one end of;
the chocolate nut mixing double-screw conveying mechanism also comprises a mixing feeding barrel front end cover and a mixing feeding barrel rear end cover which are respectively fixed at two ends of the mixing feeding barrel, and a mixing feeding speed reducing motor which is fixedly connected with the mixing feeding barrel rear end cover through a synchronous gear transmission case, wherein a plurality of bearings for supporting the mixing feeding screws are arranged in the mixing feeding barrel front end cover and the mixing feeding barrel rear end cover corresponding to each mixing feeding screw; two transmission gears which are meshed with each other are arranged in the synchronous gear transmission box, gear shafts of the two transmission gears are respectively connected with the two mixed feeding screw rods, and an output shaft of the mixed feeding speed reducing motor is connected with a gear shaft of one of the transmission gears.
Still further preferred, in the utility model discloses in be equipped with level sensor in the pouring feeder hopper, still include the PLC controller, level sensor is connected with the PLC controller electricity, and the PLC controller is connected with kernel pay-off gear motor and the equal electricity of mixed pay-off gear motor simultaneously, when level sensor detected the liquid level and exceeded the settlement threshold value, to the PLC controller signals, by its drive control kernel pay-off gear motor and mix pay-off gear motor stall.
Still further preferably, in the present invention, the sealed bearing housing is provided with a sealed cavity inside the bearing, and the sealed cavity is provided with a plurality of nut feeding cylinder sealing rings sleeved on the nut feeding screw rod.
Still further preferred, the utility model discloses it all is equipped with the mixed pay-off section of thick bamboo sealing washer of cover on this mixed pay-off screw rod to correspond every mixed pay-off screw rod in mixed pay-off section of thick bamboo front end housing and the mixed pay-off section of thick bamboo rear end cap.
The utility model discloses when in actual use, adopt conventional food lifting machine to send the kernel to kernel addition hopper top and fall into kernel pay-off section of thick bamboo in, the kernel at first carries and tentatively rubs via kernel single screw rod conveying mechanism, falls into the mixing and pay-off section of thick bamboo afterwards, and has linked to each other with chocolate thick liquids storage bucket through the pipeline in advance on the chocolate feed inlet on the mixing and pay-off section of thick bamboo, at this moment, opens the delivery pump and squeezes into the mixing and pay-off section of thick bamboo with chocolate thick liquids in. Under the action of two mixing and feeding screws in the chocolate nut mixing double-screw conveying mechanism, nuts are further smashed and fully mixed with chocolate slurry, and then the mixture is conveyed into a casting feed hopper and finally poured into a die conveyed by a belt below a casting machine through a plunger mechanism for forming.
The utility model has the advantages that:
1. the utility model discloses further designed on the basis of casting machine and mixed feeding mechanism, this kind of mixed feeding mechanism combines to use the mixed double screw conveyor of kernel single screw rod conveying mechanism and chocolate kernel to construct, can further smash the kernel to make garrulous kernel and chocolate thick liquids intensive mixing back pouring, effectively improve the dispersion homogeneity of garrulous kernel in chocolate thick liquids, thereby strengthen the quality and the taste of final product.
2. The utility model provides a chocolate kernel mixes double screw conveying mechanism adopts the design of double screw dislocation distribution, and this kind of design can improve to the crushing of kernel and with the effect that chocolate thick liquids mix the stirring.
3. The utility model discloses an among the design, the transport of nutlet is mainly undertaken to nutlet single screw rod conveying mechanism and preliminary rubs the function, can ensure to rub the best balance between efficiency and the conveying efficiency through the pitch d1 of optimizing nutlet pay-off screw rod. Meanwhile, the chocolate nut mixing double-screw conveying mechanism is designed to achieve the very important purposes of crushing nuts and fully mixing the crushed nuts and the chocolate slurry besides the conveying function, and the optimum balance of the conveying efficiency of the mixed slurry, the further crushing efficiency of the nuts and the mixing efficiency of the nuts and the chocolate slurry can be further ensured by optimizing the screw pitches of the two mixing and feeding screws and the dislocation distance of the two mixing and feeding screws.
4. The utility model discloses in further set up level sensor in the pouring feeder hopper, it is connected with kernel pay-off gear motor and mixed pay-off gear motor electricity through the PLC controller. Once the liquid level sensor detects that the liquid level in the pouring feed hopper exceeds a set threshold value, a signal can be sent to the PLC immediately, the PLC is driven to control the nut feeding speed reducing motor and the mixed feeding speed reducing motor to stop running, so that the situation that the materials in the pouring feed hopper are spilled out to cause workshop environmental pollution and raw material waste is avoided, and the working reliability of the device is further improved.
5. The utility model discloses well nut single screw rod conveying mechanism and chocolate nut mix double screw rod conveying mechanism's design all has the leakproofness of preferred, can avoid nut or chocolate thick liquids to spill to hoisting device's operational reliability.
Drawings
The invention will be further described with reference to the following drawings and examples:

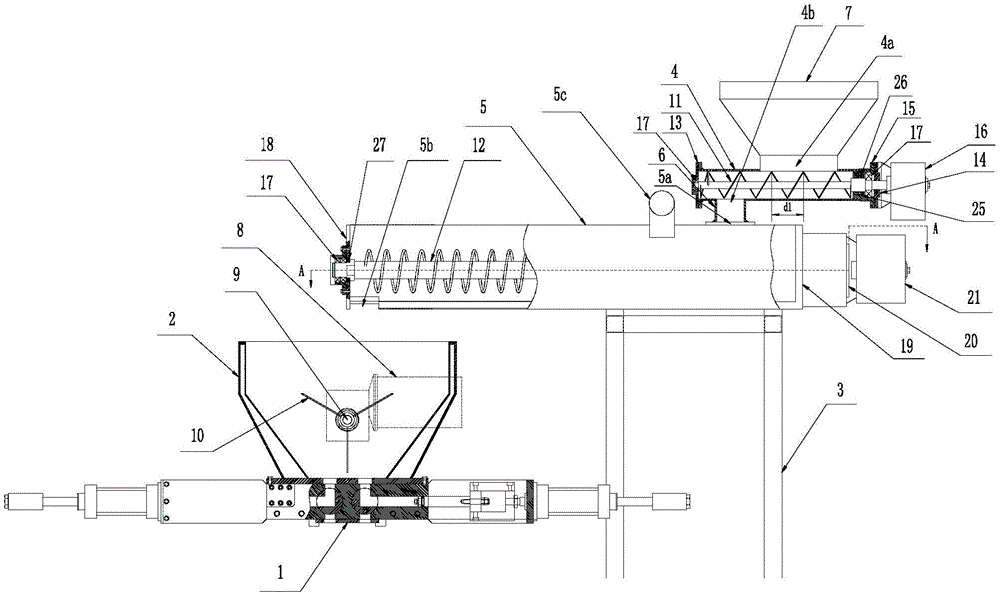

FIG. 1 is a front view of the structure of an embodiment of the present invention;
FIG. 2 is a sectional view taken along line A-A of FIG. 1;
fig. 3 is a front view of another embodiment of the present invention.
Wherein: 1. a plunger mechanism; 2. pouring a feed hopper; 3. a support; 4. a nut feed drum; 4a, a first nut feed inlet; 4b, a nut discharge hole; 5. a mixing and feeding barrel; 5a, a second nut feed inlet; 5b, a mixed material outlet; 5c, a chocolate feeding hole; 6. a pipeline; 7. a nut adding hopper; 8. a stirring speed reducing motor; 9. a transverse stirring shaft; 10. radial stirring wings; 11. a nut feed screw; 12. a mixing and feeding screw; 13. a nut feeding cylinder front end cover; 14. a nut feeding cylinder rear end cover; 15. sealing the bearing sleeve; 16. a nut feeding speed reducing motor; 17. a bearing; 18. a front end cover of the mixing feeding cylinder; 19. a rear end cover of the mixing feeding cylinder; 20. a synchronous gear transmission case; 21. a mixed feeding speed reducing motor; 22. a transmission gear; 23. a liquid level sensor; 24. a PLC controller; 25. sealing the chamber; 26. a nut feeding cylinder sealing ring; 27. a sealing ring of the mixing feeding cylinder.
Detailed Description
Example 1: the invention is described in detail with reference to fig. 1 to 2, in which one embodiment of the chocolate nut mixing and pouring device provided by the invention is as follows:
the chocolate nut mixing and pouring device has the same part as the conventional technology, namely a pouring machine which is provided with a plunger mechanism 1 and a pouring feed hopper 2 arranged on the plunger mechanism.
The utility model discloses a core improves the structure and has set up through support 3 and mixed feeding mechanism in casting machine one side top, this kind of mixed feeding mechanism is mixed double screw rod conveying mechanism by the kernel single screw rod conveying mechanism who is located the upper portion and the chocolate kernel that is located the lower part and is constituted.
Specifically, as shown in fig. 1, the nut single-screw conveying mechanism adopts a horizontally arranged nut feeding barrel 4, a first nut feeding port 4a is arranged at the upper part of the nut feeding barrel 4, and a nut adding hopper 7 is further fixed on the first nut feeding port 4a in this embodiment. And the lower part of the nut feeding barrel 4 is provided with a nut discharging port 4b which is staggered with the first nut feeding port 4a in the horizontal direction.
Meanwhile, the structure of the nut single-screw conveying mechanism further comprises a nut feeding screw 11, a nut feeding cylinder front end cover 13, a nut feeding cylinder rear end cover 14, a sealing bearing sleeve 15 and a nut feeding speed reducing motor 16. One end of the nut feeding cylinder 4 is fixed with a nut feeding cylinder front end cover 13, the other end is fixed with a sealing bearing sleeve 15, the outer side of the sealing bearing sleeve 15 is fixed with a nut feeding cylinder rear end cover 14, a nut feeding screw rod 11 is arranged in the nut feeding cylinder 4 and is supported by bearings 17 respectively arranged in the nut feeding cylinder front end cover 13 and the sealing bearing sleeve 15, a nut feeding speed reducing motor 16 is fixed with the nut feeding cylinder rear end cover 14, and an output shaft of the nut feeding speed reducing motor passes through an opening hole arranged on the nut feeding cylinder rear end cover 14 and is connected with one end of the nut feeding screw rod 11. As shown in fig. 1, a sealing chamber 25 is provided inside the bearing 17 in the sealing bearing housing 15, and two nut feeding cylinder sealing rings 26 sleeved on the nut feeding screw 11 are provided in the sealing chamber 25.
As shown in fig. 1, the pitch d1=90mm of the nut feed screw 11 in this embodiment.
Further referring to fig. 1 and 2, the chocolate nut mixing twin-screw conveying mechanism in the embodiment has a mixing feed cylinder 5 which is horizontally arranged and is parallel to the nut feed cylinder 4, the upper part of the mixing feed cylinder 5 is provided with a second nut feed port 5a which is connected with a nut discharge port 4b through a pipeline 6, the lower part of the mixing feed cylinder 5 is provided with a mixing discharge port 5b which is distributed with the second nut feed port 5a in a staggered way in the horizontal direction and is positioned above the pouring feed hopper 2, and meanwhile, the upper part of the mixing feed cylinder 5 is also provided with a chocolate feed port 5c, and the chocolate feed port 5c is positioned between the second nut feed port 5a and the mixing discharge port 5 b.
As shown in fig. 2, the chocolate nut mixing twin-screw conveying mechanism further includes two mixing and feeding screws 12 arranged in parallel in the mixing and feeding barrel 5, and the screw pitches of the two mixing and feeding screws 12 are d2 and d2=50mm, but the two mixing and feeding screws 12 are arranged in a staggered manner from front to back, and the staggered distance is s and s =25 mm. The chocolate nut mixing double-screw conveying mechanism is also provided with a mixing feeding barrel front end cover 18 and a mixing feeding barrel rear end cover 19 which are respectively fixed at two ends of the mixing feeding barrel 5, and a mixing feeding speed reducing motor 21 which is fixedly connected with the mixing feeding barrel rear end cover 19 through a synchronous gear transmission case 20, and two bearings 17 for supporting the mixing feeding screw 12 are respectively arranged in the mixing feeding barrel front end cover 18 and the mixing feeding barrel rear end cover 19 corresponding to each mixing feeding screw 12; two transmission gears 22 which are meshed with each other are arranged in the synchronous gear transmission box 20, gear shafts of the two transmission gears 22 are respectively connected with the two mixed feeding screw rods 12, and an output shaft of the mixed feeding speed reducing motor 21 is connected with a gear shaft of one of the transmission gears 22.
In this embodiment, a mixing and feeding cylinder sealing ring 27 is disposed in the front end cover 18 of the mixing and feeding cylinder and in the rear end cover 19 of the mixing and feeding cylinder corresponding to each mixing and feeding screw 12 and sleeved on the mixing and feeding screw 12.
In addition, as shown in fig. 1, a pouring stirring mechanism is provided in the pouring hopper 2 of the casting machine in this embodiment, the pouring stirring mechanism is composed of a stirring speed-reducing motor 8 fixed outside the pouring hopper 2, a transverse stirring shaft 9 rotatably provided in the pouring hopper 2 and having one end connected to an output shaft of the stirring speed-reducing motor 8, and three radial stirring wings 10 fixed on the transverse stirring shaft 9 and circumferentially distributed at equal angular intervals, and the transverse stirring shaft 9 is provided in a direction perpendicular to the mixing and feeding barrel 5.
The utility model discloses when in actual use, adopt conventional food lifting machine to send the kernel to the kernel and add 7 tops of loading hopper and fall into kernel conveying cylinder 4 in, the kernel at first carries and tentatively rubs via kernel single screw rod conveying mechanism, falls into mixing conveying cylinder 5 afterwards in, and has linked to each other with chocolate thick liquids storage bucket through the pipeline in advance on the chocolate feed inlet 5c on mixing conveying cylinder 5, at this moment, opens the delivery pump and squeezes into mixing conveying cylinder 5 with chocolate thick liquids in. Under the action of two mixing and feeding screws 12 in the chocolate nut mixing double-screw conveying mechanism, nuts are further smashed and fully mixed with chocolate slurry to be conveyed into a pouring feed hopper 2, and finally poured into a die conveyed by a belt below a pouring machine through a plunger mechanism 1 to be formed.
Example 2: as shown in fig. 3, compared with embodiment 1, the embodiment adds a liquid level sensor 23 located in the casting feed hopper 2, and further adds a PLC controller 24 on one side of the bracket 3, wherein the liquid level sensor 23 is electrically connected with the PLC controller 24, and the PLC controller 24 is simultaneously electrically connected with both the nut feeding deceleration motor 16 and the mixed feeding deceleration motor 21, when the liquid level sensor 23 detects that the liquid level exceeds a set threshold, a signal is sent to the PLC controller 24, and the nut feeding deceleration motor 16 and the mixed feeding deceleration motor 21 are driven and controlled to stop running, so as to avoid spilling the material in the casting feed hopper 2, which causes environmental pollution and waste of raw materials in a workshop, and further improve the working reliability of the device. The rest of the structure of this embodiment is the same as that of embodiment 1, and the description of the structure thereof can be referred to.
The above-mentioned embodiments are only for illustrating the technical concept and features of the present invention, and the purpose thereof is to enable those skilled in the art to understand the contents of the present invention and to implement the present invention, which should not be construed as limiting the scope of the present invention. All modifications made according to the spirit of the main technical scheme of the present invention shall be covered within the protection scope of the present invention.
Claims (10)
1. A chocolate nut mixing and pouring device comprises a pouring machine, wherein the pouring machine comprises a plunger mechanism (1) and a pouring feed hopper (2) arranged on the plunger mechanism, and is characterized by further comprising a mixing and feeding mechanism arranged above one side of the pouring machine through a support (3), wherein the mixing and feeding mechanism comprises a nut single-screw conveying mechanism arranged on the upper part and a chocolate nut mixing and double-screw conveying mechanism arranged on the lower part, wherein the mixing and feeding mechanism comprises a horizontally arranged nut feeding cylinder (4), a first nut feeding hole (4 a) arranged on the upper part of the nut feeding cylinder (4) and a nut discharging hole (4 b) which is arranged on the lower part of the nut feeding cylinder (4) and is distributed with the first nut feeding hole (4 a) in a staggered manner in the horizontal direction; the chocolate nut mixing double-screw conveying mechanism comprises a horizontally arranged mixing feeding barrel (5), a second nut feeding hole (5 a) connected with a nut discharging hole (4 b) through a pipeline (6) is formed in the upper portion of the mixing feeding barrel, a mixing discharging hole (5 b) which is distributed with the second nut feeding hole (5 a) in a staggered mode in the horizontal direction and located above the pouring feed hopper (2) is formed in the lower portion of the mixing feeding barrel (5), a chocolate feeding hole (5 c) is further formed in the upper portion of the mixing feeding barrel (5), and the chocolate feeding hole (5 c) is located between the second nut feeding hole (5 a) and the mixing discharging hole (5 b).
2. The chocolate nut mixing and pouring device according to claim 1, characterized in that a nut adding hopper (7) is fixed on the first nut feeding port (4 a).
3. The chocolate nut mixing and pouring device according to claim 1, characterized in that the pouring machine further comprises a pouring and stirring mechanism arranged in the pouring hopper (2).
4. The chocolate nut mixing and pouring device according to claim 3, characterized in that the pouring stirring mechanism comprises a stirring speed reducing motor (8) fixed outside the pouring hopper (2), a transverse stirring shaft (9) rotatably arranged in the pouring hopper (2) and one end of the transverse stirring shaft is connected with an output shaft of the stirring speed reducing motor (8), and a plurality of radial stirring wings (10) which are fixed on the transverse stirring shaft (9) and distributed at equal angular intervals on the circumference, wherein the transverse stirring shaft (9) is arranged in a direction vertical to the mixing feed cylinder (5), and the mixing feed cylinder (5) and the nut feed cylinder (4) are arranged in parallel.
5. The chocolate nut mixing and pouring device according to claim 1, characterized in that the nut single-screw conveying mechanism further comprises a nut feeding screw (11) arranged in the nut feeding barrel (4), wherein the screw pitch d1= 80-100 mm of the nut feeding screw (11); the chocolate nut mixing double-screw conveying mechanism further comprises two mixing and feeding screws (12) which are arranged in the mixing and feeding barrel (5) in parallel, the screw pitches of the two mixing and feeding screws (12) are d2, d2= 40-60 mm, the two mixing and feeding screws (12) are arranged in a staggered mode in the front and back direction, the staggered distance is s, and s = 20-30 mm.
6. The chocolate nut mixing and pouring device of claim 5, wherein d1=90mm, d2=50mm, and s =25 mm.
7. The chocolate nut mixing and pouring device according to claim 5, characterized in that the nut single screw conveying mechanism further comprises a nut feeding cylinder front end cover (13), a nut feeding cylinder rear end cover (14), a sealing bearing sleeve (15) and a nut feeding speed reduction motor (16), one end of the nut feeding cylinder (4) is fixed with the nut feeding cylinder front end cover (13), a sealing bearing sleeve (15) is fixed at the other end, a nut feeding barrel rear end cover (14) is fixed at the outer side of the sealing bearing sleeve (15), a nut feeding screw rod (11) is arranged in the nut feeding barrel (4) and is supported by bearings (17) respectively arranged in a nut feeding barrel front end cover (13) and the sealing bearing sleeve (15), a nut feeding speed reducing motor (16) is fixed with the nut feeding barrel rear end cover (14), an output shaft of the nut feeding device penetrates through an opening arranged on a rear end cover (14) of the nut feeding barrel and is connected with one end of a nut feeding screw rod (11);
the chocolate nut mixing double-screw conveying mechanism also comprises a mixing feeding barrel front end cover (18) and a mixing feeding barrel rear end cover (19) which are respectively fixed at two ends of the mixing feeding barrel (5), and a mixing feeding speed reducing motor (21) which is fixedly connected with the mixing feeding barrel rear end cover (19) through a synchronous gear transmission case (20), wherein a plurality of bearings (17) used for supporting the mixing feeding screws (12) are respectively arranged in the mixing feeding barrel front end cover (18) and the mixing feeding barrel rear end cover (19) corresponding to each mixing feeding screw (12); two transmission gears (22) which are meshed with each other are arranged in the synchronous gear transmission box (20), gear shafts of the two transmission gears (22) are respectively connected with the two mixed feeding screw rods (12), and an output shaft of the mixed feeding speed reducing motor (21) is connected with a gear shaft of one of the transmission gears (22).
8. The chocolate nut mixing and pouring device according to claim 7, characterized in that a liquid level sensor (23) is arranged in the pouring feed hopper (2), the device further comprises a PLC (programmable logic controller) (24), the liquid level sensor (23) is electrically connected with the PLC (24), the PLC (24) is simultaneously electrically connected with the nut feeding speed reducing motor (16) and the mixing feeding speed reducing motor (21), when the liquid level sensor (23) detects that the liquid level exceeds a set threshold value, a signal is sent to the PLC (24), and the PLC drives the nut feeding speed reducing motor (16) and the mixing feeding speed reducing motor (21) to stop running.
9. The chocolate nut mixing and pouring device according to claim 7, characterized in that a sealing chamber (25) is arranged inside the bearing (17) in the sealing bearing sleeve (15), and a plurality of nut feeding cylinder sealing rings (26) sleeved on the nut feeding screw rod (11) are arranged in the sealing chamber (25).
10. The chocolate nut mixing and pouring device according to claim 7, characterized in that a mixing and feeding cylinder sealing ring (27) sleeved on each mixing and feeding screw (12) is arranged in the mixing and feeding cylinder front end cover (18) and the mixing and feeding cylinder rear end cover (19) and corresponds to each mixing and feeding screw (12).
