CN211960523U - Animal doctor nurses device with cub - Google Patents
Animal doctor nurses device with cub Download PDFInfo
- Publication number
- CN211960523U CN211960523U CN202020525423.6U CN202020525423U CN211960523U CN 211960523 U CN211960523 U CN 211960523U CN 202020525423 U CN202020525423 U CN 202020525423U CN 211960523 U CN211960523 U CN 211960523U
- Authority
- CN
- China
- Prior art keywords
- cub
- excrement
- heat
- box
- watching
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model relates to the technical field of animal cub nursing, in particular to a cub nursing device for veterinarians, which comprises a cub nursing box and a cub checking area, wherein the cub checking area is arranged at one end of the cub nursing box; the cub nursing box comprises a heat-preservation disinfection cover, a checking window, an excrement-accumulating drawer, a turnover door, a partition plate, a wiping component, a support bar and a temperature measuring instrument, wherein the heat-preservation disinfection cover is installed at the top of the cub nursing box; not only can provide a suitable temperature environment for the cub, but also can clean up the excrement of the cub and sterilize the environment for placing the cub.
Description
Technical Field
The utility model relates to an animal cub nurses technical field, specifically says so an animal doctor nurses device with cub.
Background
Veterinarian refers to a physician who administers disease prevention, diagnosis and treatment to an animal. In particular, veterinarians are a class of workers that use medical methods to promote the coordination of the animal's body with microorganisms and the natural environment. Some cat dog pet cubs are in the postnatal, because weak, all can give the animal doctor to nurse usually, improve the resistance of cub, and the animal doctor all can need to use some nursing devices to assist when nursing the cub, so, some animal doctors and nurses the device with the cub in the middle of constantly developing and improving.
However, it is found through analysis that the existing veterinary cub nursing device cannot provide a proper temperature environment for the cub, and animal excrement is not easy to clean and cannot be cleaned cleanly after being discharged.
SUMMERY OF THE UTILITY MODEL
Therefore, not enough in order to solve the above-mentioned, the utility model provides a veterinarian nurses device with cub here, not only can provide an appropriate temperature environment for the cub, moreover, cub excrement and urine can the clean up, simultaneously, can disinfect to the environment that the cub settled.
The utility model is realized in such a way, a veterinary cub nursing device is constructed, which comprises a cub nursing box and a cub checking area, wherein the cub checking area is arranged at one end of the cub nursing box; the cub nursing box comprises a heat-preservation disinfection cover, a checking window, an excrement-accumulating drawer, a turnover door, a partition plate, a wiping component, a support bar and a temperature measuring instrument, wherein the heat-preservation disinfection cover is installed at the top of the cub nursing box; the cub examination area comprises a detection basin and a tool placing cavity, and the tool placing cavity is arranged at the bottom of the detection basin.
Further, the heat preservation and disinfection cover comprises an aluminum ceiling, an electric heating tube and an ultraviolet lamp tube, the electric heating tube is installed on two sides of the bottom of the aluminum ceiling, the ultraviolet lamp tube is installed on one side wall of the heat preservation and disinfection cover, the electric heating tube is electrically connected with the ultraviolet lamp tube and is a parallel circuit, the temperature measuring instrument is connected with an external PLC control system, the electric heating tube and the ultraviolet lamp tube are controlled by a time relay control switch in the external PLC control system, the temperature measuring instrument feeds back the temperature condition of the cub in the protection box to the external PLC control system, then a user controls the opening of the electric heating tube through the external PLC control system according to the detection condition of the temperature measuring instrument so as to ensure that the temperature of the cub in the protection box reaches the standard required by the cub, after the user takes the cub out of the protection box, the external power supply of the ultraviolet lamp tube is connected through, the power supply of the ultraviolet lamp tube is cut off.
Further, the handle is installed through the screw to long-pending just drawer one end, and the user draws out the clearance through pulling the handle with long-pending just drawer, keeps the cub to see and protects incasement portion totally.
Further, the baffle includes frame and wire netting, and the wire netting passes through screw connection in the frame inboard, and the excrement and urine of cub drops to long-pending just inside the drawer through the hole of wire netting for excrement and urine is not infected with on the cub body.
Further, clean the subassembly and include brush and slide rail, brush bottom both sides are located to the slide rail, promote the brush and pass through the slide rail and slide at the support bar top, and with remaining excrement and urine brush-out on the wire netting drop to long-pending just inside the drawer, keep the clean of wire netting, reduce bacterial growing.
Furthermore, the sliding grooves are formed in the tops of the supporting bars, and the hairbrushes can slide conveniently through the sliding grooves.
The utility model discloses an improve and provide a animal doctor and nurse device with cub here, compare with current animal doctor and nurse device with cub, have following advantage: not only can provide a suitable temperature environment for the cub, moreover, cub excrement and urine can the sanitization, simultaneously, can disinfect to the environment that the cub settled, embodies:
the method has the advantages that: the temperature measuring instrument feeds back the temperature condition of the cub in the protective box to the external PLC control system, and then a user controls the opening of the electric heating tube according to the detection condition of the temperature measuring instrument through the external PLC control system so as to ensure that the temperature of the cub in the protective box reaches the required standard of the cub.
The method has the advantages that: the wiping component comprises a hairbrush and a sliding rail, the sliding rail is arranged on two sides of the bottom of the hairbrush, the hairbrush is pushed to slide at the top of the supporting bar through the sliding rail, excrement left on the iron wire net is brushed out and dropped to the inside of the excrement collecting drawer, the iron wire net is kept clean, bacteria breeding is reduced, and then the excrement collecting drawer is pulled out and cleaned.
The method has the advantages that: after the user of service embraces the cub out the cub and sees the guard box, disinfect the disinfection through outside PLC control system switch-on ultraviolet tube external power, when the cub was put back, disconnection ultraviolet tube power, the convenient environment of settling the cub disinfected.
Drawings
Fig. 1 is a schematic structural view of a cub nursing device for veterinarians of the present invention;
fig. 2 is a schematic view of the structure of the baby nursing box of the present invention;
FIG. 3 is a schematic view of the structure of the partition board of the present invention;

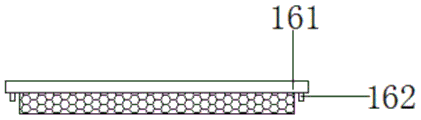

FIG. 4 is a schematic view of the wiping assembly of the present invention;
fig. 5 is a schematic view of the sliding chute structure of the present invention;
fig. 6 is a cub access area of the present invention.
The figure illustrates the format: the multifunctional baby care box comprises a baby care box 1, a baby examination area 2, a heat preservation and disinfection cover 11, a viewing window 12, a feces collection drawer 13, a turnover door 14, a partition plate 15, a wiping component 16, a supporting strip 17, a temperature measuring instrument 18, an aluminum ceiling 111, an electric heating tube 112, an ultraviolet lamp tube 113, a handle 131, an outer frame 151, a wire mesh 152, a hairbrush 161, a sliding rail 162, a sliding groove 171, a detection basin 21 and a tool placing cavity 22.
Detailed Description
The present invention will be described in detail below with reference to the attached drawings, and the technical solutions in the embodiments of the present invention will be clearly and completely described. Based on the embodiments of the present invention, all other embodiments obtained by those skilled in the art without creative efforts belong to the protection scope of the present invention; furthermore, the terms "first," "second," "third," "upper, lower, left, right," and the like are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. Meanwhile, in the description of the present invention, unless otherwise explicitly specified or limited, the terms "connected" and "connected" should be interpreted broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; the connection can be mechanical connection or electrical connection; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model provides a veterinary cub nursing device through improvement, as shown in the attached drawings of the specification, which can be implemented as follows; the cub nursing box comprises a cub nursing box 1 and a cub checking area 2, wherein the cub checking area 2 is arranged at one end of the cub nursing box 1; the cub care box 1 comprises a heat-preservation disinfection cover 11, a viewing window 12, an excrement-accumulating drawer 13, a turnover door 14, a partition plate 15, a wiping component 16, a supporting strip 17 and a temperature measuring instrument 18, the heat-preservation disinfection cover 11 is installed at the top of the cub care box 1, the viewing window 12 is arranged at the other end of the cub care box 1, the excrement-accumulating drawer 13 is arranged at the bottom of the partition plate 15, the turnover door 14 is hinged to one side of the cub care box 1, the supporting strip 17 is connected to two ends of the top of the partition plate 15 through screws, the wiping component 16 is connected to the top of the supporting strip 17 in a sliding mode, and the temperature measuring instrument 18 is installed on the inner; the cub inspection area 2 comprises a detection basin 21 and a tool placing cavity 22, and the tool placing cavity 22 is arranged at the bottom of the detection basin 21.
More specifically, the heat preservation and disinfection cover 11 comprises an aluminum ceiling 111, an electric heating tube 112 and an ultraviolet lamp tube 113, the electric heating tube 112 is installed on two sides of the bottom of the aluminum ceiling 111, the ultraviolet lamp tube 113 is installed on one side wall of the heat preservation and disinfection cover 11, the electric heating tube 112 is electrically connected with the ultraviolet lamp tube 113 and is a parallel circuit, the temperature measuring instrument 18 is connected with an external PLC control system, the electric heating tube 112 and the ultraviolet lamp tube 113 are controlled by a time relay in the external PLC control system, the temperature measuring instrument 18 feeds back the temperature of the cub in the nursing box 1 to the external PLC control system, then a user controls the opening of the electric heating tube 112 through the external PLC control system according to the detection condition of the temperature measuring instrument 18 to ensure that the temperature of the cub in the nursing box 1 reaches the standard required by the cub, and after the user holds the cub out of the nursing box 1, the external power supply of the ultraviolet, when the baby is returned, the ultraviolet light tube 113 is powered off.
More specifically, a handle 131 is mounted at one end of the excrement collection drawer 13 through a screw, and a user pulls the excrement collection drawer 131 to draw out the excrement collection drawer 13 for cleaning, so that the cubs can be kept clean inside the protective box 1.
More specifically, the partition 15 includes an outer frame 151 and a wire 152, the wire 152 is screwed into the outer frame 151, and the stool of the cub drops into the stool collection drawer 13 through the holes of the wire 152, so that the stool is not contaminated on the cub.
More specifically, the wiping assembly 16 includes a brush 161 and a sliding rail 162, the sliding rail 162 is disposed on two sides of the bottom of the brush 161, the brush 161 is pushed to slide on the top of the supporting bar 17 via the sliding rail 162, so as to brush out the feces remaining on the wire 152 and drop the feces into the feces collection drawer 13, thereby keeping the wire 152 clean and reducing the bacterial growth.
More specifically, the top of the supporting bar 17 is opened with a sliding groove 171, and the brush 161 is convenient to slide through the sliding groove 171.
This kind of animal doctor nurses principle of operation of device with cub: a user places cubs to be nursed in the detection basin 21, then takes out the instruments in the tool placing cavity 22 to inspect and disinfect the cubs, simultaneously the external PLC control system is connected with the electric heating tube 112 and the ultraviolet lamp tube 113 to disinfect and heat the interior of the cub viewing and protecting box 1, so that the temperature of the cub viewing and protecting box 1 reaches the proper temperature level of the cubs, after the cubs are inspected, the external PLC control system is used for disconnecting the external power supply of the ultraviolet lamp tube 113, then the turning door 14 is opened, the cubs are placed in the cub viewing and protecting box 1, when the temperature measuring instrument 18 detects that the temperature of the cub viewing and protecting box 1 reaches the proper temperature of the cubs, the external PLC control system is used for disconnecting the power supply of the electric heating tube 112, then the viewing window 12 is opened to facilitate the ventilation of the cubs viewing and protecting box 1, and the cubs can be viewed through the viewing window 12, after the cub is discharged with excrement, the hairbrush 161 slides on the top of the supporting strip 17 by pushing, and meanwhile, the hairbrush 161 brushes the excrement remained on the wire mesh 152 to the excrement collection drawer 13, and then the excrement collection drawer 13 is drawn out to be disposed.
In conclusion; animal doctor compares with current animal doctor with cub nursing device, not only can provide an appropriate temperature environment for the cub, moreover, cub excrement and urine can the clean up, simultaneously, can disinfect to the environment that the cub was settled.
The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
Claims (6)
1. The utility model provides a veterinarian nurses device with cub, includes that the cub sees guard box (1) and cub inspection space (2), its characterized in that: the cub inspection area (2) is arranged at one end of the cub watching and protecting box (1); the cub watching and protecting box (1) comprises a heat-insulating and disinfecting cover (11), a viewing window (12), an excrement-accumulating drawer (13), a turning door (14), a partition plate (15), a wiping component (16), a supporting strip (17) and a temperature measuring instrument (18), wherein the heat-insulating and disinfecting cover (11) is installed at the top of the cub watching and protecting box (1), the viewing window (12) is arranged at the other end of the cub watching and protecting box (1), the excrement-accumulating drawer (13) is arranged at the bottom of the partition plate (15), the turning door (14) is hinged to one side of the cub watching and protecting box (1), the supporting strip (17) is connected to two ends of the top of the partition plate (15) through screws, the wiping component (16) is connected to the top of the supporting strip (17) in a sliding mode, and the temperature measuring instrument (18) is installed on the side wall inside the cub; the cub checking area (2) comprises a detection basin (21) and a tool placing cavity (22), wherein the tool placing cavity (22) is arranged at the bottom of the detection basin (21).
2. The veterinary cub care device of claim 1, wherein: the heat-preservation disinfection cover (11) comprises an aluminum ceiling (111), an electric heating tube (112) and ultraviolet tubes (113), wherein the electric heating tube (112) is installed on two sides of the bottom of the aluminum ceiling (111), the ultraviolet tubes (113) are installed on the side wall of one side of the heat-preservation disinfection cover (11), and the electric heating tube (112) is electrically connected with the ultraviolet tubes (113) and is a parallel circuit.
3. The veterinary cub care device of claim 1, wherein: one end of the excrement collection drawer (13) is provided with a handle (131) through a screw.
4. The veterinary cub care device of claim 1, wherein: the partition plate (15) comprises an outer frame (151) and a wire mesh (152), wherein the wire mesh (152) is connected to the inner side of the outer frame (151) through screws.
5. The veterinary cub care device of claim 1, wherein: the wiping component (16) comprises a brush (161) and sliding rails (162), and the sliding rails (162) are arranged on two sides of the bottom of the brush (161).
6. The veterinary cub care device of claim 1, wherein: the top of the supporting bar (17) is provided with a sliding groove (171).
