CN218923300U

CN218923300U - Portable tooth apparatus sterilizing device

Info

Publication number: CN218923300U
Application number: CN202223258349.4U
Authority: CN
Inventors: 聂浩然; 杨雨轩; 刘宇桐; 涂欣如; 许可; 卢科含; 胡耀匀; 何优; 李昕泽
Original assignee: Changan University
Current assignee: Changan University
Priority date: 2022-12-06
Filing date: 2022-12-06
Publication date: 2023-04-28
Anticipated expiration: 2032-12-06

Abstract

The utility model discloses a portable dental appliance sterilizing device which comprises a shell, a storage groove and a sterilizing cover, wherein an electric wire is arranged on the outer wall of the shell, a plug is arranged on the outer wall of the electric wire, a partition plate is arranged on the outer wall of the storage groove, a fixing shell is arranged on the outer wall of the storage groove, a spring is arranged on the inner wall of the fixing shell, and a U-shaped buckle is arranged at one end of the spring. According to the utility model, the storage groove, the U-shaped buckle and the plug groove are arranged, the storage groove is separated by the partition plate, so that the electric wire can be coiled in the storage groove, the spring is prevented from being ejected out by the fixing shell, the U-shaped buckle can be driven by the spring to fix the electric wire, the U-shaped buckle is driven to move backwards by the spring to stretch, the electric wire is driven to move forwards to the partition plate by the spring to be fixed in the U-shaped buckle, and the inserting piece is inserted into the inserting piece groove, so that the electric wire of the dental appliance sterilizing device is stored, the sterilizing device is convenient to carry, the dental appliance can be sterilized and cleaned at any time, and the health of a user is ensured.

Description

Portable tooth apparatus sterilizing device

Technical Field

The utility model relates to the technical field of dental appliance sterilizing devices, in particular to a portable dental appliance sterilizing device.

Background

Along with the development of the times, people pay more attention to toothbrush disinfection, the toothbrush can adhere a plurality of food residues and various microorganisms on the toothbrush, the toothbrush and a tooth cylinder are always in a dark and moist environment, and the food residues become a good culture medium for the microorganisms, so that a plurality of microorganisms can grow and reproduce rapidly, and therefore the portable dental appliance disinfection device is particularly important, and the portable dental appliance disinfection device is provided with a storage groove, a U-shaped buckle and a plug groove, so that the electric wire storage of the disinfection device is convenient to carry, the clean disinfection of dental appliances can be kept at any time, and the health of a human body is ensured.

The existing dental appliance sterilizing device has the following defects:

patent document CN213915172U discloses a cleaning and disinfecting device for dental appliances, the claim "of protection includes cup and base, the base is wireless charging base, the cup includes sealing connection's shell and cleaning and disinfecting cup, be equipped with rechargeable battery between shell and the cleaning and disinfecting cup, cleaning and disinfecting cup's outer wall lower part is equipped with and encircles cleaning and disinfecting cup body's electric heating element, be equipped with the slide rail on cleaning and disinfecting cup's the outer wall, be used for the installation electric heating element makes electric heating element follow cleaning and disinfecting cup outer wall reciprocates, be equipped with the timer on the cup. By means of the ultrasonic cleaning principle, the toothbrush head, the false teeth and other tooth tools are cleaned, so that dead angles of the tooth tools can be cleaned, and the tooth tools are cleaner; wireless charging and dustproof water discharging are adopted; the lower part of the outer wall of the cleaning and sterilizing cup is provided with an electric heating element encircling the cup body of the cleaning and sterilizing cup, and the electric heating element can heat the liquid in the cleaning and sterilizing cup to a certain temperature, so that the effect of killing microorganisms and germs is improved.

In summary, however, the above-mentioned publication mainly considers the problem that the electric heating element can heat the liquid in the cleaning and disinfecting cup to a certain temperature, and improves the effect of killing microorganisms and germs, but the portable device for disinfecting the dental appliance is neglected, and inconvenient carrying can lead to that the dental appliance can only be disinfected in a fixed place, which can lead to limited application range and single use scene.

Disclosure of Invention

The utility model aims to provide a portable dental appliance sterilizing device, which solves the problem of portability in the background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a portable dental appliance disinfection device, includes shell, accomodates groove and disinfection cover, the electric wire is installed to the outer wall of shell, the plug is installed to the outer wall of electric wire, accomodate the baffle is installed to the outer wall of groove, accomodate the outer wall of groove and install the fixed shell, the spring is installed to the inner wall of fixed shell, U-shaped buckle is installed to one end of spring, the plug groove has been seted up to the outer wall of shell;

the top of shell installs the lid, the telescopic link is installed to the inner wall of shell.

Preferably, the display is installed to the outer wall of shell, and the button is installed to the outer wall of shell, and the lock is installed to the outer wall of shell, and the battery is installed to the inner wall of shell.

Preferably, the outer wall of the plug is provided with an inserting sheet, and the outer wall of the plug groove is provided with an inserting sheet groove.

Preferably, the air vent is formed in the outer wall of the cover, the air cavity is formed in the inner wall of the cover, the fan is arranged on the inner wall of the air cavity, and the filter screen is arranged on the inner wall of the air cavity.

Preferably, the supporting block is installed to the inside diapire of shell, and disinfection cover is installed to the outer wall of supporting block, and the toothbrush groove has been seted up at the top of supporting block.

Preferably, the outer wall of the disinfection cover is provided with an ultraviolet lamp rod, the outer wall of the disinfection cover is provided with a sliding rail, and the outer wall of the supporting block is provided with a sliding groove.

Preferably, the top of the supporting block is provided with a groove, and the top of the supporting block is provided with a cup groove.

Compared with the prior art, the utility model has the beneficial effects that:

1. the electric wire storage and convenient carrying of the disinfection device are realized by installing the storage groove, the U-shaped buckle and the plug groove, the storage groove is used for conveniently storing the electric wire and fixing the electric wire, the electric wire is prevented from being exposed outside the device and inconvenient to carry, the storage groove is separated by the baffle plate, the electric wire can be coiled inside, the spring is prevented from being ejected by the fixing shell, the U-shaped buckle can be driven by the spring to fix the electric wire, the U-shaped buckle is driven by the spring to retract to backwards coil the electric wire into the storage groove, the U-shaped buckle is driven by the spring to move forwards to the baffle plate, the electric wire is fixed in the U-shaped buckle, the inserting piece is inserted into the inserting piece groove, the plug is arranged in the plug groove, the plug is fixed and cannot run out, the electric wire of the disinfection device is stored, the disinfection device is convenient to carry, the disinfection device can be disinfected and cleaned at any time, and the health is ensured.

2. According to the toothbrush, the air cavity, the fan and the disinfection cover are arranged, so that the toothbrush in the toothbrush cup is disinfected at the same time, the toothbrush is placed in the toothbrush groove on the supporting block, the toothbrush cup is placed in the cup groove on the supporting block, the cover is covered, the telescopic rod stretches to push the disinfection cover to move, the disinfection cover is provided with the sliding rail to slide in the sliding groove, the disinfection cover moves more stably, the disinfection cover moves to the toothbrush head and the toothbrush cup, the ultraviolet lamp rod disinfects and irradiates the toothbrush, the fan in the air cavity blows air to the toothbrush disinfection device, the inside of the toothbrush device is kept in a dry state all the time, the ventilation hole is ventilated, the filter screen is used for preventing the fan from blowing dust bacteria outside, the toothbrush in the toothbrush cup can be disinfected at the same time, the drying of the toothbrush can be kept continuously, bacteria breeding is avoided, and the toothbrush is high in practicability.

Drawings

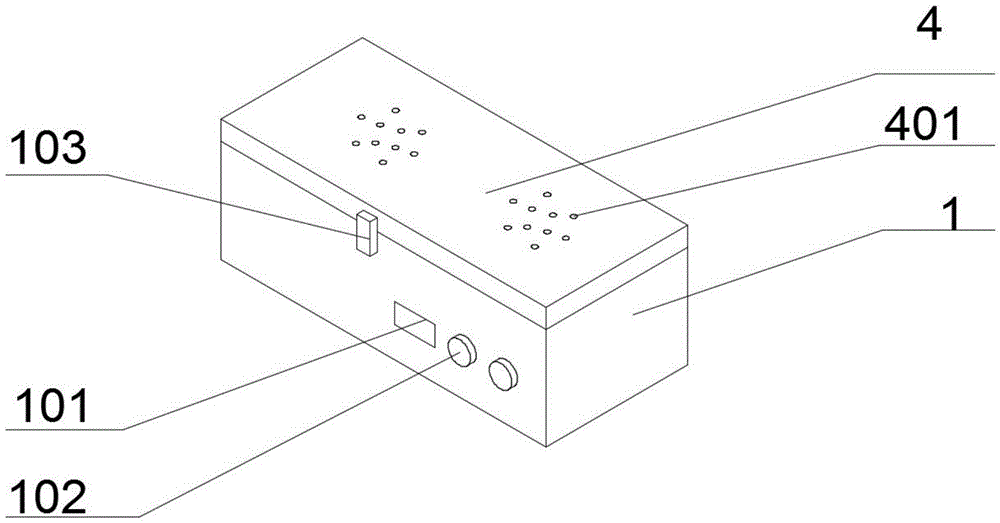

FIG. 1 is a schematic diagram of the overall structure of the present utility model;

FIG. 2 is a schematic diagram of the front structure of the present utility model;

FIG. 3 is a schematic view of a portion of a receiving slot according to the present utility model;

FIG. 4 is a schematic view of a U-shaped buckle portion of the present utility model;

FIG. 5 is a schematic view of a portion of the structure of a sterilizing cover according to the present utility model;

FIG. 6 is a schematic view of a cup portion structure of the present utility model.

In the figure: 1. a housing; 101. a display; 102. a button; 103. a lock; 104. a storage battery; 2. a storage groove; 201. an electric wire; 202. a plug; 203. a partition plate; 204. a fixed case; 205. a spring; 206. u-shaped buckle; 207. a plug slot; 3. inserting sheets; 301. an insert slot; 4. a cover; 401. ventilation holes; 402. a wind chamber; 403. a fan; 404. a filter screen; 5. a sterilizing cover; 501. an ultraviolet lamp rod; 502. a slide rail; 503. a chute; 6. a toothbrush groove; 601. a groove; 602. a cup groove; 7. a telescopic rod; 701. and a supporting block.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

In the description of the present utility model, it should be noted that the directions or positional relationships indicated by the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", etc. are based on the directions or positional relationships shown in the drawings, are merely for convenience of describing the present utility model and simplifying the description, and do not indicate or imply that the devices or elements referred to must have a specific direction, be configured and operated in the specific direction, and thus should not be construed as limiting the present utility model. Furthermore, the terms "first," "second," and the like, are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless explicitly specified and limited otherwise, the terms "mounted," "provided," "connected," and the like are to be construed broadly, and may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; can be directly connected or indirectly connected through an intermediate medium, and can be communication between two elements. The specific meaning of the above terms in the present utility model will be understood in specific cases by those of ordinary skill in the art.

Referring to fig. 1, fig. 3 and fig. 4, a portable dental appliance sterilizing device, including shell 1, storage tank 2 and sterilizing cover 5, electric wire 201 is installed to the outer wall of shell 1, plug 202 is installed to the outer wall of electric wire 201, baffle 203 is installed to the outer wall of storage tank 2, fixed shell 204 is installed to the outer wall of storage tank 2, spring 205 is installed to the inner wall of fixed shell 204, U-shaped buckle 206 is installed to one end of spring 205, plug slot 207 has been seted up to the outer wall of shell 1, display 101 is installed to the outer wall of shell 1, button 102 is installed to the outer wall of shell 1, lock 103 is installed to the outer wall of shell 1, battery 104 is installed to the inner wall of shell 1, inserted sheet 3 is installed to the outer wall of plug 202, inserted sheet slot 301 has been seted up to the outer wall of plug slot 207, the effect of storage tank 2 is convenient for electric wire 201 to be received into it and is fixed, avoid exposing outside the device inconvenient carrying, the effect of baffle 203 is that separates storage tank 2, can make electric wire 201 in the inside, the effect of fixed shell 204 is to prevent spring 205, spring 205 can drive U-shaped buckle 206 to fix electric wire 205, spring 205, take U-shaped buckle 205 to take wire 201 to coil wire 205, spring 206 to take wire 206, it is fixed to take wire 206 to take in the shape of the inside of the device, can be fixed wire 206, can take up the plug 201 to take in the plug into the shape to the device, can be fixed to take along the plug into the plug 201, can be convenient to take along the plug into the plug 201, can be in the plug 3, can realize the plug is convenient to take along, and can be convenient to take along, can take along the plug is convenient to take along, can be in the plug 201, can be convenient to take along and can be convenient to take along.

Referring to fig. 2, 5 and 6, a cover 4 is installed at the top of a housing 1, a telescopic rod 7 is installed at the inner wall of the housing 1, a ventilation hole 401 is provided at the outer wall of the cover 4, a wind cavity 402 is provided at the inner wall of the cover 4, a fan 403 is installed at the inner wall of the wind cavity 402, a filter screen 404 is installed at the inner wall of the wind cavity 402, a supporting block 701 is installed at the inner bottom wall of the housing 1, a sterilizing cover 5 is installed at the outer wall of the supporting block 701, a toothbrush groove 6 is provided at the top of the supporting block 701, an ultraviolet lamp rod 501 is installed at the outer wall of the sterilizing cover 5, a slide rail 502 is installed at the outer wall of the sterilizing cover 5, a slide groove 503 is provided at the outer wall of the supporting block 701, a groove 601 is provided at the top of the supporting block 701, a cup groove 602 is provided at the top of the supporting block 701, a toothbrush is put into the toothbrush groove 6 on the supporting block 701, cup groove 602 on the supporting shoe 701 is put into to the tooth cup, cover lid 4, telescopic link 7 stretches and promotes disinfection cover 5 and remove, slide rail 502 is installed to disinfection cover 5 and is slided in spout 503 for disinfection cover 5 removes more stably, disinfection cover 5 removes to toothbrush head and tooth cup department, ultraviolet lamp stick 501 disinfects and shines it, fan 403 inside wind chamber 402 blows to tooth apparatus degassing unit, keep the inside dry state all the time of keeping, bleeder vent 401 carries out a ventilation, filter screen 404's effect is the dust bacterium that prevents that fan 403 from blowing into the outside, the realization can disinfect tooth cup toothbrush simultaneously, and can keep the dryness of tooth apparatus constantly, avoid the bacterium to breed, the practicality is strong.

The theory of operation, accomodate the effect of groove 2 and be convenient for electric wire 201 accomodate and advance to fix it, avoid exposing outside the device inconvenient carrying, the effect of baffle 203 is to accomodate groove 2 and separate, can make electric wire 201 coil in the inside, the effect of fixed shell 204 is that prevent spring 205 pops out, spring 205 can drive U-shaped buckle 206 and fix electric wire 201, spring 205 shrink drives U-shaped buckle 206 backward, coil electric wire 201 into accomodate inslot 2, spring 205 stretches and drives U-shaped buckle 206 and move forward to baffle 203, make electric wire 201 fix in U-shaped buckle 206, inject inserted sheet 3 into inserted sheet groove 301, plug 202 is in plug groove 207, make plug 202 fix can not run out, realized accomodating tooth-brush disinfecting device electric wire 201, make degassing unit conveniently carry, can carry out tooth-brush disinfection clean at any time, guarantee healthy, put the toothbrush groove 6 on the supporting shoe 701, cup put into cup 602 on the supporting shoe, cover 4, telescopic link 7 stretches and promotes the cover 5 and moves, the slide rail is installed to slide rail in the slide rail groove 301, make the tooth-brush 403 keep the inside the fan 403 to keep the interior of tooth-brush, the fan 403 is kept stable, the effect of drying cup 403 is kept to be the inside the tooth-drying device, and the tooth-brush is kept to be more stable, the inside the tooth-brush is kept to be the drying device is kept to be the drying device, and the inside the tooth-drying device is kept to be more stable, and the tooth-drying device is kept to be the inside, and the inside the tooth-drying device is kept to be the inside the tooth-drying device is the inside, and can be the drying device is kept to be the inside, and can be the drying to be the inside.

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present utility model may be embodied in other specific forms without departing from the spirit or essential characteristics thereof. The present embodiments are, therefore, to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a portable dental appliance disinfection device, includes shell (1), accomodates groove (2) and disinfection cover (5), its characterized in that: an electric wire (201) is arranged on the outer wall of the shell (1), a plug (202) is arranged on the outer wall of the electric wire (201), a partition plate (203) is arranged on the outer wall of the accommodating groove (2), a fixed shell (204) is arranged on the outer wall of the accommodating groove (2), a spring (205) is arranged on the inner wall of the fixed shell (204), a U-shaped buckle (206) is arranged at one end of the spring (205), and a plug groove (207) is formed in the outer wall of the shell (1);

the top of shell (1) is installed lid (4), telescopic link (7) are installed to the inner wall of shell (1).

2. A portable dental appliance sterilization apparatus according to claim 1, wherein: the display (101) is installed on the outer wall of the shell (1), the button (102) is installed on the outer wall of the shell (1), the lock (103) is installed on the outer wall of the shell (1), and the storage battery (104) is installed on the inner wall of the shell (1).

3. A portable dental appliance sterilization apparatus according to claim 1, wherein: the plug-in sheet (3) is installed on the outer wall of the plug (202), and the plug-in sheet groove (301) is formed in the outer wall of the plug groove (207).

4. A portable dental appliance sterilization apparatus according to claim 1, wherein: the air-permeable cover is characterized in that an air vent (401) is formed in the outer wall of the cover (4), an air cavity (402) is formed in the inner wall of the cover (4), a fan (403) is arranged on the inner wall of the air cavity (402), and a filter screen (404) is arranged on the inner wall of the air cavity (402).

5. A portable dental appliance sterilization apparatus according to claim 1, wherein: the inner bottom wall of the shell (1) is provided with a supporting block (701), the outer wall of the supporting block (701) is provided with a disinfection cover (5), and the top of the supporting block (701) is provided with a toothbrush groove (6).

6. The portable dental appliance sterilization apparatus of claim 5 wherein: ultraviolet lamp stick (501) are installed to the outer wall of disinfection cover (5), and slide rail (502) are installed to the outer wall of disinfection cover (5), and spout (503) have been seted up to the outer wall of supporting shoe (701).

7. The portable dental appliance sterilization apparatus of claim 5 wherein: the top of supporting block (701) has seted up recess (601), and cup groove (602) have been seted up at the top of supporting block (701).
