The utility model belongs to the technical field of the check out test set, especially, be an inside detection device of medical equipment, stretch into the inside detection device of medical equipment because the camera angle is difficult to adjust and leads to detecting the difficult problem among the prior art through the camera, the scheme is provided as follows now, and it includes the base, base top fixed mounting has backup pad, riser and four electric putter's one end, and four electric putter's top fixed mounting has same layer board, backup pad top fixed mounting has the push rod motor, and fixed mounting has the round axle on the push rod motor output shaft, the mounting hole has been seted up to riser one side, and the sleeve has been installed in the mounting hole rotation, and the quad slit has been seted up to sleeve one side. The utility model has the advantages of reasonable design, can be through driving the layer board and do the lift removal in order to adapt to the detection to different medical equipment, and can stretch into medical equipment back at the camera and control the camera and rotate in order to realize the integrality of detection to the shooting of different angles.
Description
Technical Field
The utility model relates to a check out test set technical field especially relates to an inside detection device of medical equipment.
Background
Medical equipment in the hospital is the precision instrument mostly, and large-scale setting is difficult for overhauing after breaking down, needs carry out image acquisition to inner structure earlier to carry out fault diagnosis according to the image, it is higher not to unpack equipment and detect the degree of difficulty, and relevant equipment is also few. Through retrieval, Chinese patent with the publication number of CN209542469U discloses an internal detection device for medical equipment, which comprises a main body plate, wherein the upper surface of the main body plate is provided with a sliding groove, two sliding rods and a first electric telescopic rod are fixedly connected in the sliding groove, the first electric telescopic rod is positioned between the two sliding rods, the telescopic end of the first electric telescopic rod is fixedly connected with the sliding block, the sliding block is slidably connected with the sliding rods, the upper surface of the sliding block is fixedly connected with a second electric telescopic rod, the internal detection device for medical equipment drives a camera to enter the medical equipment through an access hole through a third electric telescopic rod, the internal of the medical equipment is shot through the camera, so that maintenance personnel can conveniently check the internal detection device, the position which can not be irradiated by the camera can be checked through an ultrasonic detector, and the internal detection of the medical equipment can be conveniently and comprehensively detected by the maintenance personnel, the light is provided for shooting of the camera through the illuminating lamp, and maintenance personnel can conveniently watch the camera.
However, the design has disadvantages, and the angle of the camera in the design is difficult to adjust, so that the shooting angle of the camera after entering the medical equipment is limited, and complete detection is difficult, so that a detection device in the medical equipment is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the detection device extending into the interior of the medical equipment through the camera in the prior art has difficulty in adjusting the angle of the camera to cause the defect of difficulty in detection, and providing the detection device inside the medical equipment.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a medical equipment internal detection device comprises a base, wherein a supporting plate, a vertical plate and one end of four electric push rods are fixedly arranged at the top of the base, the same supporting plate is fixedly arranged at the top ends of the four electric push rods, a push rod motor is fixedly arranged at the top of the supporting plate, a round shaft is fixedly arranged on an output shaft of the push rod motor, a mounting hole is formed in one side of the vertical plate, a sleeve is rotatably arranged in the mounting hole, a square hole is formed in one side of the sleeve, a square rod is slidably arranged in the square hole, a round groove is formed in one end of the square rod, the round shaft is fixedly connected with the round groove, a camera is fixedly arranged at the other end of the square rod, a lighting lamp is fixedly arranged at one side, close to the camera, of the bottom of the square, and a worm wheel is fixedly mounted on the sleeve and meshed with the worm.
Preferably, equal fixed mounting has the limiting plate on circular recess top inner wall and the bottom inner wall, two limiting plates all with circle axle swing joint, carry on spacingly to the circle axle.
Preferably, the front end of the worm extends to the front side of the mounting plate positioned at the front side and is fixedly connected with a connecting rod, and the other end of the connecting rod is fixedly connected with a rocker arm so as to control the rotation of the worm conveniently.
Preferably, one side fixed mounting that the square pole top is close to the camera has the fixed plate, and the top fixed mounting of fixed plate has L shape guard plate, protects the camera, prevents to take place to collide with.
Preferably, the fixed cover in the sleeve outside is equipped with two spacing axle sleeves, and two spacing axle sleeves all carry on spacingly with riser swing joint to the sleeve.
Preferably, the four corners of the bottom of the base are fixedly provided with universal wheels, one end of a push rod is fixedly connected to one side of the base, and the other end of the push rod is fixedly provided with a handle which is convenient for moving equipment.
In the utility model, a medical equipment inside detection device, move the device to the assigned position through holding the handle and through the universal wheel, then place medical equipment at the layer board top, and drive the layer board through electric putter and be elevating movement so as to adjust medical equipment open-ended height to with the camera on the same water flat line, then through opening the push rod motor, push rod motor output shaft drives the round axle and does lateral shifting, the round axle drives square pole lateral sliding through the cooperation with circular groove and limiting plate, thereby push the camera into medical equipment inside, detect medical equipment inside through the camera, and through the supplementary camera work of light, guarantee the shooting effect of camera;
in the utility model, the internal detection device of the medical equipment drives the worm to rotate by controlling the rocker arm, the worm drives the worm wheel to rotate, the worm wheel drives the sleeve to rotate, and the sleeve drives the camera to rotate by matching the square hole with the square rod, thereby realizing shooting at different angles and ensuring the integrity of detection;
the utility model has the advantages of reasonable design, can be through driving the layer board and do the lift removal in order to adapt to the detection to different medical equipment, and can stretch into medical equipment back at the camera and control the camera and rotate in order to realize the integrality of guaranteeing the detection to the shooting of different angles, the reliability is high.
Drawings

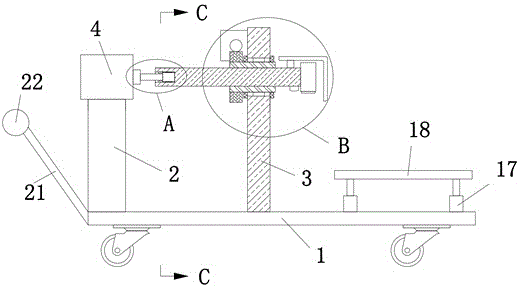

Fig. 1 is a schematic structural view of an internal detection device of a medical apparatus according to the present invention;
fig. 2 is a schematic structural diagram of a portion a of an internal detection device of a medical apparatus according to the present invention;
fig. 3 is a schematic structural diagram of a part B of the internal detection device of the medical apparatus according to the present invention;
fig. 4 is a schematic structural diagram of a C-C section of the internal detection device of the medical equipment provided by the present invention;
fig. 5 is a schematic structural diagram of a portion D of the internal detection device of a medical apparatus according to the present invention.
In the figure: 1. a base; 2. a support plate; 3. a vertical plate; 4. a push rod motor; 5. a sleeve; 6. a square rod; 7. a circular shaft; 8. a limiting plate; 9. a camera; 10. an illuminating lamp; 11. mounting a plate; 12. a worm; 13. a circular groove; 14. a worm gear; 15. a fixing plate; 16. an L-shaped protection plate; 17. an electric push rod; 18. a support plate; 19. a limiting shaft sleeve; 20. a rocker arm; 21. a push rod; 22. a handle.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-5, an internal detection device for medical equipment comprises a base 1, a support plate 2, a vertical plate 3 and one end of four electric push rods 17 are fixedly installed at the top of the base 1, the top ends of the four electric push rods 17 are fixedly installed with a same support plate 18, a push rod motor 4 is fixedly installed at the top of the support plate 2, a round shaft 7 is fixedly installed on an output shaft of the push rod motor 4, an installation hole is formed at one side of the vertical plate 3, a sleeve 5 is rotatably installed in the installation hole, a square hole is formed at one side of the sleeve 5, a square rod 6 is slidably installed in the square hole, a round groove 13 is formed at one end of the square rod 6, the round shaft 7 is fixedly connected with the round groove 13, a camera 9 is fixedly installed at the other end of the square rod 6, an illuminating lamp 10 is fixedly installed at, the same worm 12 is rotatably arranged on the side, close to each other, of the two mounting plates 11, a worm wheel 14 is fixedly arranged on the sleeve 5, and the worm wheel 14 is meshed with the worm 12.
The utility model discloses in, equal fixed mounting has limiting plate 8 on 13 top inner walls of circular slot and the bottom inner wall, and two limiting plates 8 all with 7 swing joint of circle axle, carry on spacingly to circle axle 7.
The utility model discloses in, worm 12 front end extends to the mounting panel 11 front side that is located the front side and one of fixedly connected with connecting rod pause, and the other end fixedly connected with rocking arm 20 of connecting rod is convenient for control worm 12 and is rotated.
The utility model discloses in, 6 top of square pole have a fixed plate 15 near one side fixed mounting of camera 9, and the top fixed mounting of fixed plate 15 has L shape guard plate 16, protects camera 9, prevents to take place to collide with.
The utility model discloses in, the fixed cover in the 5 outsides of sleeve is equipped with two spacing axle sleeves 19, and two spacing axle sleeves 19 all with 3 swing joint of riser, carry on spacingly to sleeve 5.
The utility model discloses in, the equal fixed mounting in base 1 bottom four corners has the universal wheel, the one end of base 1 one side fixedly connected with push rod 21, the other end fixed mounting of push rod 21 has handle 22, the mobile device of being convenient for.
In the utility model, when in use, the device is moved to a designated position by holding the handle 22 by a hand and through the universal wheel, then the medical equipment is placed on the top of the supporting plate 18, and the supporting plate 18 is driven by the electric push rod 17 to do lifting motion so as to adjust the opening height of the medical equipment to be on the same horizontal line with the camera 9, then the push rod motor 4 is started, the output shaft of the push rod motor 4 drives the round shaft 7 to do transverse motion, the round shaft 7 drives the square rod 6 to transversely slide through matching with the round groove 13 and the limiting plate 8, thereby the camera 9 is pushed into the medical equipment, the inside of the medical equipment is detected through the camera 9, the camera 9 is assisted by the illuminating lamp 10 to work, the shooting effect of the camera 9 is ensured, in the detection process, the worm 12 can be driven to rotate by controlling the rocker arm 20, the worm 12 drives the worm wheel 14 to rotate, the worm wheel 14 drives the sleeve, sleeve 5 drives camera 9 through the cooperation of quad slit and square pole 6 and rotates to the realization has guaranteed the integrality that detects to the shooting of different angles.
