CN211919799U - A battery transfer robot - Google Patents

Abstract

The utility model discloses a battery cell transport robot, which includes a mechanical arm body, a clamping mechanism, a pusher and a matching member. The clamping mechanism can be movably arranged at the execution end of the mechanical arm body, the clamping mechanism is used to clamp the layer plate, the pusher is connected to the execution end, the execution end can drive the pusher to stop on the side wall of the layer plate, the matching member is connected to the clamping mechanism, the matching member is used to cooperate with the layer plate, and the execution end can drive the matching member to pull the layer plate out of the cache cabinet. The battery cell transport robot can not only stably take out the layer plate from the cache cabinet, but also stably put the layer plate into the cache cabinet, thereby improving the efficiency of the layer plate transport.

Description

A battery transfer robot

technical field

The utility model relates to the technical field of battery production and transportation, in particular to a battery cell transfer robot.

Background technique

During cell production, laminates are usually placed in buffer cabinets. In the prior art, two different manipulators are required to remove the laminate from the cache cabinet and to put the laminate into the cache cabinet. This not only reduces the transport efficiency of the laminates, but also tends to cause the two robotic arms to interfere with each other during actual use.

Utility model content

The purpose of this utility model is to propose a cell transfer robot, which can not only stably take out the laminates from the cache cabinet, but also stably put the laminates into the cache cabinet, thereby improving the laminate transfer efficiency .

In order to realize the above-mentioned technical effect, the technical scheme of the battery cell transfer robot according to the embodiment of the present invention is as follows:

The utility model discloses a battery transfer robot, comprising: a mechanical arm body; a clamping mechanism, wherein the clamping mechanism is movably arranged on the execution end of the mechanical arm body, and the clamping mechanism is used for clamping holding the layer board; a pusher, the pusher is connected to the execution end, and the execution end can drive the pusher to stop on the side wall of the layer plate; a matching piece, the matching piece is connected to the On the clamping mechanism, the matching piece is used to cooperate with the layer board, and the execution end can drive the matching piece to pull the layer board out of the cache cabinet.

In some embodiments, the battery cell transfer robot further includes a connecting plate, the connecting plate is connected to the execution end, the number of the clamping mechanisms is two, and the two clamping mechanisms are slidably provided on On the connecting plate, the two clamping mechanisms can move toward or away from each other.

In some specific embodiments, each of the clamping mechanisms includes: a mounting plate, the mounting plate is slidably provided on the connecting plate; a first driving member, the first driving member and the The mounting plates are connected to drive the mounting plates to slide; a clamping assembly is provided on the mounting plate, and the clamping assembly is used for clamping the layer plate.

In some more specific embodiments, the clamping assembly includes: two clamping plates, the two clamping plates are spaced apart along the up-down direction; a second driving member, the second driving member is connected to at least one The clamping plates are matched, and the second driving member is used to drive the clamping plates to move so as to increase or decrease the distance between the two clamping plates.

In some optional embodiments, the contact surface of at least one of the splints and the laminate is a toothed surface.

In some optional embodiments, the connecting plate is provided with a sliding rail extending along its length direction, and the mounting plate is provided with a sliding block matched with the sliding rail.

In some optional embodiments, the matching piece includes: a connecting part, one end of the connecting plate is connected to one of the clamping plates, the length of the connecting part is greater than the length of the clamping plate; the matching part, the The matching portion is connected to the other end of the connecting portion, and the matching portion can be matched with the laminate.

In some optional embodiments, the battery cell transfer robot further includes: a buffer member, the buffer member is provided on the connecting plate, and the buffer member and the pushing member are respectively located on the connecting plate. On the two opposite side walls; a pressure sensor, one end of the pressure sensor is connected with the execution end, and the other end is connected with the buffer member.

In some optional embodiments, the cell transfer robot further includes a position detection member, the position detection member is provided on the connecting plate, and the position detection member is used to detect the position of the layer board.

In some optional embodiments, the battery cell transfer robot further includes a wire routing shaft, and the wire routing shaft is connected between the power cable of the robotic arm body and an external power source.

The cell transfer robot according to the embodiment of the present invention has a clamping mechanism for clamping the laminate, a pusher for pushing the laminate, and a fitting that can cooperate with the laminate, so that both the laminate can be removed from the buffer cabinet. The function of taking out and putting the laminate in the cache cabinet improves the efficiency of the transfer of the laminate and reduces the cost of the transfer of the laminate.

Additional aspects and advantages of the invention will be set forth, in part, from the following description, and in part will be apparent from the following description, or learned by practice of the invention.

Description of drawings

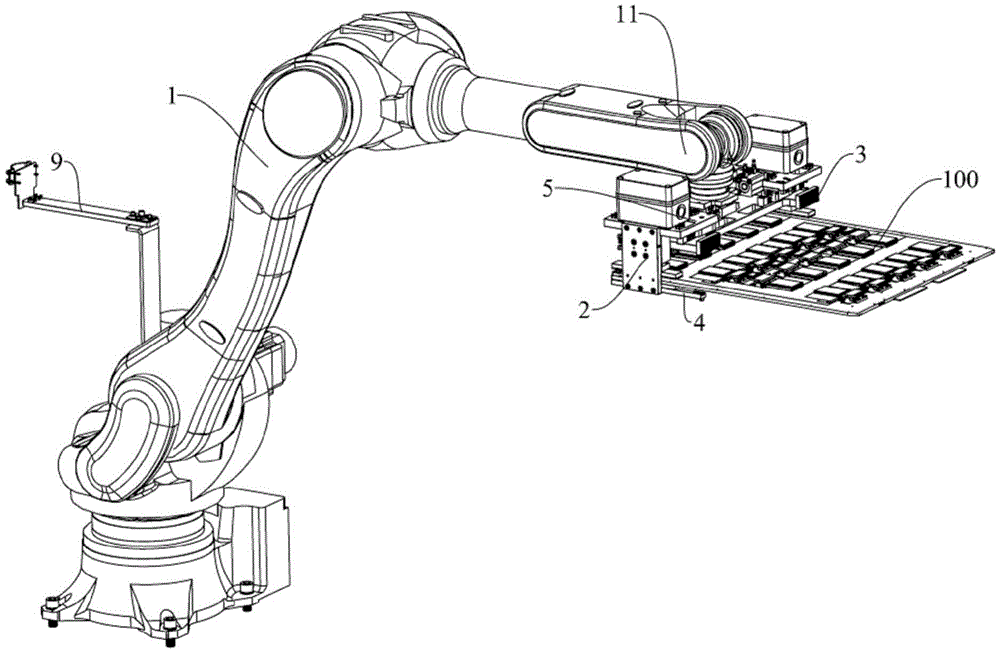

FIG. 1 is a schematic diagram of the cooperation structure of a cell transfer robot and a laminate according to an embodiment of the present invention.

FIG. 2 is a partial structural schematic diagram of a battery cell transfer robot according to an embodiment of the present invention.

FIG. 3 is a schematic diagram of a partial structure of FIG. 2 .

FIG. 4 is another partial structural schematic diagram of the battery cell transfer robot according to the embodiment of the present invention.

FIG. 5 is a schematic diagram of the structure of the cache cabinet.

Reference number:

1. Robot body; 11. Execution end;

2. Clamping mechanism; 21, Mounting plate; 211, Slider; 22, First driving part; 23, Clamping assembly; 231, Plywood; 232, Second driving part;

3. Push parts;

4. Matching parts; 41. Connecting part; 42. Matching part;

5. Connecting plate; 51. Slide rail;

6. Buffer part; 7. Pressure sensor; 8. Position detection part; 9. Wiring shaft; 100, Laminate; 101, Matching hole; 200, Cache cabinet.

Detailed ways

In order to make the technical problems solved by the present invention, the technical solutions adopted and the technical effects achieved more clearly, the technical solutions of the present invention are further described below with reference to the accompanying drawings and through specific embodiments.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise", "Axial" ", "radial", "circumferential" and other indicated orientations or positional relationships are based on the orientations or positional relationships shown in the accompanying drawings, and are only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying the indicated A device or element must have a specific orientation, be constructed and operate in a specific orientation, and therefore should not be construed as a limitation of the present invention.

In addition, the features defined with "first" and "second" may explicitly or implicitly include one or more of the features, which are used to distinguish and describe the features, regardless of order or importance. In the description of the present invention, unless otherwise specified, "plurality" means two or more.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a connectable connection. Detachable connection, or integral connection; may be mechanical connection or electrical connection; may be direct connection, or indirect connection through an intermediate medium, or internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The specific structure of the battery cell transfer robot according to the embodiment of the present invention will be described below with reference to FIGS. 1 to 4 .

As shown in FIGS. 1 to 4 , the battery cell transfer robot according to the embodiment of the present invention includes a manipulator body 1, a clamping mechanism 2, a pushing member 3 and a matching member 4, and the clamping mechanism 2 is movably arranged on the manipulator body. On the actuator end 11 of the 4 is connected to the clamping mechanism 2 , the fitting 4 is used to cooperate with the shelf 100 , and the execution end 11 can drive the fitting 4 to pull the shelf 100 out of the buffer cabinet 200 .

It can be understood that, in the actual use process, the process of placing the laminate 100 back in the cache cabinet 200 by the cell transfer robot in this embodiment is that the clamping mechanism 2 clamps the laminate 100, and the clamping mechanism 2 is placed on the robot arm body. Driven by 1, it moves toward the direction close to the cache cabinet 200; when a part of the shelf 100 is supported by the support structure in the cache cabinet 200, the clamping mechanism 2 releases the shelf 100, and then the robot arm body 1 continues to move to make the pusher 3 abuts against the side wall of the laminate 100; after the pusher 3 abuts against the side wall of the laminate 100, the manipulator body 1 continues to move to drive the pusher 3 to slowly push the laminate 100 into the laminate 100 in the storage cabinet. Therefore, the cell transfer robot of this embodiment can realize the function of placing the laminate 100 in the buffer cabinet 200 .

At the same time, the process of removing the laminate 100 from the cache cabinet 200 by the cell transfer robot in this embodiment is as follows: the manipulator body 1 starts to move and makes the fitting 4 fit with the laminate 100 ; the manipulator body 1 continues to move to make the laminate The board 100 leaves the cache cabinet 200 driven by the fitting 4; when a part of the shelf 100 leaves the buffer cabinet 200, the robot arm body 1 stops moving, the fitting 4 separates from the shelf 100 and the clamping mechanism 2 removes the shelf 100 from the buffer Parts of the cabinet 200 are stably clamped; when the clamping mechanism 2 clamps the shelf 100 , the robotic arm body 1 continues to move so that the shelf 100 leaves the cache cabinet 200 driven by the clamping mechanism 2 . Therefore, the cell transfer robot of this embodiment can realize the function of taking the laminate 100 out of the buffer cabinet 200 .

The cell transfer robot according to the embodiment of the present invention has the clamping mechanism 2 for clamping the laminate 100, the pusher 3 for pushing the laminate 100, and the fitting 4 capable of cooperating with the laminate 100. The layer board 100 is taken out from the cache cabinet 200, and the function of putting the layer board 100 into the cache cabinet 200 can improve the efficiency of transporting the layer board 100 and reduce the cost of transporting the layer board 100.

In some embodiments, as shown in FIG. 2 , the battery cell transfer robot further includes a connecting plate 5 , the connecting plate 5 is connected to the execution end 11 , there are two clamping mechanisms 2 , and the two clamping mechanisms 2 are slidably arranged. On the connecting plate 5, the two clamping mechanisms 2 can be moved toward or away from each other.

It can be understood that, in the process of battery production, due to the different types of batteries, the dimensions of the laminates 100 are also different. In this embodiment, the two clamping mechanisms 2 can be slidably provided on the connecting plate 5 , so that in actual use, the distance between the two clamping mechanisms 2 can be adjusted for laminates 100 of different sizes, so that the cell transfer robot of this embodiment can be compatible with laminates 100 of various lengths or widths, thereby The scope of application of the battery cell transfer robot of this embodiment is expanded, and user satisfaction is improved.

In addition, the clamping mechanisms 2 are formed as two spaced apart, so that the two clamping mechanisms 2 can clamp one side of the laminate 100 respectively, ensuring that the clamping mechanisms 2 can stably clamp the laminate 100 . Therefore, the phenomenon that the laminate 100 falls from the cell transfer robot during the process of taking out or putting in the laminate 100 is avoided. Of course, in actual use, the number of clamping mechanisms 2 can be set to three or more according to the size of the laminate 100 .

In some specific embodiments, as shown in FIG. 2 , each clamping mechanism 2 includes a mounting plate 21, a first driving member 22 and a clamping assembly 23, and the mounting plate 21 is slidably arranged on the connecting plate 5, The first driving member 22 is connected with the mounting plate 21 to drive the mounting plate 21 to slide. The clamping assembly 23 is disposed on the mounting plate 21 , and the clamping assembly 23 is used for clamping the laminate 100 . It can be understood that the use of the mounting plate 21 slidably provided on the connecting plate 5 as the transition piece between the clamping assembly 23 and the connecting plate 5 ensures that the clamping assembly 23 can be stably relative to the connecting plate 5 on the one hand. Sliding, so that the adjustment of the distance between the two clamping components 23 is more convenient, on the other hand, the stability of the clamping components 23 is ensured, and the damage or falling of the laminate 100 caused by the shaking of the clamping components 23 is avoided. phenomenon occurs. It needs to be supplemented here that, in this embodiment, the first driving member 22 can be any linear driving structure such as a cylinder, an electric push rod, a motor-driven ball screw, etc., and the specific type of the first driving member 22 is not made here. By definition, the type of the first driving member 22 can be selected according to actual needs. In addition, in other embodiments of the present invention, the first driving member 22 can also be directly connected with the clamping assembly 23 to drive the clamping assembly 23 to move relative to the connecting plate 5 . Of course, in some embodiments, the adjustment of the clamping assembly 23 may be manual adjustment instead of automatic adjustment.

In some more specific embodiments, as shown in FIG. 3 , the clamping assembly 23 includes a clamping plate 231 and a second driving member 232 . There are two clamping plates 231 , and the two clamping plates 231 are spaced apart in the up-down direction. The second driving member 232 In cooperation with at least one clamping plate 231 , the second driving member 232 is used to drive the clamping plate 231 to move so as to increase or decrease the distance between the two clamping plates 231 . It can be understood that, because the second driving member 232 can drive the clamping plate 231 to move so as to increase or decrease the distance between the two clamping plates 231, on the one hand, it ensures that the clamping assembly 23 can stably clamp the laminate 100, thereby avoiding The phenomenon of the layer plate 100 falling occurs. On the other hand, for different batteries, the thickness of the layer plate 100 may vary. The thickness between the two clamping plates 231 can be adjusted so that the clamping assembly 23 of this embodiment is compatible with various thicknesses. The laminate 100, so that the entire cell transfer robot can be compatible with laminates 100 with various thicknesses.

At the same time, in this embodiment, the relative movement modes of the two clamping plates 231 can be various. For example, in some embodiments, the two clamping plates 231 are connected to the same second driving member 232. At this time, the entire The clamping assembly 23 is formed as a finger air cylinder; for another example, in some embodiments, the two clamping plates 231 are respectively connected to the two second driving members 232. When it is necessary to adjust the distance or clamp the laminate 100, the two The second driving member 232 drives the two clamping plates 231 to move respectively; for another example, in some embodiments, the second driving member 232 is connected to one of the two clamping plates 231, and when the spacing needs to be adjusted or the laminate 100 needs to be clamped, the first The two driving members 232 only need to drive one clamping plate 231 to move. Therefore, in actual use, any one of the above descriptions can be selected for the relative movement of the two clamping plates 231 .

In some optional embodiments, the contact surface of at least one clamping plate 231 and the laminate 100 is a toothed surface. It can be understood that the contact surface between the clamping plate 231 and the layer plate 100 is a toothed surface, on the one hand, the friction force between the layer plate 100 and the clamping plate 231 can be increased, thereby ensuring that the clamping assembly 23 can stably clamp the layer plate 100, On the other hand, the contact area between the toothed surface and the laminate 100 is relatively small, which can reduce the possibility that the splint 231 damages the laminate 100 . Of course, in other embodiments of the present invention, the contact surface between the splint 231 and the laminate 100 can be selected from any one or more of flat surfaces, sawtooth surfaces, and inclined surfaces according to actual needs, and is not limited to the toothed surfaces of this embodiment. .

In some optional embodiments, as shown in FIGS. 3 to 4 , the connecting plate 5 is provided with a sliding rail 51 extending along its length direction, and the mounting plate 21 is provided with a sliding block 211 that cooperates with the sliding rail 51 . It can be understood that the cooperation between the sliding rail 51 and the slider 211 can define the sliding direction of the mounting board 21 , so as to avoid the phenomenon that the mounting board 21 is skewed and the laminate 100 is stuck or damaged. Of course, in order to limit the sliding direction of the mounting plate 21 , a structure in which the sliding grooves cooperate with the protrusions may also be provided, and is not limited to the structure in which the sliding rails 51 cooperate with the sliders 211 in this embodiment.

In some optional embodiments, as shown in FIG. 3 , the fitting 4 includes a connecting portion 41 and a fitting portion 42 , one end of the connecting plate 5 is connected to one of the clamping plates 231 , and the length of the connecting portion 41 is greater than that of the clamping plate 231 , The matching portion 42 is connected to the other end of the connecting portion 41 , and the matching portion 42 can be matched with the laminate 100 . It can be understood that, because one end of the connecting portion 41 is connected to the clamping plate 231, and the length of the connecting portion 41 is greater than the length of the clamping plate 231, it is better to avoid the connection between the clamping plate 231 and the layer plate when the matching portion 42 is matched with the layer plate 100. 100 collides, thereby reducing the reject rate of the laminate 100 . Of course, in other embodiments of the present invention, the matching member 4 may be formed as a suction nozzle or other structures capable of matching with the laminate 100 .

It should be supplemented here that in other embodiments of the present invention, the clamping mechanism 2 may be formed as a finger cylinder, and the two clamping plates of the finger cylinder are respectively abutted against two opposite side walls of the laminate 100 . so as to realize the clamping of the laminate 100 . That is to say, in other embodiments of the present invention, the structure of the clamping mechanism 2 is not limited to the above description, and may also be other mechanisms capable of realizing clamping.

In some optional embodiments, as shown in FIG. 4 , the battery cell transfer robot further includes a buffer member 6 and a pressure sensor 7 , the buffer member 6 is provided on the connecting plate 5 , and the buffer member 6 and the push member 3 are respectively located in the connection On the two opposite side walls of the plate 5 , one end of the pressure sensor 7 is connected to the execution end 11 , and the other end is connected to the buffer member 6 . It can be understood that, in the process of placing the laminate 100 into the cache cabinet 200 by the cell transfer robot in this embodiment, when the end of the laminate 100 away from the pusher 3 abuts on the side wall of the laminate 100 cabinet, At this time, if the execution end 11 of the manipulator body 1 continues to move and drives the pusher 3 to push the laminate 100 , the laminate 100 may be squeezed and the laminate 100 may be damaged. In this embodiment, the cell transfer robot further includes a buffer member 6 and a pressure sensor 7 , and the buffer member 6 and the pressure sensor 7 can buffer and measure the laminate 100 when the laminate 100 is put into the buffer cabinet 200 . The effect of the amount of pressure received, so as to better avoid the phenomenon that the laminate 100 is damaged in the process of putting the laminate 100 into the cache cabinet 200

It should be noted here that the buffer member 6 in this embodiment may be an elastic member such as a spring and a rubber pad, which may be selected according to actual needs. In addition, the model, type and range of the pressure sensor can be selected according to actual needs, which will not be repeated here.

In some optional embodiments, as shown in FIG. 4 , the cell transfer robot further includes a position detector 8 , which is provided on the connecting board 5 , and is used to detect the position of the laminate 100 . It can be understood that when the layer board 100 is taken out from the cache cabinet 200, when the position detector 8 detects the side wall of the layer board 100, the clamping mechanism 2 clamps the layer board 100 again, which can better ensure The stable clamping of the laminate 100 by the clamping mechanism 2 ensures the stability of the laminate 100 and prevents the laminate 100 from falling and being damaged during the process of taking out the laminate 100 . It should be additionally explained here that the position detector 8 may select a proximity switch, a photoelectric switch or other position detector 8 according to actual needs, and the specific type and control logic of the position detector 8 are not limited here.

In some optional embodiments, as shown in FIG. 1 , the cell transfer robot further includes a wire routing shaft 9 , and the wire routing shaft 9 is connected between the power cable of the manipulator body 1 and an external power source. It can be understood that when the wire routing shaft 9 is used to connect the wires so as to realize the deflection of the manipulator body 1, the power cord and the wires rotate together with the battery transfer robot under the control of the wire routing shaft 9, thereby avoiding the wire routing in the prior art. The natural sagging leads to the occurrence of undesirable phenomena wrapped around the cell transfer robot.

Example:

The specific structure of a cell transfer robot according to a specific embodiment of the present invention will be described below with reference to FIGS. 1 to 4 .

As shown in FIGS. 1-4 , the cell transfer robot of this embodiment includes a manipulator body 1, a clamping mechanism 2, a pusher 3, a fitting 4, a connecting plate 5, a buffer 6, a pressure sensor 7, a position detection 8 and the cable routing shaft 9.

There are two clamping mechanisms 2 , two clamping mechanisms 2 , two clamping mechanisms 2 are slidably provided on the connecting plate 5 , and the two clamping mechanisms 2 can move toward or away from each other. Each clamping mechanism 2 includes a mounting plate 21 , a first driving member 22 and a clamping assembly 23 . The connecting plate 5 is provided with a sliding rail 51 extending along its length direction, and the mounting plate 21 is provided with a sliding rail 51 . The matching slider 211 and the first driving member 22 are connected with the mounting plate 21 to drive the mounting plate 21 to slide. The clamping assembly 23 is provided on the mounting plate 21 , and the clamping assembly 23 is used to clamp the laminate 100 . The clamping assembly 23 includes two clamping plates 231 and a second driving member 232. There are two clamping plates 231. The two clamping plates 231 are arranged at intervals in the up-down direction. The driving member 232 is used to drive the clamping plate 231 to move so as to increase or decrease the distance between the two clamping plates 231 . The fitting 4 includes a connecting portion 41 and a fitting portion 42. One end of the connecting plate 5 is connected to a clamping plate 231 located on the lower side. The length of the connecting portion 41 is greater than the length of the clamping plate 231, and the fitting portion 42 is connected to the other end of the connecting portion 41. The fitting portion 42 can be fitted with the laminate 100 . The clamping mechanism 2 is movably arranged on the actuator end 11 of the manipulator body 1, the clamping mechanism 2 is used to clamp the laminate 100, the pusher 3 is connected to the actuator end 11, and the actuator end 11 can drive the pusher 3 to stop against On the side wall of the shelf 100 , the fitting 4 is connected to the clamping mechanism 2 . The fitting 4 is used to cooperate with the shelf 100 , and the execution end 11 can drive the fitting 4 to pull the shelf 100 out of the cache cabinet 200 . . The buffer member 6 is arranged on the connecting plate 5, and the buffer member 6 and the pushing member 3 are respectively located on two opposite side walls of the connecting plate 5. One end of the pressure sensor 7 is connected to the execution end 11, and the other end is connected to the buffer member 6. connected. The position detector 8 is provided on the connection board 5 , and the position detector 8 is used to detect the position of the laminate 100 . The cable routing shaft 9 is connected between the power cable of the manipulator body 1 and the external power source.

The working principle of the cell transfer robot of the present embodiment is:

When the shelf 100 is put into the cache cabinet 200: the robot arm body 1 transfers the shelf 100 to the position of the cache cabinet 200, and makes the shelf 100 partially extend into the cache cabinet 200. After the second driving member 232 drives the upper The splint 231 moves in a direction away from the splint 231 below, the clamping assembly 23 opens and releases the laminate 100, and is controlled by the pusher 3 to push the laminate 100 into place;

When the shelf 100 is taken out of the cache cabinet 200: the manipulator body 1 is moved to the position of the cache cabinet 200, and after the control matching part 42 is inserted into the matching hole 101 on the shelf 100 (as shown in FIG. 5), the manipulator body 1 moves backward , pull out the shelf 100, the second driving member 232 controls the clamping plate 231 to move toward the direction close to the other clamping plate 231 to achieve paired clamping, take the shelf 100 out of the buffer cabinet 200, and transfer it to other positions.

The cell transfer robot of this embodiment has the following advantages:

First: the laminate 100 can be taken out from the cache cabinet 200, and the laminate 100 can be put into the cache cabinet 200, which reduces the transport cost of the laminate 100 and improves the transport efficiency of the laminate 100;

Second: the distance between the two clamping components 23 is adjustable, and the distance between the two clamping plates of each clamping component 23 is adjustable, so as to realize the compatibility of cells of various lengths, widths and thicknesses , which improves the scope of application of the battery cell layer transfer robot;

Third: the additionally installed wire routing shaft 9 can better avoid the occurrence of wire winding collision and other phenomena, and ensure the reliability of the entire battery cell transfer robot.

In the description of this specification, description with reference to the terms "some embodiments", "other embodiments", etc. means that a particular feature, structure, material or characteristic described in connection with the embodiment or example is included in at least one of the present invention examples or examples. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The above content is only a preferred embodiment of the present invention. For those of ordinary skill in the art, according to the idea of the present invention, there will be changes in the specific implementation and application scope, and the content of this description should not be construed as Limitations of the present invention.

Claims (10)

1. A battery cell transfer robot, comprising:

a robot arm body (1);

the clamping mechanism (2) is movably arranged on the execution end (11) of the mechanical arm body (1), and the clamping mechanism (2) is used for clamping the laminate (100);

the pushing piece (3) is connected to the execution end (11), and the execution end (11) can drive the pushing piece (3) to be abutted against the side wall of the laminate (100);

fitting piece (4), fitting piece (4) are connected on fixture (2), fitting piece (4) be used for with plywood (100) cooperation, execution end (11) can drive fitting piece (4) will plywood (100) are pulled out in buffer memory cabinet (200).

2. The cell transfer robot according to claim 1, further comprising a connecting plate (5), wherein the connecting plate (5) is connected to the actuating end (11), the number of the clamping mechanisms (2) is two, the two clamping mechanisms (2) are slidably disposed on the connecting plate (5), and the two clamping mechanisms (2) can move toward directions approaching to or away from each other.

3. The cell transfer robot of claim 2, wherein each of the gripping mechanisms (2) comprises:

a mounting plate (21), the mounting plate (21) being slidably disposed on the connecting plate (5);

a first driving member (22), wherein the first driving member (22) is connected with the mounting plate (21) to drive the mounting plate (21) to slide;

the clamping assembly (23), establish clamping assembly (23) on mounting panel (21), clamping assembly (23) are used for the centre gripping plywood (100).

4. The cell transfer robot of claim 3, wherein the clamping assembly (23) comprises;

the number of the clamping plates (231) is two, and the two clamping plates (231) are arranged at intervals along the vertical direction;

a second driving member (232), the second driving member (232) is matched with at least one clamping plate (231), and the second driving member (232) is used for driving the clamping plate (231) to move so as to increase or decrease the distance between the two clamping plates (231).

5. The cell transfer robot of claim 4, wherein the contact surface of at least one of the clamping plates (231) with the laminate (100) is a toothed surface.

6. The cell transfer robot according to claim 3, wherein the connecting plate (5) is provided with a sliding rail (51) extending along a length direction thereof, and the mounting plate (21) is provided with a sliding block (211) engaged with the sliding rail (51).

7. The cell transfer robot of claim 4, wherein the fitting member (4) comprises:

the connecting part (41), one end of the connecting plate (5) is connected with one of the clamping plates (231), and the length of the connecting part (41) is greater than that of the clamping plate (231);

a mating portion (42), the mating portion (42) being connected at the other end of the connecting portion (41), the mating portion (42) being capable of mating with the laminate (100).

8. The cell transfer robot of claim 2, further comprising:

the buffer piece (6) is arranged on the connecting plate (5), and the buffer piece (6) and the pushing piece (3) are respectively positioned on two opposite side walls of the connecting plate (5);

the pressure sensor (7), the one end of pressure sensor (7) with execution end (11) link to each other, the other end with bolster (6) link to each other.

9. The cell transfer robot of claim 2, further comprising a position detector (8), wherein the position detector (8) is disposed on the connecting plate (5), and the position detector (8) is configured to detect a position of the laminate (100).

10. The battery cell transfer robot according to any one of claims 1 to 9, further comprising a wiring spindle (9), wherein the wiring spindle (9) is connected between a power line of the mechanical arm body (1) and an external power source.
