Abstract

The utility model discloses and belongs to the technical field of solar cells, in particular to a high-efficiency inorganic solar cell with a self-cleaning structure, comprising a solar cell panel, a first support frame, a second support frame, a water tank and a motor. A second support frame and a first support frame are respectively fixedly installed on the left and right sides of the second support frame, a chute is set at the center of the front side wall of the second support frame, and a center position of the right side wall of the first support frame is fixedly installed. A water tank, a water pump is arranged at the center of the left side wall of the inner cavity of the water tank, a water pipe is arranged at the center of the left side of the water pump, and a motor is slidably connected to the front side wall of the chute, and the cleaning structure can be used during use. It can effectively clean the dirt on the battery board, and at the same time, it can fully clean the battery board, and the cleaning effect is good, and it will not affect the work of the solar cell.

Description

A high-efficiency inorganic solar cell with a self-cleaning structure

technical field

The utility model relates to the technical field of solar cells, in particular to a high-efficiency inorganic solar cell with a self-cleaning structure.

Background technique

A solar cell is an optoelectronic semiconductor sheet that uses sunlight to generate electricity directly. Due to the need for a certain amount of illumination, solar cells are placed outdoors.

Existing solar cells are prone to fall into a large amount of dust during operation, which will affect the working efficiency of the solar cells. In the cleaning process, a large amount of manual cleaning is required, the efficiency is low, the cleaning cost is high, and the cleaning is not comprehensive enough.

Utility model content

The purpose of this section is to outline some aspects of embodiments of the invention and to briefly introduce some preferred embodiments. Some simplifications or omissions may be made in this part and the abstract of the specification and the title of the utility model of this application to avoid obscuring the purpose of this part, the abstract of the specification and the title of the utility model, and such simplification or omission cannot be used to limit the utility model range.

In view of the fact that the existing solar cells are prone to fall into a large amount of dust during operation, which will affect the working efficiency of the solar cells, a large amount of manual cleaning is required in the cleaning process, the efficiency is low, the cleaning cost is high, and the cleaning is not comprehensive enough. problem, the present utility model is proposed.

Therefore, the purpose of the present utility model is to provide a high-efficiency inorganic solar cell with a self-cleaning structure, which can effectively clean the dirt on the battery plate during use, and can fully clean the battery plate at the same time, and the cleaning effect is good. , it will not affect the work of the solar cell, and it does not require a lot of manual manipulation, which improves the cleaning efficiency and reduces the cost of use.

In order to solve the above-mentioned technical problems, according to one aspect of the present utility model, the utility model provides the following technical solutions:

A high-efficiency inorganic solar cell with a self-cleaning structure includes a solar cell panel, a first support frame, a second support frame, a water tank and a motor, and the left and right sides of the solar cell panel are respectively fixed with a second support frame and a second support frame. The first support frame, the center of the front side wall of the second support frame is provided with a chute, the center of the right side wall of the first support frame is fixedly installed with a water tank, and the center of the left side wall of the inner cavity of the water tank is located at the center A water pump is provided, a water pipe is provided at the left central position of the water pump, and a motor is slidably connected to the front side wall of the chute.

As a preferred solution of the high-efficiency inorganic solar cell with a self-cleaning structure described in the present invention, wherein: a support rod is welded at the central position of the top of the first support frame, and the top of the support rod has two left and right sides. A splint is fixedly installed on both sides, and a water pipe is fixedly installed on the opposite side of the splint.

As a preferred solution of the high-efficiency inorganic solar cell with a self-cleaning structure described in the present invention, wherein: the top and bottom of the water pipe are fixedly installed with a plurality of water spray pipes, and the front sidewall of the water pipe A plurality of water spray holes are opened in the central position, and the water pipes are located in the central position of the front side wall of the solar cell panel.

As a preferred solution of the high-efficiency inorganic solar cell with a self-cleaning structure described in the present invention, a rotating shaft is fixedly installed at the power output end of the motor, and the top and bottom of the rotating shaft are fixedly installed with a rotating shaft. Cleaning brush.

Compared with the prior art: water can be provided through the water pump, water pipe, water spray pipe and water spray hole in the water tank, which can be sprayed on the solar panel in an all-round way, and then the rotating shaft is driven by the motor to rotate, so that the cleaning brush is on the solar panel. Use the chute on the second support frame to facilitate the motor to move up and down, which is convenient for cleaning the solar panel. The support rod and splint on the first support frame can be used to support and fix the water pipe, which is convenient for the water pipe to spray water. At the same time, it can also make the water pipe higher than the rotating shaft, which is convenient for cleaning. It can effectively clean the dirt on the battery panel during use, and at the same time, it can fully clean the battery panel. The cleaning effect is good, and it will not affect the work of the solar cell. , and does not require a lot of manual control, improving cleaning efficiency and reducing use costs.

Description of drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the present invention will be described in detail below with reference to the accompanying drawings and detailed embodiments. Obviously, the accompanying drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained based on these drawings without any creative effort. in:

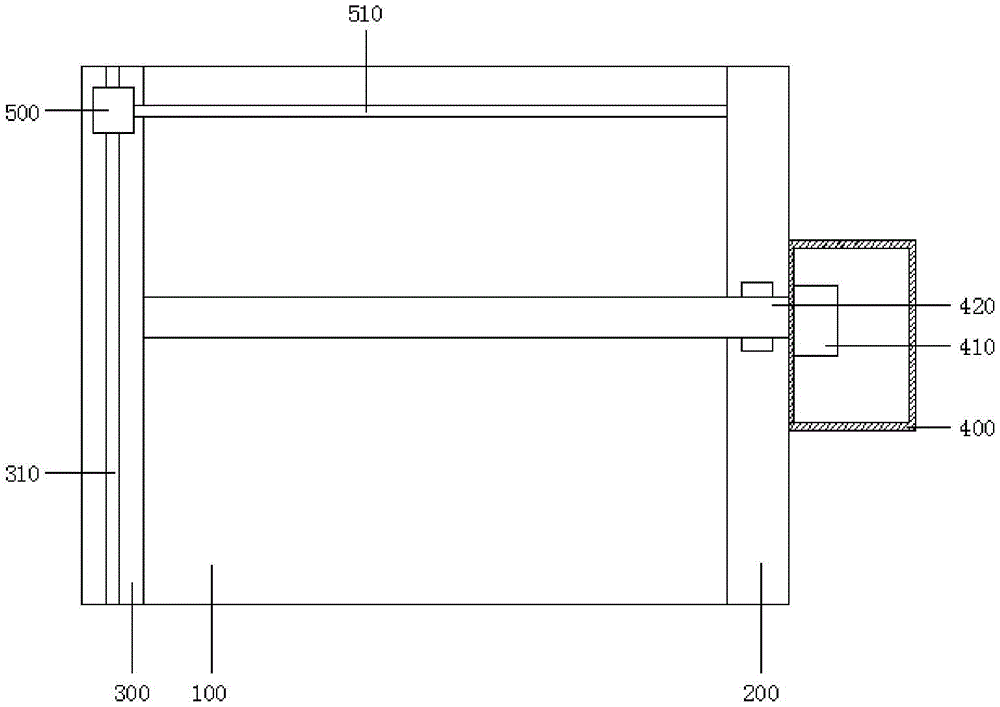

Fig. 1 is the overall structure schematic diagram of the present utility model;

Figure 2 is a schematic structural diagram of the first support frame of the present invention;

Fig. 3 is the utility model water pipe structure schematic diagram;

FIG. 4 is a schematic diagram of the structure of the rotating shaft of the present invention.

In the figure: the solar panel 100, the first support frame 200, the support rod 210, the splint 220, the second support frame 300, the chute 310, the water tank 400, the water pump 410, the water pipe 420, the water spray pipe 430, the water spray hole 440, Motor 500 , rotating shaft 510 , cleaning brush 520 .

Detailed ways

In order to make the above objects, features and advantages of the present utility model more clearly understood, the specific embodiments of the present utility model are described in detail below with reference to the accompanying drawings.

In the following description, many specific details are set forth in order to fully understand the present utility model, but the present utility model can also be implemented in other ways different from those described herein, and those skilled in the art can do so without departing from the connotation of the present utility model. Therefore, the present invention is not limited by the specific embodiments disclosed below.

Next, the present invention is described in detail with reference to the schematic diagrams. When describing the embodiments of the present utility model in detail, for the convenience of explanation, the cross-sectional views showing the device structure will not be partially enlarged according to the general scale, and the schematic diagrams are only examples, which are not described here. The scope of protection of the present invention should be limited. In addition, the three-dimensional spatial dimensions of length, width and depth should be included in the actual production.

In order to make the objectives, technical solutions and advantages of the present utility model clearer, the embodiments of the present utility model will be further described in detail below with reference to the accompanying drawings.

The utility model provides a high-efficiency inorganic solar cell with a self-cleaning structure, which can effectively clean the dirt on the battery plate during the use process, and can completely clean the battery plate at the same time. The cleaning effect is good, and the It will affect the work of the solar cell, and it does not require a lot of manual manipulation, which improves the cleaning efficiency and reduces the use cost. Please refer to FIG. 1, including the solar cell panel 100, the first support frame 200, the second support frame 300, the water tank 400 and the motor 500;

Please refer to FIG. 1 , the solar panel 100 is used for solar energy, and converts the solar energy into electrical energy;

Please refer to FIG. 1 and FIG. 2 , the first support frame 200 has a support rod 210 and a clamping plate 220 . The first support frame 200 is installed on the right side of the solar cell panel 100 . Specifically, the first support frame 200 is fixedly installed on the solar cell panel. On the right side of 100, the support rod 210 is welded to the top center of the first support frame 200, the splint 220 is fixedly installed on the left and right sides of the top of the support rod 210, and the first support frame 200 is used to fix the solar cell panel 100 and install the support rod 210, the support rod 210 is used for supporting the water pipe 420, and the splint 220 is used for fixing the water pipe 420;

Please refer to FIG. 1 again, the second support frame 300 has a chute 310 , the second support frame 300 is installed on the left side of the solar cell panel 100 , specifically, the second support frame 300 is fixedly installed on the left side of the solar cell panel 100 , The chute 310 is opened at the center of the front side wall of the second support frame 300, the second support frame 300 is used for fixing the solar cell panel 100, and the chute 310 is used for the motor 500 to slide;

1 and 2, the holder 400 has a connector 410, an adjuster 420, a fixing rod 430, a concave plate 440 The holder 400, the connector 410, the adjuster 420, the fixing rod 430, the concave plate 440 holder 400, connector 410, adjuster 420, fixing rod 430, concave plate 440;

1 and FIG. 3 , the water tank 400 has a water pump 410, a water pipe 420, a water spray pipe 430 and a water spray hole 440. The water tank 400 is installed at the central position on the right side of the first support frame 200. Specifically, the water tank 400 is fixedly installed in the At the right central position of the first support frame 200, the water pump 410 is fixedly installed on the central position of the left side wall of the inner cavity of the water tank 400, the water pipe 420 is fixedly installed on the left side of the water pump 410, and the water spray pipe 430 is fixedly installed on the top and bottom of the water pipe 420. At the bottom, a water spray hole 440 is opened in the center of the front side wall of the water pipe 420, the water tank 400 is used to provide water source, the water pump 410 is used to provide power for water transportation, the water pipe 420 is used to transport water, the water spray pipe 430 and the water spray hole 440 For water spray, easy to clean;

1 and 4, the motor 500 has a rotating shaft 510 and a cleaning brush 520, the motor 500 is installed on the top of the front side wall of the chute 310, specifically, the motor 500 is slidably connected to the top of the front side wall of the chute 310, and the rotating shaft 510 It is fixedly installed at the power output end of the motor 500, the cleaning brush 520 is fixedly installed on the top and bottom of the rotating shaft 510, the motor 500 is used for the rotation of the rotating shaft 510 to provide power, the rotating shaft 510 is used to drive the cleaning brush 520, and the cleaning brush 520 is used for the solar cell. Plate 100 is cleaned.

In specific use, those skilled in the art can provide water through the water pump 410 , the water pipe 420 , the water spray pipe 430 and the water spray hole 440 in the water tank 400 , which can be fully sprayed on the solar panel 100 , and then drive the rotating shaft through the motor 500 . 510 rotates, so that the cleaning brush 520 is cleaned on the solar panel 100, and the chute 310 on the second support frame 300 can facilitate the motor 500 to move up and down, which is convenient for cleaning the solar The support rod 210 and the splint 220 can support and fix the water pipe 420, which is convenient for the water pipe 420 to spray water, and can also make the water pipe 420 higher than the rotating shaft 510, which is convenient for cleaning, and can effectively remove the dirt on the battery board during use. At the same time, it can fully clean the battery panel, the cleaning effect is good, and it will not affect the work of the solar cell, and it does not require a lot of manual control, which improves the cleaning efficiency and reduces the cost of use.

Although the present invention has been described above with reference to the embodiments, various modifications may be made and equivalents may be substituted for parts thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features in the disclosed embodiments of the present invention can be combined with each other in any way, and the description of these combinations is not exhaustive in this specification. For the sake of omitting space and saving resources. Therefore, the present invention is not limited to the specific embodiments disclosed herein, but includes all technical solutions falling within the scope of the claims.

Claims (4)

1. A high-efficiency inorganic solar cell with a self-cleaning structure, characterized in that it comprises a solar cell panel (100), a first support frame (200), a second support frame (300), a water tank (400) and a motor ( 500), a second support frame (300) and a first support frame (200) are fixedly installed on the left and right sides of the solar cell panel (100), respectively, and the center position of the front side wall of the second support frame (300) A chute (310) is provided, a water tank (400) is fixedly installed on the central position of the right side wall of the first support frame (200), and a water pump (410) is provided in the central position of the left side wall of the inner cavity of the water tank (400). ), a water pipe (420) is provided at the left central position of the water pump (410), and a motor (500) is slidably connected to the front side wall of the chute (310). 2 . The high-efficiency inorganic solar cell with a self-cleaning structure according to claim 1 , wherein a support rod ( 210 ) is welded at the top center of the first support frame ( 200 ), and the support A splint (220) is fixedly installed on the left and right sides of the top of the rod (210), and a water pipe (420) is fixedly installed on the opposite side of the splint (220). 3. The high-efficiency inorganic solar cell with a self-cleaning structure according to claim 1, wherein a plurality of water spray pipes (430) are fixedly installed on the top and bottom of the water pipe (420), and the A plurality of water spray holes (440) are opened at the center of the front side wall of the water pipe (420), and the water pipe (420) is located at the center of the front side wall of the solar cell panel (100). 4. The high-efficiency inorganic solar cell with a self-cleaning structure according to claim 1, wherein a rotating shaft (510) is fixedly installed at the power output end of the motor (500), and the rotating shaft (510) A cleaning brush (520) is fixedly installed at the top and bottom of the .
