Abstract
The utility model provides a special function clothing of relevant upper limbs lymphedema of breast cancer, its characterized in that: comprises a functional clothes main body (1), a pressure elastic sleeve (2), a split connectable magic glove (3) and a pressure functional ball (4). The pressure of the pressure elastic sleeves and the detachable magic gloves on the affected side arms is gradually reduced from the far end to the near end, the sleeves and the gloves with different sizes can be replaced according to the circumferences of the upper arms, the forearms and the palms, comfortable sleeves do not need to be replaced when the magic gloves are worn, and meanwhile, the magic gloves can also be used for exercising the hand functions.
Description
Technical Field
The invention belongs to the technical field of medical care products, and particularly belongs to a functional garment special for upper limb lymphedema related to breast cancer.
Background
The upper limb lymphedema is one of the common adverse reactions after the operation and the local radiotherapy and chemotherapy of the breast cancer, the incidence rate of the lymphedema related to the breast cancer is 2 to 65 percent, and the lymphedema related to the breast cancer is often generated in a short period after the operation or in years after the operation. The lymph fluid is gathered after the lymphedema to cause the swelling of the affected limb, which affects the physiological function of the arm, and serious patients can cause cellulitis and the chronic painful swelling of the affected limb, which finally causes the hypofunction of the limb, and simultaneously negatively affects the psychological and social health and the life quality of the patients. In the non-operative treatment of lymphedema, comprehensive lymphedema detumescence treatment is the most extensive and definite treatment method at present, and comprises artificial lymph drainage, pressure bandage treatment, skin care and the like. A system evaluation proves that the comprehensive detumescence treatment of the lymphedema can effectively relieve the upper limb lymphedema of the patient, thereby improving the life quality of the patient. The pressure therapy plays a more important role in the comprehensive detumescence treatment of lymphedema. Compression therapy can alleviate lymphedema by altering the blood perfusion in the venous, arterial, and capillary microcirculation. Compression therapy generally employs inflatable compression devices, pressure stretch cuffs, and compression bandages. The pressure elastic sleeve is high in patient self-nursing feasibility, but the existing pressure elastic sleeve has the problems that the pressure elastic sleeve is easy to fall off, the pressure is not gradient, gloves and sleeves cannot be detached, and the like.
Aiming at the defects of the prior art, a research and development person needs to develop a special functional coat for upper limb lymphedema related to breast cancer, which is not easy to fall off, can select sleeves and gloves with different sizes according to the circumferences of arms and palms, has gradient pressure and can split the sleeves and the gloves, and can also perform functional exercise simultaneously.
Disclosure of Invention
In order to solve the problems in the prior art, the invention aims to provide the special functional coat for the upper limb lymphedema of the breast cancer related, which is not easy to fall off, can select the oversleeves and the gloves with different sizes according to the circumferences of the arms and the palms, has gradient pressure and can disassemble the gloves and the oversleeves, and can also perform functional exercise simultaneously.
In order to achieve the purpose, the invention provides the following technical scheme: a special functional clothing of upper limbs lymphedema related to breast cancer, its characterized in that: comprises a functional clothes main body, a pressure elastic sleeve, a detachable magic glove and a pressure functional ball; the functional coat body is a coat without sleeves on one side.
Preferably, the functional coat main body adopts an asymmetric placket mode, wherein the non-sleeve side is a small placket, and the sleeve side is a large placket; the chest of the large open front is provided with a rectangular cloth coat with the length of 18 cm and the width of 10 cm, the short edge is sewed on the open front, and the long edge forms a horizontal opening.
Preferably, a cotton containing bag with an elastic opening is hung in the coat of the functional coat main body.
Preferably, the shoulder end and the wrist part of the pressure elastic sleeve are provided with bidirectional annular zippers which are connected with the functional clothes main body and the split connectable magic gloves.
Preferably, the pressure of the pressure elastic sleeve is in a gradient type, and the pressure gradually decreases from the far end to the near end, and is 23-32mmHg of secondary pressure.
Preferably, the detachable magic glove is a finger-separating half finger, wherein the half finger is a finger only exposing the nail part; the glove is a pressure elastic sleeve, and the pressure is reduced from the far end to the near end.
Preferably, the pressure functional ball is made of silica gel, is in a shape of a quadrangle star, and is provided with 2kg, 4kg and 5 kg.
The utility model relates to a beneficial effect of special function clothing of relevant upper limbs lymphedema of breast cancer:
1. the utility model discloses a pressure elasticity sleeve and components of a whole that can function independently formula magic gloves are cascaded pressure, from far away heart end to nearly heart end degressive gradually, can effectively promote the lymph return flow.
2. The main body of the functional clothes, the pressure elastic sleeves and the split connectable magic gloves are connected by a bidirectional annular zipper, and can be conveniently detached and put on or taken off.
3. Different pressure elastic sleeves and detachable connectable magic gloves can be selected according to the sizes of the circumferences of the forearms, the upper arms and the palms. When not needed, the common sleeves can be replaced.
4. Magic gloves are the finger-separating half finger, are favorable to the function exercise and observe the hand blood supply condition.
5. The cotton bag of accomodating that hangs in the jacket can place the function ball of different weight, and the patient can put the arm of ill side in the jacket, carries out the function exercise, has both laborsaving and has reached rehabilitation training's purpose.
6. The functional balls are in a four-corner star shape made of silica gel materials, meet the requirement of functional exercise of hands of a human body, are provided with different weights, and can be selected according to the requirement; when not needed, the functional ball can be taken out from the cotton containing bag.
[ description of the drawings ]

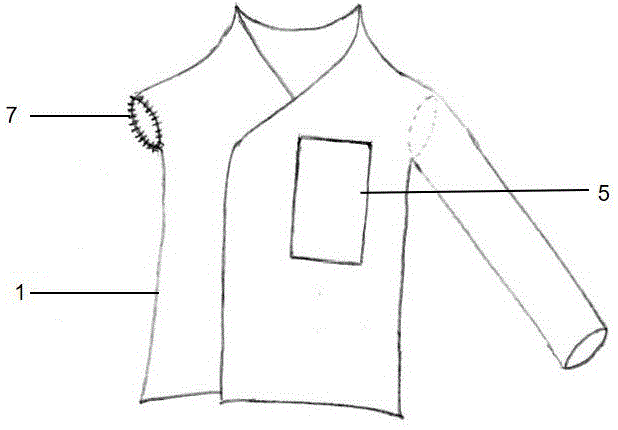

FIG. 1: main body schematic diagram of functional clothes
FIG. 2: schematic diagram of cotton storage bag
FIG. 3: schematic view of pressure elastic sleeve
FIG. 4: schematic diagram of detachable magic gloves
FIG. 5: schematic diagram of functional ball
1-functional clothes main body, 2-pressure elastic sleeves, 3-split connectable magic gloves, 4-pressure functional balls, 5-cloth coat, 6-cotton containing bag and 7-bidirectional annular zipper
[ detailed description of the invention ]
Referring to the attached drawings, the special functional clothes for upper limb lymphedema related to breast cancer comprises a functional clothes main body 1, pressure elastic sleeves 2, detachable magic gloves 3 and pressure functional balls 4, wherein the functional clothes main body 1 is a coat without sleeves on one side.
The use method of the invention comprises the following steps:
when the special functional coat for upper limb lymphedema related to breast cancer is used, a patient wears the main body of the functional coat, selects the pressure elastic sleeves and the detachable magic gloves with different sizes according to the circumferences of the upper arm, the forearm and the palm of the affected limb, and tightens the zipper after wearing the functional coat. The affected arm of the patient can be bent by 90 degrees, the patient can be placed in the coat, the functional ball is held to perform functional exercise, and the functional balls with different weights can be selected according to different requirements; when the pressure elastic sleeves and the split connectable magic gloves are not needed to be worn, the zippers can be opened to detach the magic gloves, and the comfortable sleeves can be replaced; when the hand function exercise is not needed, the functional ball can be taken out.
The above embodiments are illustrative of the present invention, and are not intended to limit the present invention, and any simple modifications of the present invention are within the scope of the present invention.
Claims (7)
1. A special functional clothing of upper limbs lymphedema related to breast cancer, its characterized in that: comprises a functional clothes main body (1), a pressure elastic sleeve (2), a split connectable magic glove (3) and a pressure functional ball (4), wherein the functional clothes main body (1) is a coat without sleeves on one side.
2. The special functional garment for upper limb lymphedema associated with breast cancer as claimed in claim 1, wherein: the functional coat main body (1) adopts an asymmetric placket front mode, wherein the side without sleeves is a small placket front, the side with sleeves is a large placket front, a rectangular cloth coat (5) is arranged in front of the chest of the large placket front, the length is 18 cm, the width is 10 cm, the short edge is sewed on the placket front, and the long edge is a horizontal opening.
3. The special functional garment for upper limb lymphedema associated with breast cancer as claimed in claim 2, wherein: a cotton containing bag (6) with an elastic opening is hung in the coat (5) of the functional coat main body (1).
4. The special functional garment for upper limb lymphedema associated with breast cancer as claimed in claim 1, wherein: the shoulder end and the wrist part of the pressure elastic sleeve (2) are provided with two-way annular zippers (7) which are connected with the functional clothes main body (1) and the split connectable magic gloves (3).
5. The special functional garment for upper limb lymphedema associated with breast cancer as claimed in claim 1, wherein: the pressure of the pressure elastic sleeve (2) is in a gradient type, and the pressure gradually decreases from the far end to the near end, and is 23-32mmHg of secondary pressure.
6. The special functional garment for upper limb lymphedema associated with breast cancer as claimed in claim 1, wherein: the detachable magic glove (3) is a finger-separating half finger, wherein the half finger is a finger only exposing the nail part, the glove is a pressure elastic sleeve, and the pressure is reduced from the far end to the near end.
7. The special functional garment for upper limb lymphedema associated with breast cancer as claimed in claim 1, wherein: the pressure functional ball (4) is made of silica gel, is in a quadrangle star shape and is provided with 2kg, 4kg and 5 kg.
