CN211811221U

CN211811221U - CRRT removes storage tank

Info

Publication number: CN211811221U
Application number: CN202020313492.0U
Authority: CN
Inventors: 徐超
Original assignee: First Affiliated Hospital of Medical College of Xian Jiaotong University
Current assignee: First Affiliated Hospital of Medical College of Xian Jiaotong University
Priority date: 2020-03-13
Filing date: 2020-03-13
Publication date: 2020-10-30
Anticipated expiration: 2030-03-13

Abstract

The utility model discloses a CRRT removes storage tank, the power distribution box comprises a box body, the mechanism of bleeding, the case lid, control mechanism, air inlet mechanism, the bactericidal lamp, a handle, the hasp, this CRRT removes storage tank, at first medical personnel use through the cooperation to bleed mechanism and control mechanism, can bleed the processing with the box is inside, deposit in order to this lets medical supplies in the box be in the environment that is close to vacuum state, avoid breeding of bacterium promptly, the effect of rethread bactericidal lamp to the inside sterilization of box, the inside aseptic nature of box has further been ensured, deposit in letting medical supplies be in aseptic environment promptly, from this can know, through using the device in this application, the normality that medical supplies used has been ensured.

Description

CRRT removes storage tank

Technical Field

The utility model relates to a storage tank especially relates to CRRT removes storage tank.

Background

Continuous Renal Replacement Therapy (CRRT) is defined as: the blood purification treatment technology continuously and slowly removes water and solute in an extracorporeal circulation blood purification mode so as to replace the kidney function. Compared with the common hemodialysis, the CRRT prolongs the blood purification treatment time and reduces the treatment efficiency in unit time, so that the influence of the solute concentration and the volume change in the blood on the organism is minimized, and a filter with high permeability and good biocompatibility is adopted; provide extremely important homeostasis balanced for severe patients 'treatment, when the medical supplies in the CRRT storage tank were deposited for a long time, can breed the bacterium in the bin, cause bacterial infection to medical supplies, and then influenced medical supplies's normal use, in view of above defect, it is actually necessary to design CRRT and remove the storage tank.

SUMMERY OF THE UTILITY MODEL

The utility model discloses the technical problem that will solve lies in: a CRRT mobile storage box is provided to solve the problems of the background art.

In order to solve the technical problem, the technical scheme of the utility model is that: CRRT removes storage tank, including box, air exhaust mechanism, case lid, control mechanism, bactericidal lamp, handle, hasp admits air, box outer wall left side upper end set firmly air exhaust mechanism, the box top rotate and be equipped with the case lid, the inside left side of case lid the control mechanism has set firmly, the inside right side of case lid the mechanism that admits air has set firmly, the inside bottom of case lid the bactericidal lamp has set firmly, the case lid top the handle has set firmly, box outer wall right side upper end the hasp has set firmly.

Furthermore, the air exhaust mechanism consists of an air suction pump and a lithium battery.

Further, box outer wall left side upper end set firmly the aspirator pump, box outer wall left side set firmly the lithium cell.

Further, control mechanism constitute by installation cover, spring, block rubber, the hole of stepping down and switch, the inside left side of box set firmly the installation cover.

Further, the inside top of installation cover set firmly the spring, spring bottom set firmly the block rubber, block rubber and installation cover sliding connection.

Furthermore, the inside bottom of installation cover an organic whole be equipped with the hole of stepping down, the inside lower extreme of installation cover set firmly the switch.

Further, the air inlet mechanism consists of an air inlet pipe and a valve.

Further, an air inlet pipe is fixedly arranged on the right side inside the box cover, and an air valve is fixedly arranged on the outer wall of the air inlet pipe.

Compared with the prior art, this CRRT removes storage tank, at first medical personnel use through the cooperation to pumping mechanism and control mechanism, can bleed the processing with the box is inside, deposit in the environment that lets medical supplies in the box be close to vacuum state with this, avoid breeding of bacterium promptly, the effect of rethread bactericidal lamp to the inside sterilization of box, the inside aseptic nature of box has further been ensured, deposit in letting medical supplies be in aseptic environment promptly, can know from this, through using the device in this application, the normality that medical supplies used has been ensured.

Drawings

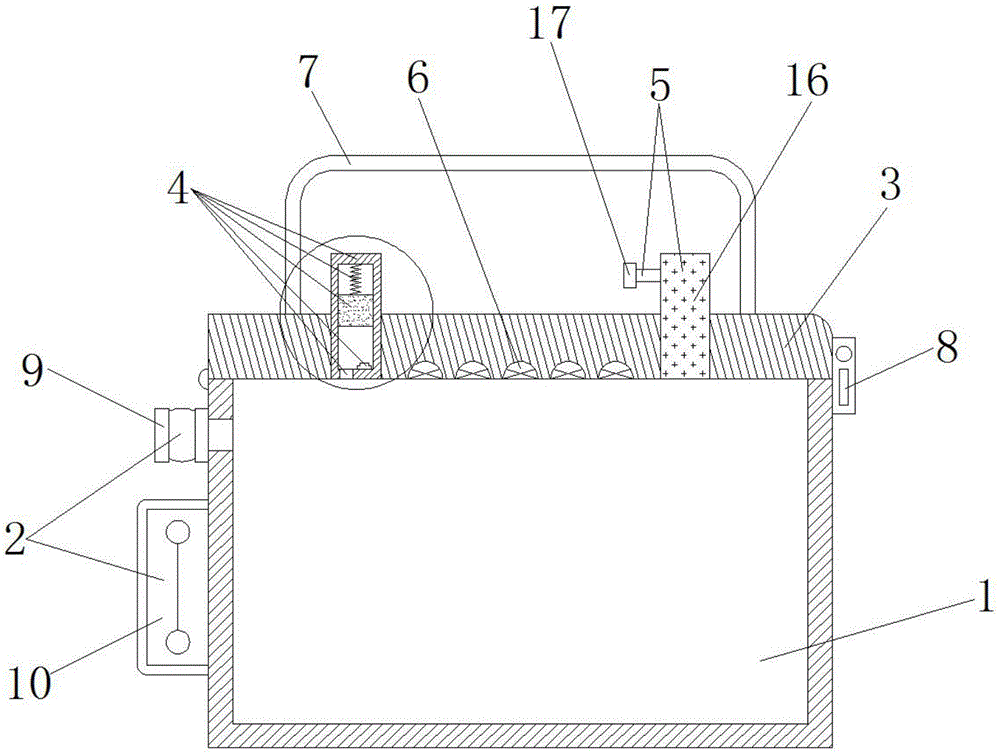

FIG. 1 is a front cross-sectional view of a CRRT mobile storage bin;

FIG. 2 is an internal cross-sectional view of the control mechanism;

fig. 3 is a circuit diagram of a CRRT mobile storage case.

The air intake device comprises a box body 1, an air exhaust mechanism 2, a box cover 3, a control mechanism 4, an air intake mechanism 5, a bactericidal lamp 6, a handle 7, a lock catch 8, an air suction pump 9, a lithium battery 10, a mounting sleeve 11, a spring 12, a rubber block 13, a yielding hole 14, a switch 15, an air inlet pipe 16 and an air valve 17.

The following detailed description will be further described in conjunction with the above-identified drawings.

Detailed Description

In the following description, numerous specific details are set forth in order to provide a thorough understanding of the concepts underlying the described embodiments. It will be apparent, however, to one skilled in the art, that the described embodiments may be practiced without some or all of these specific details. In other instances, well known process steps have not been described in detail.

Example 1

As shown in fig. 1, CRRT removes storage tank, including box 1, air exhaust mechanism 2, case lid 3, control mechanism 4, air intake mechanism 5, bactericidal lamp 6, handle 7,

hasp

8, 1 outer wall left side upper end of box 2 of bleeding has set firmly, 1 top of box rotate and be equipped with

case lid

3, 3 inside left sides of case lid have set firmly

control mechanism

4, 3 inside right sides of case lid have set firmly air intake mechanism 5, 3 inside bottom of case lid have set firmly

bactericidal lamp

6, 3 tops of case lid have set firmly handle 7, 1 outer wall right side upper end of box have set firmly hasp 8.

The CRRT mobile storage box comprises a lock catch 8, a box cover 3 is opened by medical staff, the medical staff puts medical supplies into a box body 1, after the medical staff puts medical supplies into the box body, the box cover 3 is closed by the medical staff, the lock catch 8 is locked by the medical staff, the air exhaust mechanism 2 is opened by the medical staff, air in the box body 1 is exhausted outside, at the moment, negative pressure attraction is formed inside the box body 1 and drives a control mechanism 4, the control mechanism 4 controls the air exhaust mechanism 2 to stop working and is synchronous, the sterilizing lamp 6 is started by the control mechanism 4, through the operation mode, the interior of the box body 1 is in a state close to vacuum, the sterilizing lamp 6 is used for sterilizing the medical supplies in the box body 1, when the medical staff uses the medical supplies, the air pressure in the box body 1 is balanced with the outside through the use of an air inlet mechanism 5, the medical staff opens the case cover 3 again, and the medical supplies can be taken and used.

Example 2

As shown in fig. 1 and 2, CRRT removes storage tank, including box 1, air exhaust mechanism 2, case lid 3, control mechanism 4, mechanism 5, bactericidal lamp 6, handle 7, hasp 8 of admitting air, 1 outer wall left side upper end of box 2 of bleeding has set firmly, 1 top of box rotate and be equipped with

case lid

3, 3 inside left sides of case lid have set firmly

control mechanism

4, 3 inside right sides of case lid have set firmly mechanism 5 of admitting air, 3 inside bottom of case lid have set firmly

bactericidal lamp

6, 3 tops of case lid have set firmly handle 7, 1 outer wall right side upper end of box have set firmly hasp 8, air exhaust mechanism 2 constitute by aspirator pump 9 and

lithium cell

10, 1 outer wall left side upper end of box have set firmly

aspirator pump

9, 1 outer wall of box have set firmly left side lithium cell 10, control mechanism 4 by installation cover 11, Spring 12, block rubber 13, the hole of stepping down 14 and switch 15 are constituteed, 1 inside left side of box have set firmly

installation cover

11, 11 inside tops of installation cover have set firmly spring 12, spring 12 bottom have set firmly block rubber 13,

block rubber

13 and 11 sliding connection of installation cover, 11 inside bottom an organic whole of installation cover be equipped with the hole of stepping down 14, 11 inside lower extremes of installation cover have set firmly switch 15, intake mechanism 5 constitute by intake pipe 16 and

air door valve

17, 3 inside right sides of case lid have set firmly

intake pipe

16, 16 outer walls of intake pipe have set firmly air door valve 17.

The CRRT mobile storage box comprises a lock catch 8, a box cover 3 and a suction pump 9, wherein medical staff puts medical supplies into a box body 1, the box cover 3 is closed by the medical staff after the medical staff puts the medical supplies into the box body 1, the lock catch 8 is locked by the medical staff, the suction pump 9 is started by the medical staff, so that air in the box body 1 is discharged outside by the suction pump 9, at the moment, negative pressure attraction is formed inside the box body 1 and penetrates through a abdicating hole 14 to suck a rubber block 13, namely, the rubber block 13 moves from top to bottom along the direction of a mounting sleeve 11, and synchronously, a spring 12 deforms until the rubber block 13 presses a switch 15, namely, the switch 15 is opened, the suction pump 9 stops working by opening the switch 15, meanwhile, a sterilizing lamp 6 is opened, at the moment, the sterilizing lamp 6 sterilizes the medical supplies in the box body 1, when the medical staff needs to use the medical supplies in the box body 1, medical personnel open throttle valve 17 with the hand earlier, with this with external gas by intake pipe 16 arrange into in the box 1, be about to the atmospheric pressure of box 1 inside with external balanced mutually, at this moment, through the effect of spring 12 resilience force, make rubber block 13 reset, switch 15 is in non-extruded state promptly, sterilamp 6 stop work, medical personnel untie hasp 8 again, open case lid 3 again, again with the medical supplies after disinfecting in the box 1 take the use can, handle 7 is for the convenience of medical personnel carries out the position removal to the device.

As shown in FIG. 3, the lithium battery 10 in the present application is for supplying energy to the device, the lithium battery 10 is connected with the getter pump 9, the germicidal lamp 6 and the switch 15 by wires, the getter pump 9 is a micro getter pump, and the model of the micro getter pump is preferably WP40, and the germicidal lamp 6 is an ultraviolet germicidal lamp, and the model of the ultraviolet germicidal lamp is preferably ZW 0548Y-Z.

Claims

CRRT removes storage tank, its characterized in that includes box, air exhaust mechanism, case lid, control mechanism, bactericidal lamp, handle, hasp admits air, box outer wall left side upper end the mechanism of bleeding has set firmly, the box top rotate and be equipped with the case lid, the inside left side of case lid the control mechanism has set firmly, the inside right side of case lid the mechanism that admits air has set firmly, the inside bottom of case lid the bactericidal lamp has set firmly, the case lid top the handle has set firmly, box outer wall right side upper end the hasp has set firmly.
2. The CRRT mobile storage case of claim 1, wherein the pumping mechanism comprises a getter pump and a lithium battery.
3. The CRRT mobile storage box according to claim 2, wherein the upper end of the left side of the outer wall of the box body is fixedly provided with an air suction pump, and the left side of the outer wall of the box body is fixedly provided with a lithium battery.
4. The CRRT mobile storage case according to claim 1, wherein the control mechanism is composed of a mounting sleeve, a spring, a rubber block, a yielding hole and a switch, and the mounting sleeve is fixedly arranged on the left side inside the case body.
5. The CRRT mobile storage case according to claim 4, wherein a spring is fixedly arranged at the top end inside the mounting sleeve, a rubber block is fixedly arranged at the bottom of the spring, and the rubber block is slidably connected with the mounting sleeve.
6. The CRRT mobile storage box according to claim 5, wherein the bottom end inside the mounting sleeve is integrally provided with a hole for abdicating, and the lower end inside the mounting sleeve is fixedly provided with a switch.
7. The CRRT mobile storage case of claim 1, wherein the air intake mechanism comprises an air intake tube and a valve.
8. The CRRT mobile storage case according to claim 7, wherein an air inlet pipe is fixedly arranged at the right side inside the case cover, and a valve is fixedly arranged on the outer wall of the air inlet pipe.
