Abstract
The utility model provides a printing ink agitating unit with filtering capability relates to printing ink equipment field, including agitator tank and filter equipment, the agitator tank includes the feed inlet, discharge gate and rabbling mechanism, the inside of agitator tank is equipped with the teeter chamber, the left side surface mounting of teeter chamber has the baffle, be equipped with tooth on the baffle, tooth meshes with the gear mutually, the rabbling mechanism is including rotating the motor, (mixing) shaft, revolving stage and stirring vane, the tip and the revolving stage of (mixing) shaft are connected, the revolving stage sets up the bottom at the teeter chamber, filter equipment includes filter and filter line, filter line links to each other with the discharge gate. The utility model discloses a stirring room stirs printing ink, can also stir the printing ink of stirring room bottom in the stirring through the revolving stage, makes the stirring more abundant, and the printing ink after the stirring filters the back through the filter, discharges from the discharge gate through filtering duct, and the filtering has impurity, has improved the result of use of printing ink.
Description
Technical Field
The utility model relates to a printing ink equipment field especially relates to a printing ink agitating unit with filtering capability.
Background
The ink stirring device is a device for stirring viscous substances such as ink and the like, and the stirring shaft is rotated in a cylinder or a tank so as to achieve the effect of stirring and mixing uniformly. However, the current stirring device may still leave some impurities after stirring the ink, which affects the use effect of the ink.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem that overcome exist among the prior art not enough, provide a printing ink agitating unit with filtering capability.
The utility model discloses a realize through following technical scheme: the printing ink stirring device with the filtering function is characterized by comprising a stirring box and a filtering device, wherein the stirring box comprises a feeding hole arranged at the top end, a discharging hole positioned at the bottom end and a stirring mechanism, the stirring box is internally provided with a stirring chamber, the outer surface of the left side of the stirring chamber is provided with a baffle, the baffle is provided with teeth, the teeth are meshed with a gear, the gear is driven by a motor fixedly arranged at the outer side of the stirring box, the stirring mechanism comprises a rotating motor, a stirring shaft, a rotary table and stirring blades, the rotating motor is arranged at the top end of the stirring box, the output end of the rotating motor is connected with the stirring shaft, the end part of the stirring shaft is connected with the rotary table, the rotary table is arranged at the bottom end of the stirring chamber, the stirring blades are fixedly arranged on the stirring shaft and the rotary table, and the filtering device comprises a filtering plate and, the filtering pipeline is connected with the discharge hole.
According to the technical scheme, preferably, the right side of the stirring chamber is provided with the heating layer.
According to the technical scheme, the gear and the teeth are preferably coated with the rubber sleeve.
According to the above technical scheme, preferably, be equipped with the heating wire in the zone of heating.
The utility model has the advantages that: the utility model discloses a stirring room stirs printing ink, can also stir the printing ink of stirring room bottom in the stirring through the revolving stage, makes the stirring more abundant, and the printing ink after the stirring filters the back through the filter, discharges from the discharge gate through filtering duct, and the filtering has impurity, has improved the result of use of printing ink.
Drawings

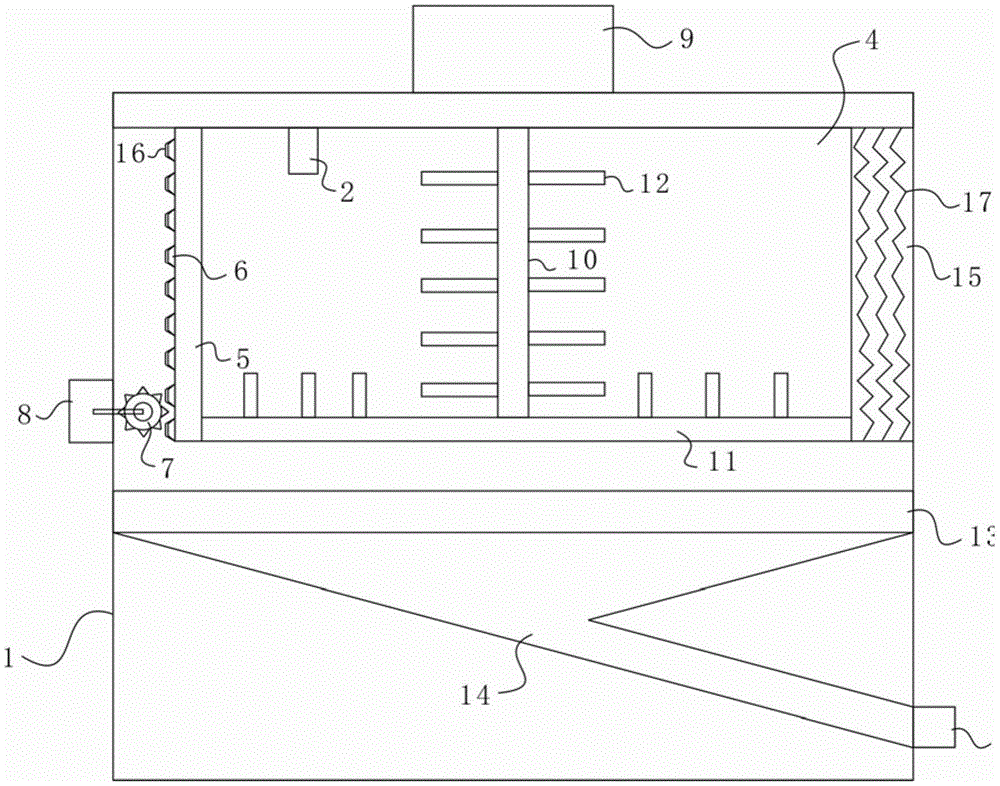

Fig. 1 shows a schematic front view structure according to an embodiment of the present invention.
In the figure: 1. a stirring box; 2. a feed inlet; 3. a discharge port; 4. a stirring chamber; 5. a baffle plate; 6. teeth; 7. a gear; 8. a motor; 9. rotating the motor; 10. a stirring shaft; 11. a turntable; 12. a stirring blade; 13. a filter plate; 14. a filtration pipeline; 15. a heating layer; 16. a rubber sleeve; 17. an electric heating wire.
Detailed Description
In order to make those skilled in the art better understand the technical solution of the present invention, the present invention will be further described in detail with reference to the accompanying drawings and preferred embodiments.
As shown in the figure, the utility model provides an ink stirring device with filtering capability, which is characterized in that the ink stirring device comprises a stirring box 1 and a filtering device, wherein the stirring box 1 comprises a feed inlet 2 arranged at the top end, a discharge outlet 3 arranged at the bottom end and a stirring mechanism, the stirring box is internally provided with a stirring chamber 4, the left outer surface of the stirring chamber 4 is provided with a baffle 5, the baffle 5 is provided with teeth 6, the teeth 6 are meshed with a gear 7, the gear 7 is driven by a motor 8 fixedly arranged at the outer side of the stirring box 1, the stirring mechanism comprises a rotating motor 9, a stirring shaft 10, a rotary table 11 and stirring blades 12, the rotating motor 9 is arranged at the top end of the stirring box 1, the output end of the rotating motor is connected with the stirring shaft 10, the end part of the stirring shaft 10 is connected with the rotary table 11, the rotary table is arranged at the bottom end, stirring shaft 10 and revolving stage 11 are all fixed mounting have stirring vane 12, filter equipment is including being located filter 13 and the filter line 14 of teeter chamber 4 below, filter line 14 links to each other with discharge gate 3.
Ink gets into the teeter chamber through the feed inlet, rotates motor 9 and drives (mixing) shaft 10 and be connected with the revolving stage 11 of (mixing) shaft 10 connection, drives stirring vane 12 simultaneously and rotates, stirs ink fully, and after the stirring was accomplished, motor 8 drive gear rotates, and control baffle 5 reciprocates, makes the ink outflow in the teeter chamber pass through filter 13 in the teeter chamber 1, discharges from discharge gate 3 through filter piping 14 at last.
According to the above embodiment, preferably, the right side of the stirring chamber 4 is provided with the heating layer 15.
According to the above embodiment, it is preferable that the gear 7 and the teeth 6 are externally covered with the rubber sleeve 16 (the rubber sleeve 16 outside the gear is not shown in the figure), so as to prevent ink from remaining on the gear 7 and the teeth 6 and causing damage thereto.
According to the above embodiment, it is preferable that the heating wire 17 is provided in the heating layer 15, and the ink to be stirred is heated by the heating wire 17 in the heating layer 15, so that the ink is prevented from becoming viscous due to a low temperature and is difficult to stir.
The utility model has the advantages that: the utility model discloses a teeter chamber 4 stirs printing ink, can also stir the printing ink of teeter chamber 4 bottom in the stirring through revolving stage 11, makes the stirring more abundant, and the printing ink after the stirring filters the back through filter 13, discharges from discharge gate 3 through filter pipe 14, and the filtering has improved the result of use of printing ink by impurity.
The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.
Claims (4)
1. The printing ink stirring device with the filtering function is characterized by comprising a stirring box and a filtering device, wherein the stirring box comprises a feeding hole arranged at the top end, a discharging hole positioned at the bottom end and a stirring mechanism, the stirring box is internally provided with a stirring chamber, the outer surface of the left side of the stirring chamber is provided with a baffle, the baffle is provided with teeth, the teeth are meshed with a gear, the gear is driven by a motor fixedly arranged at the outer side of the stirring box, the stirring mechanism comprises a rotating motor, a stirring shaft, a rotary table and stirring blades, the rotating motor is arranged at the top end of the stirring box, the output end of the rotating motor is connected with the stirring shaft, the end part of the stirring shaft is connected with the rotary table, the rotary table is arranged at the bottom end of the stirring chamber, the stirring blades are fixedly arranged on the stirring shaft and the rotary table, and the filtering device comprises a filtering plate and, the filtering pipeline is connected with the discharge hole.
2. The ink stirring device with the filtering function as claimed in claim 1, wherein a heating layer is provided on a right side of the stirring chamber.
3. The ink stirring device with filtering function as claimed in claim 1, wherein the gear and the teeth are externally covered with a rubber sleeve.
4. The ink stirring device with filtering function as claimed in claim 2, wherein a heating wire is provided in the heating layer.
