CN211781780U - Novel air conditioner air volume adjusting device - Google Patents
Novel air conditioner air volume adjusting device Download PDFInfo
- Publication number
- CN211781780U CN211781780U CN202020367304.2U CN202020367304U CN211781780U CN 211781780 U CN211781780 U CN 211781780U CN 202020367304 U CN202020367304 U CN 202020367304U CN 211781780 U CN211781780 U CN 211781780U
- Authority
- CN
- China
- Prior art keywords
- cavity
- adjusting
- fixedly connected
- adjusting device
- frame
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Air Filters, Heat-Exchange Apparatuses, And Housings Of Air-Conditioning Units (AREA)
Abstract
The utility model discloses a novel air conditioner air volume adjusting device, including adjusting frame, a plurality of adjusting vane of adjusting frame's inside fixedly connected with, first cavity and second cavity have been seted up respectively to adjusting frame's both sides inside wall, and are a plurality of adjusting vane's both ends are the first axis of rotation of fixedly connected with and second axis of rotation respectively, the lateral wall that the one end of first axis of rotation runs through first cavity extends to the inner wall of first cavity and rotates with the inside wall of first cavity to be connected. The utility model discloses a setting of the adjusting blade that can overturn automatically is convenient for carry out automatically regulated to the amount of wind, and structure and operation mode are comparatively simple, and the facilitate promotion through the setting of convenient to detach's filter screen, and the convenience plays certain filtering action, convenient to detach and clearance simultaneously to the air of avoiding long-term operation adjusting device inside blade to be infected with dust and air conditioner to blow off.
Description
Technical Field
The utility model relates to an air conditioner field especially relates to a novel air conditioner air volume is adjusted device.
Background
The air conditioner consists of one or more cold and heat source systems and a plurality of air conditioning systems, and the refrigerating system provides required cold energy for the air conditioning system by adopting the liquid gasification refrigeration principle so as to offset the cold load of the indoor environment; the heating system provides the air conditioning system with the required heat to offset the indoor ambient heat load.
Most of existing air conditioner air volume adjusting devices are manual air valves, manual operation is inconvenient, some air conditioner air volume adjusting devices are complex in adjusting steps, popularization is not facilitated, and the air conditioner air volume adjusting devices do not have the dustproof and air filtering functions.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a novel air conditioner air volume adjusting device.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a novel air-conditioning air quantity adjusting device comprises an adjusting frame, wherein a plurality of adjusting blades are fixedly connected inside the adjusting frame, a first cavity and a second cavity are respectively arranged inside two side walls of the adjusting frame, a first rotating shaft and a second rotating shaft are respectively fixedly connected at two ends of the adjusting blades, one end of the first rotating shaft penetrates through the side wall of the first cavity, extends to the inner wall of the first cavity and is rotatably connected with the inner side wall of the first cavity, one end of the second rotating shaft penetrates through the side wall of the second cavity, extends to the inner wall of the second cavity and is rotatably connected with the inner side wall of the second cavity, a third cavity is arranged at one side of the second cavity, a motor is fixedly connected inside the third cavity, one end of the motor penetrates through the side wall of the third cavity, extends to the inside of the second cavity and is fixedly connected with a rotating rod, one end of the rotating rod is rotatably connected with the inner side wall of the second cavity, the dwang is located the below of a plurality of second axis of rotation, and is a plurality of the surface of second axis of rotation is fixed the cover respectively and is cup jointed the worm wheel, a plurality of worm sleeve have been cup jointed to the external fixed surface of dwang, the worm wheel is connected with worm sleeve meshing, the mounting groove has been seted up to the surface of adjusting frame, the inside of mounting groove is provided with the installation frame, be provided with the dismantlement structure between installation frame and the adjusting frame.
As a further description of the above technical solution:
the outer fixed surface of installation frame is connected with the filter screen.
As a further description of the above technical solution:
the disassembly structure comprises a groove, two springs, a fixing pin and a fixing hole, the groove is located on one side of the outer surface of the installation frame, the two ends of the springs are fixedly connected with the inner side wall of the groove and one end of the fixing pin respectively, and the other end of the fixing pin penetrates through the fixing hole and is clamped with the side wall of the adjusting frame.
As a further description of the above technical solution:
the fixed pin is close to the both sides wall and the lateral wall sliding connection of recess of two spring one ends.
As a further description of the above technical solution:
two parallel outer side walls of the adjusting frame are respectively and fixedly connected with an automatic telescopic clothesline and a fixed hook.
As a further description of the above technical solution:
the motor is a servo motor.
The utility model discloses following beneficial effect has:
1. through adjusting blade, second axis of rotation, motor, dwang, worm wheel, the telescopic setting of worm, thereby the motor drives the dwang and rotates, thereby the dwang rotates and makes worm sleeve drive worm wheel rotate and make adjusting blade overturn, and the amount of wind is the biggest when adjusting blade is parallel to each other, adjusts the minimum or even no wind of the amount of wind when adjusting blade is located the coplanar, and convenient automation is adjusted the air conditioner amount of wind, and structure and operation mode are comparatively simple, the facilitate promotion.
2. Through the setting of filter screen, installation frame, spring, fixed pin, fixed orifices, the filter screen plays dustproof and filtered air's effect, avoids the inside dust that gets into of long-term operation adjusting device and plays certain filtering action to the air that the air conditioner blew off, makes the spring compression through pressing the fixed pin, and the fixed pin breaks away from with the fixed orifices and can dismantle the filter screen and get off convenient the washing.
3. Through the arrangement of the automatic telescopic clothes hanger and the fixed hook, the automatic telescopic clothesline is pulled to fix the automatic telescopic clothesline and the fixed hook, and the automatic telescopic clothesline is used for hanging clothes and conveniently utilizing an air conditioner to blow wet clothes fast.
The utility model discloses a setting of the adjusting blade that can overturn automatically is convenient for carry out automatically regulated to the amount of wind, and structure and operation mode are comparatively simple, and the facilitate promotion through the setting of convenient to detach's filter screen, and the convenience plays certain filtering action, convenient to detach and clearance simultaneously to the air of avoiding long-term operation adjusting device inside blade to be infected with dust and air conditioner to blow off.
Drawings

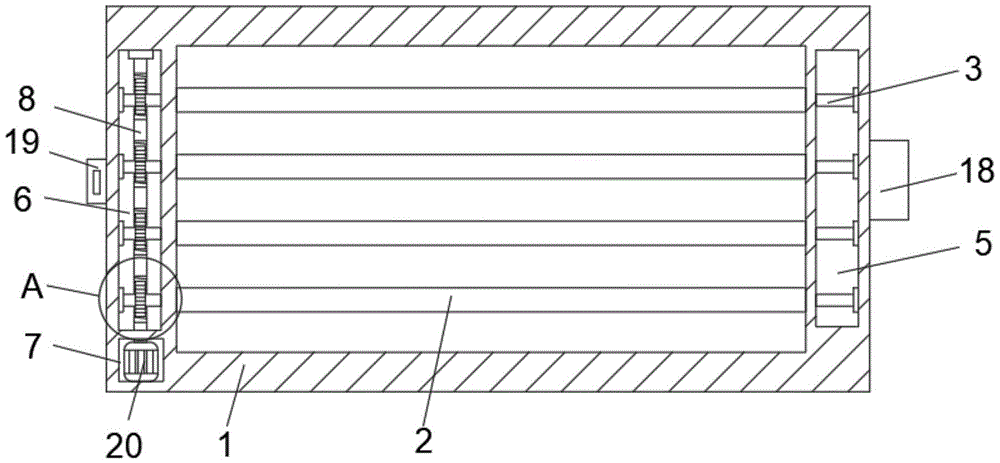

Fig. 1 is a main sectional view of a novel air conditioning air volume adjusting device provided by the utility model;
fig. 2 is a side sectional view of a novel air conditioner air volume adjusting device provided by the utility model;
fig. 3 is an enlarged view of a novel air conditioning air volume adjusting device a provided by the utility model;
fig. 4 is an enlarged view of a novel air conditioner air volume adjusting device B provided by the utility model.
Illustration of the drawings:
1. an adjustment frame; 2. adjusting the blades; 3. a first rotating shaft; 4. a second rotating shaft; 5. a first cavity; 6. a second cavity; 7. a third cavity; 8. rotating the rod; 9. a worm gear; 10. a worm sleeve; 11. a mounting frame; 12. a filter screen; 13. mounting grooves; 14. a groove; 15. a spring; 16. a fixing pin; 17. a fixing hole; 18. automatically stretching the clothesline; 19. fixing the hook; 20. an electric motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-4, the present invention provides an embodiment: a novel air conditioning air quantity adjusting device comprises an adjusting frame 1, a plurality of adjusting blades 2 are fixedly connected inside the adjusting frame 1, a first cavity 5 and a second cavity 6 are respectively arranged inside two side walls of the adjusting frame 1, a first rotating shaft 3 and a second rotating shaft 4 are respectively fixedly connected at two ends of the adjusting blades 2, one end of the first rotating shaft 3 penetrates through the side wall of the first cavity 5 to extend to the inner wall of the first cavity 5 and is rotatably connected with the inner side wall of the first cavity 5, one end of the second rotating shaft 4 penetrates through the side wall of the second cavity 6 to extend to the inner wall of the second cavity 6 and is rotatably connected with the inner side wall of the second cavity 6, a third cavity 7 is arranged at one side of the second cavity 6, a motor 20 is fixedly connected inside the third cavity 7, one end of the motor 20 penetrates through the side wall of the third cavity 7 to extend to the inside of the second cavity 6 and is fixedly connected with a rotating rod 8, the one end of dwang 8 is rotated with the inside wall of second cavity 6 and is connected, dwang 8 is located the below of a plurality of second axis of rotation 4, the fixed worm wheel 9 that has cup jointed respectively of the surface of a plurality of second axis of rotation 4, dwang 8's fixed surface has cup jointed a plurality of worm sleeve 10, worm wheel 9 is connected with worm sleeve 10 meshing, mounting groove 13 has been seted up to the surface of adjusting frame 1, the inside of mounting groove 13 is provided with installation frame 11, be provided with between installation frame 11 and the adjusting frame 1 and dismantle the structure.
The outer surface of the mounting frame 11 is fixedly connected with a filter screen 12 which plays a role in dust prevention and air filtration; the dismounting structure comprises a groove 14, two springs 15, a fixing pin 16 and a fixing hole 17, wherein the groove 14 is positioned on one side of the outer surface of the mounting frame 11, two ends of the two springs 15 are respectively and fixedly connected with the inner side wall of the groove 14 and one end of the fixing pin 16, and the other end of the fixing pin 16 penetrates through the fixing hole 17 to be clamped with the side wall of the adjusting frame 1, so that the dust screen is convenient to dismount and clean; two side walls of the fixing pin 16 close to one ends of the two springs 15 are in sliding connection with the side walls of the groove 14, and the fixing pin 16 is stabilized; the two parallel outer side walls of the adjusting frame 1 are respectively and fixedly connected with an automatic telescopic clothesline 18 and a fixed hook 19, so that clothes can be hung conveniently for airing; the motor 20 is a servo motor which is stable and has a reaction capability when operating at a low speed.
The working principle is as follows: the motor 20 drives the rotating rod 8 to rotate, the rotating rod 8 rotates to enable the worm sleeve 10 to drive the worm wheel 9 to rotate, so that the adjusting blade 2 is turned over, the air volume is automatically adjusted, the filter screen 12 starts a filtering effect on blown air, the spring 15 is compressed by pressing the fixing pin 16, and the fixing pin 16 is separated from the fixing hole 17 to detach the filter screen 12 for cleaning; the automatic telescopic clothesline 18 is fixed with the fixed hook 19 by pulling the automatic telescopic clothesline for hanging clothes, so that the wet clothes can be dried quickly by utilizing an air conditioner.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (6)
1. The utility model provides a novel air conditioner air volume adjusting device, includes adjusting frame (1), its characterized in that: the inner part of the adjusting frame (1) is fixedly connected with a plurality of adjusting blades (2), the two side walls of the adjusting frame (1) are respectively provided with a first cavity (5) and a second cavity (6), the two ends of the adjusting blades (2) are respectively fixedly connected with a first rotating shaft (3) and a second rotating shaft (4), one end of the first rotating shaft (3) penetrates through the side wall of the first cavity (5) to extend to the inner wall of the first cavity (5) and is rotatably connected with the inner side wall of the first cavity (5), one end of the second rotating shaft (4) penetrates through the side wall of the second cavity (6) to extend to the inner wall of the second cavity (6) and is rotatably connected with the inner side wall of the second cavity (6), one side of the second cavity (6) is provided with a third cavity (7), the inner part of the third cavity (7) is fixedly connected with a motor (20), the lateral wall that the one end of motor (20) runs through third cavity (7) extends to inside and fixedly connected with dwang (8) of second cavity (6), the one end of dwang (8) is rotated with the inside wall of second cavity (6) and is connected, dwang (8) are located the below of a plurality of second axis of rotation (4), and are a plurality of worm wheel (9) have been cup jointed to the surface of second axis of rotation (4) fixed respectively, a plurality of worm sleeve (10) have been cup jointed to the external fixed surface of dwang (8), worm wheel (9) are connected with worm sleeve (10) meshing, mounting groove (13) have been seted up to the surface of adjusting frame (1), the inside of mounting groove (13) is provided with installation frame (11), be provided with between installation frame (11) and the adjusting frame (1) and dismantle the structure.
2. The novel air conditioning volume adjusting device of claim 1, characterized in that: the outer surface of the installation frame (11) is fixedly connected with a filter screen (12).
3. The novel air conditioning volume adjusting device of claim 1, characterized in that: the disassembly structure comprises a groove (14), two springs (15), a fixing pin (16) and a fixing hole (17), wherein the groove (14) is located on one side of the outer surface of the installation frame (11), the two ends of the springs (15) are fixedly connected with the inner side wall of the groove (14) and one end of the fixing pin (16) respectively, and the other end of the fixing pin (16) penetrates through the fixing hole (17) and is clamped with the side wall of the adjusting frame (1).
4. A novel air conditioning air volume adjusting device according to claim 3, characterized in that: and two side walls of the fixing pin (16) close to one ends of the two springs (15) are in sliding connection with the side walls of the groove (14).
5. The novel air conditioning volume adjusting device of claim 1, characterized in that: two parallel outer side walls of the adjusting frame (1) are respectively and fixedly connected with an automatic telescopic clothesline (18) and a fixed hook (19).
6. The novel air conditioning volume adjusting device of claim 1, characterized in that: the motor (20) is a servo motor.
