Portable eyebrow pencil device Download PDFInfo
- Publication number
- CN211703768U CN211703768U CN201922097806.8U CN201922097806U CN211703768U CN 211703768 U CN211703768 U CN 211703768U CN 201922097806 U CN201922097806 U CN 201922097806U CN 211703768 U CN211703768 U CN 211703768U
- Authority
- CN
- China
- Prior art keywords
- eyebrow
- split body
- whole
- components
- function independently
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model discloses a portable eyebrow pencil device, including cap, first components of a whole that can function independently, second components of a whole that can function independently, third components of a whole that can function independently and telescoping device, the cap is provided with 2, the cap lower extreme is provided with first components of a whole that can function independently, and first components of a whole that can function independently lower extreme is provided with the second components of a whole that can function independently, second components of a whole that can function independently lower extreme setting is connected with the cap. This portable eyebrow pencil device is provided with a plurality of components of a whole that can interconnect between the components of a whole that form, conveniently carry, the device has integrated the eyebrow comb simultaneously, the nib of drawing a picture, the eyebrow brush that whitewashes the eyebrow, the eyebrow sword, globular first instrument of painting a eyebrow of carking, can use a pen to accomplish whole eyebrow process of drawing a picture, scrape the eyebrow with the eyebrow sword earlier, reuse eyebrow comb combs, draw the eyebrow shape with the nib of drawing a picture after that, then be stained with the eyebrow brush and a little eyebrow powder is filled, use globular head of carking to carking gently dye the eyebrow peak and the eyebrow head at last, practical convenient and fast, and the device is provided with the telescoping device, length can adjust.
Description
Technical Field
The utility model belongs to the technical field of the cosmetics, specifically be a portable eyebrow pencil device.
Background
Very early gentlewomen know that the naughty asks the Langjun on the body' no one exists when the eyebrow is drawn shallow. Women who tired of eyebrow drawing in the beginning of the 90 s in the 20 th century are popular for eyebrow tattooing, and people hope to have fashionable eyebrow shapes for ever. It is largely unknown that the current or upcoming is going to be outdated, and any permanent investment in the current will not be rewarded accordingly. The eyebrows of the lines are horizontally laid on the face to form a live reverse material for eyebrow pencil businessmen to advertise, the existing eyebrow drawing process is complicated and can be carried out only by matching with various tools, including eyebrow scraping knives, eyebrow brushing powder, eyebrow pencils, eyebrow combs and spherical halation heads. The most convenient pen on the market at present is the combination of the eyebrow brush and the eyebrow pencil, one end of the combination is used for combing the eyebrows, and the other end of the combination is used for drawing the eyebrows. The eyebrow drawing device can be used with other tools to complete all eyebrow drawing steps, so that the eyebrow drawing device is limited in function and inconvenient to carry.
Disclosure of Invention
To the above-mentioned problem that prior art exists, the utility model aims to solve the technical problem that a portable eyebrow pencil device is provided to solve present eyebrow pencil and use complicacy, carry inconvenient problem.
In order to solve the technical problem, the utility model discloses a technical scheme be:
the utility model provides a portable eyebrow pencil device, includes cap, first components of a whole that can function independently, second components of a whole that can function independently, third components of a whole that can function independently and telescoping device, the cap is provided with 2, the cap lower extreme is provided with first components of a whole that can function independently, and first components of a whole that can function independently lower extreme is provided with the second components of a whole that can function independently, second components of a whole that can function independently lower extreme is provided with the third components of a whole that can function independently.
Furthermore, the pen cap is provided with 2, and is first pen cap and second pen cap respectively, first pen cap and first components of a whole that can function independently and second pen cap and third components of a whole that can function independently are the block connection.
Furthermore, the first split body, the second split body and the third split body are in threaded connection, anti-skid patterns are arranged on the outer surfaces of the first split body, the second split body and the third split body, and strip-shaped through grooves are formed in the first split body, the second split body and the third split body.
Furthermore, one end of the first split body is provided with a drawing pen point, and the other end of the first split body is provided with a brow brush.
Furthermore, one end of the second sub-body is provided with a eyebrow powder cavity, and the other end is provided with a spherical halation head and an eyebrow comb.
Furthermore, a cavity is arranged at one end of the third split body, and a eyebrow scraping knife is arranged at the other end of the third split body.
Further, the telescoping device includes first bracing piece, second bracing piece, sliding block and connecting rod, be provided with the bar on the first bracing piece and lead to the groove, the sliding block is connected with first bracing piece through the connecting rod, first bracing piece is provided with the inner chamber, and the diameter of inner chamber slightly is greater than the diameter of second bracing piece, the second bracing piece is sliding connection with first bracing piece.
Furthermore, the pen head, the eyebrow brush and the first split body are connected through a telescopic device, the spherical halation head, the eyebrow comb and the second split body are connected through a telescopic device, and the eyebrow scraping knife and the third split body are connected through a telescopic device.
Has the advantages that: compared with the prior art, the method has the following advantages:
this portable eyebrow pencil device is provided with a plurality of components of a whole that can interconnect between the components of a whole that form, conveniently carry, the device has integrated the eyebrow comb simultaneously, the nib of drawing a picture, the eyebrow brush that whitewashes the eyebrow, the eyebrow sword, globular first instrument of painting a eyebrow of carking, can use a pen to accomplish whole eyebrow process of drawing a picture, scrape the eyebrow with the eyebrow sword earlier, reuse eyebrow comb combs, draw the eyebrow shape with the nib of drawing a picture after that, then be stained with the eyebrow brush and a little eyebrow powder is filled, use globular head of carking to carking gently dye the eyebrow peak and the eyebrow head at last, practical convenient and fast, and the device is provided with the telescoping device, length can adjust.
Drawings

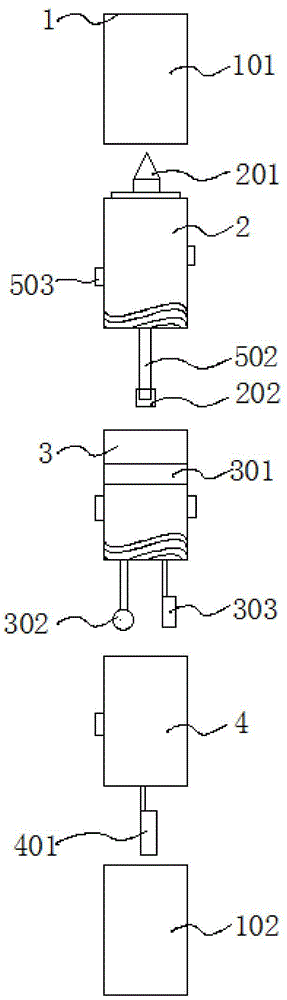

FIG. 1 is a schematic view of a portable eyebrow pencil device;
fig. 2 is a structural view of the telescopic device.
Detailed Description
The present invention will be further described with reference to the accompanying drawings.
As shown in fig. 1 and 2, the portable eyebrow pencil device comprises a pencil cap 1, a first split body 2, a second split body 3, a third split body 4 and a telescopic device 5, wherein the pencil cap 1 is provided with 2 pencil caps, the lower end of the pencil cap 1 is provided with the first split body 2, the lower end of the first split body 2 is provided with the second split body 3, the lower end of the second split body 3 is provided with the third split body 4, the lower end of the third split body 4 is provided with the pencil cap 1, the split bodies are connected through threads, the pencil cap 1 and the split bodies are connected through clamping, the portable eyebrow pencil device is more convenient to disassemble and cannot be easily disconnected.
The number of the pen caps 1 is 2, the pen caps are respectively a first pen cap 101 and a second pen cap 102, the tops of the first pen cap 101 and the first split body 2 and the bottoms of the second pen cap 102 and the third split body 4 are connected in a clamping mode, and the pen caps 1 can be detached when the pen cap is used.
First components of a whole that can function independently 2 and second components of a whole that can function independently 3 and third components of a whole that can function independently 4 are threaded connection, convenient dismantlement, difficult not hard up, and first components of a whole that can function independently 2 and second components of a whole that can function independently 3 and third components of a whole that can function independently 4 surfaces all are provided with anti-skidding decorative pattern, anti-skidding decorative pattern improves frictional force and increases stability, on the other hand plays the effect of decoration, make the device look more elegant appearance, all be provided with the bar logical groove on first components of a whole that can function independently 2 and second components of a whole that can function independently 3 and the third components of a whole that can.
One end of the first split body 2 is provided with a tracing pen point 201, the tracing pen point 201 can be replaced, the color of the tracing pen point 201 is consistent with the color of eyebrow powder, the tracing pen point 201 is made of lead, and the other end is provided with an eyebrow brush 202.
One end of the second body 3 is provided with a eyebrow powder cavity 301, the eyebrow powder cavity 301 can be detached, and the other end is provided with a spherical halation head 302 and an eyebrow comb 303.
One end of the third split body 4 is provided with a cavity, and the other end is provided with a eyebrow scraping knife 401.
The telescoping device 5 comprises a first support rod 501, a second support rod 502, a sliding block 503 and a connecting rod 504, wherein a strip-shaped through groove is formed in the first support rod 501, the strip-shaped through groove is also used for the vertical normal sliding of the connecting rod 504, the sliding block 503 is connected with the first support rod 501 through the connecting rod 504, the sliding block 504 moves upwards, the second support rod 5002 moves upwards, the first support rod 501 is provided with an inner cavity, the diameter of the inner cavity is slightly larger than that of the second support rod 502, the second support rod 502 is in sliding connection with the first support rod 501, friction force exists between the inner part of the first support rod 501 and the second support rod 502, the first support rod 501 cannot easily slide upwards and downwards, and the first support rod 501 cannot slide upwards and downwards at.
Adopt telescoping device 5 to be connected between nib 201 and eyebrow brush 202 and the first components of a whole that can function independently 2, adopt telescoping device 5 to be connected between globular shading head 302 and eyebrow comb 303 and the second components of a whole that can function independently 3, scrape between eyebrow sword 401 and the third components of a whole that can function independently 4 telescoping device 5 be connected, and nib 201 and eyebrow brush 202 and globular shading head 302 and eyebrow comb 303 and scrape eyebrow sword 401 all can be random slip from top to bottom, facilitate the use.
When a user needs to use the portable eyebrow pencil device for work, the portable eyebrow pencil device is firstly checked to have no obvious damage, and the operation can be carried out after the safety check is carried out.
The utility model provides a thought and implementation method of portable eyebrow pencil device, the concrete application way is many, only above is the utility model discloses an optimal implementation mode should point out, to this technical field's ordinary skilled person, is not deviating from the utility model discloses under the prerequisite of principle, can also make a plurality of improvements, these improvements should also be regarded as the utility model discloses a protection scope.
Claims (8)
1. A portable eyebrow pencil device, its characterized in that: the pen cap comprises a pen cap (1), a first split body (2), a second split body (3), a third split body (4) and a telescopic device (5), wherein the number of the pen cap (1) is 2, the first split body (2) is arranged at the lower end of the pen cap (1), the second split body (3) is arranged at the lower end of the first split body (2), the third split body (4) is arranged at the lower end of the second split body (3), and the pen cap (1) is connected to the lower end of the third split body (4).
2. The portable eyebrow pencil device of claim 1, wherein: the pen cap (1) comprises a first pen cap (101) and a second pen cap (102), and the first pen cap (101) and the first split body (2) as well as the second pen cap (102) and the third split body (4) are connected in a clamping mode.
3. The portable eyebrow pencil device of claim 1, wherein: the first split body (2), the second split body (3) and the third split body (4) are in threaded connection, anti-skid patterns are arranged on the outer surfaces of the first split body (2), the second split body (3) and the third split body (4), and strip-shaped through grooves are arranged on the first split body (2), the second split body (3) and the third split body (4).
4. The portable eyebrow pencil device of claim 1, wherein: one end of the first split body (2) is provided with a drawing pen point (201), and the other end is provided with a brow brush (202).
5. The portable eyebrow pencil device of claim 4, wherein: one end of the second body (3) is provided with a eyebrow powder cavity (301), and the other end is provided with a spherical halation head (302) and an eyebrow comb (303).
6. The portable eyebrow pencil device of claim 5, wherein: one end of the third split body (4) is provided with a cavity, and the other end of the third split body is provided with a eyebrow scraping knife (401).
7. The portable eyebrow pencil device of claim 6, wherein: telescoping device (5) include first bracing piece (501), second bracing piece (502), sliding block (503) and connecting rod (504), be provided with the bar on first bracing piece (501) and lead to the groove, sliding block (503) are connected with first bracing piece (501) through connecting rod (504), first bracing piece (501) are provided with the inner chamber, and the diameter of inner chamber slightly is greater than the diameter of second bracing piece (502), second bracing piece (502) are sliding connection with first bracing piece (501).
8. The portable eyebrow pencil device of claim 7, wherein: adopt telescoping device (5) to be connected between nib (201) and eyebrow brush (202) and first components of a whole that can function independently (2), adopt telescoping device (5) to be connected between globular shading head (302) and eyebrow comb (303) and second components of a whole that can function independently (3), scrape between eyebrow sword (401) and third components of a whole that can function independently (4) telescoping device (5) and be connected.
